Appendix: Aspire Freestanding and Canopy Signage Plans

October 14, 2025Pages 26–294 sections

Detailed architectural drawings and specifications for the proposed signage for the development at 1301-1305 Burnside Road.

1 CALL TO ORDER
Sign 1: 123 cm x 200 cm (2.153 m²)Sign 3: 170 cm x 100 cm (1.7 m²)Non-illuminated gateway and wayfinding signage

ASPIRE FREESTANDING SIGNAGE PLAN

01

NON-ILLUMINATED GATEWAY SIGN SITE ID – DOUBLE-SIDED 123 cm x 200 cm (2.153 m²)

  • Black Hardie Panel to match building cladding
  • Mirror Gold Dimensional Letters
  • Red & Blue acrylic stripes
  • Board-formed concrete base

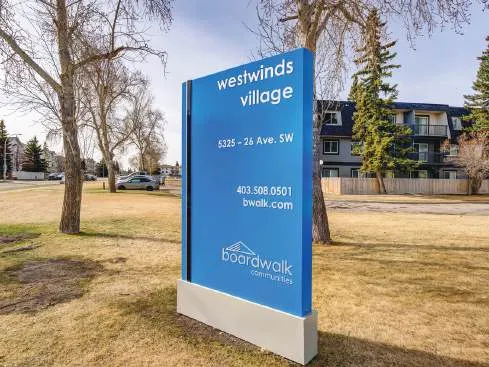

Photo of a similar sign for reference
Photo of a similar sign for reference

Sign Specifications:

  • Width: 123 cm
  • Sign Face Height: 175 cm
  • Base Height: 25 cm
  • Total Height: 200 cm
  • Lettering/Element Heights:
    • "aspire": 15 cm
    • Spacing: 5 cm
    • "1301, 1303, 1305 Burnside Rd. W": 5 cm
    • Spacing: 5 cm
    • "403.776.0022 bwalk.com": 5 cm
    • "boardwalk Lifestyle" logo area: 28 cm

Location:

  • Sign setback 4 m from property line

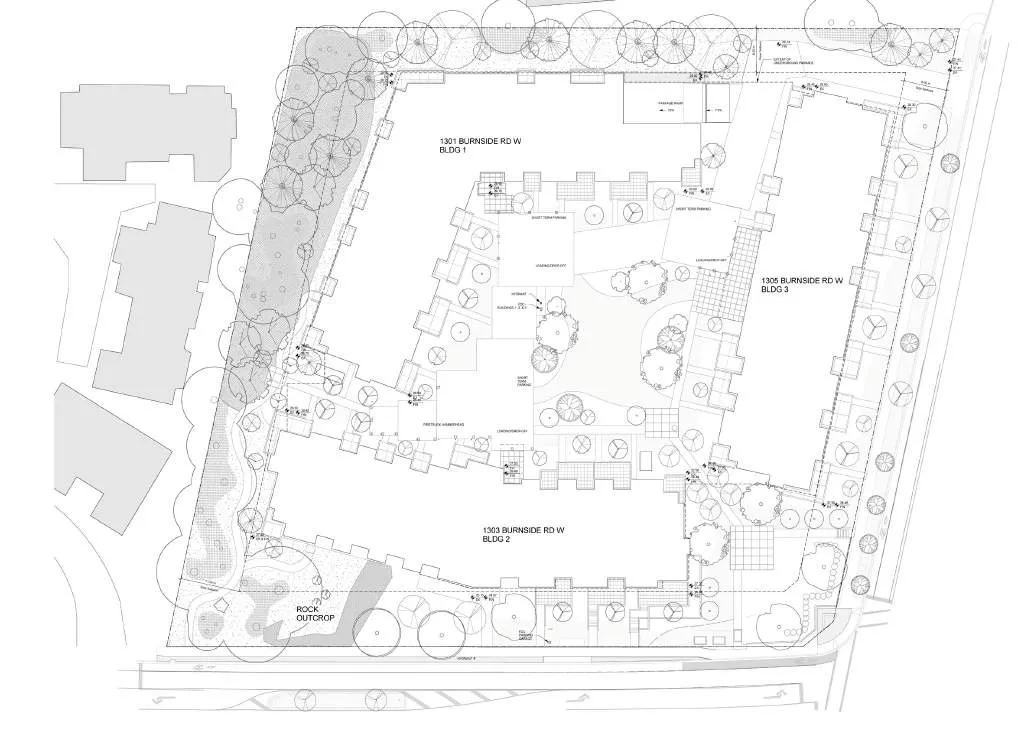

Site plan overview showing sign location
Site plan overview showing sign location

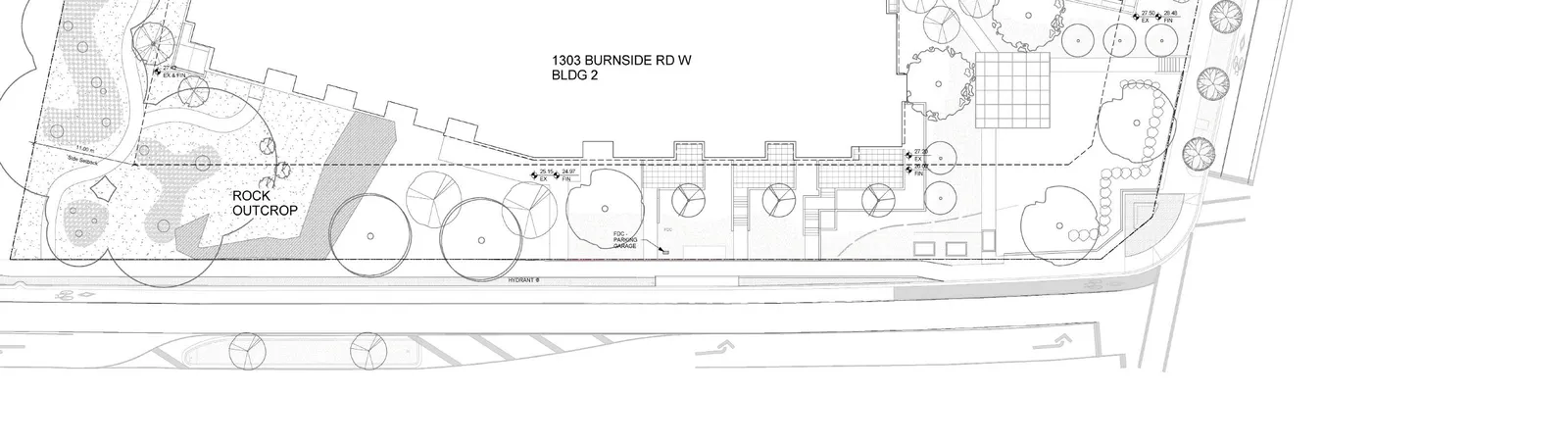

Detailed site plan section showing sign location near the property boundary
Detailed site plan section showing sign location near the property boundary
Page 26–29

ASPIRE FREESTANDING SIGNAGE PLAN

02

FOOT TRAFFIC DIRECTIONAL SIGN – DOUBLE-SIDED 64 cm x 77 cm (0.4928 m²)

  • Black Hardie Panel to match building cladding
  • Mirror Gold Dimensional Letters

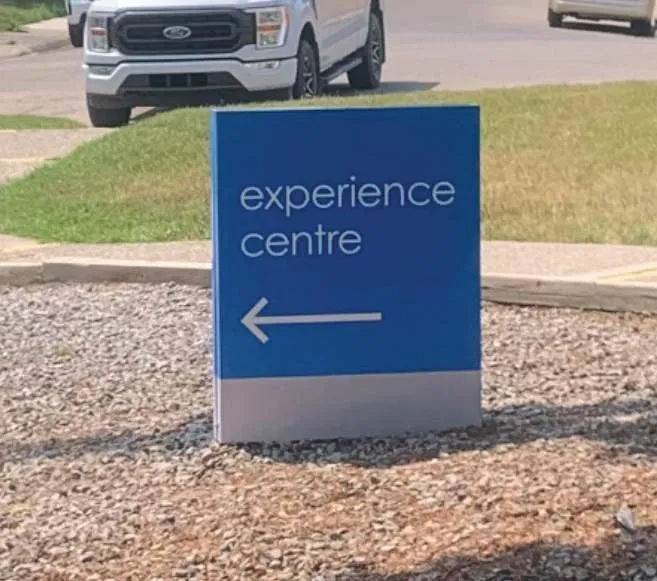

Photo of a similar directional sign for reference
Photo of a similar directional sign for reference

Sign Specifications:

  • Width: 64 cm
  • Total Height: 77 cm
  • "experience centre" text block height: 21 cm

Location:

  • Sign setback 8 m from property line
Page 26–29

ASPIRE FREESTANDING SIGNAGE PLAN

03

PARKADE ENTRANCE WAYFINDING SIGN - DOUBLE-SIDED 170 cm x 100 cm (1.7 m²)

  • Black Hardie Panel to match building cladding
  • Mirror Gold Dimensional Letters
  • Board-formed concrete base

Sign Specifications:

  • Width: 170 cm
  • Total Height: 100 cm
  • Panel Heights:
    • Address panel ("1301, 1303, 1305 Burnside Rd. W"): 6 cm
    • Main brand panel ("aspire"): 12 cm
    • Directional panel ("Visitor and Resident Parking"): 6 cm

Location:

  • Sign setback 1.5 m from property line
Page 26–29

ASPIRE CANOPY SIGNS PLAN

04

NON-ILLUMINATED CANOPY SIGNS Approximate sizes as indicated

  • Black Hardie Panel
  • Mirror Gold Dimensional Letters
  • Red & Blue acrylic stripes

A: Building 01 - South Elevation

  • Sign Dimensions: 168 cm x 17 cm (0.2856 m²)
  • Text: "1301 building one"
  • Note: Black area is existing fascia cladding.
  • Total fascia area shown: 488 cm x 60 cm.

B: Building 02 - South Elevation

  • Sign Dimensions: 168 cm x 17 cm (0.2856 m²)
  • Text: "1303 building two"
  • Note: Black area is existing fascia cladding.
  • Total fascia area shown: 390 cm x 49 cm.

C: North Elevation, facing Helmcken Rd.

  • Address Sign: 168 cm x 17 cm (0.2856 m²)
    • Text: "1303 building two"
  • Brand Sign: 102 cm x 20 cm (0.204 m²)
    • Text: "aspire"
  • Note: Black area is existing fascia cladding.
  • Total fascia banner width: 1311 cm.

4D: Building 3 - West Elevation

  • Experience Centre Sign: 350 cm x 25 cm (0.875 m²)
    • Text: "experience centre"
  • Address Sign: 168 cm x 17 cm (0.2856 m²)
    • Text: "1305 building three"
  • Note: Black area is existing fascia cladding.
  • Total fascia banner width: 1707 cm.
Aerial rendering of the building complex showing signage locations marked A, B, C, and D
Aerial rendering of the building complex showing signage locations marked A, B, C, and D
Page 26–29
