ATTACHMENT 6: Revised Site Plan and Elevations

September 6, 2022Pages 26–291 section

Updated architectural plans showing shifts in building location based on arborist recommendations.

1 CALL TO ORDER
110 High Street04/06/22 (Revision date)

ATTACHMENT 6

PROJECT DATA: PROPOSED ZONE R2

BY-LAW ITEM REQUIRED PROPOSED
LOT AREA 650 m² 1342.57 m²
LOT WIDTH 17.5 m 30.5 m
LOT COVERAGE 30% 28.7% (382.74 m²)
GROSS FLOOR AREA 400 m² 384.33 m²
FSR 0.6 TO 1 0.283 TO 1
HEIGHT 7.5 m 7.23 m
FRONT SETBACK 7.5 m 7.5 m (3.06 BLDG)
REAR SETBACK 7.5 m 25.4 m
SIDE SETBACK 1.5 m (MIN.) 3.3 m
SIDE SETBACK 1.5 m 6.2 m
PARKING 2 PER UNIT 4 + SURFACE
IMPERV. SURFACE — 514.44 m²
OPEN SITE SPACE — 0.802 ha (1069.83 m²)

STREET ADDRESS: 110 HIGH STREET LEGAL DESCRIPTION: BLOCK 17, SECTION 9, ESQ. DIST., PLAN 1407 (P.I.D. 007-430-437) OWNERS: PAUL TERRY & ANTHONY FAIAZZA (1104423 BC LTD) PROJECT DESCRIPTION: REMOVE EXISTING HOUSE AND GARAGE, CONSTRUCT NEW DUPLEX WITH 1 - 3 BEDROOM UNIT, 1 - 4 BEDROOM UNIT, EACH WITH 2 CAR GARAGE; 1 SHARED ACCESSORY BUILDING (ACCESSORY BUILDING W/ 1.5m SIDE SETBACK, 66.88 m² FLOOR AREA, 7.5m REAR SETBACK, 3.8m HEIGHT.)

AVERAGE GRADE CALCULATION: AS PER SCHEDULE A OF ZONING REGULATION: 47.77 m. (CONTOURS SHOW EXISTING)

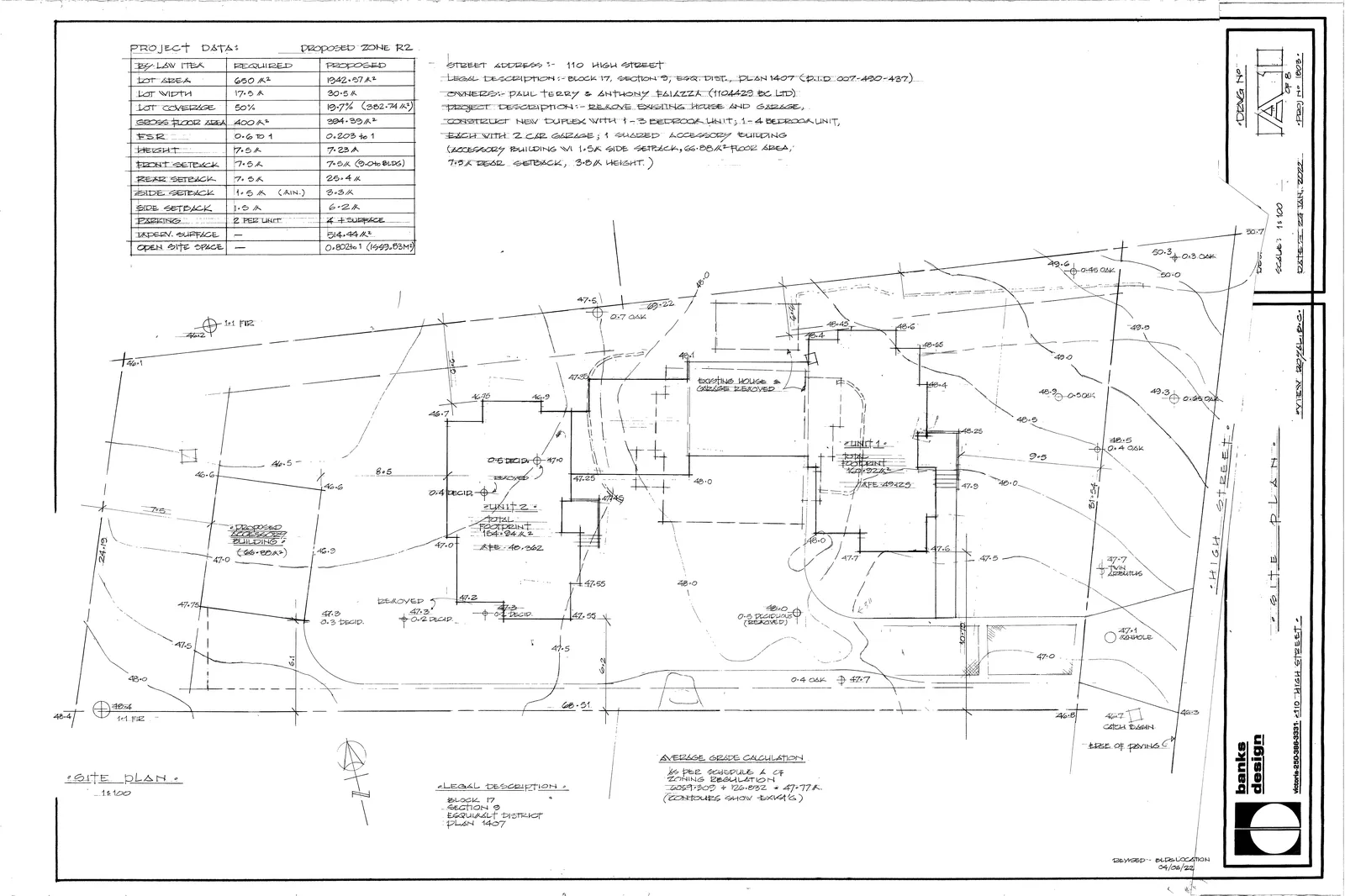

Site Plan for 110 High Street showing proposed duplex units 1 and 2, shared accessory building, topography contours, and project data table
Site Plan for 110 High Street showing proposed duplex units 1 and 2, shared accessory building, topography contours, and project data table

ELEVATIONS

NORTH ELEVATION SOUTH ELEVATION

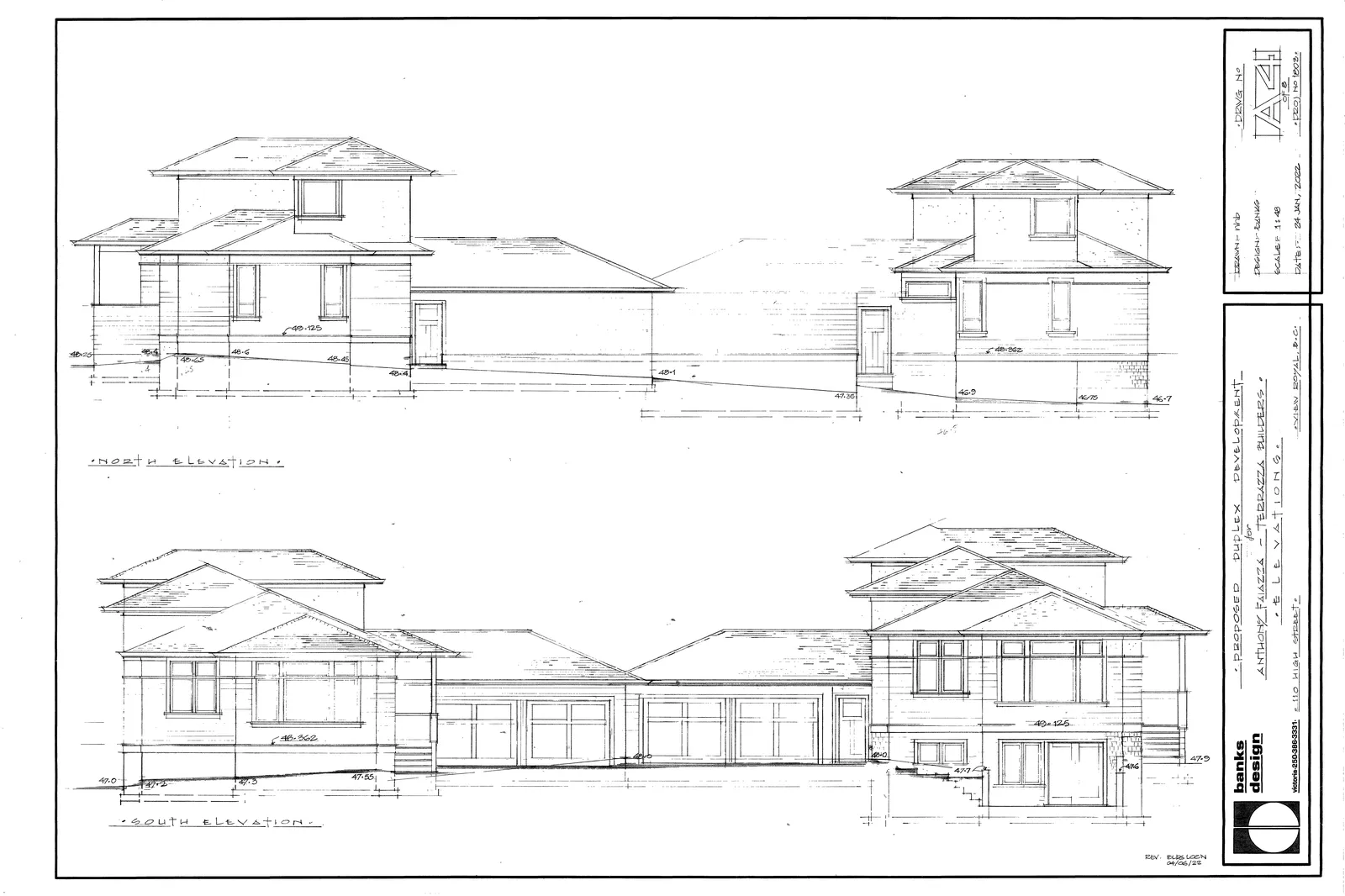

North and South architectural elevations of the proposed duplex buildings showing building heights and window placements
North and South architectural elevations of the proposed duplex buildings showing building heights and window placements

SECTIONS AND EAST ELEVATIONS

SECTION 1 SECTION 2

EAST ELEVATION (HIGH STREET) EAST ELEVATION (REAR UNIT)

Materials Legend:

  • F/GLASS ASPHALT SHINGLES
  • CONT. ALUM. GUTTERS
  • STUCCO
  • COMPOSITE SIDING
  • VINYL WINDOWS
  • WOOD TRIMS
  • WOOD OR COMPOSITE SHINGLES

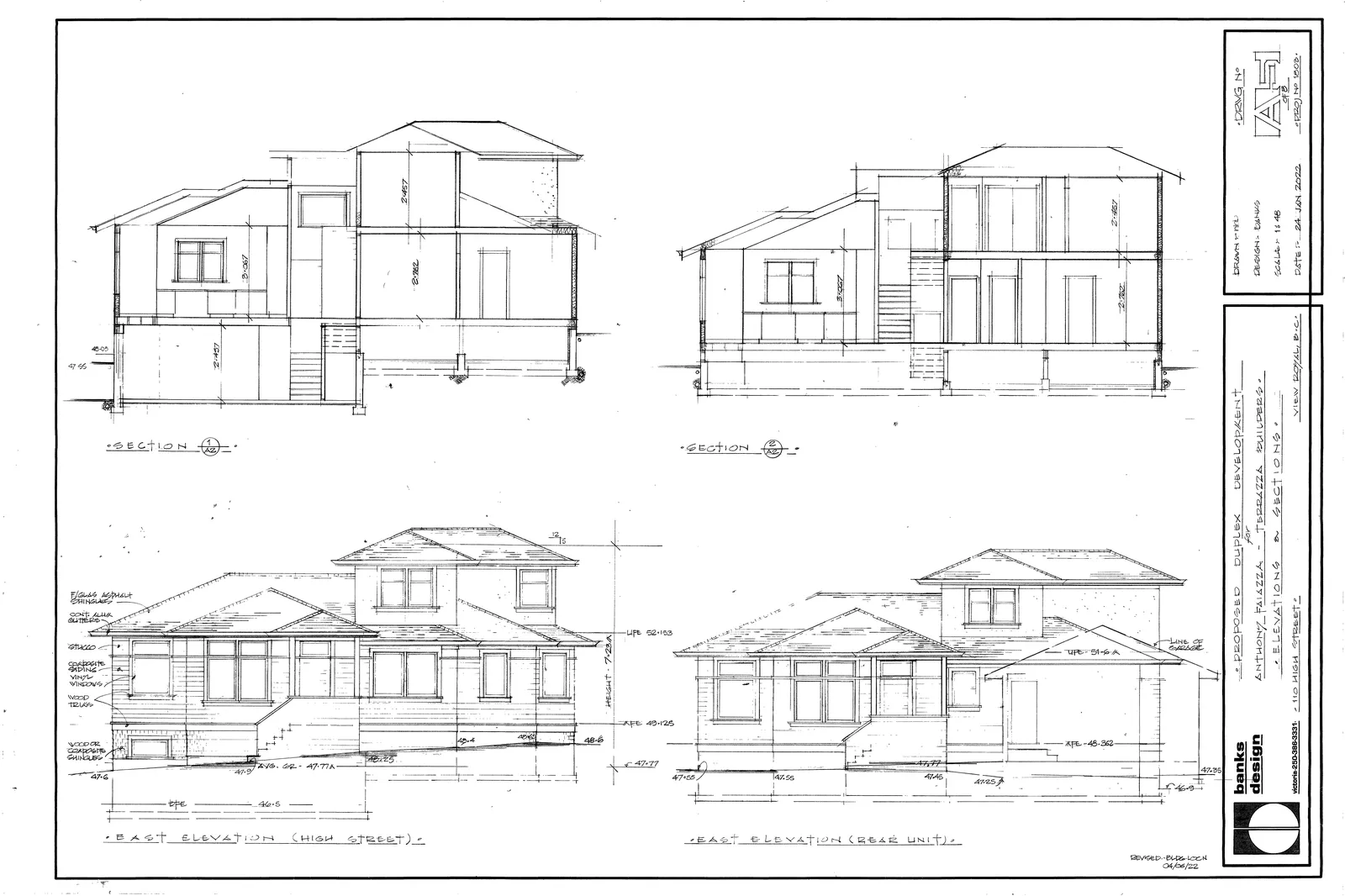

Architectural sections and East elevations for the High Street and Rear units, including a materials list and height markers
Architectural sections and East elevations for the High Street and Rear units, including a materials list and height markers

WEST ELEVATIONS AND BASEMENT PLAN

WEST ELEVATION (ENTIRE BUILDING) WEST ELEVATION (HIGH STREET)

BASEMENT PLAN (HIGH STREET UNIT)

  • Total Area: 50.88 m² (547.64 SF)
  • Includes: Crawlspace, Bedroom No. 4, Activity room, and Bathroom.

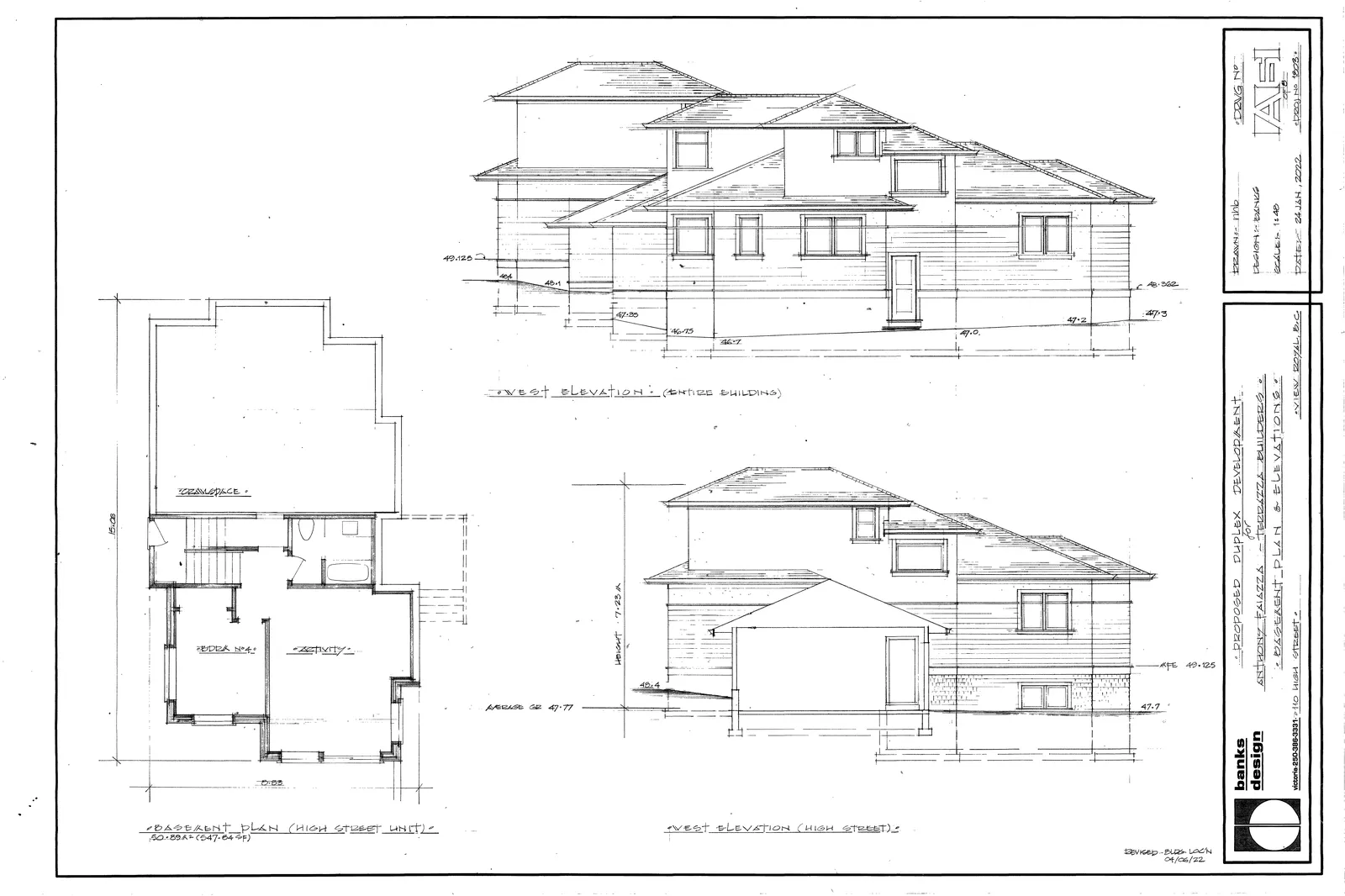

West elevations of the proposed development and a detailed basement floor plan for the High Street unit
West elevations of the proposed development and a detailed basement floor plan for the High Street unit
