Attachment 9: 2nd Floor & Roof Plans Block 'B' (A-203)
May 21, 2013Page 461 section

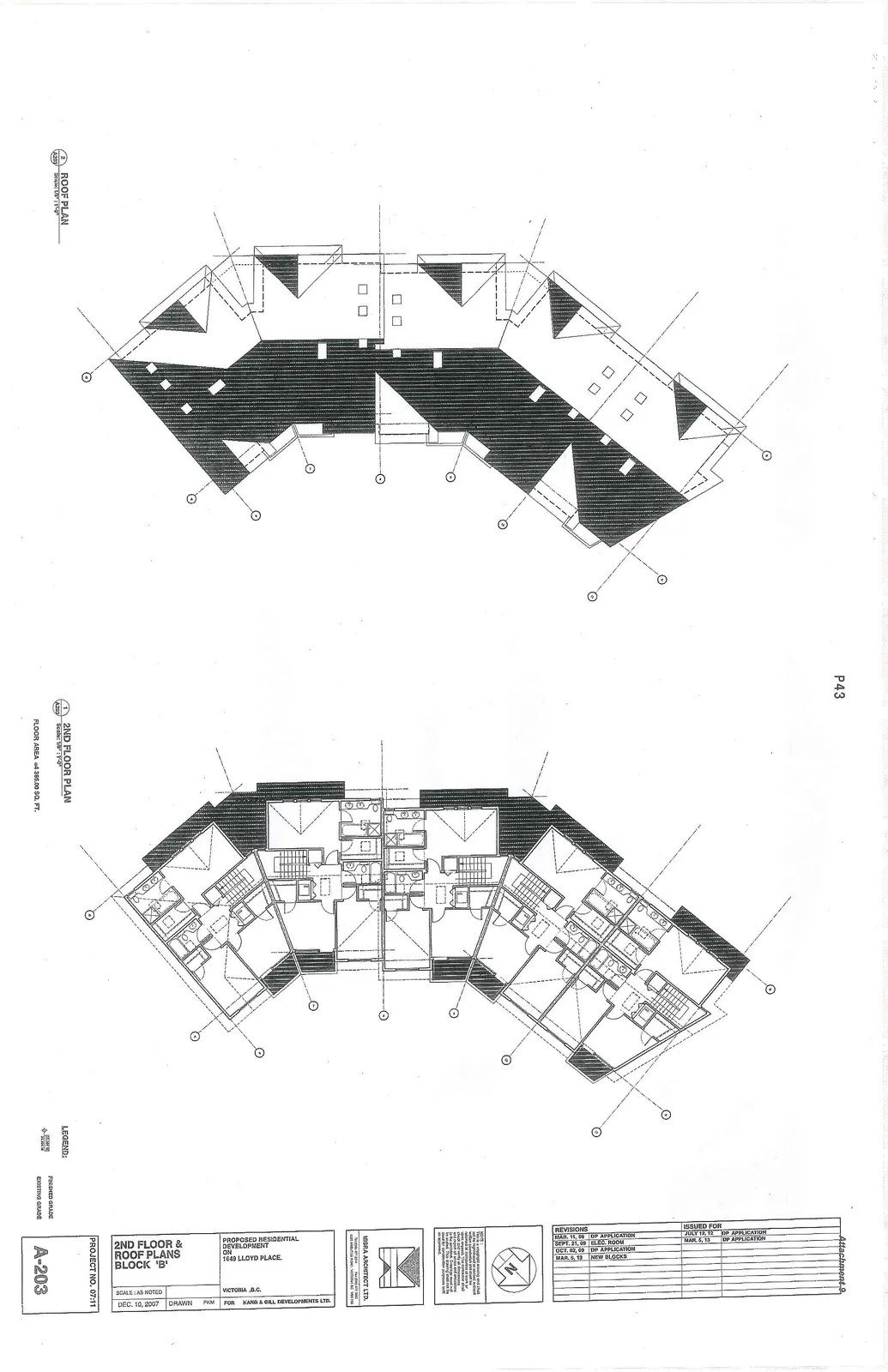

Architectural drawings for the upper levels of Block B.
Second floor area: 4,385 sq. ft.
2ND FLOOR & ROOF PLANS BLOCK 'B'
Project: PROPOSED RESIDENTIAL DEVELOPMENT ON 1049 LLOYD PLACE, VICTORIA B.C. For: KANN & SKILL DEVELOPMENTS LTD. Architect: MIRA ARCHITECT LTD.
| Project No. | Date | Drawn | Scale | Sheet |
|---|---|---|---|---|
| 07:11 | DEC. 10, 2007 | PKM | AS NOTED | A-203 |
REVISIONS
| Date | Description |
|---|---|
| MAR. 11, 08 | DP APPLICATION |
| SEPT. 21, 09 | ELEC. ROOM |
| OCT. 22, 09 | DP APPLICATION |
| MAR. 5, 13 | NEW BLOCK B |
ISSUED FOR
| Date | Description |
|---|---|
| JULY 10, 12 | DP APPLICATION |
| MAR. 5, 13 | DP APPLICATION |
NOTE: This is a copyright drawing and shall not be reproduced in whole or in part without the written permission of MIRA ARCHITECT LTD. The contractor shall check and verify all dimensions, levels and site conditions before the commencement of any work. This drawing shall not be used for construction purposes until so approved.
2 ROOF PLAN
- Scale: 1/8" = 1'-0"
1 2ND FLOOR PLAN
- Scale: 1/8" = 1'-0"
- FLOOR AREA = 4 395.00 SQ. FT.
LEGEND:
- FINISHED GRADE
- EXISTING GRADE
