Attachment 14: Building Sections with Sloped Roof (A-401)

PROPOSED RESIDENTIAL DEVELOPMENT ON 1148 LLOYD PLACE, VICTORIA, B.C.

FOR KANG & GILL DEVELOPMENTS LTD.

Project Information

• Drawing Title: BUILDING SECTIONS WITH SLOPED ROOF
• Project No: 07:11
• Date: DEC. 10, 2007
• Drawn: PKM
• Scale: 1/4" = 1'-0"
• Sheet No: A-401
• Architect: MISRA ARCHITECT LTD.

Revisions

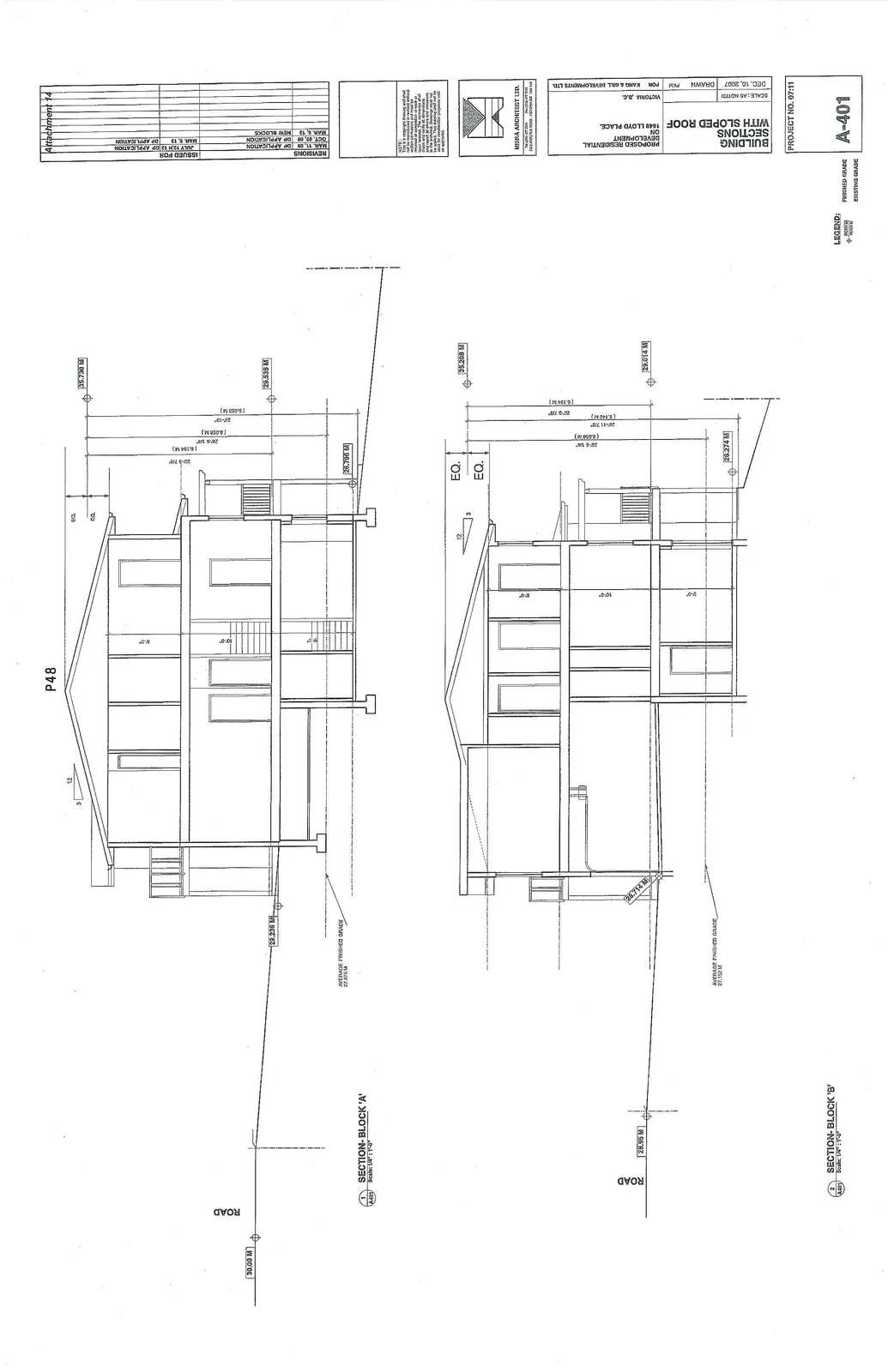

Section Details

1. SECTION- BLOCK 'A'

• Road Elevation: 30.00 M
• Average Finished Grade: 27.675 M
• Key Elevations:
  • Roof Peak: 35.730 M
  • Main Floor Level: 29.536 M
  • Lower Floor Level: 26.786 M
  • Grade at Building: 29.238 M
• Vertical Dimensions:
  • Roof Peak to Main Floor: 20'-3 7/8" (6.194 M)
  • Roof Peak to Lower Floor: 26'-5 1/4" (8.058 M)
  • Total Building Height: 29'-7 1/2" (9.032 M)
• Interior Ceiling Heights: 8'-0", 10'-0", 9'-0"
• Roof Pitch: 3/12

2. SECTION- BLOCK 'B'

• Road Elevation: 28.95 M
• Average Finished Grade: 27.152 M
• Key Elevations:
  • Roof Peak: 35.208 M
  • Main Floor Level: 29.014 M
  • Lower Floor Level: 26.274 M
  • Grade at Building: 26.714 M
• Vertical Dimensions:
  • Roof Peak to Main Floor: 20'-2 7/8" (6.168 M)
  • Roof Peak to Lower Floor: 26'-5 1/4" (8.058 M)
  • Total Building Height: 29'-8 1/8" (9.044 M)
• Interior Ceiling Heights: 9'-0", 10'-0", 2'-0"
• Roof Pitch: 3/12

Legend

• Solid Line: FINISHED GRADE
• Dashed Line: EXISTING GRADE

General Notes

• These are copyrighted drawings and shall not be reproduced in part or whole without written permission and must be returned upon completion of work or request.
• Contractor must verify all dimensions and report all errors and omissions to the architect. Do not scale drawings.
• For coordination purposes only, as approved.
