Attachment 15: Building Sections (A-401a)

BUILDING SECTIONS

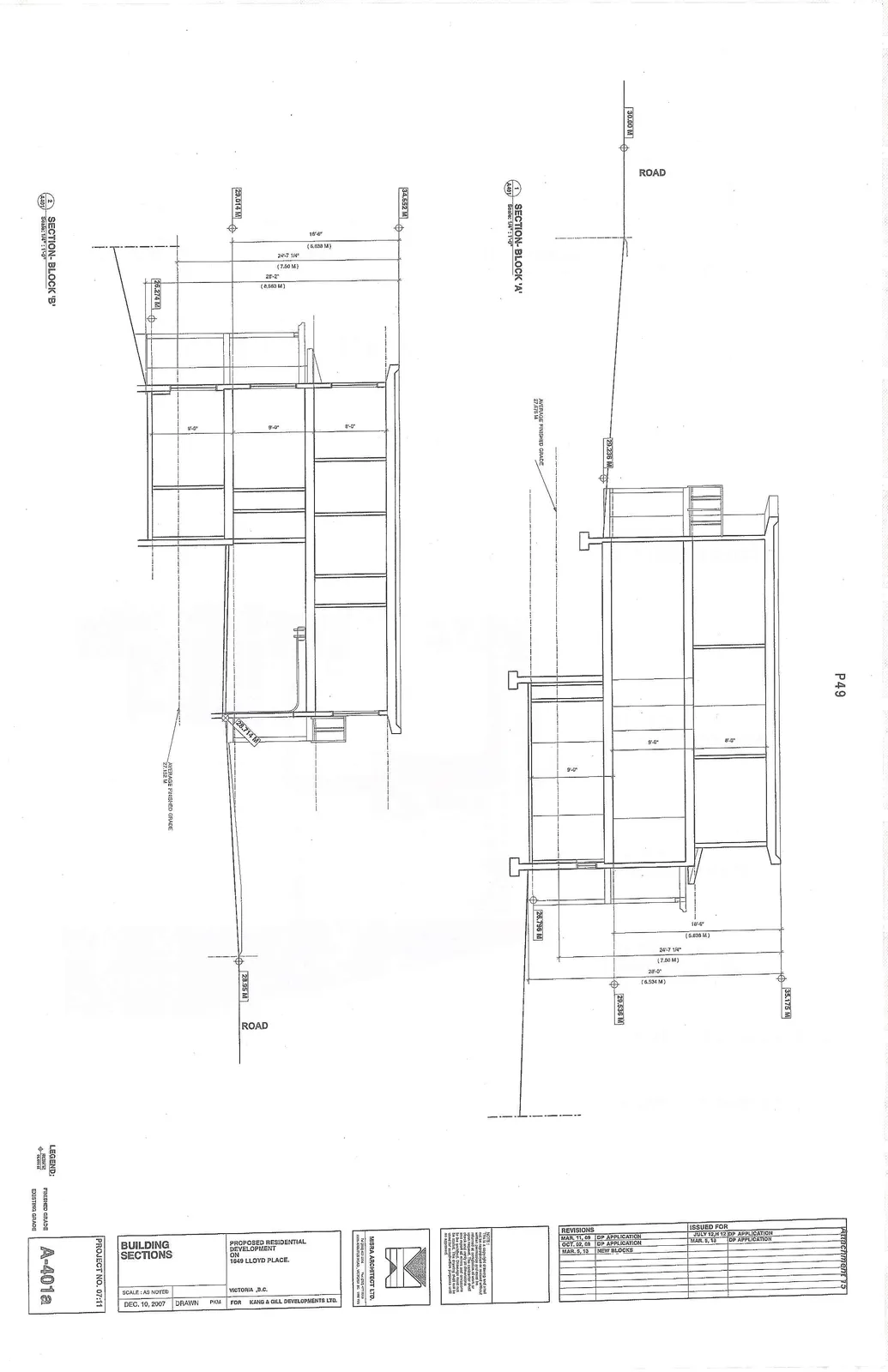

Section Block 'A' architectural drawing showing building profile, floor heights, and elevation levels including top of roof at 35.175 M and road level at 30.00 M.

SECTION- BLOCK 'A'

Scale: 1/4" = 1'-0"

Average Finished Grade: 27.870 M
Road Elevation: 30.00 M
Elevation Levels: 35.175 M, 29.536 M, 28.796 M, 29.239 M

SECTION- BLOCK 'B'

Scale: 1/4" = 1'-0"

Average Finished Grade: 27.162 M
Road Elevation: 28.95 M
Elevation Levels: 34.632 M, 29.014 M, 26.714 M, 25.274 M

Legend

Finished Grade
Existing Grade

Revisions

Date	Description
MAR. 11, 09	DP APPLICATION
OCT. 22, 09	DP APPLICATION
MAR. 5, 10	NEW BLOCKS

Issued For

Date	Description
JULY 11, 2007	DP APPLICATION
MAR. 5, 10	DP APPLICATION

Project Information

Project: PROPOSED RESIDENTIAL DEVELOPMENT ON 1049 LLOYD PLACE, VICTORIA, B.C.
For: KANG & GILL DEVELOPMENTS LTD.
Drawing: BUILDING SECTIONS
Project No.: 07:11
Drawing No.: A-401a
Scale: AS NOTED
Date: DEC. 10, 2007
Drawn: PSM

Notes

This is a copyright drawing and shall not be reproduced or deleted without written permission and shall be returned if requested or if work for which it was intended is not carried out. Verify all dimensions and site aspects on site and announce any discrepancy to the architect for clarification. Do not use for construction purposes until so approved.
