Detailed site plan showing building footprints (1-8), parking stalls, and entry points.

1 CALL TO ORDER
289 Surface Parking Stalls

EAGLE CREEK VILLAGE - SITE PLAN

Watkiss Way & Helmcken Road, View Royal, BC

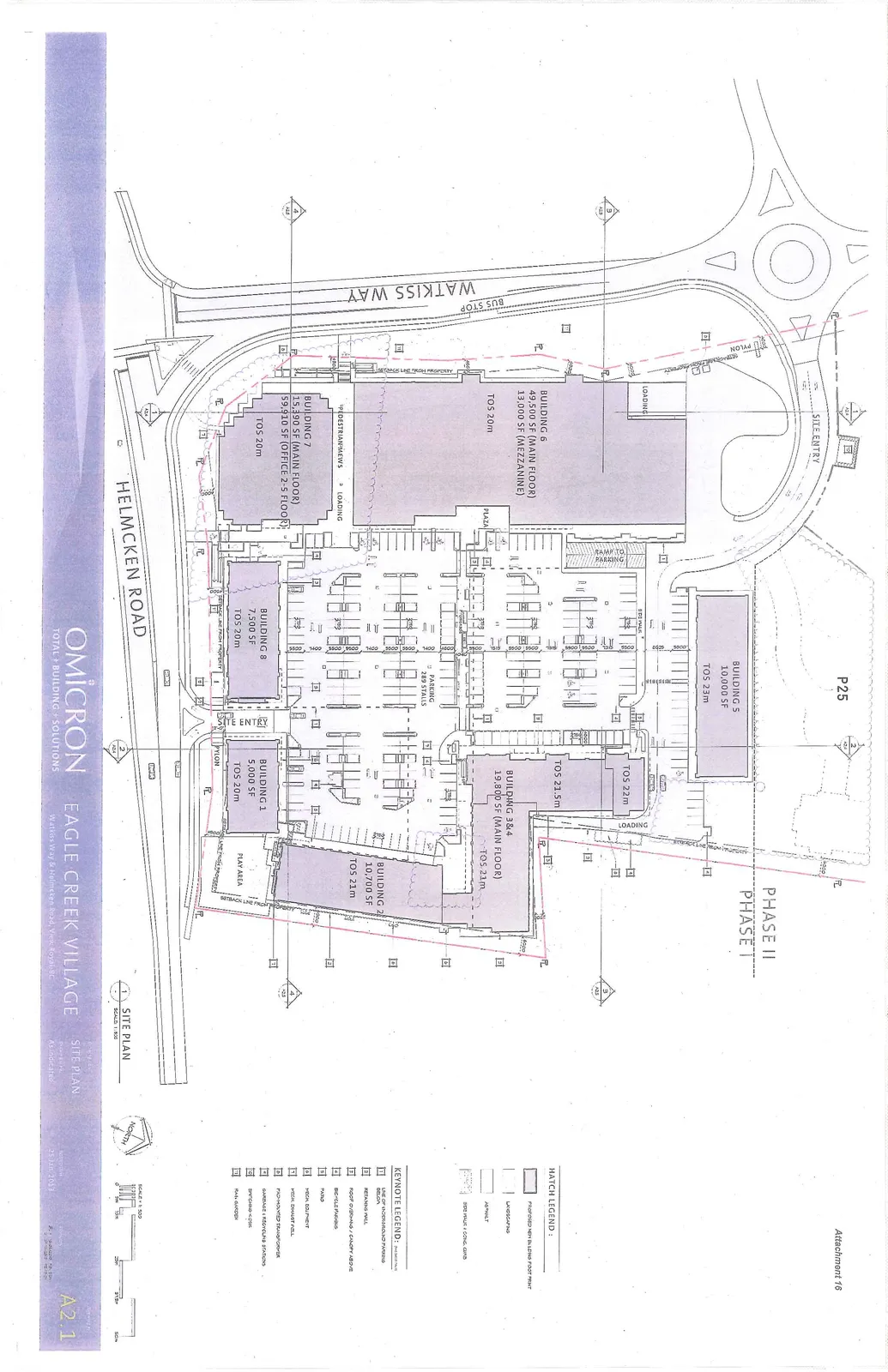

Site plan for Eagle Creek Village showing building footprints, site access from Watkiss Way and Helmcken Road, parking layout, and landscaping areas.
Site plan for Eagle Creek Village showing building footprints, site access from Watkiss Way and Helmcken Road, parking layout, and landscaping areas.

Project Information

  • Project Name: Eagle Creek Village
  • Address: Watkiss Way & Helmcken Road, View Royal, BC
  • Consultant: Omicron Total + Building + Solutions
  • Date: 25 Jan 2013
  • Sheet Number: A2.1
  • Scale: 1:500

Building Schedule

Building Area Details Top of Steel (TOS)
Building 1 5,000 SF 20m
Building 2 10,700 SF 21m
Building 3 & 4 19,800 SF (Main Floor) 21m, 21.5m, 22m
Building 5 10,000 SF 23m
Building 6 49,500 SF (Main Floor), 13,000 SF (Mezzanine) 20m
Building 7 15,390 SF (Main Floor), 59,910 SF (Office 2-5 Floor) 20m
Building 8 7,500 SF 20m

Site Features and Amenities

  • Parking: 289 Stalls
  • Access: Site entry from Watkiss Way roundabout and a secondary entry/exit on Helmcken Road.
  • Pedestrian Infrastructure: Pedestrian mews, plaza area, and sidewalks.
  • Transit: Bus stop located on Watkiss Way.
  • Phasing: The plan identifies areas for Phase I and Phase II.
  • Other Features: Play area, loading zones, ramp to underground parking, and multiple pylon signs.

Hatch Legend

  • Proposed New Building Footprint: (Indicated by solid fill)
  • Landscaping: (Indicated by textured fill)
  • Asphalt: (Indicated by light stipple)
  • Sidewalk & Conc. Curb: (Indicated by clear area with borders)

Keynote Legend

  1. Line of Underground Parking Below
  2. Retaining Wall
  3. Roof Overhang / Canopy Above
  4. Bicycle Parking
  5. Patio
  6. Mech. Equipment
  7. Mech. Exhaust Full
  8. Pad-Mounted Transformer
  9. Garbage & Recycling Stations
  10. Switching Kiosk
  11. Rain Garden

Document Reference

  • Attachment Number: Attachment 16
  • Drawing Title: Site Plan
  • Drawn By: AD/DH
