Attachment 26. Plan A3.5 - Building 3 & 4 Floor Plan

December 10, 2013Page 401 section

Floor plans for Buildings 3 and 4, showing retail space on level 1 and residential units on levels 2-4.

1 CALL TO ORDER
Retail Area: 18,200 SFResidential Area per Floor: 18,834 SF

EAGLE CREEK VILLAGE

Watkiss Way & Helmcken Road, View Royal, BC

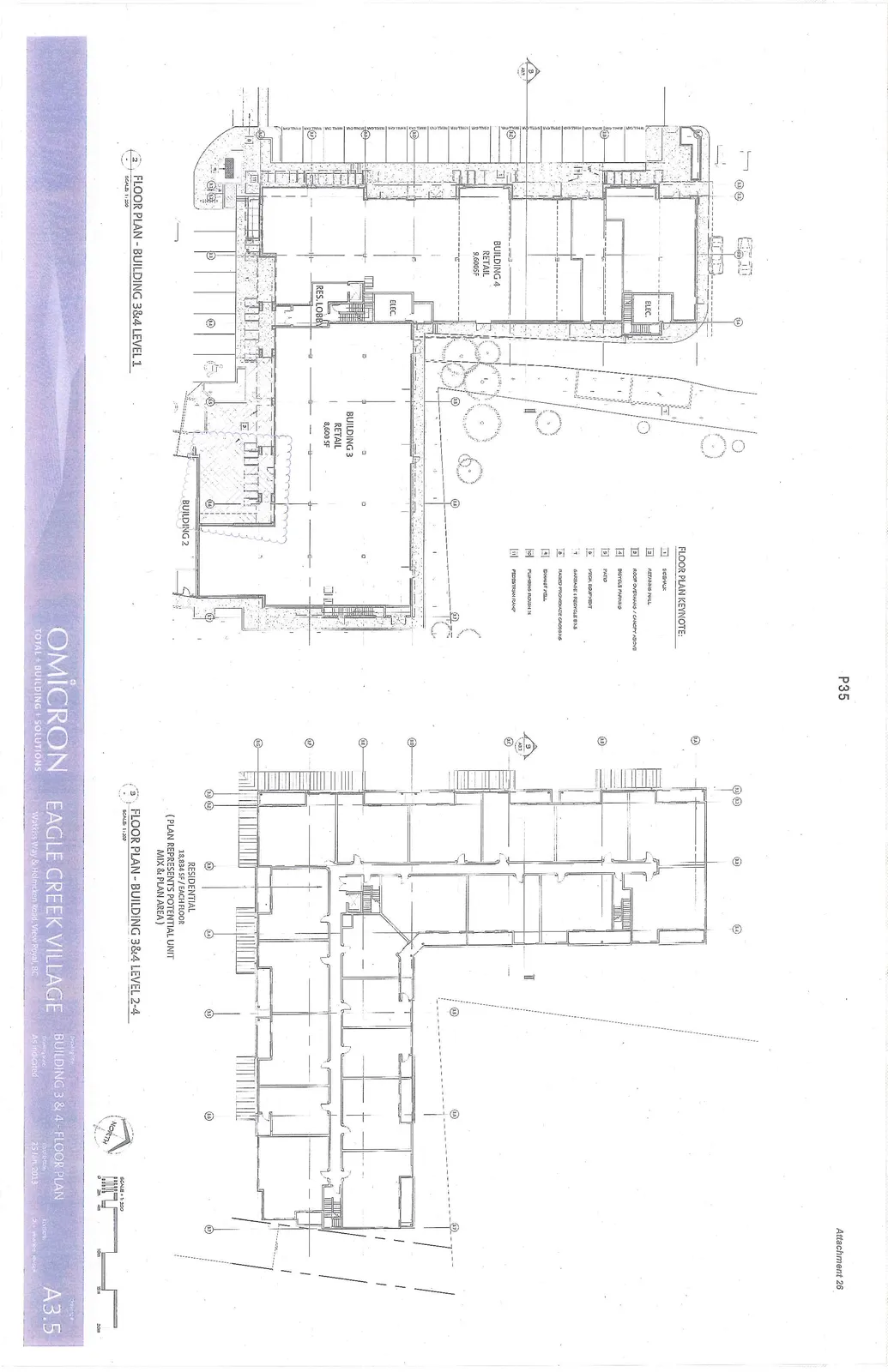

Architectural floor plan drawing for Buildings 3 and 4, featuring Level 1 with retail spaces and Levels 2-4 with residential units, including a keynote list and site context.
Architectural floor plan drawing for Buildings 3 and 4, featuring Level 1 with retail spaces and Levels 2-4 with residential units, including a keynote list and site context.

BUILDING 3 & 4 - FLOOR PLAN

Project Information

  • Project Name: Eagle Creek Village
  • Address: Watkiss Way & Helmcken Road, View Royal, BC
  • Architect/Developer: Omicron - Total + Building + Solutions
  • Date: 25 Jan. 2013
  • Drawing Number: A3.5
  • Drawing Title: Building 3 & 4 - Floor Plan
  • Scale: As Indicated (1:200 / 1:500)

FLOOR PLAN KEYNOTE

  1. SIDEWALK
  2. RETAINING WALL
  3. ROOF OVERHANG / CANOPY ABOVE
  4. BICYCLE PARKING
  5. PATIO
  6. MECH. EQUIPMENT
  7. GARBAGE & RECYCLE BINS
  8. RAISED PROMENADE CROSSING
  9. SHUNT WALL
  10. PLUMBING ROUGH-IN
  11. PEDESTRIAN RAMP

FLOOR PLAN - BUILDING 3&4 LEVEL 1

  • Scale: 1:200
  • Building 4 Retail: 9,600 SF
  • Building 3 Retail: 8,600 SF
  • Key Features: Electrical rooms, Residential Lobby, connection to Building 2.

FLOOR PLAN - BUILDING 3&4 LEVEL 2-4

  • Scale: 1:200
  • Residential Area: 18,834 SF / EACH FLOOR
  • Note: Plan represents potential unit mix & plan area.
