Attachment 29. Plan A3.8 - Building 5 Plans
December 10, 2013Page 431 section

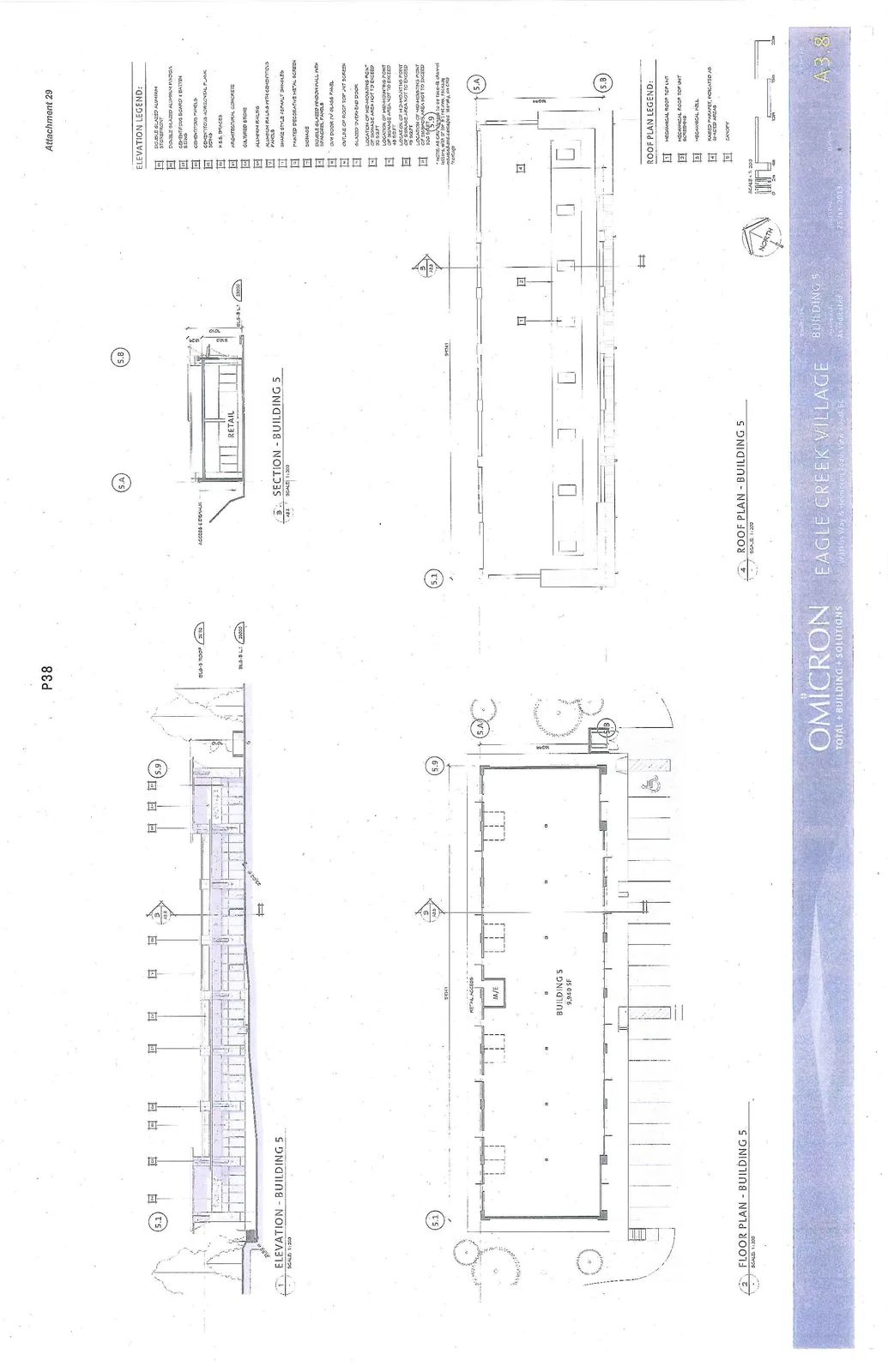

Floor, roof, and elevation plans for Building 5 (9,940 SF).
EAGLE CREEK VILLAGE - BUILDING 5
Watkiss Way & Helmcken Road, View Royal, BC Date: 25 Jan 2013
Elevation - Building 5
Scale: 1:200
- BLG-5 ROOF: 35110
- BLG-5 L.1: 23000
Section - Building 5
Scale: 1:200
- Details show retail space, access sidewalk, and roof heights.
Floor Plan - Building 5
Scale: 1:300
- Building 5 Total Area: 9,940 SF
- Includes M/E room and retail access points.
Roof Plan - Building 5
Scale: 1:200
Elevation Legend
| Key | Description |
|---|---|
| 01 | DOUBLE GLAZED ALUMINUM STOREFRONT |
| 02 | DOUBLE GLAZED ALUMINUM PUNCHED |
| 03 | CEMENTITIOUS BOARD & BATTEN SIDING |
| 04 | CEMENTITIOUS PANELS |
| 05 | CEMENTITIOUS HORIZONTAL PLANK SIDING |
| 06 | P.S.S. SPACERS |
| 07 | ARCHITECTURAL CONCRETE |
| 08 | CULTURED STONE |
| 09 | ALUMINUM RAILING |
| 10 | ALUMINUM RAILING WITH CEMENTITIOUS PANELS |
| 11 | SHAKE STYLE ASPHALT SHINGLES |
| 12 | PAINTED DECORATIVE METAL SCREEN |
| 13 | SIGNAGE |
| 14 | DOUBLE GLAZED WINDOW WALL WITH SPANDREL PANELS |
| 15 | O.H. DOOR W/ GLASS PANEL |
| 16 | OUTLINE OF ROOF TOP UNIT SCREEN |
| 17 | GLAZED OVERHEAD DOOR |
| 18 | LOCATION OF MID-MOUNTING POINT OF SIGNAGE AREA NOT TO EXCEED 30 SQFT |
| 19 | LOCATION OF MID-MOUNTING POINT OF SIGNAGE AREA NOT TO EXCEED 48 SQFT |
| 20 | LOCATION OF MID-MOUNTING POINT OF SIGNAGE AREA NOT TO EXCEED 75 SQFT |
| 21 | LOCATION OF MID-MOUNTING POINT OF SIGNAGE AREA NOT TO EXCEED 120 SQFT |
*NOTE: ALL SIGNAGE TO BE FACELIT CHANNEL LETTERS, WITH 2" OF STROKE, PROVIDING INDIVIDUAL ILLUMINATED LETTERS ON CRS FRONTAGE.
Roof Plan Legend
| Key | Description |
|---|---|
| 1 | MECHANICAL ROOF TOP UNIT |
| 2 | MECHANICAL ROOF TOP UNIT SCREENING |
| 3 | MECHANICAL WELL |
| 4 | RAISED PARAPET, INDICATED AS SHADED AREAS |
| 5 | CANOPY |
