Attachment 36. Plan A3.15 - Building 7 Elevations

December 10, 2013Page 501 section

Four directional elevations for Building 7 showing the full building height.

1 CALL TO ORDER

Eagle Creek Village

Building 7 - Elevations

Project Information

  • Total + Building + Solutions: Omicron
  • Location: Watkiss Way & Helmcken Road, View Royal, BC
  • Date: 08 July 2013
  • Drawing Number: A3.15

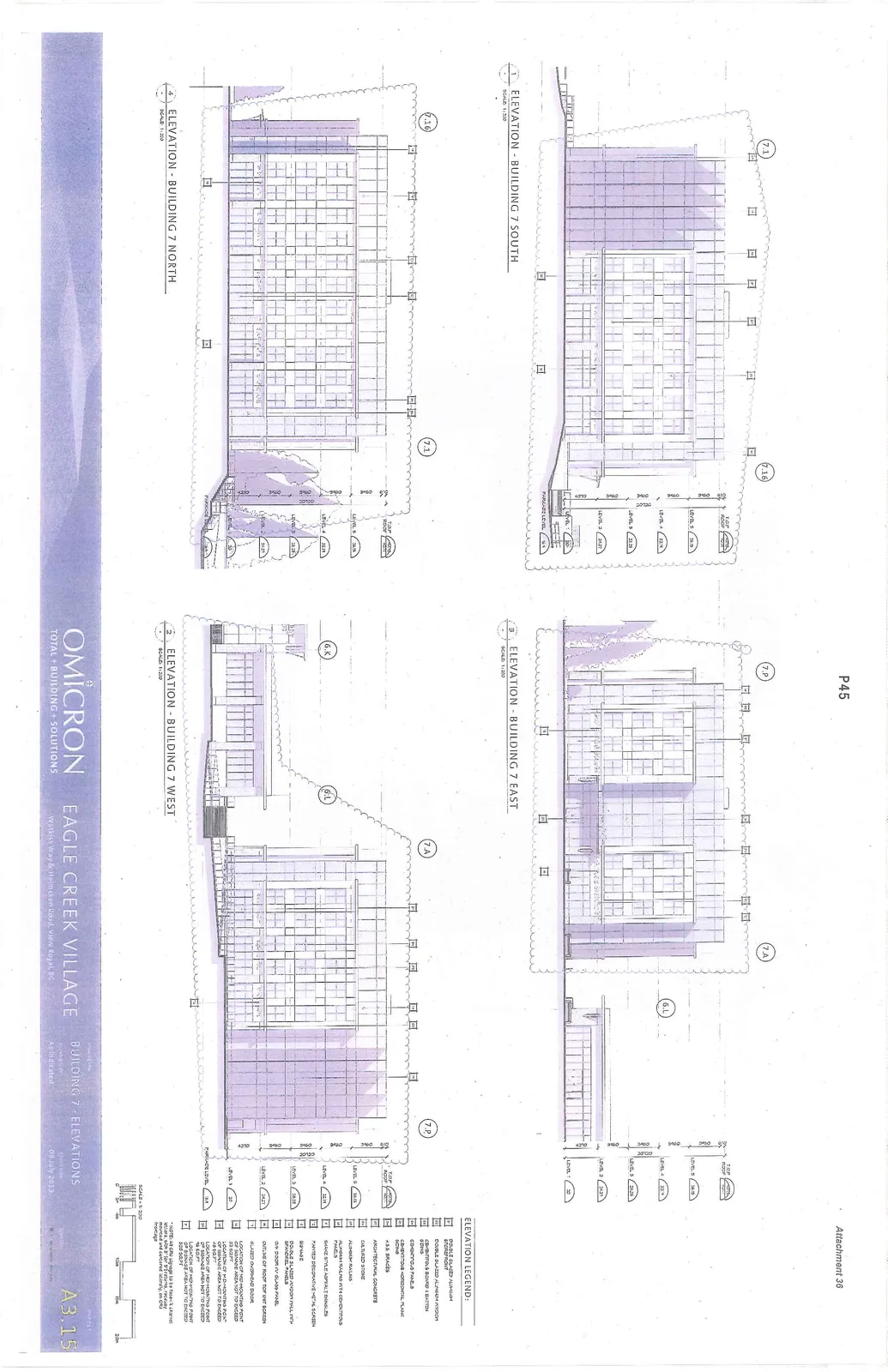

Architectural elevation drawings showing Building 7 South, Building 7 East, Building 7 North, and Building 7 West. The drawings include labels for building levels, floor heights, and material references corresponding to the elevation legend.
Architectural elevation drawings showing Building 7 South, Building 7 East, Building 7 North, and Building 7 West. The drawings include labels for building levels, floor heights, and material references corresponding to the elevation legend.

Elevation Drawings

  1. Elevation - Building 7 South (Scale: 1:200)
  2. Elevation - Building 7 West (Scale: 1:200)
  3. Elevation - Building 7 East (Scale: 1:200)
  4. Elevation - Building 7 North (Scale: 1:200)

Floor Level Data

Level Elevation Height
TOP ROOF 40.01
LEVEL 5 36.19
LEVEL 4 32.14
LEVEL 3 28.29
LEVEL 2 24.21
LEVEL 1 20
PARKADE LEVEL 16.5

Elevation Legend

Key Material / Description
1 Double Glazed Aluminum Storefront
2 Double Glazed Aluminum Window
3 Cementitious Board & Batten Siding
4 Cementitious Panels
5 Cementitious Horizontal Plank Siding
6 H.S.S. Braces
7 Architectural Concrete
8 Cultured Stone
9 Aluminum Railing
10 Aluminum Railing with Cementitious Panels
11 Shake Style Asphalt Shingles
12 Painted Decorative Metal Screen
13 Signage
14 Double Glazed Window Wall with Spandrel Panels
15 C/W Door (In Glass Panel)
16 Outline of Roof Top Unit Screen
17 Glazed Overhead Door
18 Location of Mid-Mounting Point of Signage Area not to exceed 20 SQ FT
19 Location of Mid-Mounting Point of Signage Area not to exceed 48 SQ FT
20 Location of Mid-Mounting Point of Signage Area not to exceed 75 SQ FT
21 Location of Mid-Mounting Point of Signage Area not to exceed 200 SQ FT

Note: *NOTE: AS PER SIGNAGE BYLAW PART 8 SIGNS WITHIN 100M OF AN INTERSECTION, FRONTAGES MUST BE MEASURED AND VERIFIED TO CALCULATE MAX SIGNAGE.
