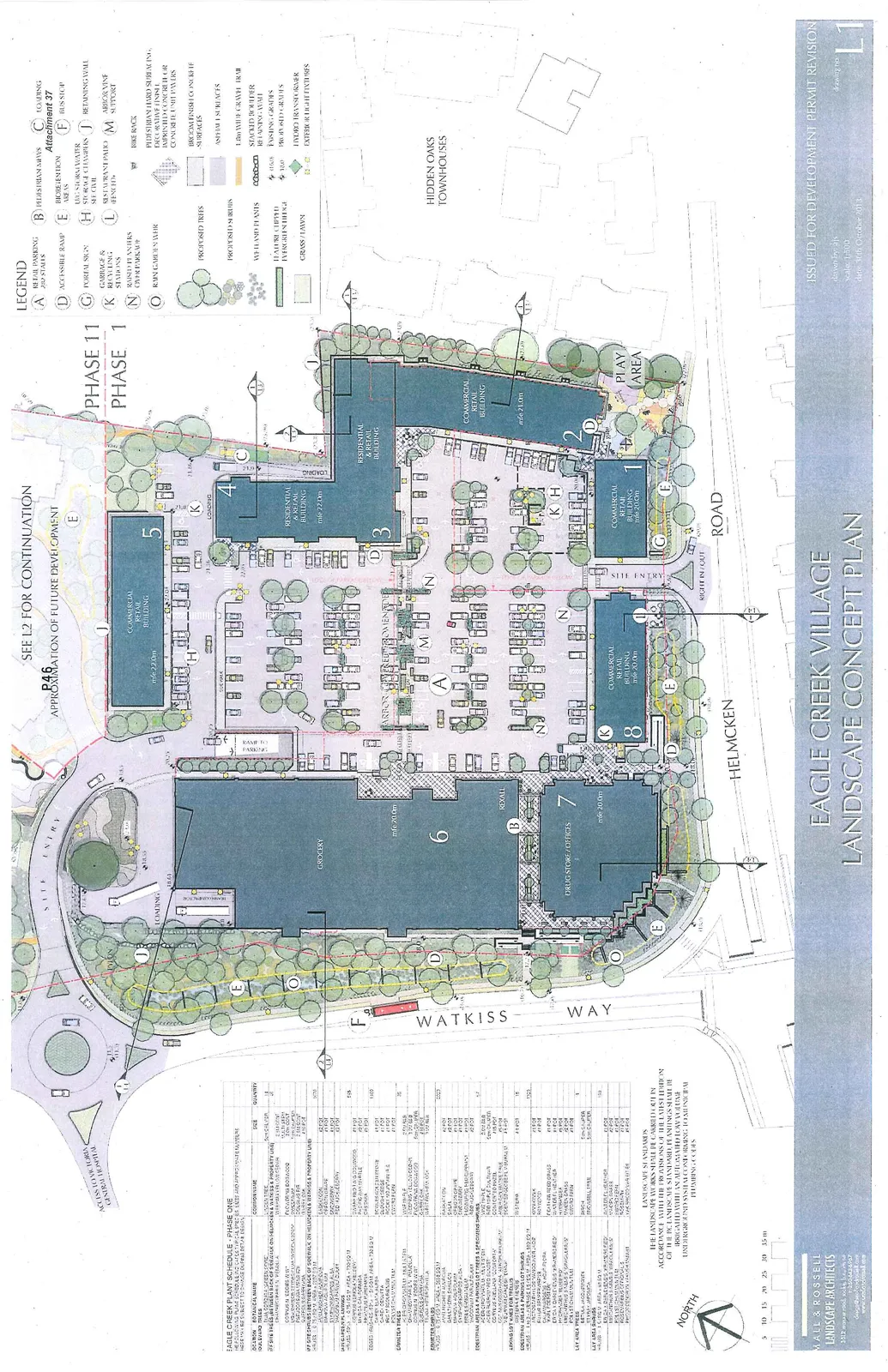

Attachment 37. Plan L1 - Landscape Concept Plan

EAGLE CREEK VILLAGE - LANDSCAPE CONCEPT PLAN

Landscape concept plan for Eagle Creek Village, showing various commercial, retail, and residential buildings (numbered 1 through 8), parking areas, pedestrian mews, and green spaces. The site is bounded by Watkiss Way to the west and Helmcken Road to the south, with Victoria General Hospital located to the northwest.

LEGEND

A RETAIL PARKING (252 STALLS)
B PEDESTRIAN MEWS
C LOADING
D ACCESSIBLE RAMP
E BIORETENTION AREAS
F BUS STOP
G PORTAL SIGN
H LOG STORM WATER STORAGE CHAMBERS SEE CIVIL
J RETAINING WALL
K GARBAGE & RECYCLING STATIONS
L RESTAURANT PATIO (FENCED)
M ARBOR VINE SUPPORT
N RAISED PLANTERS OVER PARKADE
O RAIN GARDEN WEIR

SYMBOLS

BIKE RACK
PEDESTRIAN HARD SURFACING: DECORATIVE FINISH / IMPRINTED CONCRETE OR CONCRETE UNIT PAVERS
BROOM FINISH CONCRETE SURFACES
ASPHALT SURFACES
PROPOSED TREES
PROPOSED SHRUBS
1.8m WIDE GRAVEL TRAIL
STACKED BOULDER RETAINING WALL
WETLAND PLANTS
FINISHING GRADES
FEATURE CLIPPED EVERGREEN HEDGE
PROPOSED GRADES
HYDRO TRANSFORMER
GRASS / LAWN
EXTERIOR LIGHT FIXTURES

EAGLE CREEK VILLAGE PLANT SCHEDULE - PHASE ONE

The following plant schedule is a list of typical species. Sizes and approximate numbers may be subject to change during detail design.

BOTANICAL NAME	COMMON NAME	SIZE	QUANTITY
BOULEVARD TREES
ACER RUBRUM 'BOWHALL'	RED MAPLE	6cm CALIPER	33
OFF-SITE TREES (BETWEEN BACK OF SIDEWALK ON HELMCKEN & WATKISS & PROPERTY LINE)
ACER MACROPHYLLUM	BIGLEAF MAPLE	5cm CALIPER	3
CRATAEGUS DOUGLASII	BLACK HAWTHORN	5cm CALIPER	2
CORNUS NUTTALLII	PACIFIC DOGWOOD	5cm CALIPER	3
POPULUS TREMULOIDES	TREMBLING ASPEN	5cm CALIPER	1
QUERCUS GARRYANA	GARRY OAK	5cm CALIPER	1
OFF-SITE SHRUBS (BETWEEN BACK OF SIDEWALK ON HELMCKEN & WATKISS & PROPERTY LINE)
AMELANCHIER ALNIFOLIA	SASKATOON	#1 POT	31
CORNUS SERICEA	RED OSIER DOGWOOD	#1 POT	16
SYMPHORICARPOS ALBUS	SNOWBERRY	#1 POT	21
ROSA GYMNOCARPA	WILD ROSE	#1 POT	30
WETLANDS / BIORETENTION / RIPARIAN PLANTS
CORNUS SERICEA	RED OSIER DOGWOOD	#1 POT	215
PHYSOCARPUS CAPITATUS	PACIFIC NINEBARK	#1 POT	145
SAMBUCUS RACEMOSA	RED ELDERBERRY	#1 POT	145
PARKING LOT TREES
ACER RUBRUM 'SUN VALLEY'	RED MAPLE	6cm CALIPER	20
CERCIDIPHYLLUM JAPONICUM	KATSURA TREE	6cm CALIPER	12
PRUNUS X YEDOENSIS 'AKEBONO'	FLOWERING CHERRY	6cm CALIPER	8
PARKING LOT SHRUBS
AMELANCHIER ALNIFOLIA	SASKATOON	#1 POT	45
ARCTOSTAPHYLOS UVA-URSI	KINNIKINNICK	#1 POT	320
BERBERIS THUNBERGII 'CRIMSON PYGMY'	JAPANESE BARBERRY	#2 POT	120
CORNUS SERICEA 'KELSEYI'	KELSEY DOGWOOD	#2 POT	165
GAULTHERIA SHALLON	SALAL	#1 POT	185
MAHONIA AQUIFOLIUM	TALL OREGON GRAPE	#2 POT	150
RIBES SANGUINEUM	RED FLOWERING CURRANT	#2 POT	120
SYMPHORICARPOS ALBUS	SNOWBERRY	#1 POT	185
PEDESTRIAN AREA & PARKING LOT TREES
ACER PALMATUM 'BLOODGOOD'	JAPANESE MAPLE	1.8m HEIGHT	6
ACER RUBRUM 'RED SUNSET'	RED MAPLE	6cm CALIPER	5
CARPINUS BETULUS 'COLUMNARIS'	COLUMNAR HORNBEAM	6cm CALIPER	6
QUERCUS PALUSTRIS	PIN OAK	6cm CALIPER	3
PEDESTRIAN AREA & PARKING LOT SHRUBS
ABELIA X GRANDIFLORA 'EDWARD GOUCHER'	GLOSSY ABELIA	#2 POT	240
ACER PALMATUM	JAPANESE MAPLE	1.8m HEIGHT	4
CORNUS SERICEA 'KELSEYI'	KELSEY DOGWOOD	#2 POT	310
ERICA X DARLEYENSIS 'WHITE PERFECTION'	WINTER HEATHER	#1 POT	420
HYDRANGEA QUERCIFOLIA	OAKLEAF HYDRANGEA	#2 POT	110
ILEX CRENATA 'GREEN LUSTRE'	JAPANESE HOLLY	#2 POT	160
MAHONIA NERVOSA	LOW OREGON GRAPE	#1 POT	240
RHODODENDRON 'PJM'	RHODODENDRON	#2 POT	120
ENTRY FEATURE TREES
BETULA PAPYRIFERA	PAPER BIRCH	6cm CALIPER	4
QUERCUS ROBUR 'FASTIGIATA'	ENGLISH OAK	6cm CALIPER	4
LAWN AREAS
MIXED GRASS	SOD	ROLL	1000m²

LANDSCAPE STANDARDS

ALL LANDSCAPE WORKS SHALL BE CARRIED OUT IN ACCORDANCE WITH THE PROVISIONS OF THE LATEST EDITION OF THE BC LANDSCAPE STANDARD. ALL PLANTINGS SHALL BE IRRIGATED WITH AN AUTOMATED LOW VOLUME UNDERGROUND SYSTEM CONFORMING TO MUNICIPAL PLUMBING CODES.

PROJECT INFORMATION

Project Name: EAGLE CREEK VILLAGE
Title: LANDSCAPE CONCEPT PLAN
Architect: M'ALL & ROSSELL LANDSCAPE ARCHITECTS
Status: ISSUED FOR DEVELOPMENT PERMIT REVISION
Design by: als
Scale: 1:500
Date: 31st October 2013
Drawing No: L1
