Eagle Creek Village Landscape Cross Sections (Attachment 39)

December 10, 2013Page 531 section

Visual cross-section diagrams showing buffer planting, property lines, and retaining walls for Buildings 2, 3, and 4.

1 CALL TO ORDER
Building 2Building 3Building 4Hidden Oaks

EAGLE CREEK VILLAGE LANDSCAPE CROSS SECTIONS

Technical landscape cross-sections for Eagle Creek Village, detailing the interface between site buildings and property lines, including buffer plantings, retaining walls, and elevations.
Technical landscape cross-sections for Eagle Creek Village, detailing the interface between site buildings and property lines, including buffer plantings, retaining walls, and elevations.

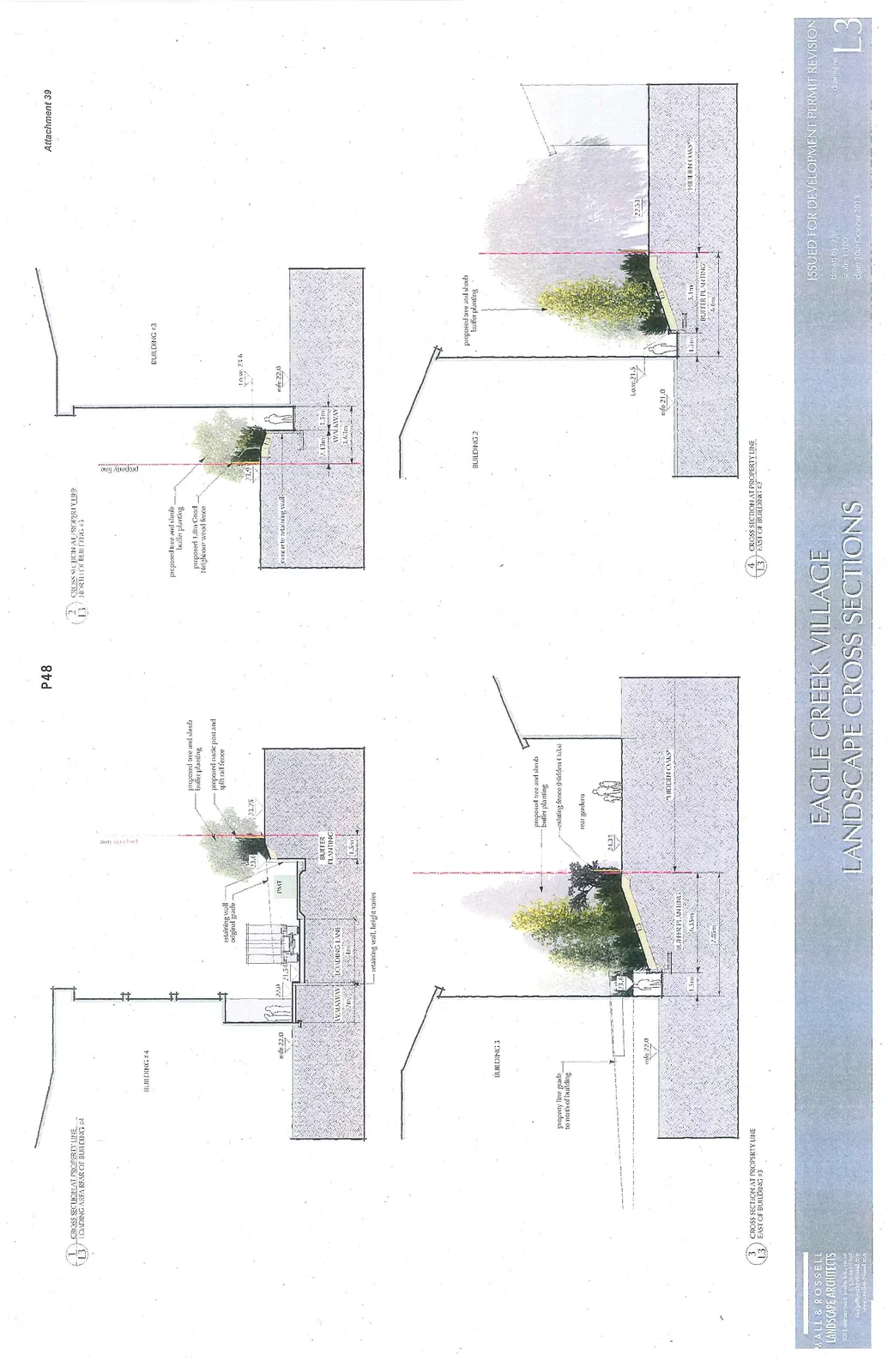

1 / L3: Cross Section at Property Line Loading Area Rear of Building #4

  • Building: Building #4
  • Key Elevations & Dimensions:
    • mfe 22.0
    • Walkway: 2m wide
    • Loading Lane: 4m wide
    • Buffer Planting: 1.5m wide
    • Elevations: 22.0, 21.54, 23.4 (at PMT), 23.75
  • Features:
    • Retaining wall (original grade and finished grade; height varies)
    • PMT (Pad Mounted Transformer)
    • Proposed tree and shrub buffer planting
    • Proposed rustic post and split rail fence
    • Property line

2 / L3: Cross Section at Property Line North of Building #3

  • Building: Building #3
  • Key Elevations & Dimensions:
    • mfe 22.0
    • Walkway: 1.3m wide
    • Buffer/Retaining area: 1.3m to 1.5m wide
    • Top of retaining wall elevation: 23.9
  • Features:
    • Concrete retaining wall
    • Proposed 1.8m Good Neighbour wood fence
    • Proposed tree and shrub buffer planting
    • Property line

3 / L3: Cross Section at Property Line East of Building #3

  • Building: Building #3
  • Key Elevations & Dimensions:
    • mfe 22.0
    • Buffer Planting: 1.5m and 6.15m segments (7.65m total)
    • Slope: 1:3
    • Upper elevation: 24.31
  • Features:
    • Property line grade to north of building
    • Proposed tree and shrub buffer planting
    • Existing fence (Hidden Oaks)
    • Rear gardens of "Hidden Oaks" property line

4 / L3: Cross Section at Property Line East of Building #2

  • Building: Building 2
  • Key Elevations & Dimensions:
    • mfe 21.0
    • Load level: 21.5
    • Buffer Planting: 1.5m and 5.1m segments (6.6m total)
    • Slope: 1:3
    • Upper elevation: 22.53
  • Features:
    • Proposed tree and shrub buffer planting
    • Interface with "Hidden Oaks" property line

Project Information

  • Project: Eagle Creek Village
  • Document Title: Landscape Cross Sections
  • Status: Issued for Development Permit Revision
  • Firm: Mall & Rossell Landscape Architects (201-1815 Maritime Mews, Vancouver, BC V6H 3W1)
  • Drawn by: afs
  • Scale: 1:100
  • Date: 30th October 2013
  • Drawing No: L3
Page 53
