Planting Plan

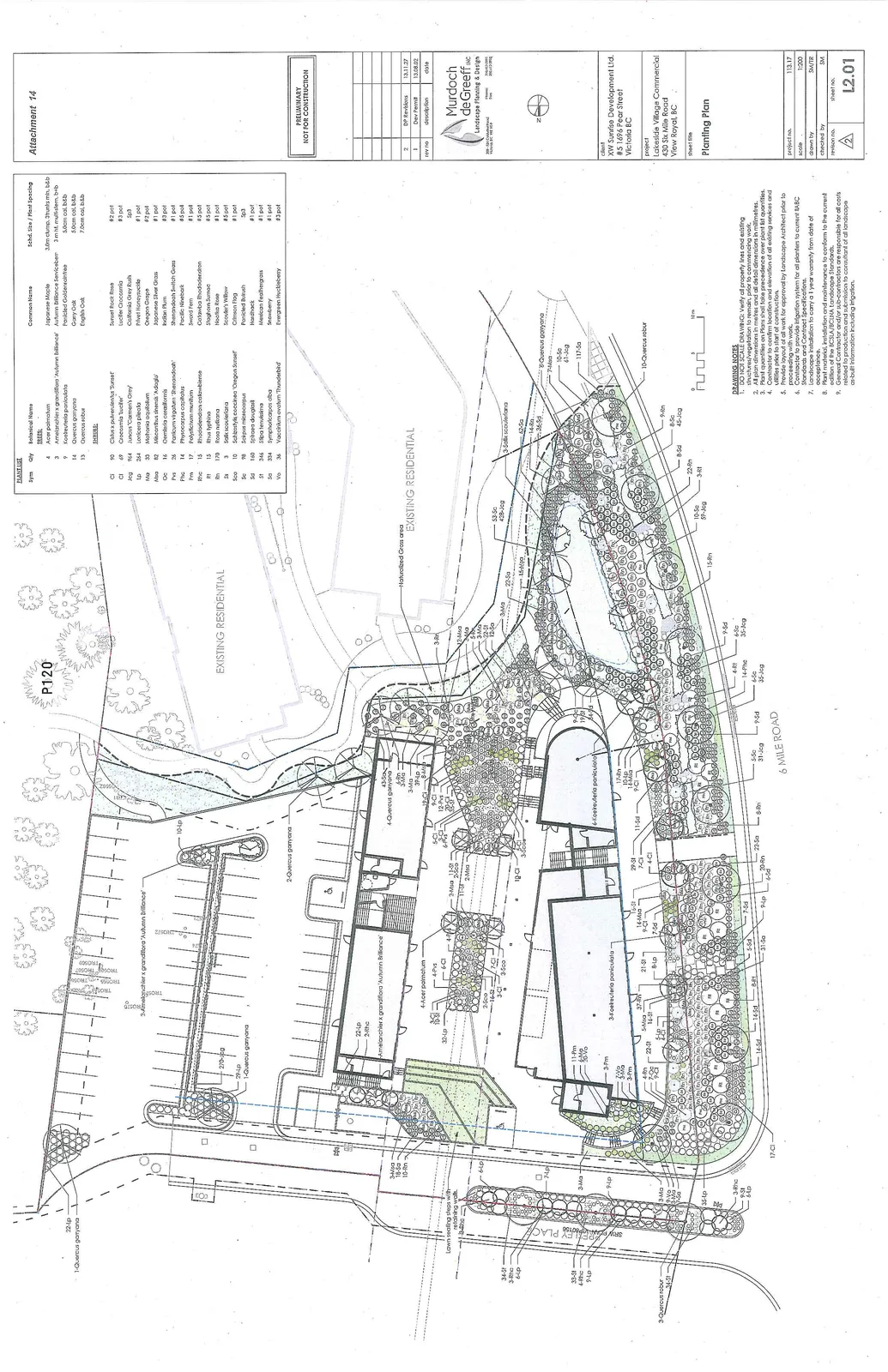

Detailed landscape architectural planting plan for the Lakeside Village Commercial project at 430 Six Mile Road. The drawing features building footprints, parking areas, and designated planting beds. Each planting area is marked with codes and quantities corresponding to the Plant List (e.g., '22-Lp', '4-Acer palmatum'). Labels also identify surrounding areas such as 'EXISTING RESIDENTIAL', '6 MILE ROAD', and 'WESTLEY PLACE'.
Detailed landscape architectural planting plan for the Lakeside Village Commercial project at 430 Six Mile Road. The drawing features building footprints, parking areas, and designated planting beds. Each planting area is marked with codes and quantities corresponding to the Plant List (e.g., '22-Lp', '4-Acer palmatum'). Labels also identify surrounding areas such as 'EXISTING RESIDENTIAL', '6 MILE ROAD', and 'WESTLEY PLACE'.

Plant List

Sym Qty Botanical Name Common Name Sched. Size / Plant Spacing
TREES
Ap 4 Acer palmatum Japanese Maple 3.0m clump, 3 trunks min, b&b
Ag 3 Amelanchier x grandiflora 'Autumn Brilliance' Autumn Brilliance Serviceberry 3m ht, multi-stem, b&b
Kp 3 Koelreuteria paniculata Goldenrain Tree 5.0cm cal, b&b
Qg 9 Quercus garryana Garry Oak 5.0cm cal, b&b
Qr 15 Quercus robur English Oak 7.0cm cal, b&b
SHRUBS
Cp 94 Cistus x pulverulentus 'Sunset' Sunset Rock Rose #2 pot
Cl 69 Crocosmia 'Lucifer' Lucifer Crocosmia #3 pot
Jcg 964 Juniperus 'Carmen's Grey' California Grey Rush sp3
Lpi 264 Lonicera pileata Privet Honeysuckle #1 pot
Ma 33 Mahonia aquifolium Oregon Grape #2 pot
Msa 82 Miscanthus sinensis 'Adagio' Adagio Silver Grass #3 pot
Oc 16 Oemleria cerasiformis Indian Plum #3 pot
Pvs 26 Panicum virgatum 'Shenandoah' Shenandoah Switch Grass #1 pot
Phc 14 Physocarpus capitatus Pacific Ninebark #5 pot
Pm 17 Polystichum munitum Sword Fern #1 pot
Rhc 15 Rhododendron caloxanthum Caloxanthum Rhododendron #3 pot
Rt 13 Rhus typhina Staghorn Sumac #5 pot
Rn 170 Rosa nutkana Nootka Rose #1 pot
Ss 3 Salix scouleriana Scouler's Willow #3 pot
Sco 10 Schizostylis coccinea 'Oregon Sunset' Crimson Flag #1 pot
Sc 98 Scirpus microcarpus Panicled Bulrush sp3
Sd 160 Spiraea douglasii Hardhack #1 pot
St 346 Stipa tenuissima Mexican Feathergrass #1 pot
Sa 334 Symphoricarpos albus Snowberry #1 pot
Vo 74 Vaccinium ovatum 'Thunderbird' Evergreen Huckleberry #1 pot

Drawing Notes

  1. DO NOT SCALE DRAWING: Verify all property lines and existing structures/vegetation on site, prior to commencing work.
  2. All plan dimensions in metres and all detail dimensions in millimetres.
  3. Plant quantities on Plans shall take precedence over plant list quantities.
  4. Contractor to confirm location and elevation of all existing services and utilities prior to start of construction.
  5. Provide layout of all work for approval by Landscape Architect prior to proceeding with work.
  6. Contractor to provide irrigation system for all planters to current B&BC Standards and Contract Specifications.
  7. Landscape installation to carry a 1 year warranty from date of acceptance.
  8. Plant material, installation and maintenance to conform to the current edition of the BCLA/BCLNA Landscape Standards.
  9. General Contractor and/or sub-contractors are responsible for all costs related to production and submission to consultant of all landscape as-built information including irrigation.

Project Information

Client: XW Sunrise Development Ltd. #5 1696 Pear Street Victoria BC

Project: Lakeside Village Commercial 430 Six Mile Road View Royal, BC

Sheet Title: Planting Plan

project no. 113.17
scale 1:200
drawn by SM/TR
checked by SM
revision no. 2
sheet no. L2.01

Revision Schedule

rev no description date
1 Dev Permit 13.08.02
2 DP Revisions 13.11.27

Status: PRELIMINARY NOT FOR CONSTRUCTION

Attachment 14

Page 125
Extracted from: 2013 12 10 Council Agenda
