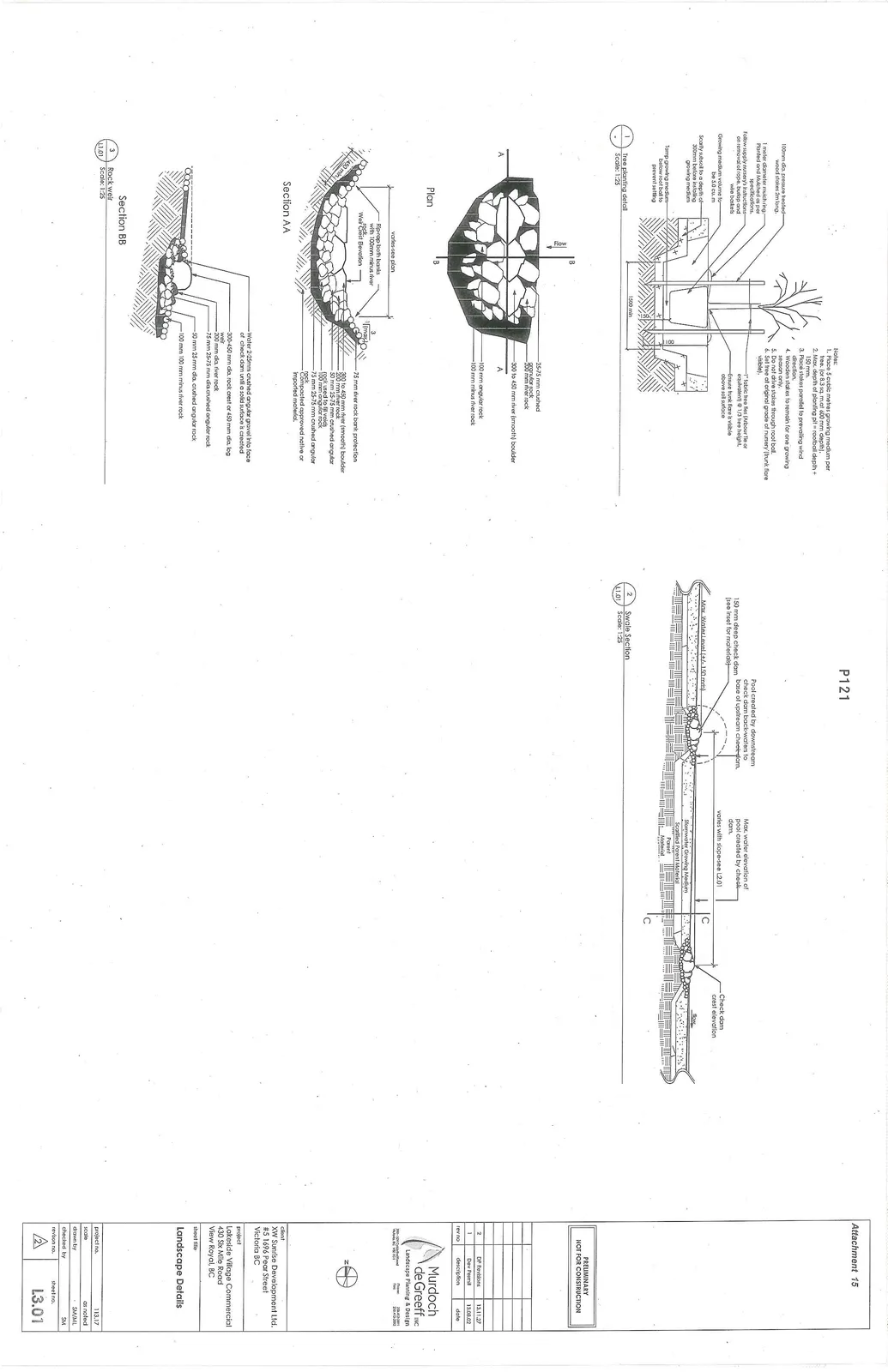

Attachment 15. Plan L3.01 – Landscape Details

Landscape Details

1 Tree planting detail

Scale: 1:25

Notes:

1. Place 8 cubic metres growing medium per tree, (or 8.3 sq. m at 600 mm depth).
2. Max. depth of planting pit = rootball depth + 150 mm.
3. Place stakes parallel to prevailing wind direction.
4. Wooden stakes to remain for one growing season only.
5. Do not drive stakes through root ball.
6. Set tree at original grade of nursery (trunk flare visible).

Detail Specifications:

• 100mm dia. pressure treated wood stakes 2m long.
• 1 meter diameter mulch ring - Planted and Mulched as per specifications. Follow supply nursery's instructions on removal of rope, burlap and wire baskets.
• Growing medium volume to be 5.0 cu. m
• Scarify subsoil to a depth of 300mm before installing growing medium
• Tamp growing medium below root ball to prevent settling
• 1500 min
• Fabric tree ties (Arbour Tie or equivalent) @ 1/3 tree height.
• Ensure trunk flare is visible above soil surface

2 Swale Section

Scale: 1:25

Detail Specifications:

• 150 mm deep check dam (see inset for materials)
• Max. Water Level (+/- 150 mm)
• Pool created by downstream check dam back-waters to base of upstream check dam.
• Max. water elevation of pool created by check dam.
• Varies with slope-see L2.01
• Check dam crest elevation
• Stormwater Growing Medium
• Scarified Parent Material
• Parent Material

3 Rock weir

Scale: 1:25

Plan

• 25-75 mm crushed angular rock
• 200 mm river rock
• 300 to 450 mm river (smooth) boulder
• 100 mm angular rock
• 100 mm minus river rock

Section AA

• Rip-rap both banks with 100mm minus river rock
• Weir Crest Elevation
• 1400 min
• 75 mm river rock bank protection
• 300 to 450 mm river (smooth) boulder
• 200 mm river rock
• 50 mm 25-75 mm crushed angular rock
• 100 mm angular rock
• 75 mm 25-75 mm crushed angular rock
• Compacted approved native or imported material.

Section BB

• Water 2-25mm crushed angular gravel into face of check dam until a solid surface is created
• 300-450 mm dia. rock crest or 450 mm dia. log weir
• 200 mm dia. river rock
• 75 mm 25-75 mm dia. crushed angular rock
• 50 mm 25 mm dia. crushed angular rock
• 100 mm 100 mm minus river rock

---

Project Information

Revisions

Project Details

• Client: XW Sunrise Development Ltd. #5 1696 Pear Street Victoria BC
• Project: Lakeside Village Commercial 430 Six Mile Road View Royal, BC
• Sheet Title: Landscape Details
• Project No.: 113.17
• Scale: as noted
• Drawn By: SM/ML
• Checked By: SM
• Sheet No.: L3.01

Status: PRELIMINARY NOT FOR CONSTRUCTION
