Attachment 16. Average Grade Calculations

December 10, 2013Pages 128–1292 sections

Technical report and site map detailing the calculations used to determine average grade for building height compliance.

1 CALL TO ORDER
August 29, 2013Buildings A and B

1326 - LAKESIDE COMMERCIAL - Average Grade Calculations

Date: 2013.08.29

Average grade calculation table for Building A and Building B.
Average grade calculation table for Building A and Building B.

BUILDING A

corner grade segment calculation dist. result
A = 26 m A to B 26 + 26 / 2 x 47.7 m 1240.2
B = 26 m B to C 26 + 26 / 2 x 8.8 m 228.8
C = 26 m C to D 26 + 30 / 2 x 9.6 m 268.8
D = 30 m D to E 30 + 30 / 2 x 4.5 m 135
E = 30 m E to F 30 + 30 / 2 x 3.1 m 93
F = 30 m F to G 30 + 30 / 2 x 4.5 m 135
G = 30 m G to H 30 + 30 / 2 x 2.2 m 66
H = 30 m H to I 30 + 30 / 2 x 26.4 m 792
I = 30 m I to J 30 + 30 / 2 x 2.9 m 87
J = 30 m J to K 30 + 30 / 2 x 11.6 m 348
K = 30 m K to L 30 + 30 / 2 x 2.1 m 63
L = 30 m L to A 30 + 26 / 2 x 4.2 m 117.6
TOTAL 127.6 m 3574.40

Average Grade: 3574.40 / 127.6 m = 28.01 m Height: 35.40 m - 28.01 m = 7.39 m

1.99 m above main floor elev. at upper edge of roof

BUILDING B

corner grade segment calculation dist. result
A = 29.5 m A to B 29.5 + 29.5 / 2 x 20.6 m 607.7
B = 29.5 m B to C 29.5 + 29.5 / 2 x 7.3 m 215.35
C = 29.5 m C to D 29.5 + 29.5 / 2 x 11.5 m 339.25
D = 29.5 m D to E 29.5 + 28.9 / 2 x 8.5 m 248.2
E = 28.9 m E to F 28.9 + 28.2 / 2 x 9.6 m 274.08
F = 28.2 m F to G 28.2 + 29 / 2 x 11 m 314.6
G = 29 m G to H 29 + 33.5 / 2 x 0.2 m 6.25
H = 33.5 m H to I 33.5 + 33.5 / 2 x 1.5 m 50.25
I = 33.5 m I to J 33.5 + 33.5 / 2 x 3.8 m 127.3
J = 33.5 m J to K 33.5 + 33 / 2 x 5 m 166.25
K = 33 m K to L 33 + 33 / 2 x 7.3 m 240.9
L = 33 m L to M 33 + 33.5 / 2 x 5 m 166.25
M = 33.5 m M to N 33.5 + 33.5 / 2 x 15.6 m 522.6
N = 33.5 m N to A 33.5 + 29.5 / 2 x 8.1 m 255.15
TOTAL 91.3 m 2756.38

Average Grade: 2756.38 / 91.3 m = 30.19 m Height: 38.40 m - 30.19 m = 8.21 m

0.7 m above main floor elev. at upper edge of roof

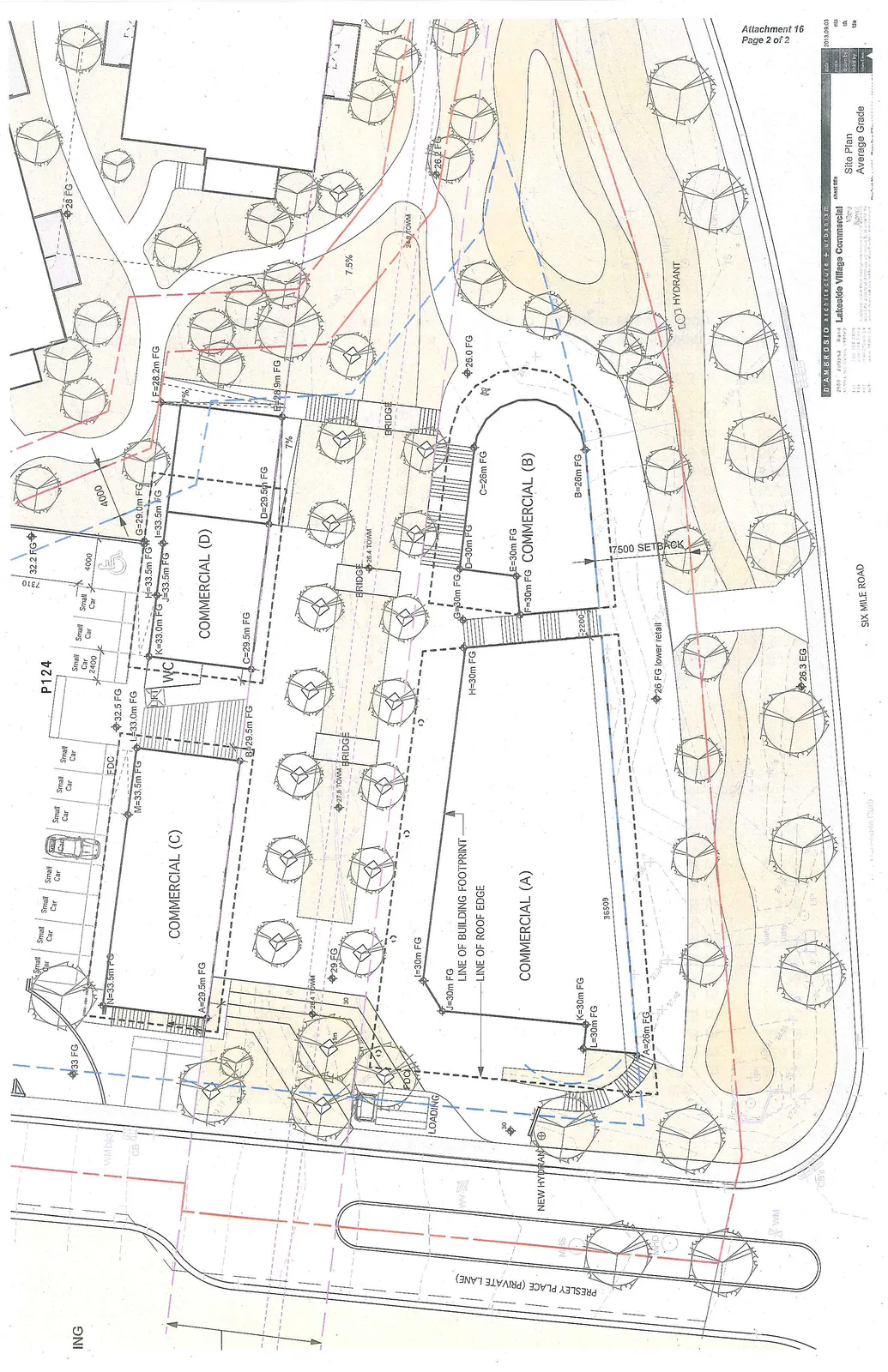

Site Plan - Average Grade for Lakeside Village Commercial, illustrating building footprints for Commercial (A), (B), (C), and (D) with elevation markers and corner identifiers.
Site Plan - Average Grade for Lakeside Village Commercial, illustrating building footprints for Commercial (A), (B), (C), and (D) with elevation markers and corner identifiers.
Page 128–129

Site Plan - Average Grade

Project: Lakeside Village Commercial Date: 2013.09.03

Drawing Details

  • Architect: D'AMBROSIO architecture + urbanism
  • Address: 2560 Jutland Road, Victoria BC
  • Drawing Title: Site Plan Average Grade
  • Scale: nts

Key Plan Features

  • Commercial Buildings:
    • COMMERCIAL (A): Building footprint corners I, J, K, L.
    • COMMERCIAL (B): Building footprint corners A, B, C, D, E, F, G, H.
    • COMMERCIAL (C): Building footprint corners A, B, L, M, N.
    • COMMERCIAL (D): Building footprint corners C, D, E, F, G, H, I, J, K.
  • Site Annotations:
    • LINE OF BUILDING FOOTPRINT
    • LINE OF ROOF EDGE
    • 17500 SETBACK
    • FG = Finished Grade (e.g., 26m FG, 29.5m FG, 30m FG, 33.5m FG)
    • EG = Existing Grade (e.g., 26.3 EG)
    • TOWM = Top of Wall Masonry (e.g., 28.4 TOWM, 26.4 TOWM)
    • BRIDGE
    • WC (Water Closet)
    • EDC
    • LOADING
    • NEW HYDRANT
    • [O] HYDRANT
    • 26 FG lower retail
  • Roadways:
    • SIX MILE ROAD
    • PRESLEY PLACE (PRIVATE LANE)
Page 128–129
