Attachment 17. Plan A3.1 – Elevations
December 10, 2013Page 1301 section

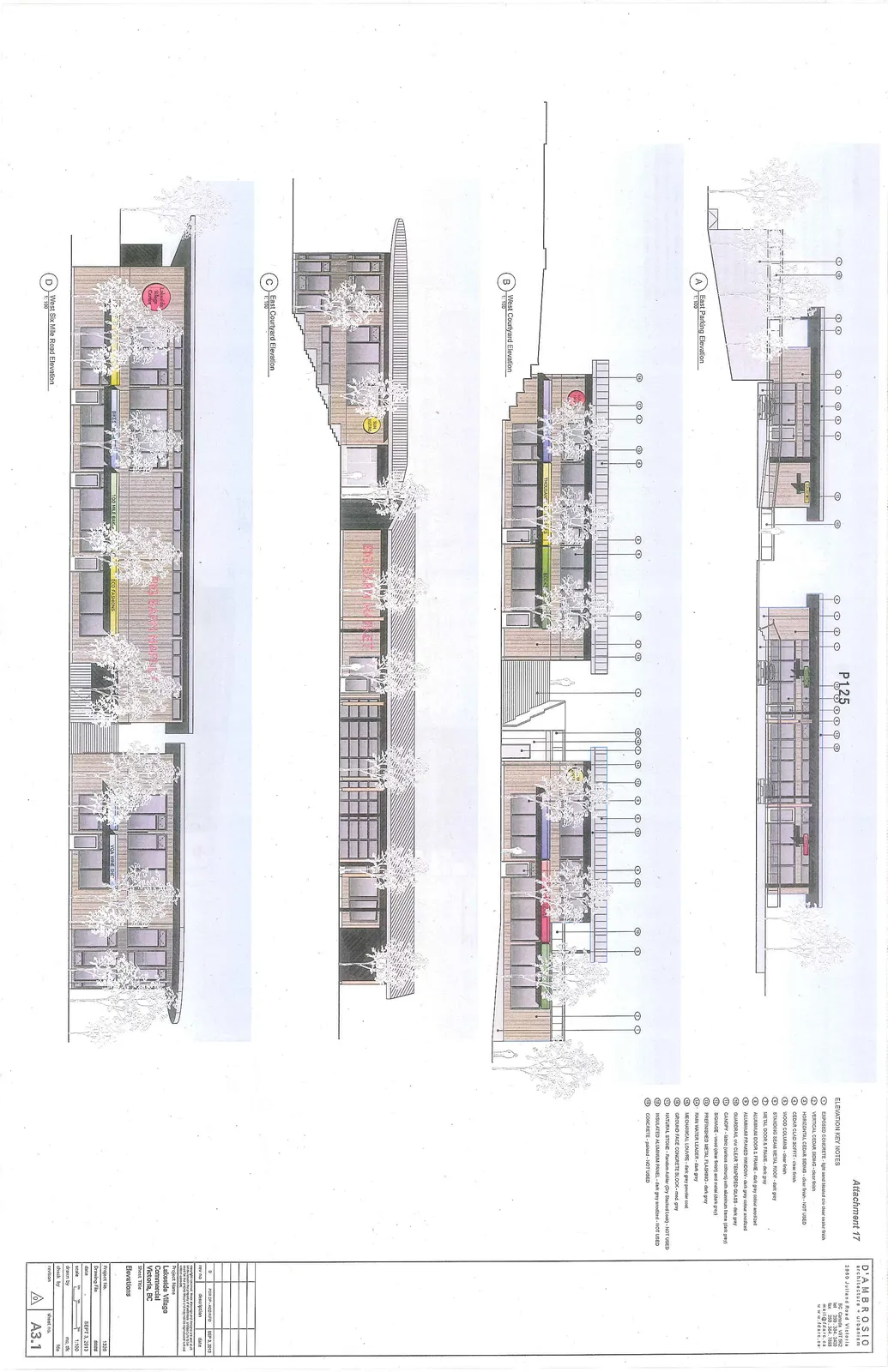

Detailed elevation drawings for the east, west, and courtyard views of the buildings.
September 3, 2013D'Ambrosio Architecture + Urbanism
Elevations
Elevation Key Notes
- EXPOSED CONCRETE - light sand blasted c/w clear sealer finish
- VERTICAL CEDAR SIDING - clear finish
- HORIZONTAL CEDAR SIDING - clear finish - NOT USED
- CEDAR CLAD SOFFIT - clear finish
- WOOD COLUMNS - clear finish
- STANDING SEAM METAL ROOF - dark grey
- METAL DOOR & FRAME - dark grey
- ALUMINUM DOOR & FRAME - dark grey colour anodized
- ALUMINUM FRAMED WINDOW - dark grey colour anodized
- GUARDRAIL c/w CLEAR TEMPERED GLASS - dark grey
- CANOPY - fabric (various colours) with aluminum frame (dark grey)
- SIGNAGE - wood (clear finish) and metal (dark grey)
- PREFINISHED METAL FLASHING - dark grey
- RAIN WATER LEADER - dark grey
- MECHANICAL LOUVRE - dark grey powder coat
- GROUND FACE CONCRETE BLOCK - med. grey
- NATURAL STONE - Random Ashlar (Dry Stacked Look) - NOT USED
- INSULATED ALUMINUM PANEL - dark grey anodized - NOT USED
- CONCRETE - painted - NOT USED
Elevation Views
- A: East Parking Elevation (1:100)
- B: West Courtyard Elevation (1:100)
- C: East Courtyard Elevation (1:100)
- D: West Six Mile Road Elevation (1:100)
Project Information
| Field | Detail |
|---|---|
| Project Name | Lakeside Village Commercial |
| Location | Victoria, BC |
| Sheet Title | Elevations |
| Project No. | 1320 |
| Drawing File | 8888 |
| Date | SEPT 3, 2013 |
| Scale | 1:100 |
| Drawn by | mc, dk |
| Check by | fda |
| Sheet No. | A3.1 |
