ELEVATION KEY NOTES

  1. EXPOSED CONCRETE - light sand blasted or clear sealer finish
  2. VERTICAL CEDAR SIDING - clear finish
  3. HORIZONTAL CEDAR SIDING - clear finish - NOT USED
  4. CEDAR CLAD SOFFIT - clear finish
  5. WOOD COLUMNS - clear finish
  6. STANDING SEAM METAL ROOF - dark grey
  7. METAL DOOR & FRAME - dark grey
  8. ALUMINUM DOOR & FRAME - dark grey colour anodized
  9. ALUMINUM FRAMED WINDOW - dark grey colour anodized
  10. GUARDRAIL c/w CLEAR TEMPERED GLASS - dark grey
  11. CANOPY - fabric (various colours) with aluminum frame (dark grey)
  12. SIGNAGE - wood (clear finish) and metal (dark grey)
  13. PREFINISHED METAL FLASHING - dark grey
  14. RAIN WATER LEADER - dark grey
  15. MECHANICAL LOUVRE - dark grey powder coat
  16. GROUND FACE CONCRETE BLOCK - med. grey
  17. NATURAL STONE - Random Ashlar (Dry Stacked Look) - NOT USED
  18. INSULATED ALUMINUM PANEL - dark grey anodized - NOT USED
  19. CONCRETE - painted - NOT USED

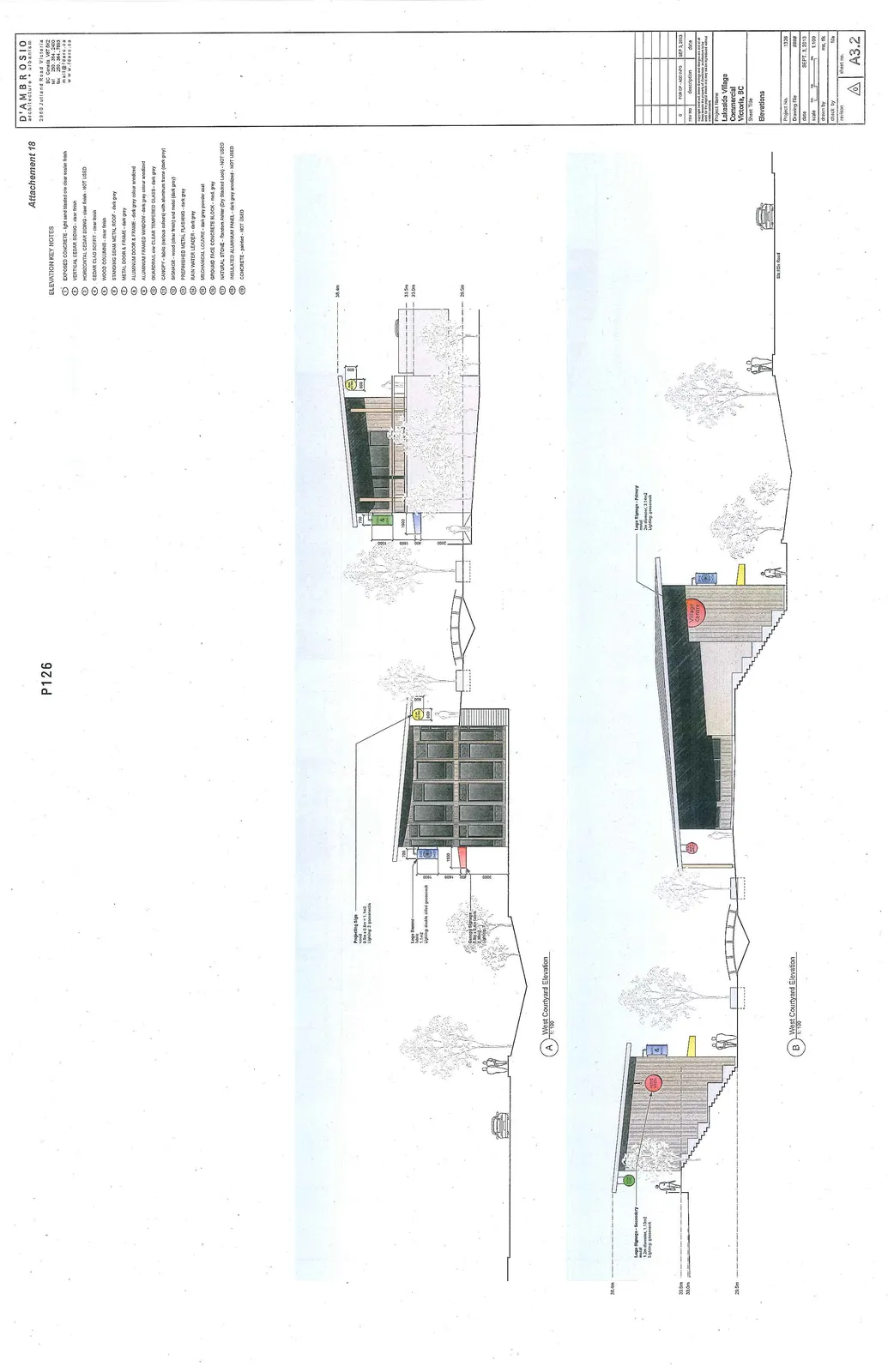

Architectural elevations showing West Courtyard Elevation A and West Courtyard Elevation B of a commercial building.
Architectural elevations showing West Courtyard Elevation A and West Courtyard Elevation B of a commercial building.
Page 131

West Courtyard Elevations

Elevation A

  • Scale: 1:100
  • Datum Levels: 38.4m, 33.5m, 33.0m, 29.5m
  • Signage Annotations:
    • Projecting Sign: metal, 0.5m x 2.0m = 1.0m², Lighting: 2 goosenecks
    • Logo Banner: fabric, 1.1m², Lighting: double sided gooseneck
    • Canopy Signage: 0.8m x 2.4m fabric, 2.35m², Lighting: internal

Elevation B

  • Scale: 1:100
  • Datum Levels: 38.4m, 33.5m, 33.0m, 29.5m
  • Signage Annotations:
    • Logo Signage - Secondary: metal, 1.2m diameter, 1.13m², Lighting: gooseneck
    • Logo Signage - Primary: metal, 2m diameter, 3.14m², Lighting: gooseneck
    • Building Facade Signage: "Village Centre"
  • Additional Context: Elk Lake Road
Page 131

Project Information

Field Detail
Architect D'AMBROSIO architecture + urbanism
2960 Jutland Road Victoria BC Canada V8T 5K2
tel: 250 384 2400
fax: 250 384 7933
mail@fdarc.ca
www.fdarc.ca
Project Name Lakeside Village Commercial
Victoria, BC
Sheet Title Elevations
Project No. 1338
Drawing File #######
Date SEPT. 3, 2013
Scale 1:100
Drawn By mc, tk
Check By fda
Sheet No. A3.2
