Attachment 5: Planting Plan - Murdoch de Greeff Inc.

April 15, 2014Page 221 section

Landscape architectural planting plan including a plant list and layout.

8.1.a Development Permit Application No. 2014/02 – “Lakeside Village Commercial” – 430 Six Mile Road
Date: April 9, 2014Includes native species and Garry oaksPlan L2.01

Planting Plan

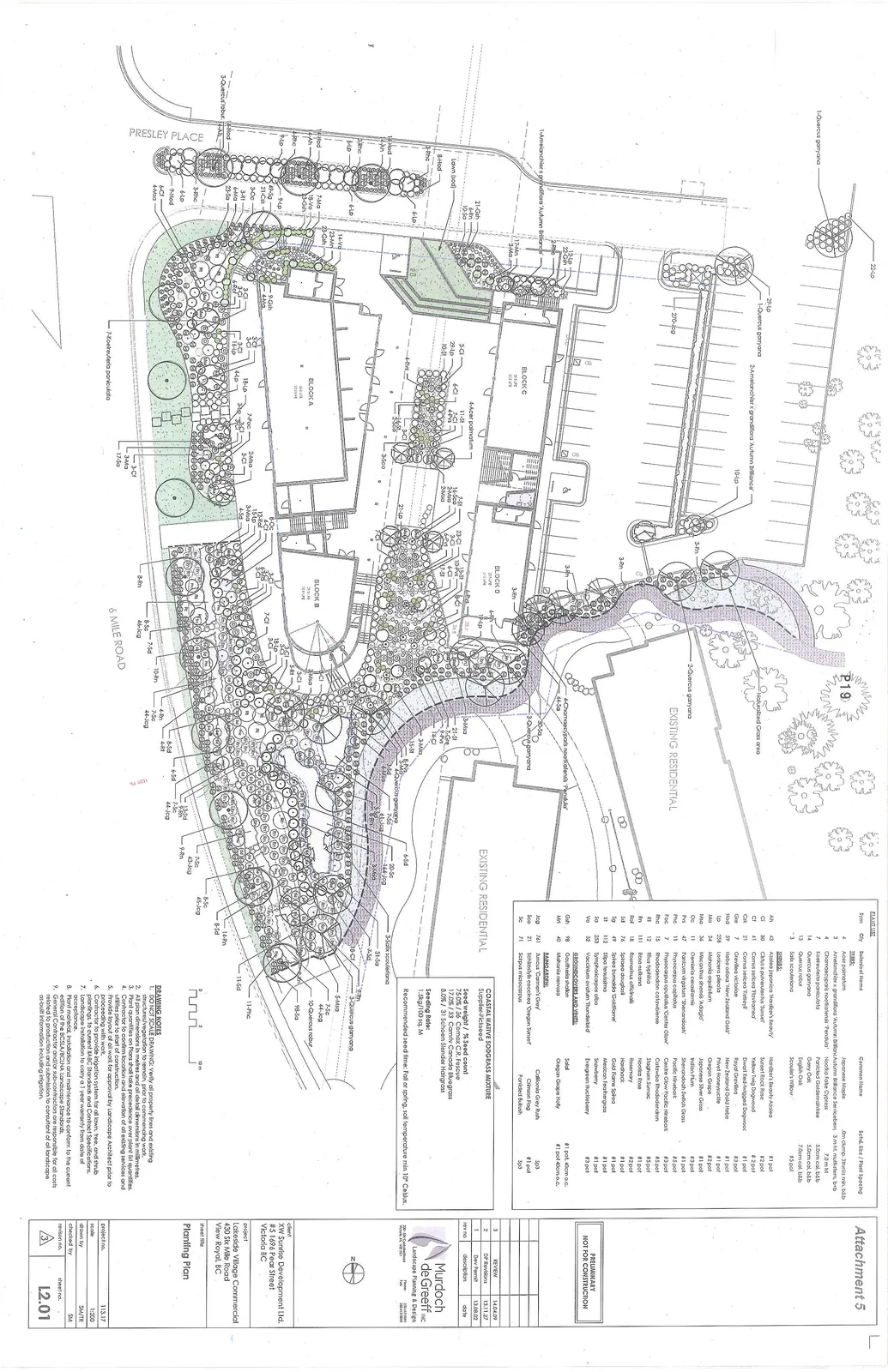

Detailed landscape planting plan for Lakeside Village Commercial, illustrating building footprints (Block A, B, C, and D), parking stalls, pedestrian walkways, and extensive landscaped areas. The drawing includes numerous plant identification codes and quantity callouts throughout the site, which is bordered by Presley Place and 6 Mile Road. Key features include a large central courtyard, rain garden areas, and a naturalized grass zone.
Detailed landscape planting plan for Lakeside Village Commercial, illustrating building footprints (Block A, B, C, and D), parking stalls, pedestrian walkways, and extensive landscaped areas. The drawing includes numerous plant identification codes and quantity callouts throughout the site, which is bordered by Presley Place and 6 Mile Road. Key features include a large central courtyard, rain garden areas, and a naturalized grass zone.

Plant List

Sym Qty Botanical Name Common Name Sched. Size / Plant Spacing
TREES
4 Acer palmatum Japanese Maple 5cm cal., 3m min. ht. b&b
3 Amelanchier x grandiflora 'Autumn Brilliance' Autumn Brilliance Serviceberry 3 m ht., multi-stem, b&b
1 Chamaecyparis nootkatensis 'Pendula' Weeping Nootka Cypress 3m ht. b&b
7 Koelreuteria paniculata Panicled Goldenraintree 5.0cm cal. b&b
14 Quercus garryana Garry Oak 5.0cm cal. b&b
13 Quercus robur English Oak 7.0cm cal. b&b
3 Salix scouleriana Scouler's Willow #5 pot
SHRUBS
Ah 43 Azalea japonica 'Hardzer's Beauty' Hardzer's Beauty Azalea #1 pot
Bo 80 Cistus x pulverulentus 'Sunset' Sunset Rock Rose #2 pot
Cf 41 Cornus sericea 'Flaviramea' Yellow Twig Dogwood #2 pot
Ck 21 Cornus stolonifera 'Kelseyi' Kelsey Red Osier Dogwood #1 pot
Gre 7 Grevillea victoriae Royal Grevillea #3 pot
Hod 59 Hebe odora 'New Zealand Gold' New Zealand Gold Hebe #1 pot
Lp 258 Lonicera pileata Privet Honeysuckle #1 pot
Ma 34 Mahonia aquifolium Oregon Grape #2 pot
Msa 36 Miscanthus sinensis 'Adagio' Japanese Silver Grass #1 pot
Oc 11 Oemleria cerasiformis Indian Plum #3 pot
Pvs 47 Panicum virgatum 'Shenandoah' Shenandoah Switch Grass #2 pot
Pnc 11 Physocarpus capitatus Pacific Ninebark #5 pot
Pnc 7 Physocarpus opulifolius 'Center Glow' Centre Glow Pacific Ninebark #3 pot
Rhc 15 Rhodotypos scandens Jetbead #1 pot
Rt 12 Rhus typhina Staghorn Sumac #5 pot
Rn 111 Rosa nutkana Nootka Rose #1 pot
Rof 18 Rosmarinus officinalis Rosemary #2 pot
Sd 33 Spiraea douglasii Hardhack #1 pot
Sg 49 Spiraea bumalda 'Goldflame' Gold Flame Spiraea #1 pot
St 112 Stipa tenuissima Mexican Feathergrass #1 pot
Sa 253 Symphoricarpos alba Snowberry #1 pot
Vo 32 Vaccinium ovatum 'Thunderbird' Evergreen Huckleberry #3 pot
GROUNDCOVERS AND VINES
Gsh 98 Gaultheria shallon Salal #1 pot, 40cm o.c.
Mn 40 Mahonia nervosa Oregon Grape Holly #1 pot, 40cm o.c.
RAINGARDEN
Jcg 761 Juncus 'Carmen's Grey' California Grey Rush 5p3
Scc 21 Schizostylis coccinea 'Oregon Sunset' Crimson Flag #1 pot
Sc 71 Scirpus microcarpus Panicled Bulrush 5p3

Coastal Native Sodgrass Mixture

Supplier: Pickseed

Seed weight / % Seed count:

  • 75.0% / 36 Comox C.R. Fescue
  • 17.0% / 33 Camity Canada Bluegrass
  • 8.0% / 31 Schoen Slender Hairgrass

Seeding Rate: 5kg/100 sq. m.

Recommended seed time: Fall or spring, soil temperature min 10° Celsius.

Drawing Notes

  1. DO NOT SCALE DRAWING; Verify all property lines and existing structures/vegetation to remain, prior to commencing work.
  2. All plan dimensions in metres and all detail dimensions in millimetres.
  3. Plant quantities on Plans shall take precedence over plant list quantities.
  4. Contractor to confirm location and elevation of all existing services and utilities prior to start of construction.
  5. Provide layout of all work for approval by Landscape Architect prior to proceeding with work.
  6. Contractor to provide irrigation system for all lawn, tree, and shrub plantings, to current BCLSA Standard and Contract Specifications.
  7. Landscape installation to carry a 1 year warranty from date of acceptance.
  8. Plant material, installation and maintenance to conform to the current edition of the BCLSA/BCNA Landscape Standards.
  9. General Contractor and/or sub-contractors are responsible for all costs related to production and submission to consultant of all landscape as-built information including irrigation.

Revisions

rev no description date
3 REVIEW 14.04.09
2 DP Revisions 13.11.27
1 Dev Permit 13.08.02

Project Information

Client: XW Sunrise Development Ltd. #5 1698 Pear Street Victoria BC

Project: Lakeside Village Commercial 430 Six Mile Road View Royal, BC

Sheet Title: Planting Plan

  • Project no: 113.17
  • Scale: 1:200
  • Drawn by: SM/TR
  • Checked by: SM
  • Revision no: 3
  • Sheet no: L2.01
