Council Meeting/Documents/Schedule 5 - Refuse Enclosure Plan & Elevations (AR-3.0d)
Appendix

Schedule 5 - Refuse Enclosure Plan & Elevations (AR-3.0d)

November 4, 2025Page 1685 sections

Updated architectural elevations and plan details for refuse enclosures with landscaping screen details.

AR-3.0dSeptember 2025

Schedule 5

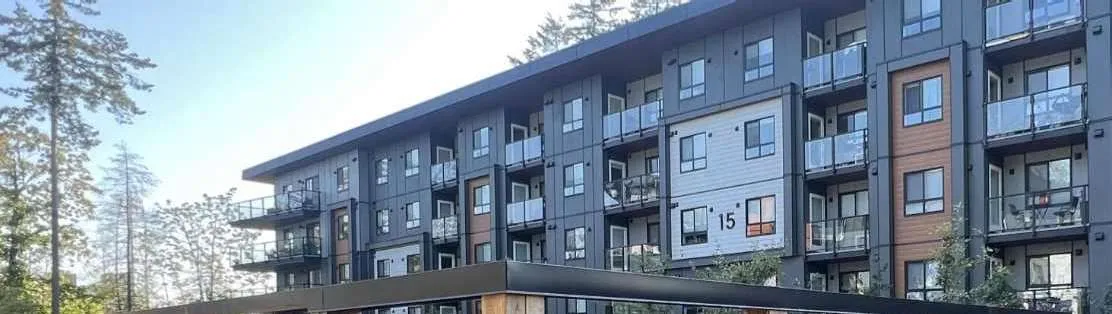

Photograph of the upper section of a multi-story apartment building, showing balconies and the building number "15".
Photograph of the upper section of a multi-story apartment building, showing balconies and the building number "15".

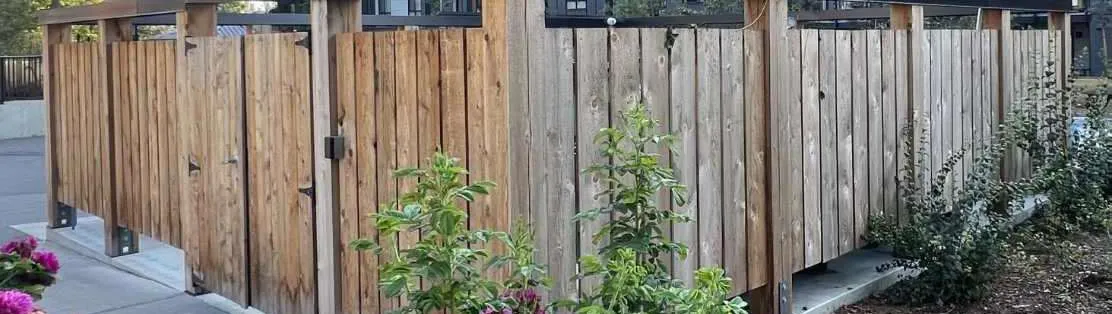

Photograph showing the front of the wooden refuse enclosure and adjacent landscaping.
Photograph showing the front of the wooden refuse enclosure and adjacent landscaping.
Page 168

REFUSE ENCLOSURE - SIDE ELEVATION (2/AR6.0)

  • Scale: 1:24
  • Width: 7,518 [132]
  • Material Notes:
    • PREFINISHED BLACK 26ga CAP FLASHING w/ DRIP EDGES
    • nom. 8x8 CEDAR No. 1 POSTS ON GALVANIZED POST BASE
    • nom. 1x6 CEDAR No. 1 PICKETS ON 2x CEDAR RUNNERS
    • CONCRETE SLAB BASE
Page 168

REFUSE ENCLOSURE ENTRY - FRONT ELEVATION (3/AR6.0)

  • Scale: 1:24
  • Width: 23'-11 5/8" [7,30]
  • Component Details:
    • ADJ LEVER DOOR HANDLE
    • FOB SECURITY ACCESS
    • 3x BEARING BARN HINGE (typ)
  • Panel Dimensions:
    • 5'-4 5/8" [1,64]
    • 4'-7 1/2" [1,41]
    • 5'-1 1/2" [1,57]
    • 4'-7 1/2" [1,41]
Page 168

REFUSE ENCLOSURE - PLAN DETAIL (1/AR6.0)

  • Scale: 1:48
  • Layout: Interior area labeled "REFUSE" with container locations and fire department ("FD") access indicator.
  • Dimension: 17.23m
  • Landscaping: Area labeled "PLANTINGS LNDSCP"
Page 168

Project Information

  • Project: ERSKINE LANE MULTIFAMILY
  • Drawing Title: DP AMENDMENT REFUSE ENCLOSURE BUILDING ELEVATIONS
  • Project No: 19--
  • Scale: AS NOTED
  • Date: AUG. 8, 2022
  • Drawn By: TSUS
  • Sheet: AR-3.0d

Revision Schedule

NO. DATE
ISSUED FOR COORD JUN 09 2021
ISSUED FOR COORD 30% JUN 17 2021
ISSUED FOR COORD 30% JUN 25 2021
ISSUED FOR COORD 90% JUL 08 2021
ISSUED FOR COORD JUL 26 2021
ISSUED FOR BP AUG 06 2021
ISSUED FOR PRICING AUG 09 2021
REISSUED FOR B.P. AUG 18 2021
REISSUED FOR B.P. SEP 13 2021
REISSUED FOR B.P. NOV 15 2021
SITEPLAN REISSUE W/ FIRE JAN 11 2022
ISSUED FOR CONSTRUCTION JAN 21 2022
AS-BUILT SITEPLAN MAR 17 2022
AS-BUILT UNIT 102 FIRST FLOOR REV MAY 31 2022
AS-BUILT UNIT WALL CHANGE AUG 21 2022
AS-BUILT DRIVE ABLE CHANGE AUG 22 2022
AS-BUILT SITE PLAN REV AUG 29 2022
AS-BUILT UNIT CHANGES FEB 17 2023
AS-BUILT SITE WALKWAY ADDED MAY 08 2023
AS-BUILT ACCESSIBLE RAMP REV MAY 22 2023
AS-BUILT CURB DRAWING FEB 02 2024
REFUSE BUILDING PERMIT FEB 04 2024
REFUSE BUILDING PERMIT (ALT METRIC) APR 12 2024
ACC RAMP REVIEW JUL 10 2024
AS-BUILT RAMP REV SITE PLAN JUL 24 2024
DP AMENDMENT JUL 12 2024
DP AMENDMENT REV SEPT 12 2024
Page 168
