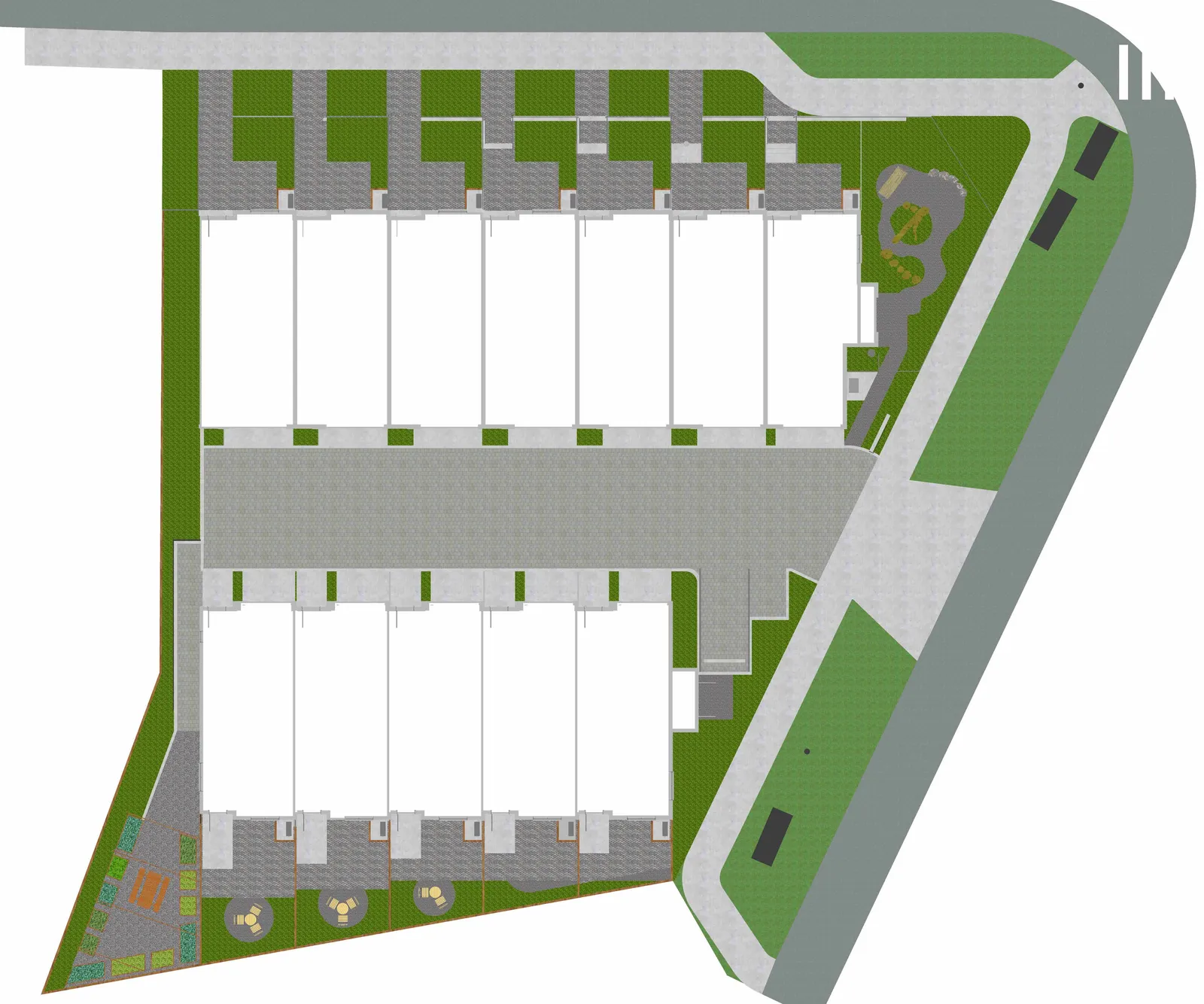

14 & 14A HELMCKEN ROAD, AND 6 CAMDEN ROAD- CONCEPT PLAN

14 & 14A Helmcken Road, and 6 Camden Road - Concept Plan

Project Title: Proposed Landscape Concept for HFT Ventures, 14 & 14A Helmcken, and 6 Camden Road, View Royal BC
Date: September 9, 2024
- Revised: October 28, 2024
- Revised: November 20, 2024
Scale: 1:100
Page Title: Concept Plan, Page One of Five

Retained Trees:
- Retain M1 Pseudotsuga Menziesii
- Retain Existing M2-Quercus Garryana
- Retain M4 Quercus Garryana
- Retain M5 Pinus Contorta Var. Contorta
- Retain M6 Arbutus Menzeisii
- Retain M6 Aesculus Hippocastanum
- Retain 1X Existing OS1 Liquidambar Styraciflua
- Retain 1X Existing OS3 Liriodendron Tulipfera
- TBD 1X Existing OS2 Liriodendron Tulipfera
Replacement Trees:
- Replacement Trees #1-#8 Acer Circinatum
- Replacement Tree #9 Alnus Rubra
- Replacement Tree #10 Alnus Rubra
- Replacement Tree #11 Alnus Rubra
- Replacement Tree #12 Acer Circinatum
- Replacement Trees #13-#16 Cornus Nuttallii
New Plantings and Landscaping:
- 6 X Betula Platyphylla ‘Jefpark’
- 1 X Pinus Contorta
  Pinus Contorta tree in a landscape setting
- 3 X Dwarf Fruit Trees
- Boulevard planted with native shrubs, ferns, groundcovers
- Front patio with lush plantings
  Photo of a front patio area with lush plantings and outdoor seating
- Cornus Nuttallii
  Close-up of a flowering Cornus Nuttallii tree
- Acer Circinatum
  Photo of Acer Circinatum trees planted along a brick building
- Leylandii Hedge (Some sections may require removal)
- M7 Cuprocyparis Leylandii (To be determined)
- M9 Cuprocyparis Leylandii (To be determined, may require substantial pruning)

Fencing and Screening:
- 1.8M Wood Fence
- Aluminium Picket Fence; not to exceed 1.2M in height from finished grade
- 1.2M Privacy Screens, 2.4M length
- 39” Fence around play area
Amenity Areas:
- 8X13’ Patios
- Natural Playground and ‘Forest’ Area
- Natural play area with trees and forest plants
  Natural play area featuring logs and wooded vegetation
- Communal Vegetable Garden and Gathering Area with Arbour and Seating
- Communal garden area with trellis
  Raised garden beds in a communal garden area with a trellis
Site Furniture:
- Maglin 720 Chairs

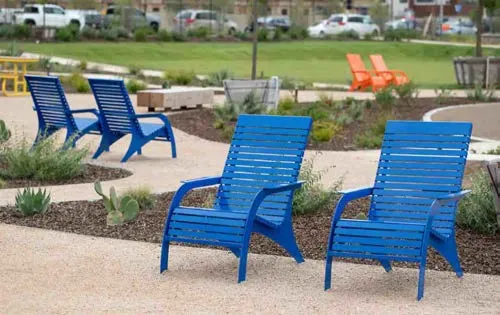

  Photo of four blue Maglin 720 outdoor lounge chairs
- Maglin Site Furniture 210 Cluster Seating Table

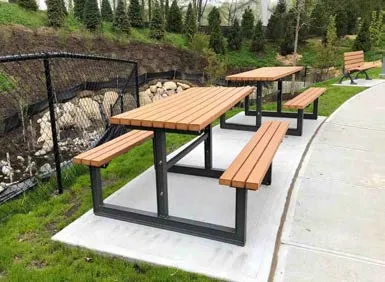

  Maglin 210 cluster seating picnic table on a paved surface

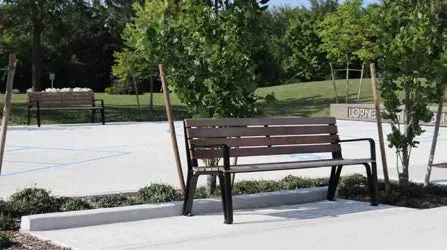

- Maglin Site Furniture 2300 Series Backed Bench

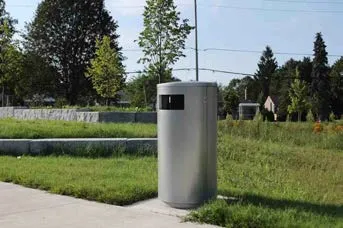

- Maglin Site Furniture 650 Trash Container
- Bench with back
Infrastructure and Access:
- Canada Post Mailbox
- Garbage Receptacle
- Hydro Vault
- Visitor Parking
- Signage
- Sidewalk
- Bike Lane
- Ramp to be Belgard Aqualine Permeable Pavers in Natural
