ATTACHMENT 3 - PROPOSED LANDSCAPE CONCEPT for HFT VENTURES (Landscape Drawings)
A set of detailed landscape plans including concept designs, tree plans, planting lists, and technical notes for the Helmcken and Camden site.
Project Information
Project: 2130 Jeffrey Sengara Address: 294 & 296 ELTHAM & 242 HELMCKEN ROAD, VICTORIA, BC. Project Status: DP
Page 1 - LEVEL 2 FLOOR PLAN
SUBMISSION
| Date (YYYY-MM-DD) | Description |
|---|---|
| 2022-06-06 | Issued for Rezoning |
| 2023-09-14 | Issued for Rezoning |
| 2023-12-06 | Issued for Rezoning |
| 2024-07-11 | Issued for Development Permit |
Drawing: LEVEL 2 FLOOR PLAN Scale: 1 : 150 DWG. NO: A120 Plot Date: 2024-07-11 2:56:54 PM
(The diagram shows the second floor plan for five buildings, labeled BLDG 1 through BLDG 5, situated on a lot bounded by Helmcken Rd. and Eltham Rd. The plan indicates property lines, setbacks of 3.00 m and 1.50 m, and right-of-way dimensions.)
Page 2 - LEVEL 3 FLOOR PLAN
SUBMISSION
| Date (YYYY-MM-DD) | Description |
|---|---|
| 2022-06-06 | Issued for Rezoning |
| 2023-09-14 | Issued for Rezoning |
| 2023-12-06 | Issued for Rezoning |
| 2024-07-11 | Issued for Development Permit |
Drawing: LEVEL 3 FLOOR PLAN Scale: 1 : 150 DWG. NO: A130 Plot Date: 2024-07-11 2:56:59 PM
(The diagram illustrates the third level floor plan for Buildings 1, 2, 3, 4, and 5 on the site.)
Page 3 - ROOF LEVEL PLAN
SUBMISSION
| Date (YYYY-MM-DD) | Description |
|---|---|
| 2022-06-06 | Issued for Rezoning |
| 2023-09-14 | Issued for Rezoning |
| 2023-12-06 | Issued for Rezoning |
| 2024-07-11 | Issued for Development Permit |
Drawing: ROOF LEVEL PLAN Scale: 1 : 150 DWG. NO: A140 Plot Date: 2024-07-11 2:57:10 PM
(The diagram shows the roof level plan for the five buildings on the site.)
Page 4 - FIREFIGHTER ACCESS PLAN
SUBMISSION
| Date (YYYY-MM-DD) | Description |
|---|---|
| 2022-06-06 | Issued for Rezoning |
| 2023-09-14 | Issued for Rezoning |
| 2023-12-06 | Issued for Rezoning |
| 2024-07-11 | Issued for Development Permit |
Drawing: FIREFIGHTER ACCESS PLAN Scale: 1 : 150 DWG. NO: A150 Plot Date: 2024-07-11 2:57:58 PM
(The diagram provides a site plan detailing firefighter access. A "NEW PROPOED 'FIRE TRUCK 39' ACCESS" route is shown entering from Eltham Road. Two fire hydrants are identified on the plan. An "OUTDOOR AMMENITY SPACE" is located at the northeast corner of the property.)
Page 5 - ELEVATIONS - SOUTH & NORTH
KEYNOTE LEGEND
| MATERIAL | DESCRIPTION |
|---|---|
| 1 | BRICK. COLOR: LIGHT GREY |
| 2 | FIBER CEMENT PANEL SYSTEMS. COLOR: WHITE |
| 3 | FIBER CEMENT PANEL SYSTEMS. COLOR: LIGHT GREY |
| 4 | FIBER CEMENT PANEL SYSTEMS. COLOR: DARK GREY |
| 5 | FIBER CEMENT PANEL. COLOR: CEDAR STAINED WOOD TEXTURE (HORIZONTAL) |
| 6 | CAST-IN-PLACE CONCRETE |
| 7 | ALUMINUM AND CLEAR GLASS GUARD. COLOR: CHARCOAL |
| 8 | VINYL WINDOW - FRAME COLOUR: CHARCOAL |
| 9 | VINYL FULL GLAZED SLIDING DOOR - FRAME COLOUR: IRON GRAY |
| 10 | METAL FRONT DOOR WITH GLASS PANELS. MATERIAL: ALUMINUM. COLOR: CEDAR STAINED WOOD |
| 11 | PRIVACY SCREEN: OBSCURED GLASS & METAL |
| 12 | WOOD ROOF FASCIA. PAINTED. COLOUR: CHARCOAL |
| 13 | OVERHEAD INSULATED GARAGE DOOR. METAL. COLOUR: CHARCOAL/WHITE (ALTERNATING) |

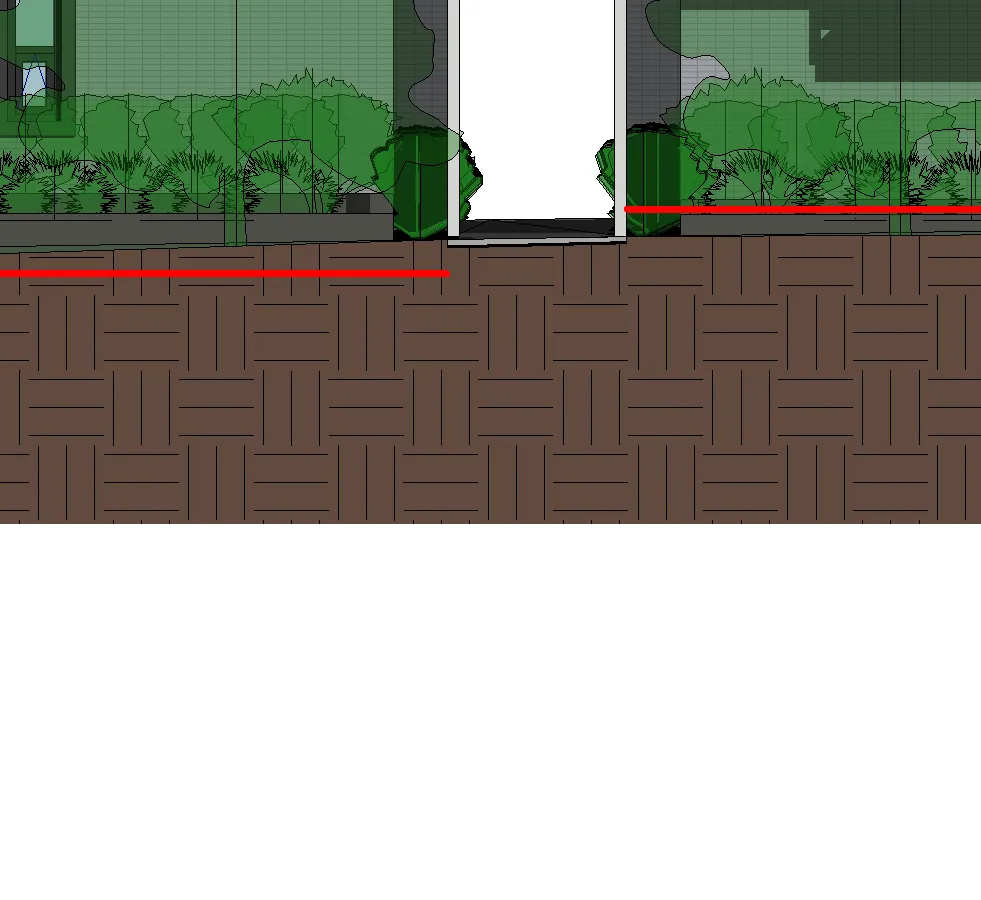

| 14 | TRELLIS AT SITE ENTRIES |

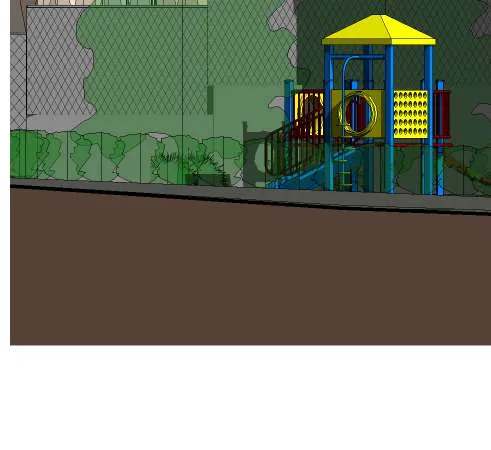

| 15 | PLAYGROUND EQUIPMENT |
SUBMISSION
| Date (YYYY-MM-DD) | Description |
|---|---|
| 2022-06-06 | Issued for Rezoning |
| 2023-09-14 | Issued for Rezoning |
| 2023-12-06 | Issued for Rezoning |
| 2024-07-11 | Issued for Development Permit |

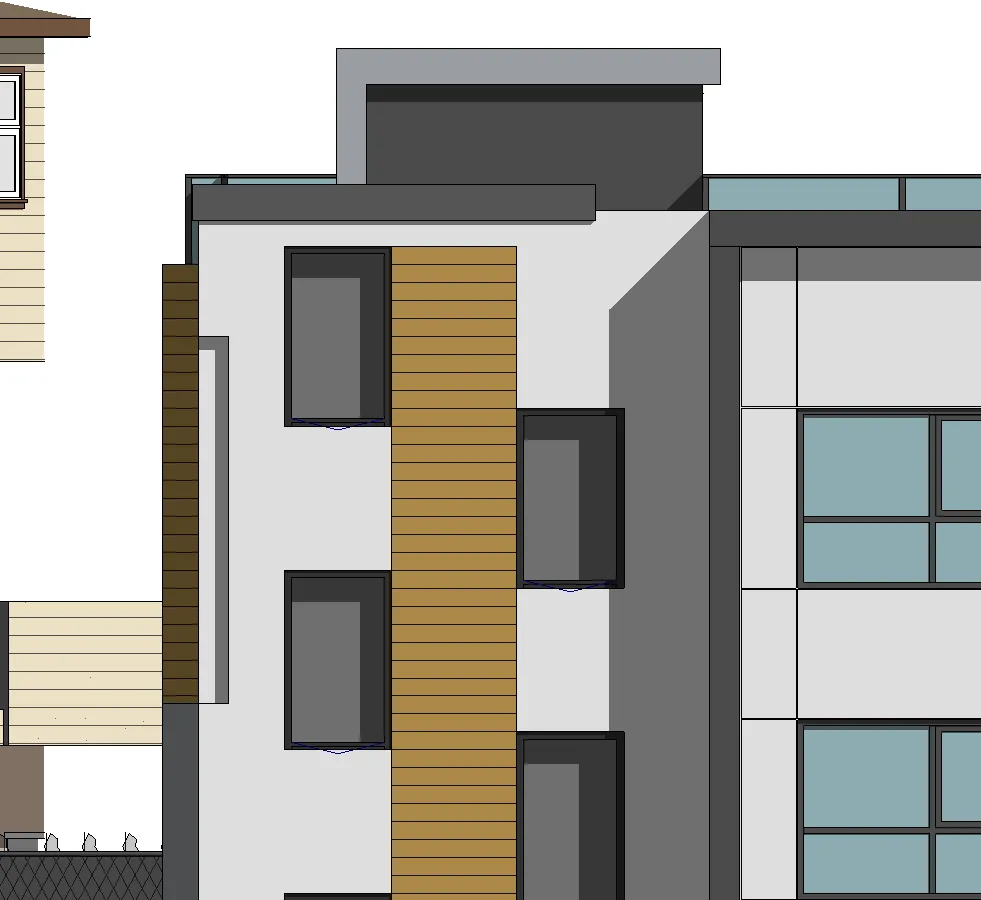

Drawing: ELEVATIONS - SOUTH & NORTH Scale: 1 : 100 DWG. NO: A200 Plot Date: 2024-07-11 2:58:23 PM

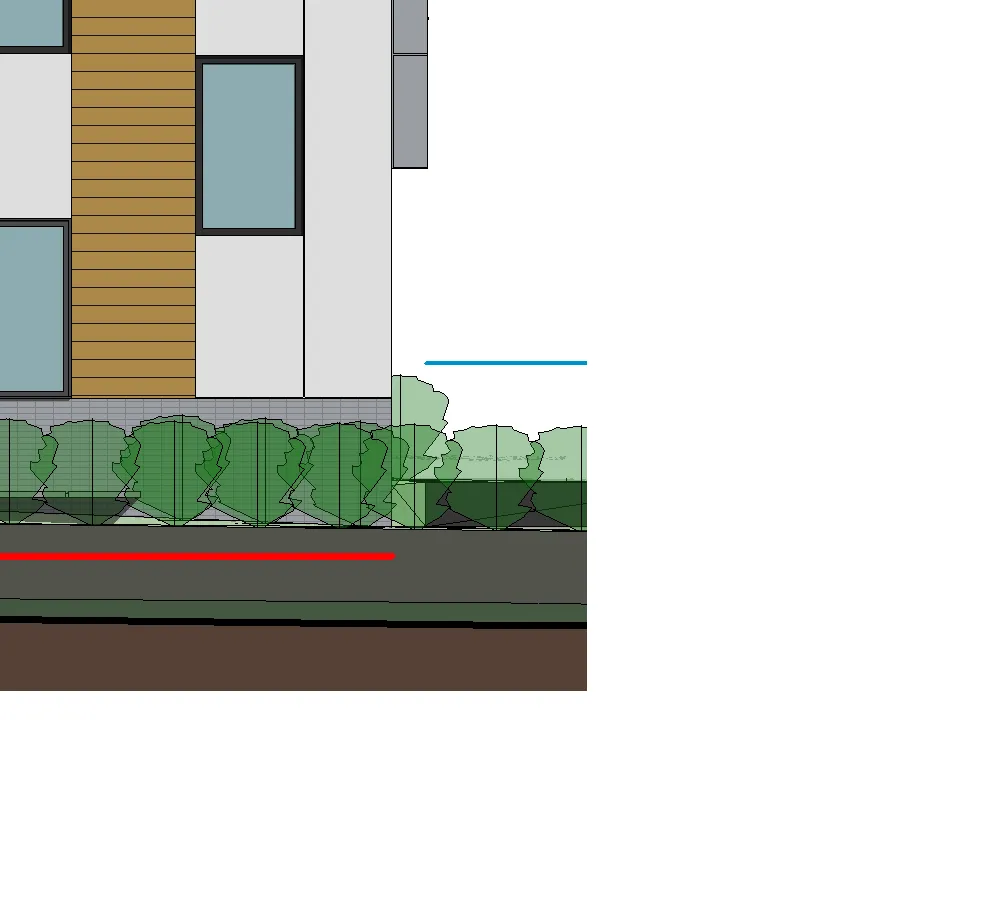

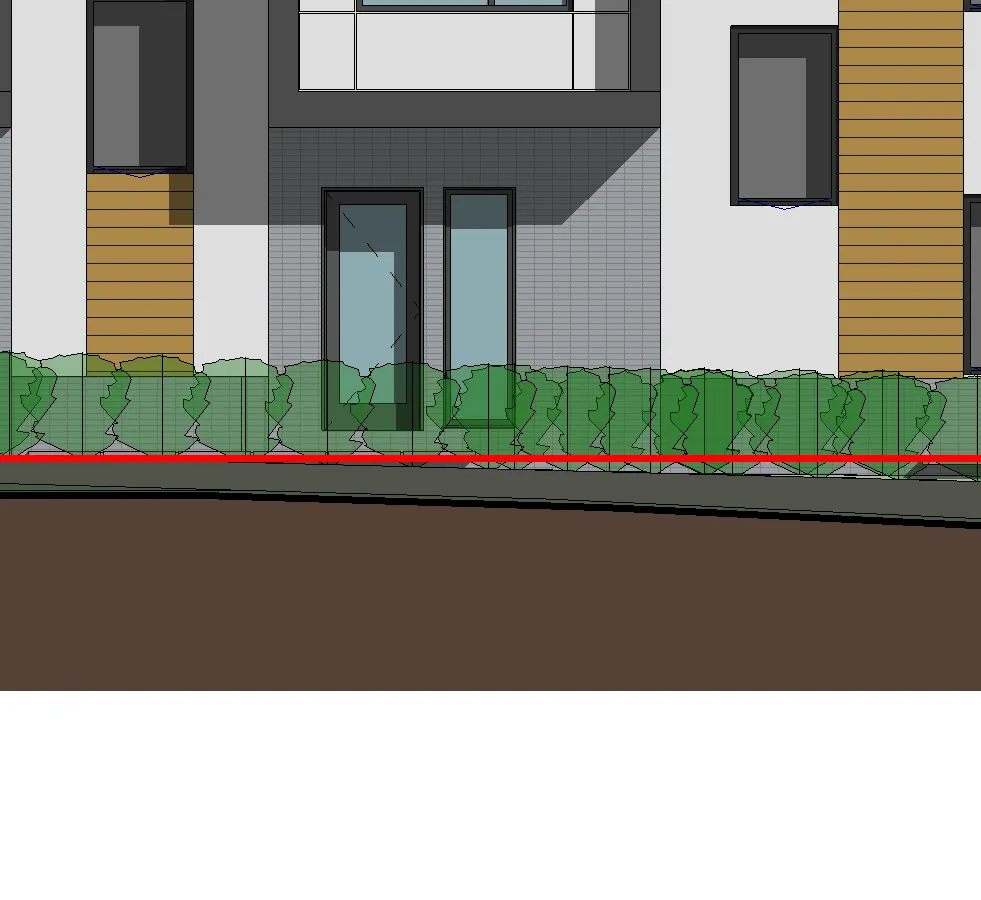

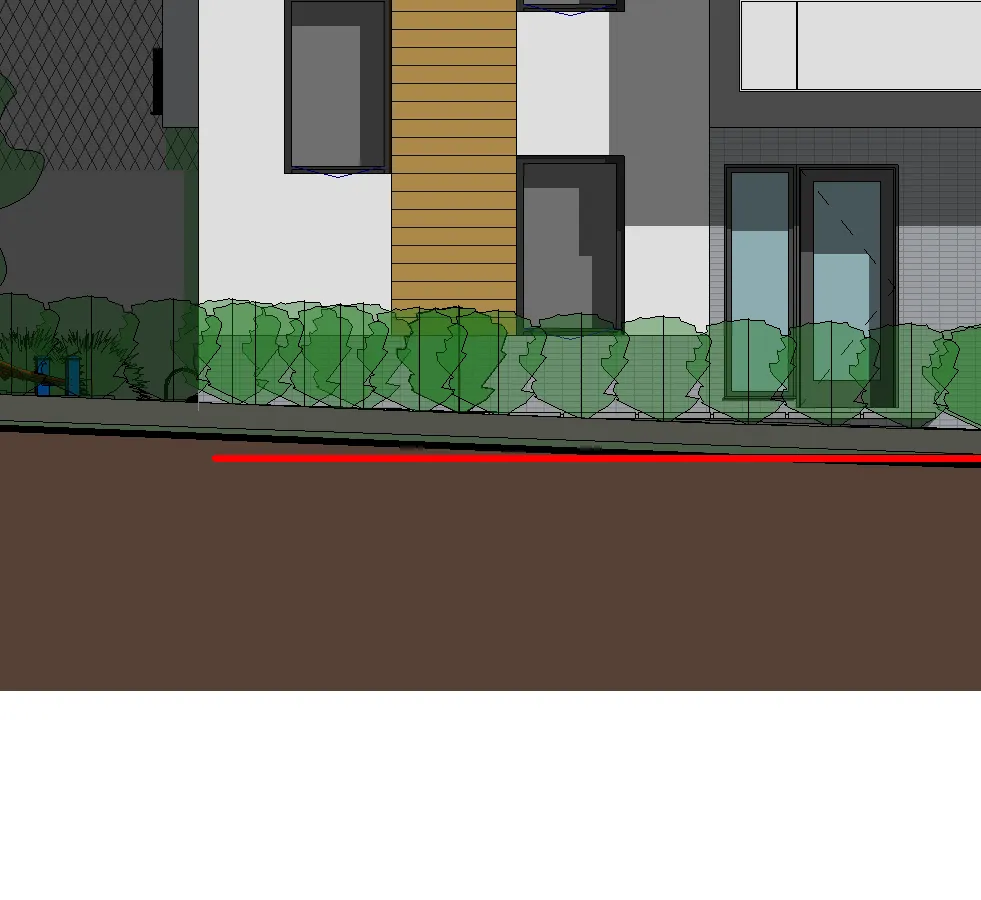

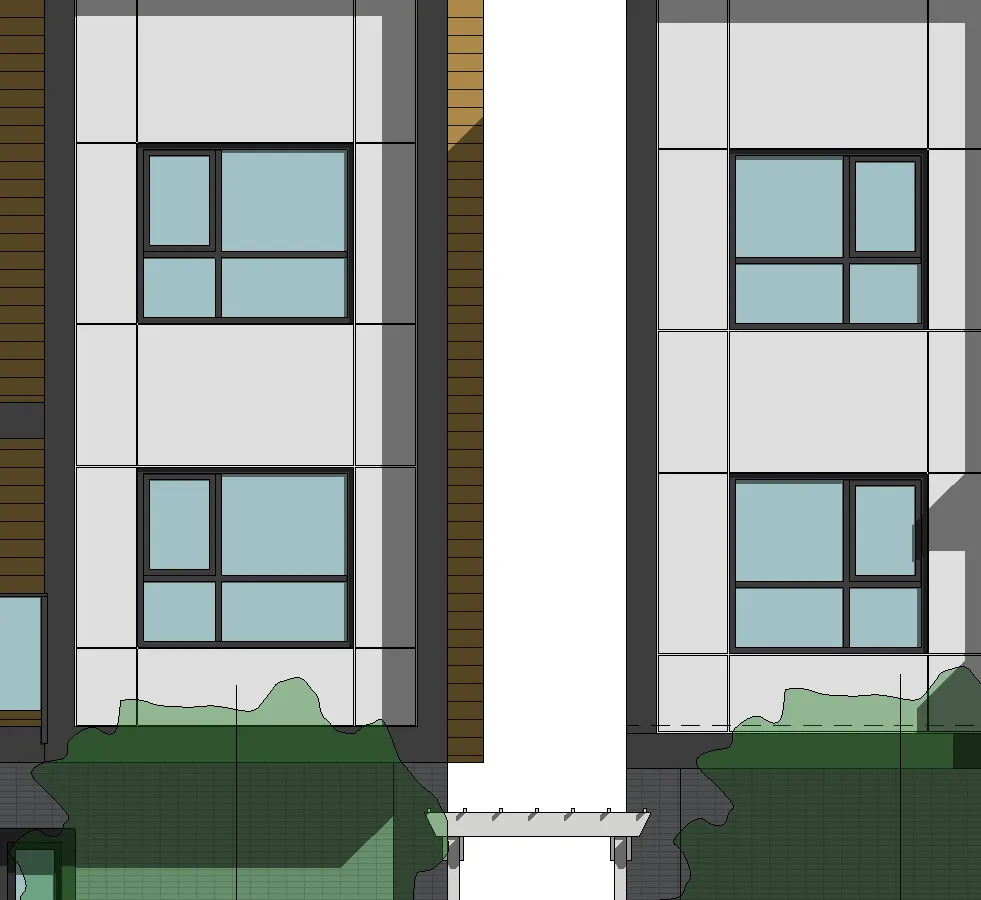

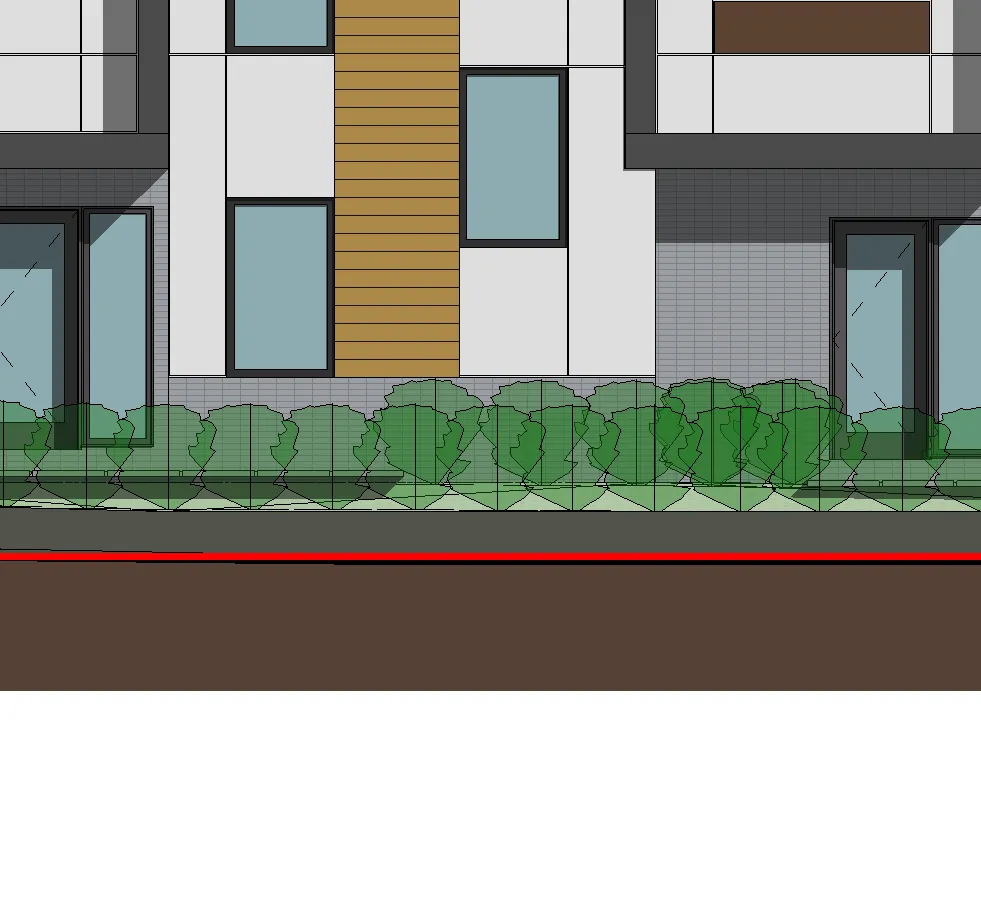

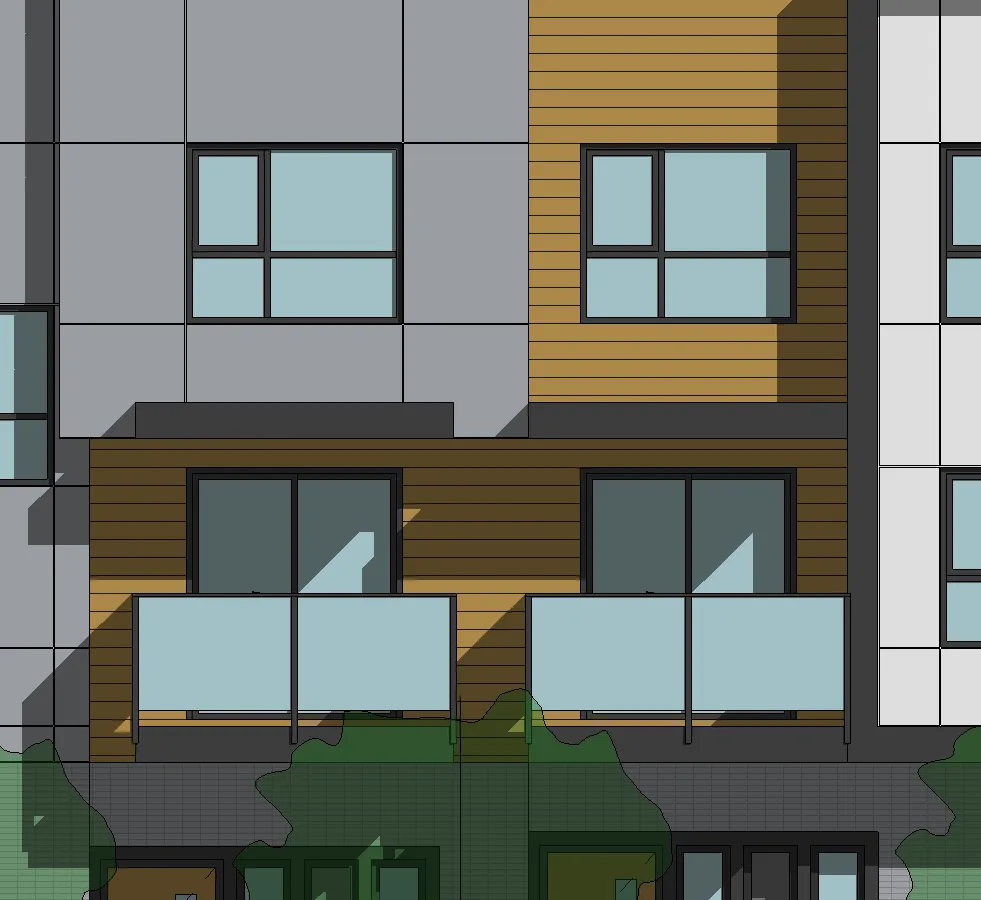

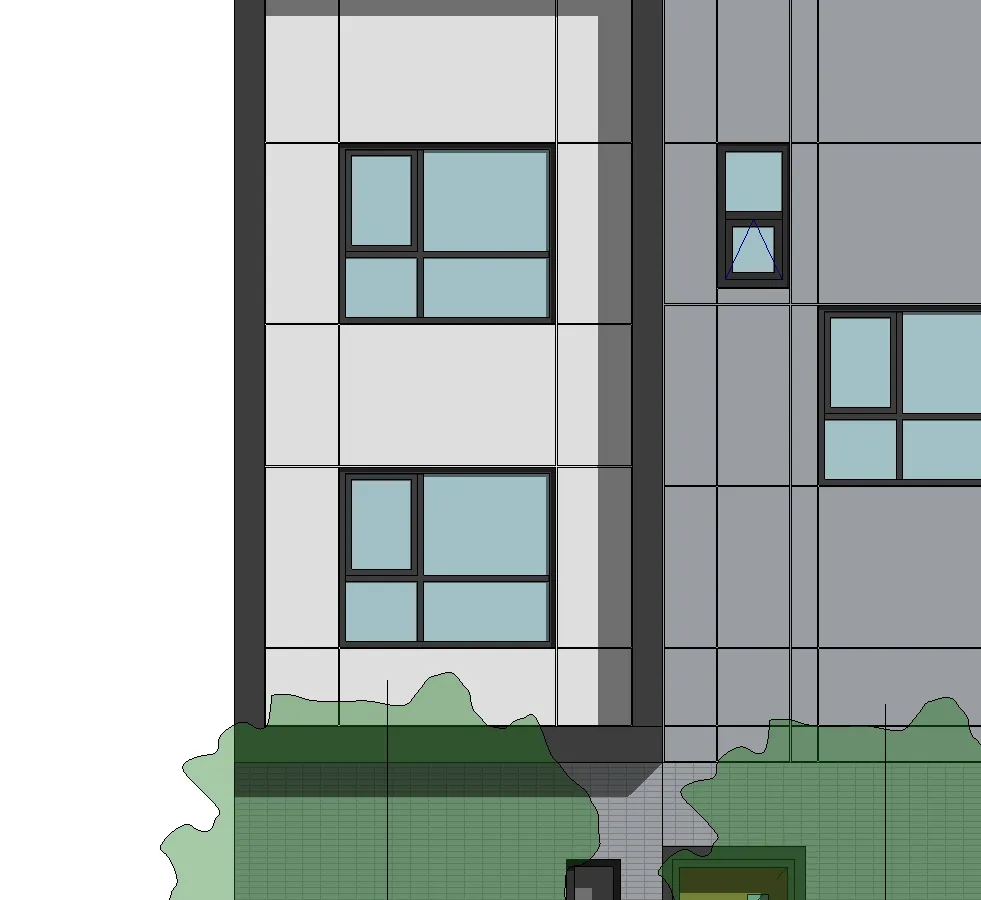

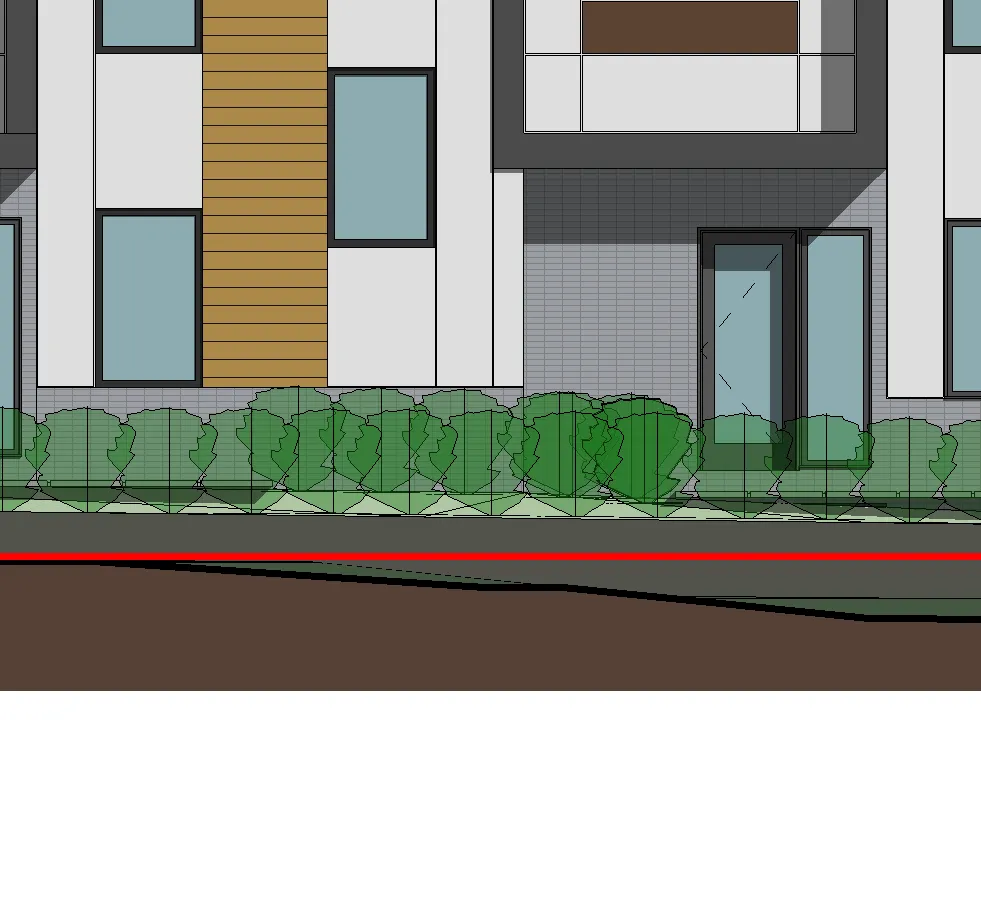

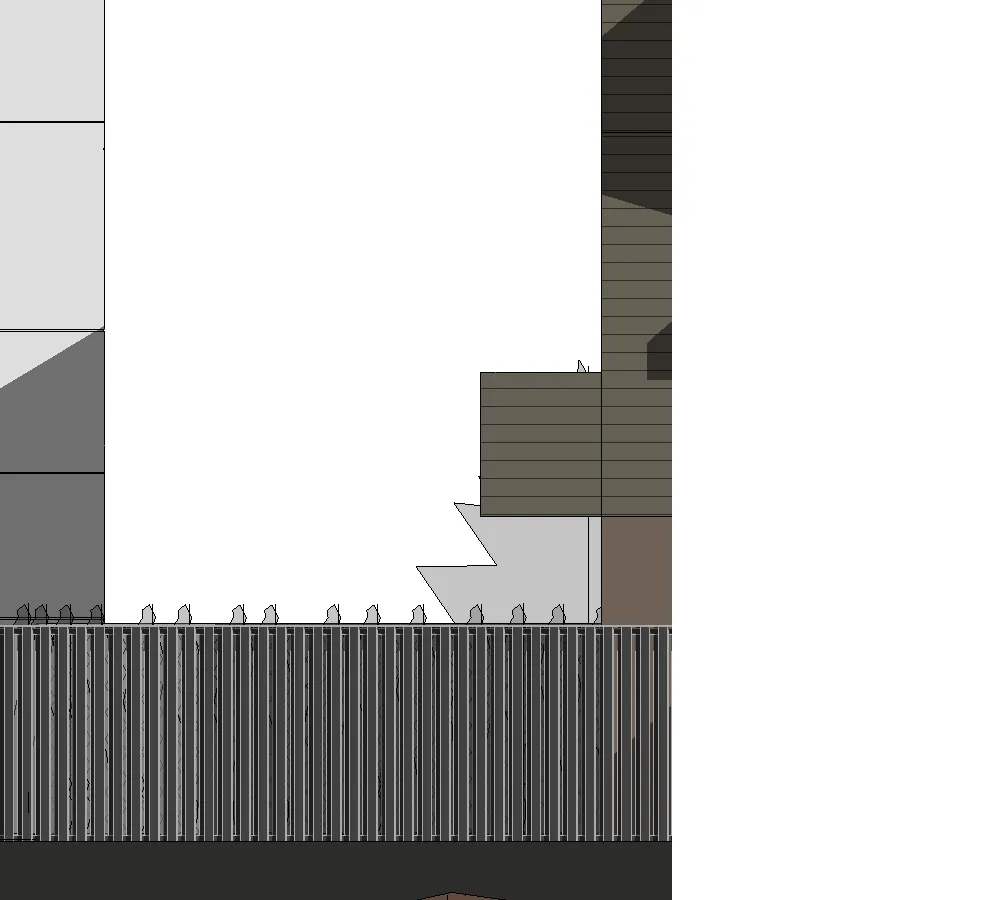

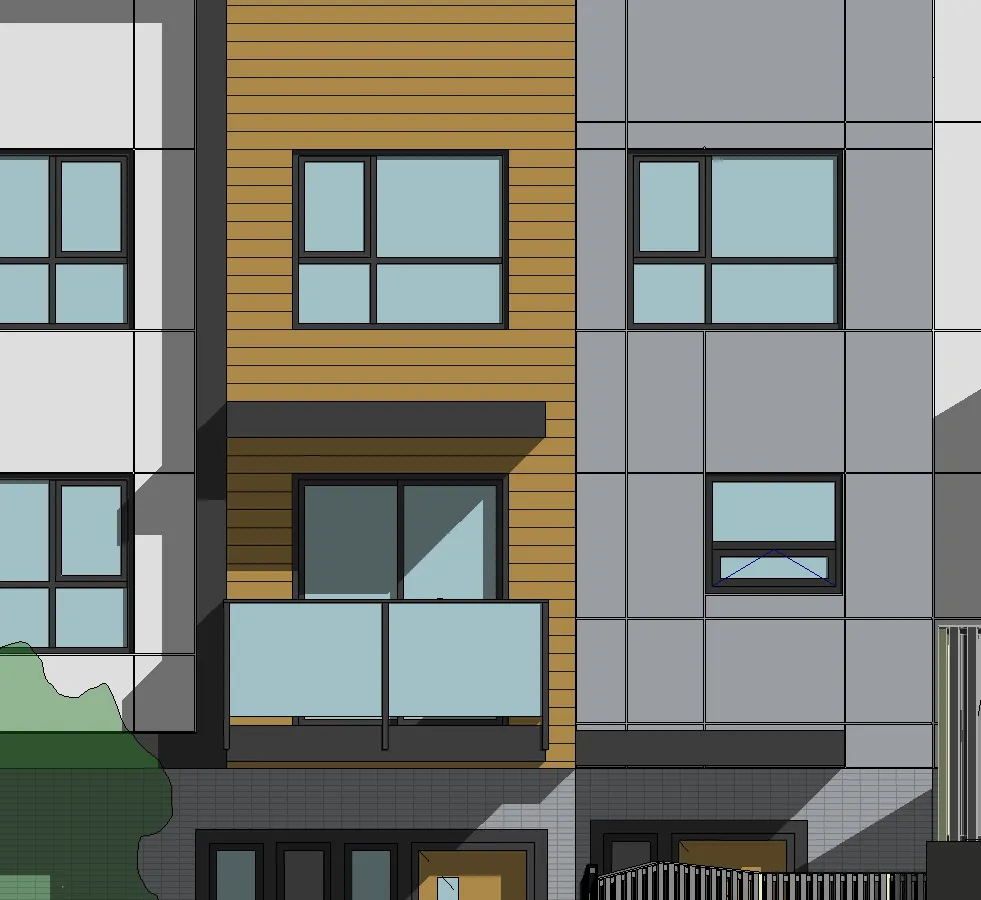

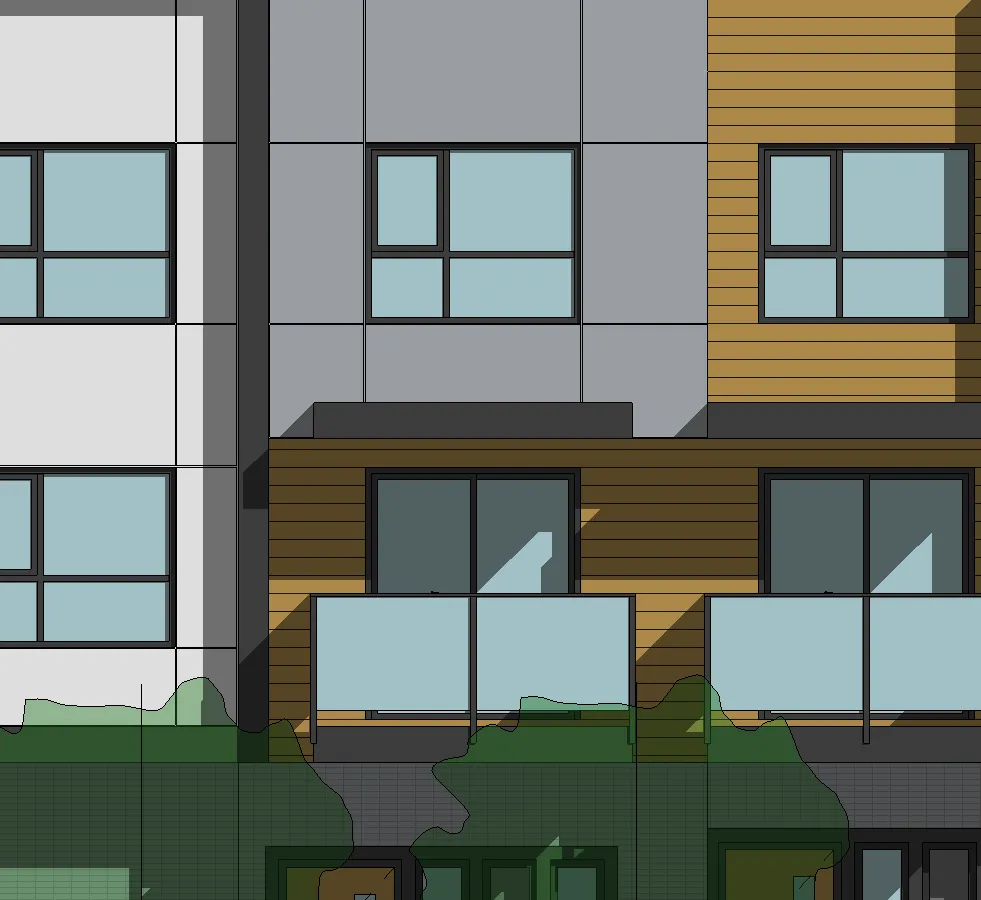

1 SOUTH ELEVATION
Scale 1:100 (This elevation shows Building 2 and Building 1.)

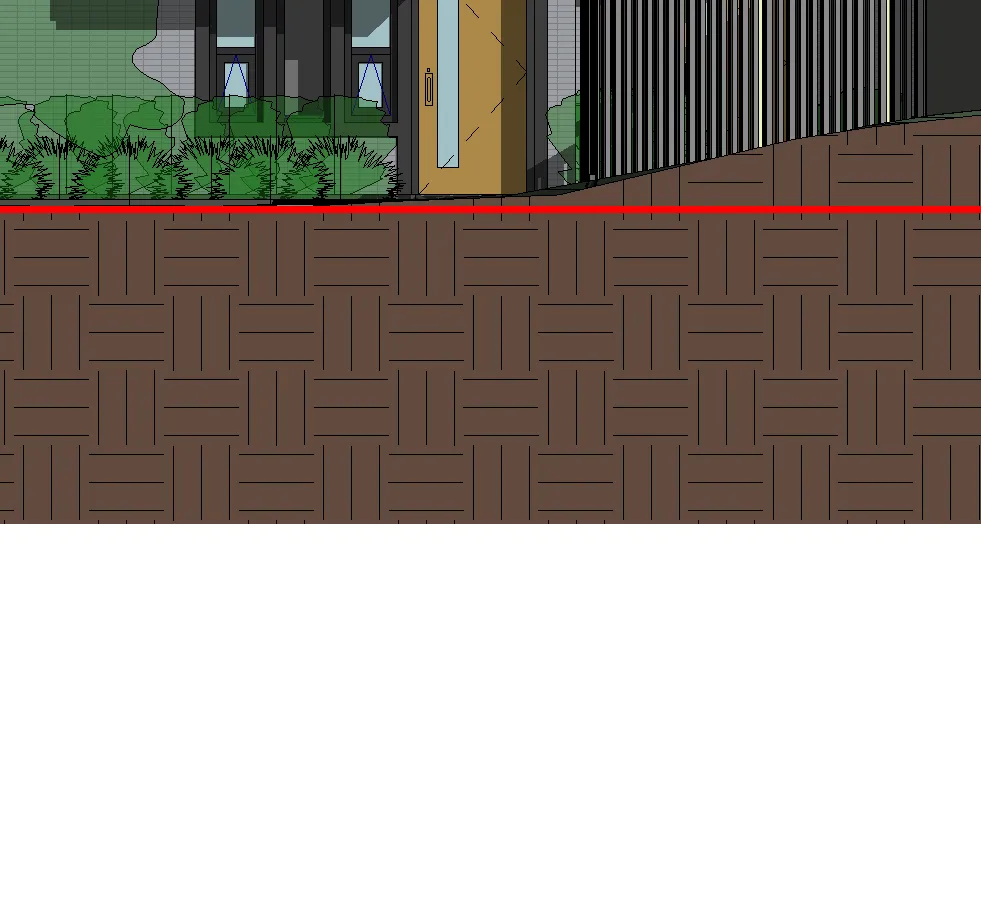

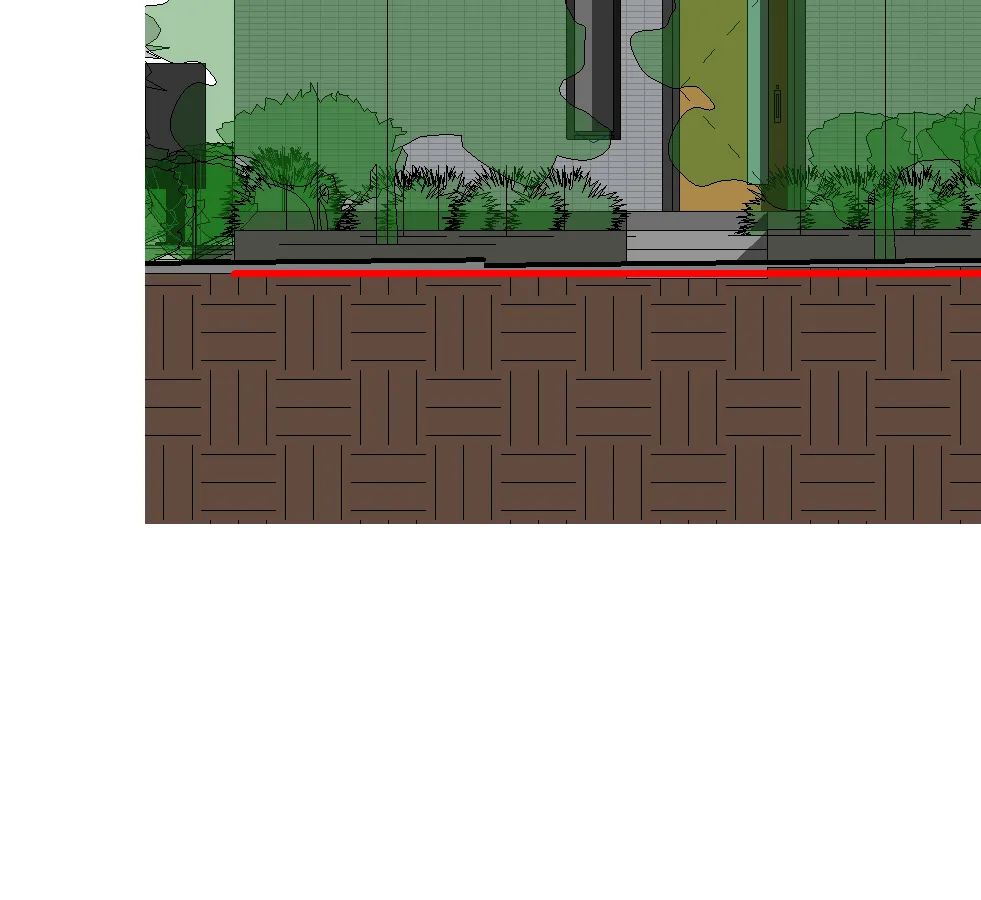

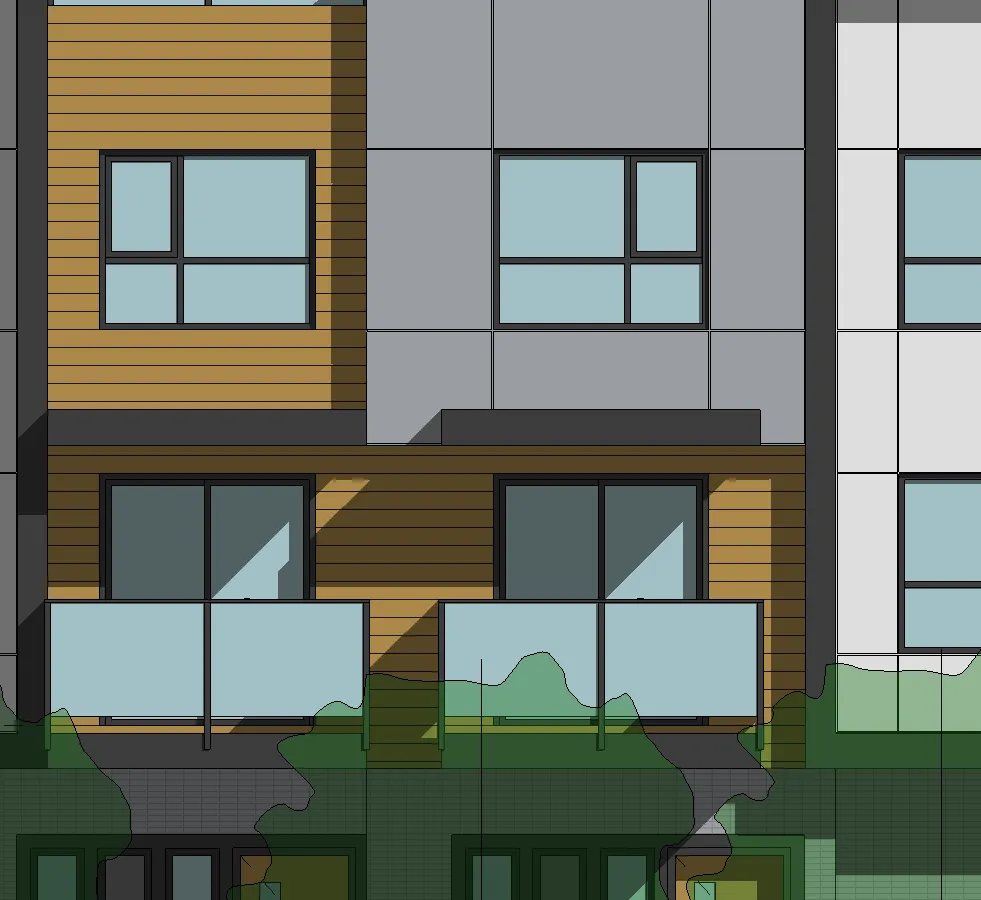

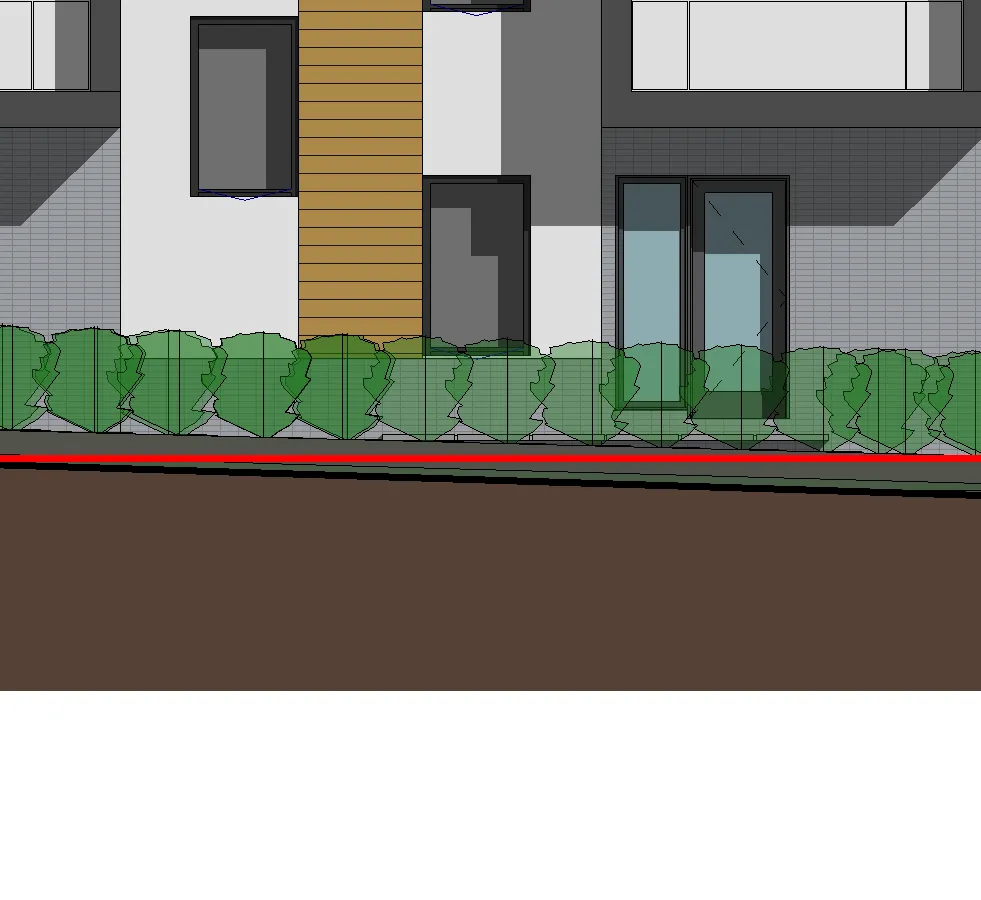

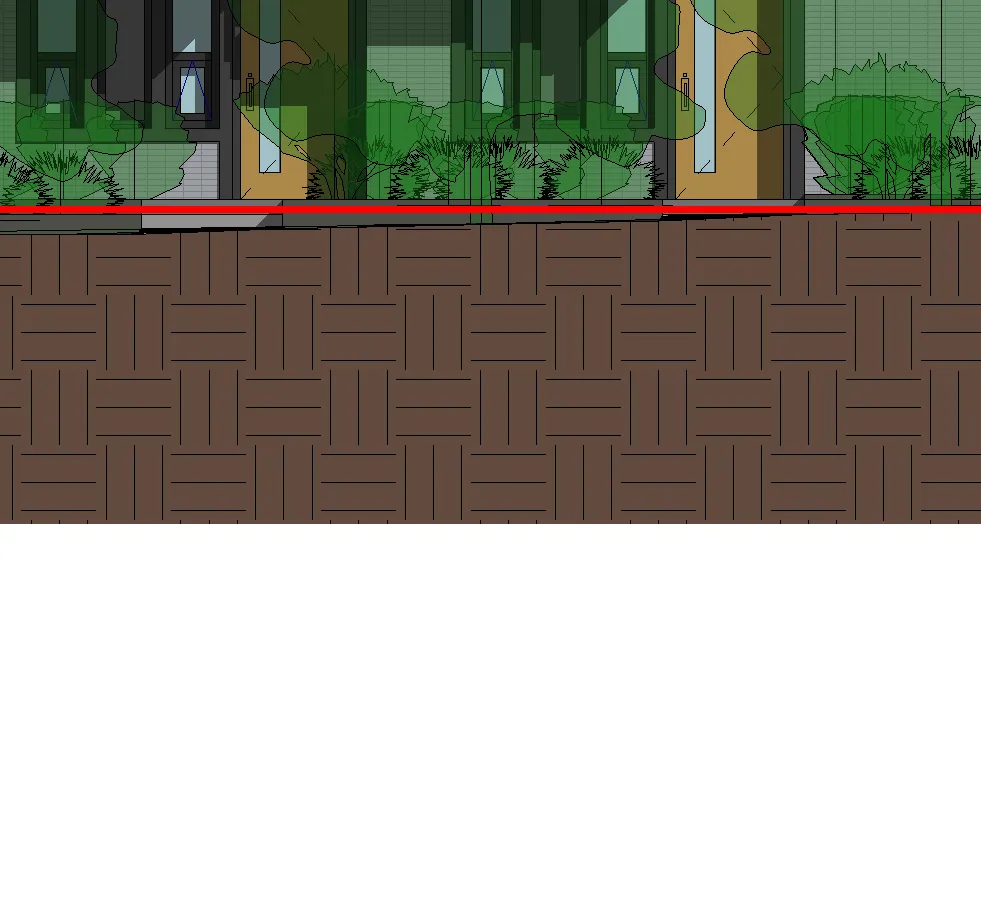

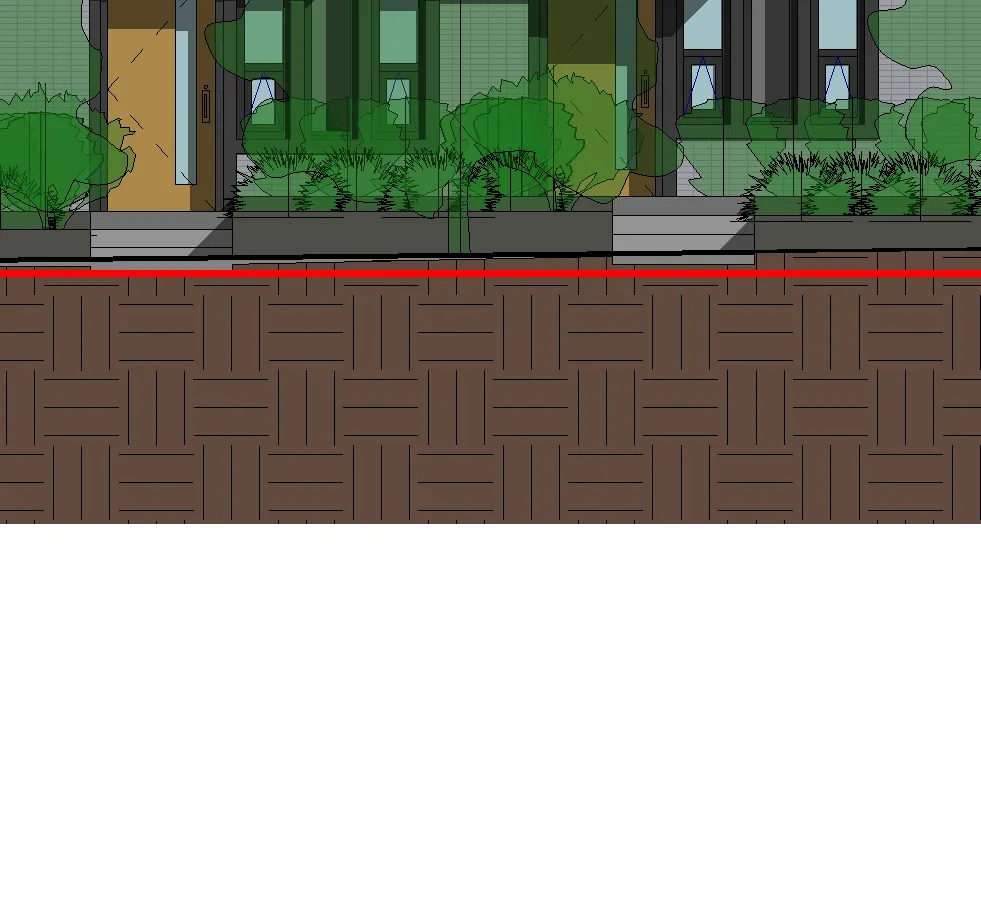

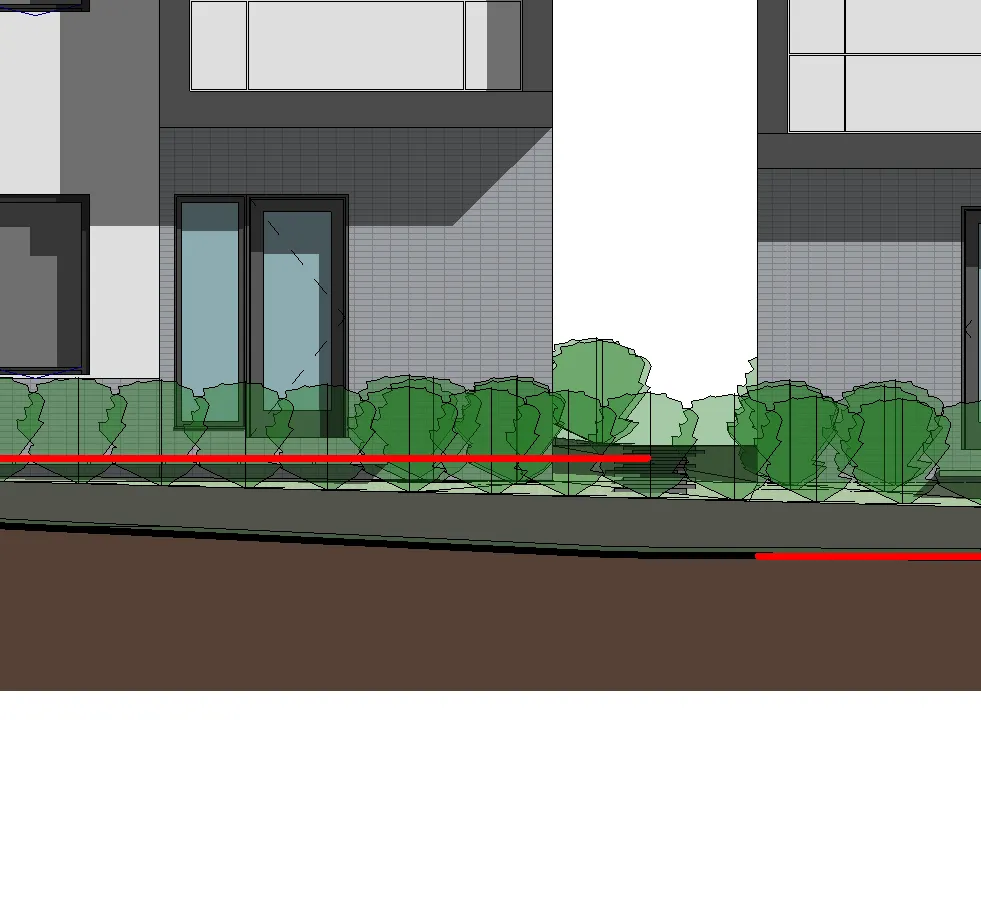

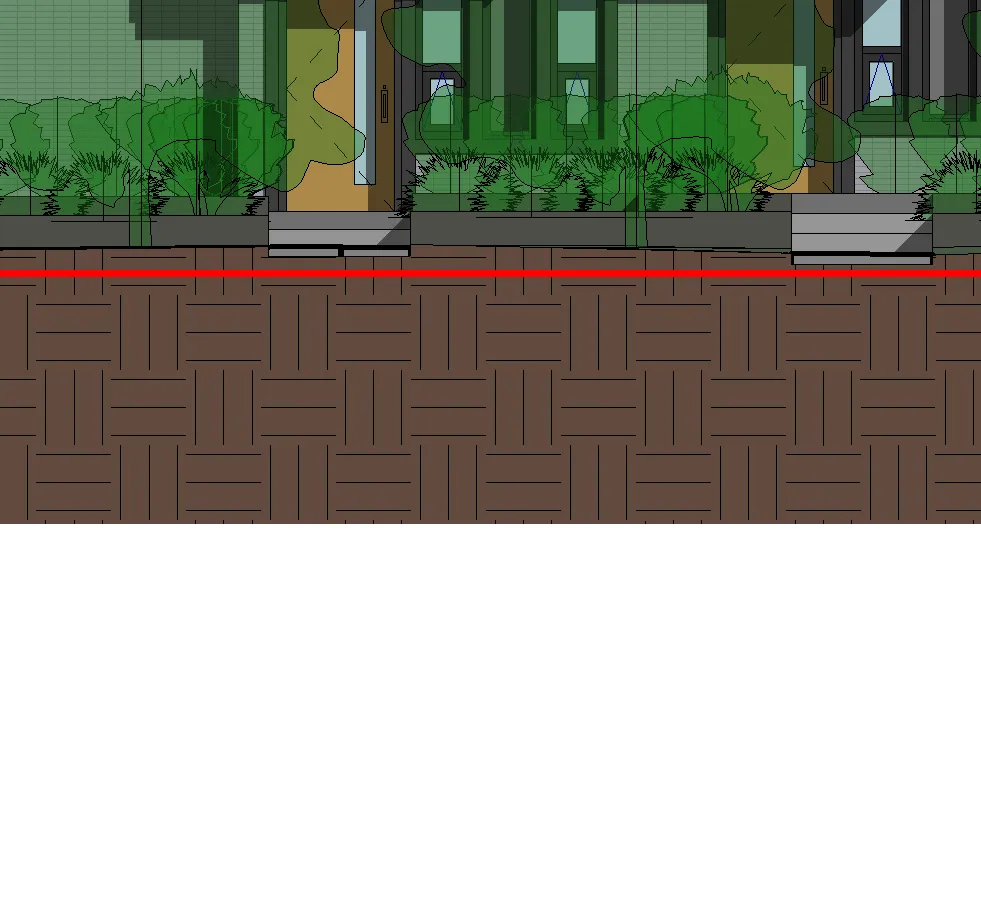

2 NORTH ELEVATION
Scale 1:100 (This elevation shows Building 5 and Building 4.)
All Drawings in this set to be read in conjunction with each other. Any errors or discrepancies to be reported to the Architect before commencing work. Contractors are responsible to ensure that all work is executed to the requirements of the appropriate Building Code Authority. © Copyright Ankenman Marchand Architects. All rights reserved.
