Garry Oak Tree Protection Plan Sketch (Attachment 4 Page 4 of 4)

September 1, 2015Page 331 section

Visual sketch and detailed conditions for construction within the protected area of the Garry Oak tree.

No digging or soil compaction allowed in the deck areaClean 3/4" minus crushed rock requirement400 Nursery Hill Drive

Al Tolsma, 400 Nursery Hill Drive – Garry Oak Tree Protection Plan

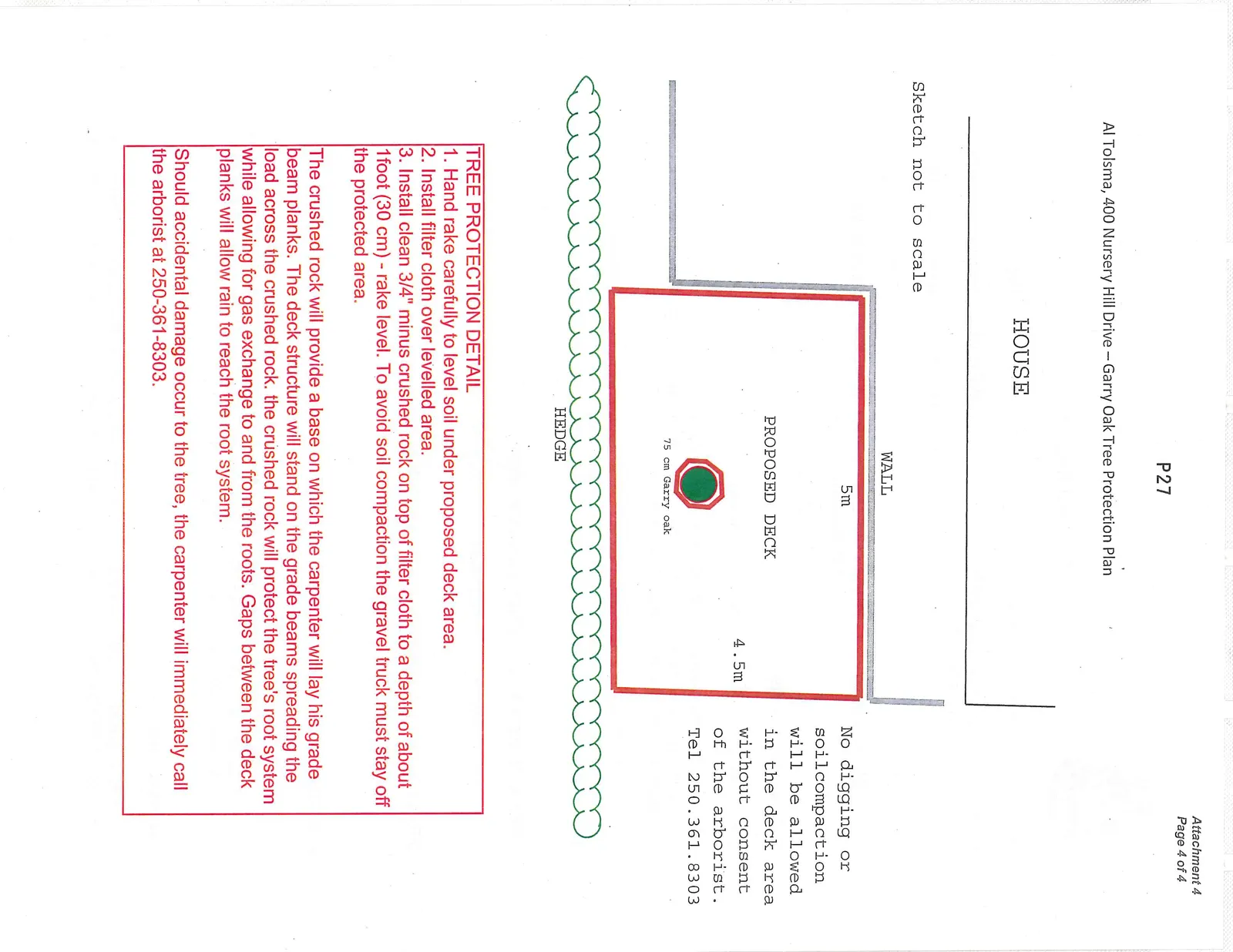

Site sketch showing the proposed deck area measuring 5m by 4.5m situated between a house wall and a hedge, with a 75 cm Garry oak tree located within the deck footprint.
Site sketch showing the proposed deck area measuring 5m by 4.5m situated between a house wall and a hedge, with a 75 cm Garry oak tree located within the deck footprint.

No digging or soilcompaction will be allowed in the deck area without consent of the arborist. Tel 250.361.8303

TREE PROTECTION DETAIL

  1. Hand rake carefully to level soil under proposed deck area.
  2. Install filter cloth over levelled area.
  3. Install clean 3/4" minus crushed rock on top of filter cloth to a depth of about 1foot (30 cm) - rake level. To avoid soil compaction the gravel truck must stay off the protected area.

The crushed rock will provide a base on which the carpenter will lay his grade beam planks. The deck structure will stand on the grade beams spreading the load across the crushed rock. the crushed rock will protect the tree's root system while allowing for gas exchange to and from the roots. Gaps between the deck planks will allow rain to reach the root system.

Should accidental damage occur to the tree, the carpenter will immediately call the arborist at 250-361-8303.
