A detailed technical grading plan for the Thetis Vale Phase 6 development project.
May 6, 2015Thetis Vale Phase 6

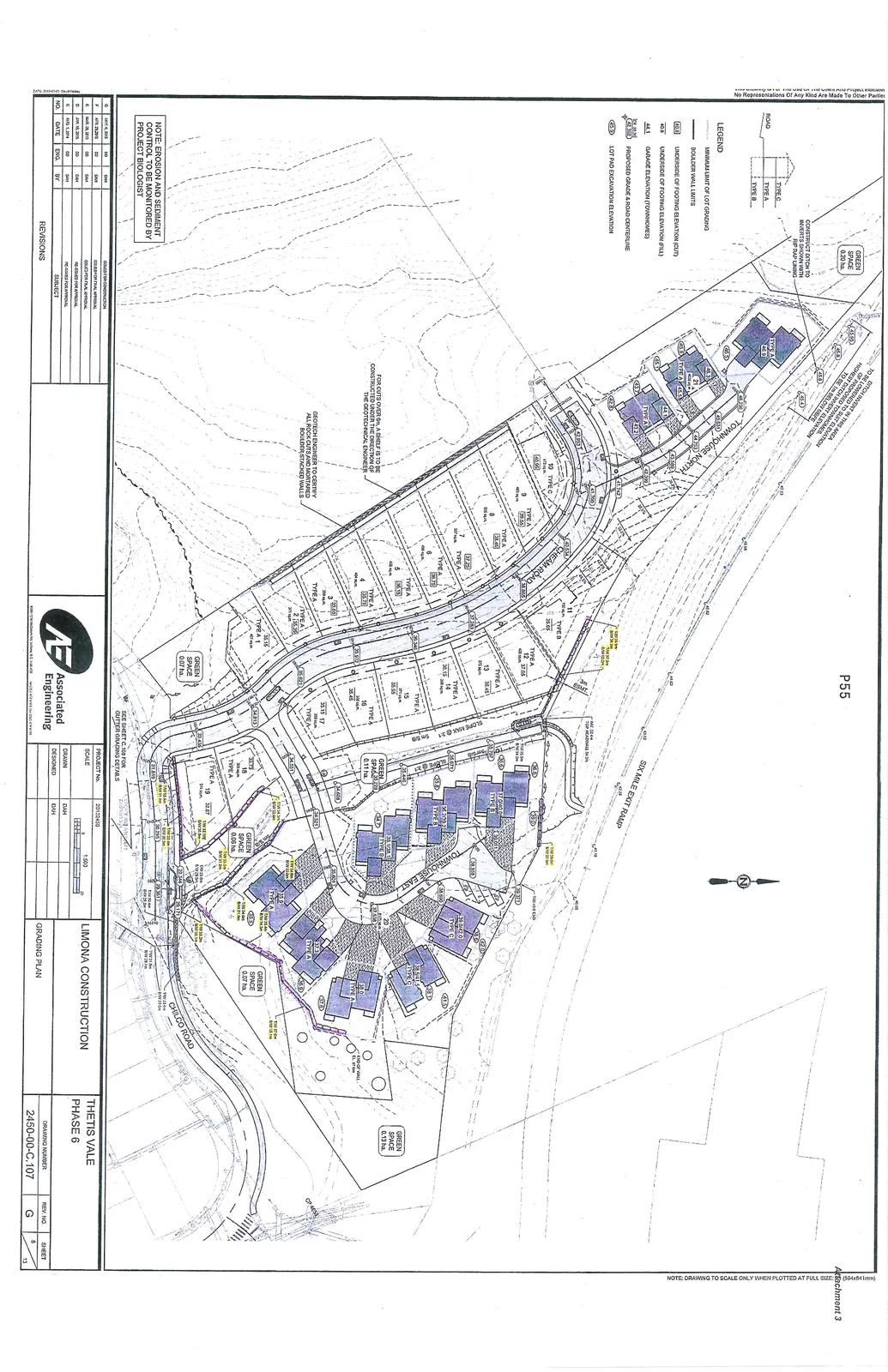

GRADING PLAN - THETIS VALE PHASE 6
Legend
| Symbol | Description |
|---|---|
| (Dashed line) | MINIMUM LIMIT OF LOT GRADING |
| (Line with circles) | BOULDER WALL LIMITS |
| 40.8 | UNDERSIDE OF FOOTING ELEVATION (CUT) |
| 40.8 | UNDERSIDE OF FOOTING ELEVATION (FILL) |
| 44.1 | GARAGE ELEVATION (TOWNHOMES) |
| EX: 35.80 / 42.10 | PROPOSED GRADE & ROAD CENTERLINE |
| (45.3) | LOT PAD EXCAVATION ELEVATION |
General Notes
- DITCH DIVERT IN THIS AREA TO BE LOWERED TO SUIT ELEVATION OF PROPOSED DITCH INVERT. HIGHEST DITCH INVERT ELEVATION TO BE 1.0m BELOW LOT GRADE.
- CONSTRUCT DITCH TO INVERTS SHOWN WITH RIP RAP LINING.
- FOR CUTS OVER 6m, A SHELF IS TO BE CONSTRUCTED UNDER THE DIRECTION OF THE GEOTECHNICAL ENGINEER.
- GEOTECH ENGINEER TO CERTIFY ALL ROCK CUTS AND MORTARED BOULDER STACKED WALLS.
- NOTE: EROSION AND SEDIMENT CONTROL TO BE MONITORED BY PROJECT BIOLOGIST.
- SEE SHEET C.108 FOR GUTTER GRADING DETAILS.
- NOTE: DRAWING TO SCALE ONLY WHEN PLOTTED AT FULL SIZE (554x841mm).
Revision History
| NO. | DATE | ENG. | BY | SUBJECT |
|---|---|---|---|---|
| G | AUG 7, 2015 | DD | DAH | RE-ISSUED FOR APPROVAL |
| F | APR 29, 2015 | DD | DAH | ISSUED FOR FINAL APPROVAL |
| E | MAR 20, 2015 | DD | DAH | ISSUED FOR FINAL APPROVAL |
| D | JAN 16, 2015 | DD | DAH | RE-ISSUED FOR APPROVAL |
| C | MAR 4, 2015 | DD | DAH | ISSUED FOR CONSTRUCTION |
Project Information
- Client: LIMONA CONSTRUCTION
- Project: THETIS VALE PHASE 6
- Drawing Title: GRADING PLAN
- Project No.: 20132450
- Scale: 1:500
- Drawn: DAH
- Designed: DAH
- Drawing Number: 2450-00-C.107
- Revision No.: G
- Sheet: 8 of 13
