Eagle Creek Village Building 7 - Elevations

September 1, 2015Page 1151 section

Architectural elevations for the south, north, east, and west sides of Building 7 in the Eagle Creek Village development.

Building 7Eagle Creek VillageWatkiss Way & Helmcken RoadJuly 8, 2013

EAGLE CREEK VILLAGE - BUILDING 7 - ELEVATIONS

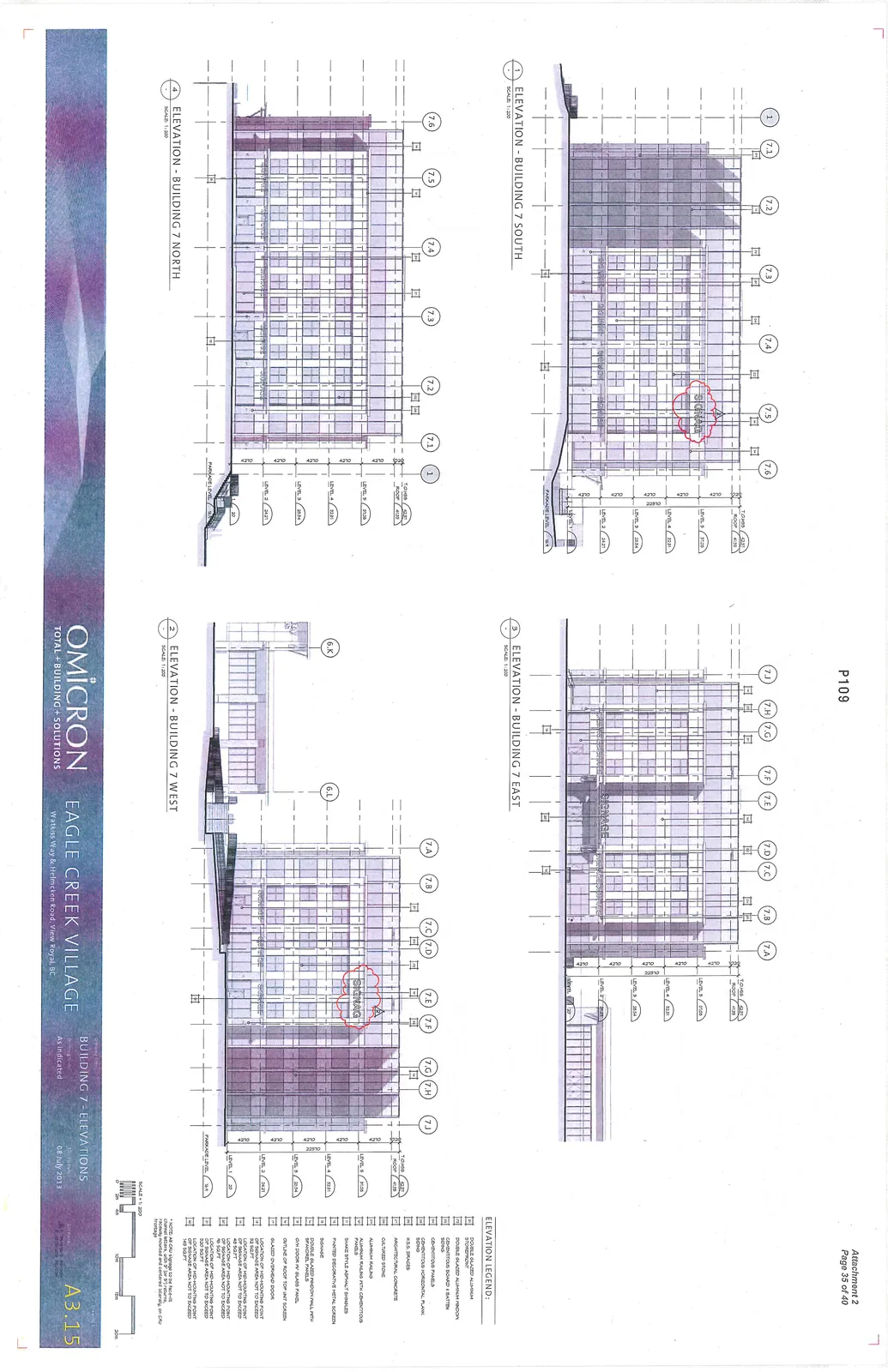

Architectural elevation drawings of Building 7 showing South, North, East, and West views with material callouts and floor level markers.
Architectural elevation drawings of Building 7 showing South, North, East, and West views with material callouts and floor level markers.

Elevation Views

  1. ELEVATION - BUILDING 7 SOUTH (Scale: 1:200)
  2. ELEVATION - BUILDING 7 NORTH (Scale: 1:200)
  3. ELEVATION - BUILDING 7 EAST (Scale: 1:200)
  4. ELEVATION - BUILDING 7 WEST (Scale: 1:200)

Elevation Legend

Symbol Description
F1 DOUBLE GLAZED ALUMINUM STOREFRONT
F2 DOUBLE GLAZED ALUMINUM WINDOW
M1 CEMENTITIOUS BOARD & BATTEN SIDING
M2 CEMENTITIOUS PANELS
M3 CEMENTITIOUS HORIZONTAL PLANK SIDING
M4 H.S.S. BRACES
M5 ARCHITECTURAL CONCRETE
M6 CULTURED STONE
M7 ALUMINUM RAILING
M8 ALUMINUM RAILING WITH CEMENTITIOUS PANELS
M9 SHAKE STYLE ASPHALT SHINGLES
M10 PAINTED DECORATIVE METAL SCREEN
S1 SIGNAGE
S2 DOUBLE GLAZED WINDOW WALL WITH SPANDREL PANELS
D1 O/H DOOR W/ GLASS PANEL
[Dashed box] OUTLINE OF ROOF TOP UNIT SCREEN
[Box with diagonal lines] GLAZED OVERHEAD DOOR
(1) LOCATION OF MID-MOUNTING POINT OF SIGNAGE AREA NOT TO EXCEED 52 SQ.FT.
(2) LOCATION OF MID-MOUNTING POINT OF SIGNAGE AREA NOT TO EXCEED 45 SQ.FT.
(3) LOCATION OF MID-MOUNTING POINT OF SIGNAGE AREA NOT TO EXCEED 52 SQ.FT.
(4) LOCATION OF MID-MOUNTING POINT OF SIGNAGE AREA NOT TO EXCEED 220 SQ.FT.
(5) LOCATION OF MID-MOUNTING POINT OF SIGNAGE AREA NOT TO EXCEED 45 SQ.FT.

Notes

  • NOTE: All CRU signage to be face-lit channel letters, with 5" or 3" returns, raceway mounted and centered laterally on CRU frontage.

Elevation Levels (Metres)

  • T.O.HSS: 42.57
  • ROOF: 41.39
  • LEVEL 5: 37.09
  • LEVEL 4: 32.81
  • LEVEL 3: 28.54
  • LEVEL 2: 24.27
  • LEVEL 1: 20
  • PARKADE LEVEL: 12.1

Project Information

  • Project Name: EAGLE CREEK VILLAGE
  • Location: Watkins Way & Helmcken Road, View Royal, BC
  • Firm: OMICRON (TOTAL + BUILDING + SOLUTIONS)
  • Drawing Title: BUILDING 7 - ELEVATIONS
  • Scale: As indicated
  • Date: 08 July 2013
  • Drawing Number: A3.15
