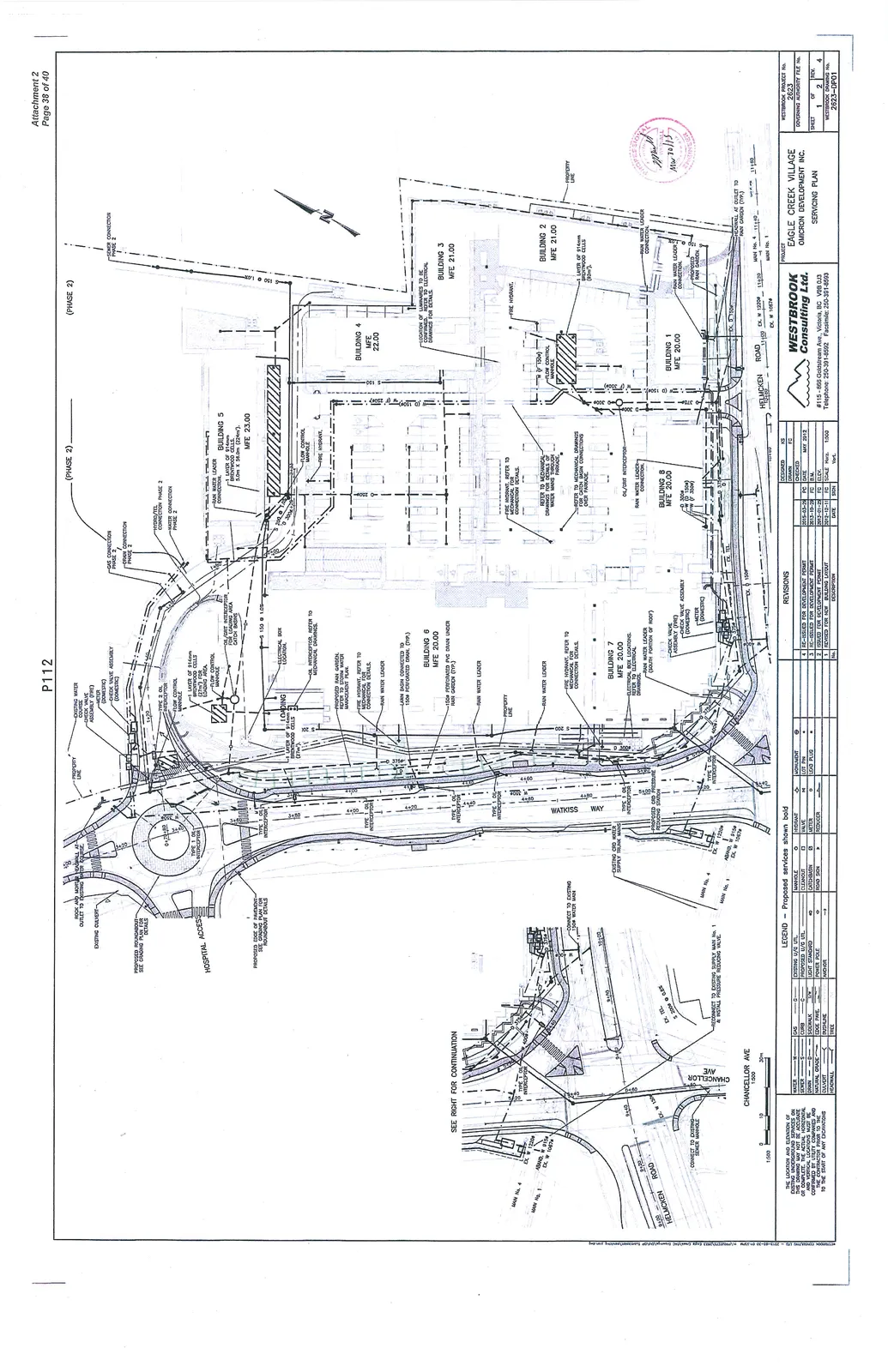

Civil engineering plan showing the water, sewer, and drainage utility connections for the Eagle Creek Village Phase 1 development.
Eagle Creek Village33 Helmcken RoadWestbrook Consulting Ltd.May 2012
EAGLE CREEK VILLAGE - SERVICING PLAN
Project Information
- Project: EAGLE CREEK VILLAGE, OMICRON DEVELOPMENT INC.
- Drawing Title: SERVICING PLAN
- Consultant: WESTBROOK Consulting Ltd., #115 - 866 Goldstream Ave., Victoria, BC V9B 0J3
- Project No.: 2623
- Drawing No.: 2623-DP01
- Sheet: 1 of 2
- Revision: 4
- Date: MAY 2012
- Scale: Horizontal 1:500
Revisions
| No. | Description | Date | Designed | Checked |
|---|---|---|---|---|
| 4 | RE-ISSUED FOR DEVELOPMENT PERMIT | 2015-02-23 | PC | KS |
| 3 | RE-ISSUED FOR DEVELOPMENT PERMIT | 2013-10-25 | FD | B.N. |
| 2 | ISSUED FOR DEVELOPMENT PERMIT | 2013-01-02 | FD | ELEV. |
| 1 | REVISED FOR NEW BUILDING LAYOUT | 2012-12-11 | FD |
Legend - Proposed services shown bold
| Symbol/Line | Description | Symbol/Line | Description |
|---|---|---|---|
| ---W--- | WATER | (Circle) | MANHOLE |
| ---S--- | SEWER | (Square with X) | CLEANOUT |
| ---D--- | DRAIN | (Rectangle with X) | CATCHBASIN |
| ------- | NATURAL GRADE | (Circle with cross) | ROAD SIGN |
| (Box) | CULVERT | (Open Circle) | HYDRANT |
| (Semi-circle) | HEADWALL | (Bowtie) | VALVE |
| ---CAD--- | CAD | (M in circle) | METER |
| ---CURB--- | CURB | (Triangle) | REDUCER |
| ---S/W--- | SIDEWALK | (Star) | MONUMENT |
| ---EP--- | EDGE PAV'T | (Dot) | LOT PIN |
| (Dashed) | PROPERTY LINE | (Plus) | LEAD PLUG |
| (Tree icon) | TREE | (Arrow) | ANCHOR |
| ---X--- | EXISTING U/G UTIL. | ||
| (Double dash) | PROPOSED U/G UTIL. | ||
| (Lollipop) | LIGHT STANDARD | ||
| (Circle with dot) | POWER POLE |
General Notes
- THE LOCATION AND ELEVATION OF EXISTING UNDERGROUND SERVICES ON THIS DRAWING MAY NOT BE ACCURATE OR COMPLETE. THE ACTUAL HORIZONTAL AND VERTICAL LOCATIONS MUST BE CONFIRMED BY UTILITY COMPANIES AND THE CONTRACTOR PRIOR TO THE TO THE START OF ANY EXCAVATIONS.
- ROCK AND MORTAR HEADWALL AT OUTLET TO EXISTING WATER COURSE.
- SEE GRADING PLAN FOR ROUNDABOUT DETAILS.
- OIL/GRIT INTERCEPTOR, REFER TO MECHANICAL DRAWINGS.
- PROPOSED RAIN GARDEN. REFER TO STORM WATER MANAGEMENT PLAN.
- FIRE HYDRANT, REFER TO MECHANICAL FOR CONNECTION DETAILS.
Building Main Floor Elevations (MFE)
- Building 1: MFE 20.00
- Building 2: MFE 21.00
- Building 3: MFE 21.00
- Building 4: MFE 22.00
- Building 5: MFE 23.00
- Building 6: MFE 20.00
- Building 7: MFE 20.00
- Building 8: MFE 20.00
Utility Connections
- GAS CONNECTION PHASE 2
- WATER CONNECTION PHASE 2
- HYDRO/TEL CONNECTION PHASE 2
- RAIN WATER LEADER CONNECTION (Multiple locations)
- OIL/GRIT INTERCEPTOR FOR LOADING AREA CATCH BASINS
- 1 LAYER OF 514mm BRENTWOOD CELLS (Various locations for drainage)
