LAKEVIEW VILLAGE LANDSCAPE CONCEPT PLAN

OCTOBER 2011 SCALE: 1:200

ATTACHMENT 13

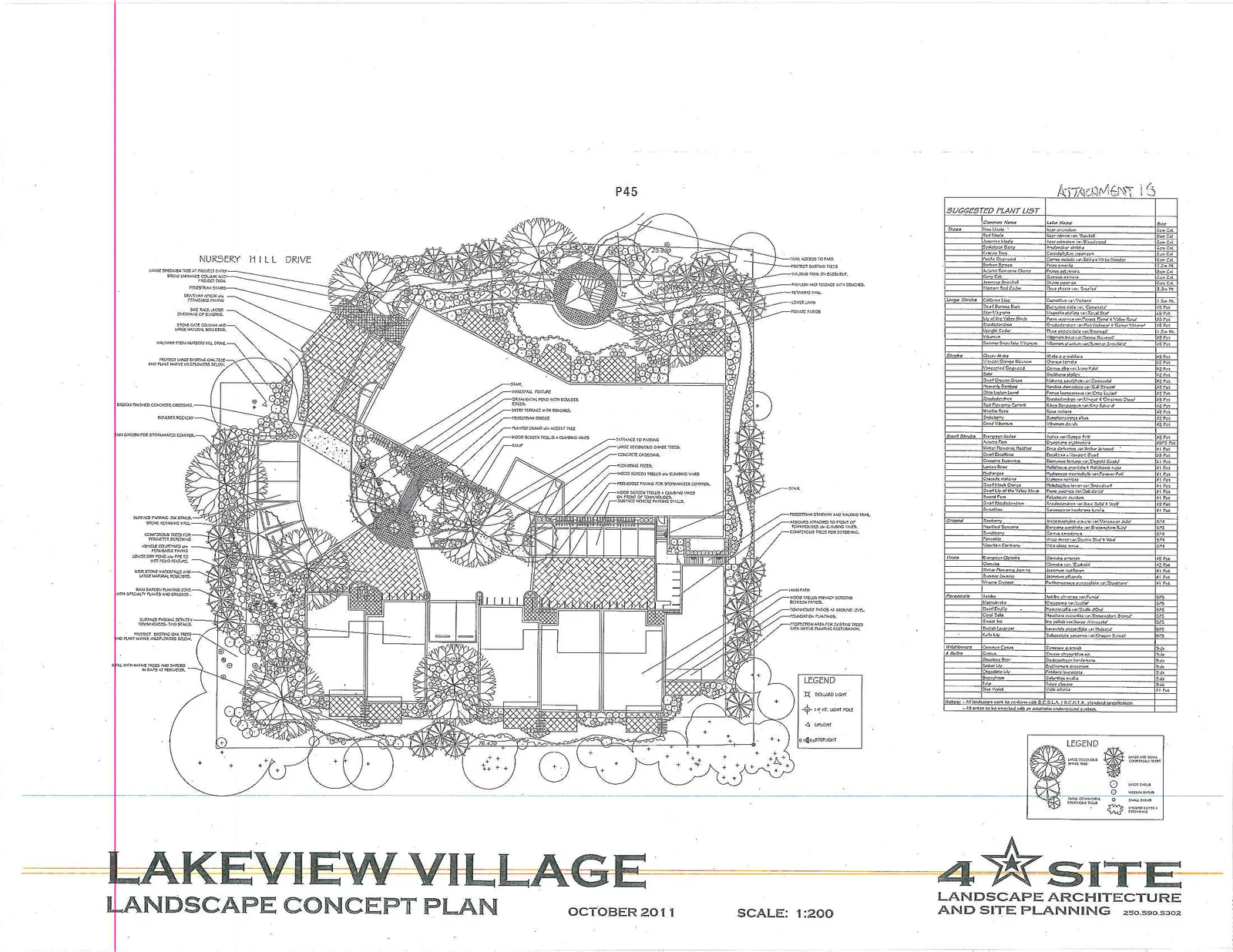

Detailed landscape architectural concept plan for Lakeview Village showing the overall site layout, building footprints, parking areas, and a comprehensive planting and hardscaping design along Nursery Hill Drive.

Plan Features and Labels

NURSERY HILL DRIVE
LARGE SPECIMEN TREE AT PROJECT ENTRY WITH GROUND COVER BELOW
METAL ARCHWAY WITH PROJECT SIGN
PEDESTRIAN STAIRS
BOULDER RETAINING WALL AT PROJECT ENTRY
SITE TRAIL LOOP (ENTIRETY OF SLOPES)
STONE GATE COLUMN WITH WROUGHT IRON FENCE
WALKWAY FINISH MATCHES HILL DRIVE
PROTECT UNIQUE EXISTING HILL OAK AND INCORPORATE INTO LANDSCAPE DESIGN
BROOM FINISHED CONCRETE DRIVEWAY
BOULDER ROCKERY
RAIN GARDEN FOR STORMWATER CONTROL
SURFACE PARKING: (54) STALLS, WITH TREE ISLANDS, TYP. SPACING.
CONTINUOUS TREES FOR STREETSCAPE CHARACTER
UNIQUE COURTYARD OR PERMEABLE PAVERS AT PROJECT ENTRIES
LOW WOOD FENCING TO DELINEATE PROJECT BOUNDARY AT NURSERY HILL DRIVE
STAIR ACCESS TO PARK
PROTECT EXISTING TREES
PROJECT TOTAL (5) BOLLARDS
RETAINING WALL
RAIN GARDEN WITH BOULDERS
WOOD FENCE
PRIVATE PATIO
DECK
SCREENING FEATURE
OPEN WOODEN DECK WITH BOULDER EDGE
PEDESTRIAN BRIDGE
TERRAZZO FINISH
RAISED ISLAND IN WOODEN DECK
WOOD SCREEN TRELLIS AT PARKING HUB
LARGE SPECIMEN FOCUS / CALIPER TREE
ENTRANCE TO PARKING
LARGE DECIDUOUS SHADE TREE
CONCRETE SIDEWALK
FLOWERING TREES
PERMEABLE PAVING FOR STORMWATER CONTROL
PRIVATE PATIO WITH WOOD FENCING
RECREATIONAL WOOD DECK WITH BENCHES AND LOOKOUT AREA
PROJECT FOCUS / SPECIMEN TREE
PEDESTRIAN STAIRWAY WITH RAILING TRAIL
ADEQUATE SPACING TO FRONT OF TOWNHOUSE UNITS TO ENSURE CONIFEROUS TREES FOR SCREENING
MAIN TRAIL
CONIFEROUS TREES FOR PRIVACY SCREENING
REINFORCED TURF AT GROUND LEVEL
FIRE TRUCK TURN-A-ROUND
PEDESTRIAN AREA FOR DIRECT ACCESS WITH METAL ARCHWAY AND SCREENING

Suggested Plant List

Category	Common Name	Latin Name	Size
Trees	Shore Pine	Pinus contorta	2.5" Cal.
	Red Maple	Acer rubrum 'Red Sunset'	2.5" Cal.
	Garry Oak	Quercus garryana	2.5" Cal.
	Western Red Cedar	Thuja plicata	2.5" Cal.
	White Oak	Quercus alba	2.5" Cal.
	Japanese Snowbell	Styrax japonicus	2.0" Cal.
	Cherry Laurel	Prunus laurocerasus 'Schipkaensis'	2.5" Cal.
	Katsura Tree	Cercidiphyllum japonicum	2.5" Cal.
	Eastern Redbud	Cercis canadensis 'Forest Pansy'	2.5" Cal.
	Star Magnolia	Magnolia stellata 'Royal Star'	6' Ht.
	Cornelian Cherry Dogwood	Cornus mas	6' Ht.
	Japanese Maple	Acer palmatum 'Bloodgood'	5' Ht.
Large Shrubs	Vine Maple	Acer circinatum	5' Ht.
	Mock Orange	Philadelphus lewisii	5' Ht.
	Oceanspray	Holodiscus discolor	5' Ht.
	Nootka Rose	Rosa nutkana	2 Gal.
	Serviceberry	Amelanchier alnifolia	5' Ht.
	Pacific Ninebark	Physocarpus capitatus	5' Ht.
	Hardhack	Spiraea douglasii	5' Ht.
Shrubs	Evergreen Huckleberry	Vaccinium ovatum	5 Gal.
	Red-osier Dogwood	Cornus stolonifera	2 Gal.
	Red Elderberry	Sambucus racemosa	5' Ht.
	Oregon Grape	Mahonia aquifolium	2 Gal.
	Salal	Gaultheria shallon	2 Gal.
	False Azalea	Menziesia ferruginea	2 Gal.
	Snowberry	Symphoricarpos albus	2 Gal.
Small Shrubs	Kinnikinnick	Arctostaphylos uva-ursi	1 Gal.
	Creeping Mahonia	Mahonia repens	1 Gal.
	Dwarf Oregon Grape	Mahonia nervosa	1 Gal.
	Boxwood	Buxus microphylla 'Winter Gem'	1 Gal.
	Heather	Erica carnea 'December Red'	1 Gal.
	Lavender	Lavandula angustifolia 'Munstead'	1 Gal.
	Sarcococca	Sarcococca humilis	1 Gal.
	Skimmia	Skimmia japonica	2 Gal.
Grasses	Blue Oat Grass	Helictotrichon sempervirens	1 Gal.
	Fountain Grass	Pennisetum alopecuroides 'Hameln'	1 Gal.
	Blue Fescue	Festuca glauca 'Elijah Blue'	1 Gal.
	Sedges	Carex species	1 Gal.
Ferns	Sword Fern	Polystichum munitum	1 Gal.
	Maidenhair Fern	Adiantum pedatum	1 Gal.
	Deer Fern	Blechnum spicant	1 Gal.
Groundcover & Bulbs	Wild Strawberry	Fragaria vesca	4" Pot
	Bunchberry	Cornus canadensis	4" Pot
	Wintergreen	Gaultheria procumbens	4" Pot
	Stonecrop	Sedum species	4" Pot
	Daffodil	Narcissus species	Bulb
	Tulip	Tulipa species	Bulb
	Crocus	Crocus species	Bulb

Notes: All landscape costs to conform with B.C.S.L.A. / B.C.N.T.A. standard specification. All shrub beds mulched with an appropriate compost / mulching product.

Lighting Legend

Bollard Light
14' HT Light Pole
Uplight
Step Light

Planting Legend

Large Specimen Shade Tree
Lower Shrub
Medium Shrub
Specimen Small / Flowering Tree
