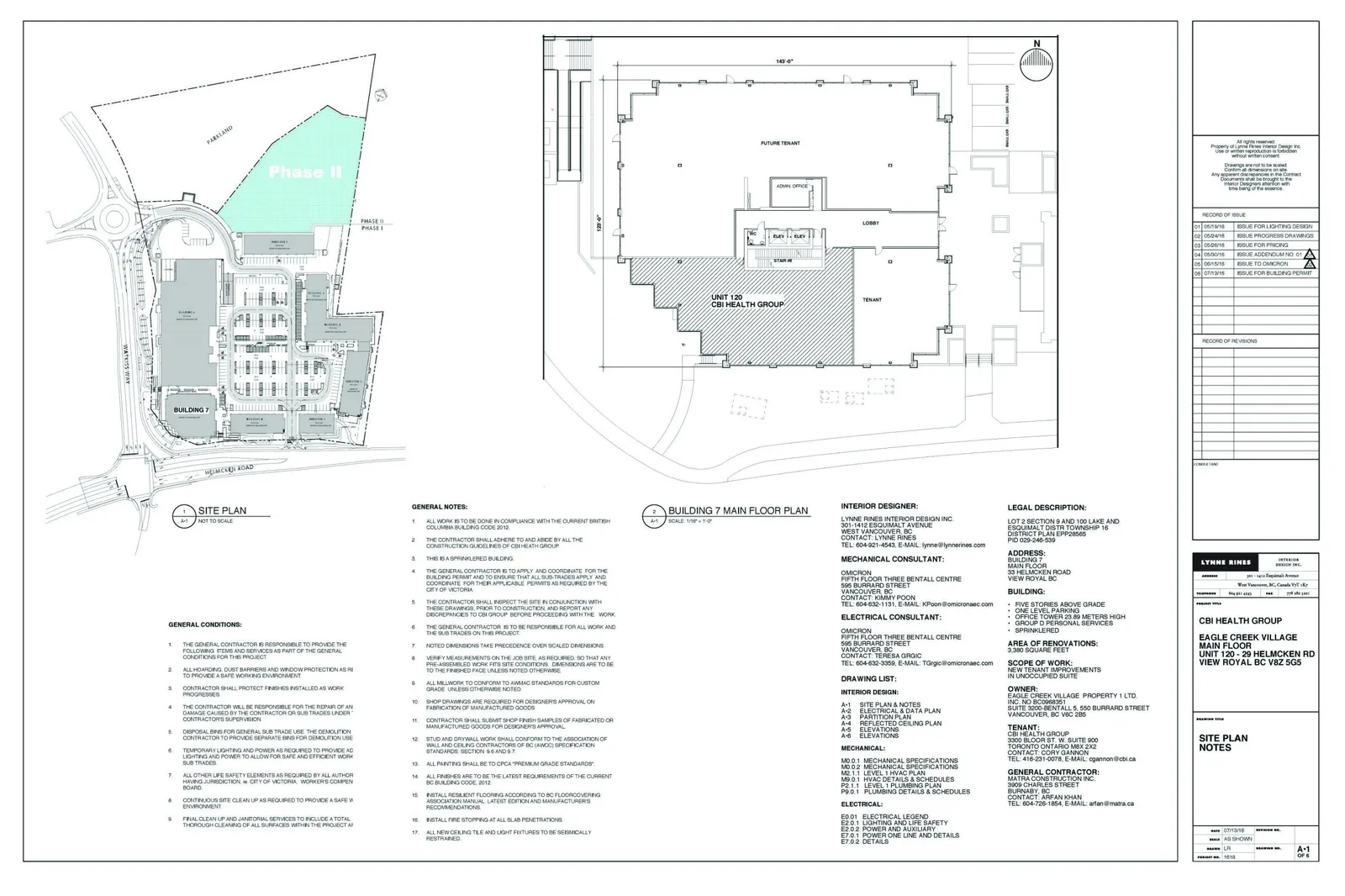

Building and Sign Location Plan

CBI Health Group - Eagle Creek Village

Main Floor Unit 120 - 29 Helmcken Rd, View Royal BC V8Z 5G5

General Conditions

1. THE GENERAL CONTRACTOR IS RESPONSIBLE TO PROVIDE THE FOLLOWING ITEMS AND SERVICES AS PART OF THE GENERAL CONDITIONS FOR THIS PROJECT.
2. ALL HOARDING, DUST BARRIERS AND WINDOW PROTECTION AS TO PROVIDE A SAFE WORKING ENVIRONMENT.
3. CONTRACTOR SHALL PROTECT FINISHES INSTALLED AS WORK PROGRESSES.
4. THE CONTRACTOR WILL BE RESPONSIBLE FOR THE REPAIR OF ANY DAMAGE CAUSED BY THE CONTRACTOR OR SUB TRADES UNDER CONTRACTOR'S SUPERVISION.
5. DISPOSAL BINS FOR GENERAL SUB TRADE USE. THE DEMOLITION CONTRACTOR TO PROVIDE SEPARATE BINS FOR DEMOLITION USE.
6. TEMPORARY LIGHTING AND POWER AS REQUIRED TO PROVIDE NO LIGHTING AND POWER TO ALLOW FOR SAFE AND EFFICIENT WORK SUB TRADES.
7. ALL OTHER LIFE SAFETY ELEMENTS AS REQUIRED BY ALL AUTHOR HAVING JURISDICTION. IE CITY OF VICTORIA, WORKER'S COMPENSATION BOARD.
8. CONTINUOUS SITE CLEAN UP AS REQUIRED TO PROVIDE A SAFE WORK ENVIRONMENT.
9. FINAL CLEAN UP AND JANITORIAL SERVICES TO INCLUDE A TOTAL THOROUGH CLEANING OF ALL SURFACES WITHIN THE PROJECT AREA.

General Notes

1. ALL WORK IS TO BE DONE IN COMPLIANCE WITH THE CURRENT BRITISH COLUMBIA BUILDING CODE 2012.
2. THE CONTRACTOR SHALL ADHERE TO AND ABIDE BY ALL THE CONSTRUCTION GUIDELINES OF CBI HEALTH GROUP.
3. THIS IS A SPRINKLERED BUILDING.
4. THE GENERAL CONTRACTOR IS TO APPLY AND COORDINATE FOR THE BUILDING PERMIT AND TO ENSURE THAT ALL SUB TRADES APPLY AND COORDINATE FOR THEIR APPLICABLE PERMITS AS REQUIRED BY THE CITY OF VICTORIA.
5. THE CONTRACTOR SHALL INSPECT THE SITE IN CONJUNCTION WITH THESE DRAWINGS PRIOR TO CONSTRUCTION AND REPORT ANY DISCREPANCIES TO CBI GROUP BEFORE PROCEEDING WITH THE WORK.
6. THE GENERAL CONTRACTOR IS TO BE RESPONSIBLE FOR ALL WORK AND THE SUBTRADES ON THIS PROJECT.
7. NOTED DIMENSIONS TAKE PRECEDENCE OVER SCALED DIMENSIONS.
8. VERIFY MEASUREMENTS ON THE JOB SITE AS REQUIRED SO THAT ANY PRE-ASSEMBLED WORK FITS SITE CONDITIONS. DIMENSIONS ARE TO BE TO THE FINISHED FACE UNLESS OTHERWISE NOTED.
9. ALL MILLWORK TO CONFORM TO AWMAC STANDARDS FOR CUSTOM GRADE, UNLESS OTHERWISE NOTED.
10. SHOP DRAWINGS ARE REQUIRED FOR DESIGNER'S APPROVAL ON FABRICATION OF MANUFACTURED GOODS.
11. CONTRACTOR SHALL SUBMIT SHOP FINISH SAMPLES OF FABRICATED OR MANUFACTURED GOODS FOR DESIGNER'S APPROVAL.
12. STUD AND DRYWALL WORK SHALL CONFORM TO "THE ASSOCIATION OF WALL AND CEILING CONTRACTORS OF BC (AWCC) SPECIFICATION STANDARDS", SECTION 9.6 AND 9.7.
13. ALL PAINTING SHALL BE TO CPCA "PREMIUM GRADE STANDARDS".
14. ALL FINISHES ARE TO BE THE LATEST REQUIREMENTS OF THE CURRENT BC BUILDING CODE, 2012.
15. INSTALL RESILIENT FLOORING ACCORDING TO BC FLOORCOVERING ASSOCIATION MANUAL LATEST EDITION AND MANUFACTURER'S RECOMMENDATIONS.
16. INSTALL FIRE STOPPING AT ALL SLAB PENETRATIONS.
17. ALL NEW CEILING TILE AND LIGHT FIXTURES TO BE SEISMICALLY RESTRAINED.

Project Information

Interior Designer: LYNNE RINES INTERIOR DESIGN INC. 301-1412 ESQUIMALT AVENUE WEST VANCOUVER, BC CONTACT: LYNNE RINES TEL: 604-921-4043, E-MAIL: lynne@lynnerines.com

Mechanical Consultant: OMNICRON FIFTH FLOOR THREE BENTALL CENTRE 595 BURRARD STREET VANCOUVER, BC CONTACT: KIMMY POON TEL: 604-632-3359, E-MAIL: KPoon@omicronaec.com

Electrical Consultant: OMNICRON FIFTH FLOOR THREE BENTALL CENTRE 595 BURRARD STREET VANCOUVER, BC CONTACT: TERESA GRGIC TEL: 604-632-3359, E-MAIL: TGrgic@omicronaec.com

Legal Description: LOT 2 SECTION 9 AND 100 LAKE AND ESQUIMALT DISTR TOWNSHIP 16 DISTRICT PLAN EPP20585 PID 028-246-539

Address: BUILDING 7 MAIN FLOOR 29 HELMCKEN ROAD VIEW ROYAL BC

Building:

• FIVE STORIES ABOVE GRADE
• ONE LEVEL PARKING
• OFFICE TOWER (23.89 METERS HIGH)
• GROUP D PERSONAL SERVICES
• SPRINKLERED

Area of Renovations: 3,340 SQUARE FEET

Scope of Work: NEW TENANT IMPROVEMENTS IN UNOCCUPIED SUITE

Owner: EAGLE CREEK VILLAGE PROPERTY 1 LTD. INC. NO BC0888351 SUITE 3300 BENTALL 5, 550 BURRARD STREET VANCOUVER, BC V6C 2B5

Tenant: CBI HEALTH GROUP UNIT 1300 BLOCK 51, SUITE 900 TORONTO ONTARIO M5X 2A2 CONTACT: CORY GANNON TEL: 418-491-9257, E-MAIL: cgannon@cbi.ca

General Contractor: MATRA CONSTRUCTION INC. 3909 CHARLES STREET BURNABY, BC CONTACT: ARPAN KHAN TEL: 604-729-1654, E-MAIL: akhan@matra.ca

Drawing List

Interior Design:

• A-1 SITE PLAN & NOTES
• A-2 ELECTRICAL & DATA PLAN
• A-3 PARTITION PLAN
• A-4 REFLECTED CEILING PLAN
• A-5 ELEVATIONS
• A-6 ELEVATIONS

Mechanical:

• M0.0.1 MECHANICAL SPECIFICATIONS
• M0.0.2 MECHANICAL SPECIFICATIONS
• M2.1.1 LEVEL 1 HVAC PLAN
• M3.0.1 HVAC DETAILS & SCHEDULES
• P2.1.1 LEVEL 1 PLUMBING PLAN
• P3.0.1 PLUMBING DETAILS & SCHEDULES

Electrical:

• E0.0.1 ELECTRICAL LEGEND
• E1.0.1 LIGHTING AND LIFE SAFETY
• E2.0.2 POWER AND AUXILIARY
• E7.0.1 POWER ONE LINE AND DETAILS
• E7.0.2 DETAILS

Record of Issue

Project Details

• Date: 07/15/16
• Scale: AS SHOWN
• Drawn: LR
• Project NO: 1610
• Drawing NO: A-1
