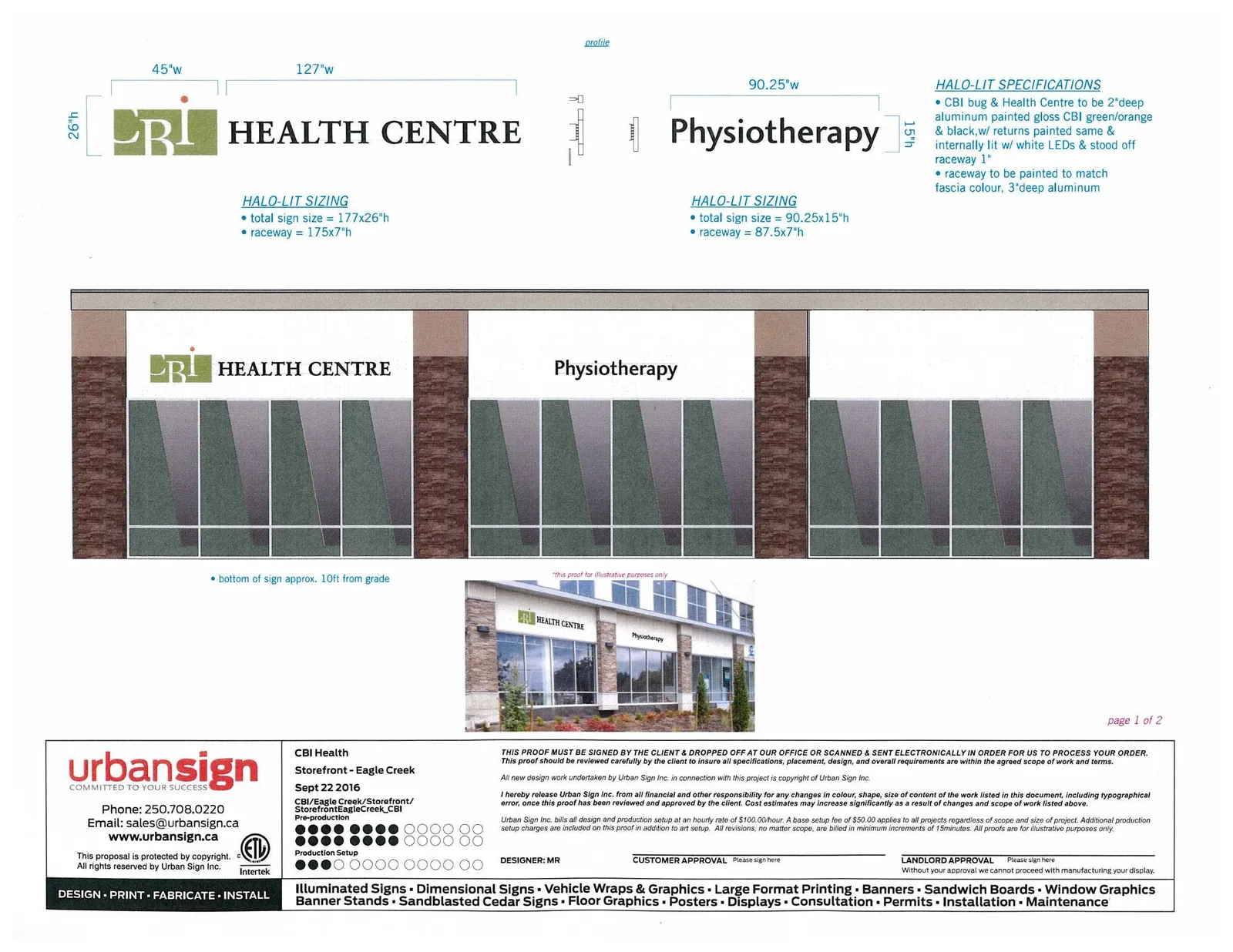

Signage Dimensions and Technical Diagrams

CBI HEALTH CENTRE Signage

• CBI Bug Width: 45"w
• "HEALTH CENTRE" Text Width: 127"w
• Total Height: 26"h
• HALO-LIT SIZING:
  • Total sign size = 177x26"h
  • Raceway = 175x7"h

Physiotherapy Signage

• "Physiotherapy" Text Width: 90.25"w
• Height: 15"h
• HALO-LIT SIZING:
  • Total sign size = 90.25x15"h
  • Raceway = 87.5x7"h

HALO-LIT SPECIFICATIONS

• CBI bug & Health Centre to be 2" deep aluminum painted gloss CBI green/orange & black, w/ returns painted same & internally lit w/ white LEDs & stood off raceway 1"
• Raceway to be painted to match fascia colour, 3" deep aluminum

Site Renderings and Photos

• Bottom of sign approx. 10ft from grade

Project Information

• Project Name: CBI Health Storefront - Eagle Creek
• Date: Sept 22 2016
• File Name: CBI/Eagle Creek/Storefront/StorefrontEagleCreek_CBI Pre-production
• Designer: MR

Project Approval and Terms

THIS PROOF MUST BE SIGNED BY THE CLIENT & DROPPED OFF AT OUR OFFICE OR SCANNED & SENT ELECTRONICALLY IN ORDER FOR US TO PROCESS YOUR ORDER. This proof should be reviewed carefully by the client to insure all specifications, placement, design, and overall requirements are within the agreed scope of work and terms.

All new design work undertaken by Urban Sign Inc. in connection with this project is copyright of Urban Sign Inc.

I hereby release Urban Sign Inc. from all financial and other responsibility for any changes in colour, shape, size of content of the work listed in this document, including typographical error, once this proof has been reviewed and approved by the client. Cost estimates may increase significantly as a result of changes and scope of work listed above.

Urban Sign Inc. bills all design and production setup at an hourly rate of $100.00/hour. A base setup fee of $50.00 applies to all projects regardless of scope and size of project. Additional production setup charges are included on this proof in addition to art setup. All revisions, no matter scope, are billed in minimum increments of 15 minutes. All proofs are for illustrative purposes only.
