Committee of the Whole/Documents/Subdivision Servicing Design Standards (Street Examples)
Appendix

Subdivision Servicing Design Standards (Street Examples)

December 10, 2013Pages 169–19810 sections

Technical cross-sections and visual map data for existing roads to be used as baselines for new servicing standards.

1 CALL TO ORDER
235 Island Highway230 Helmcken Road90 Atkins Road2339 Chilco Road

Ex. 235 ISLAND HIGHWAY

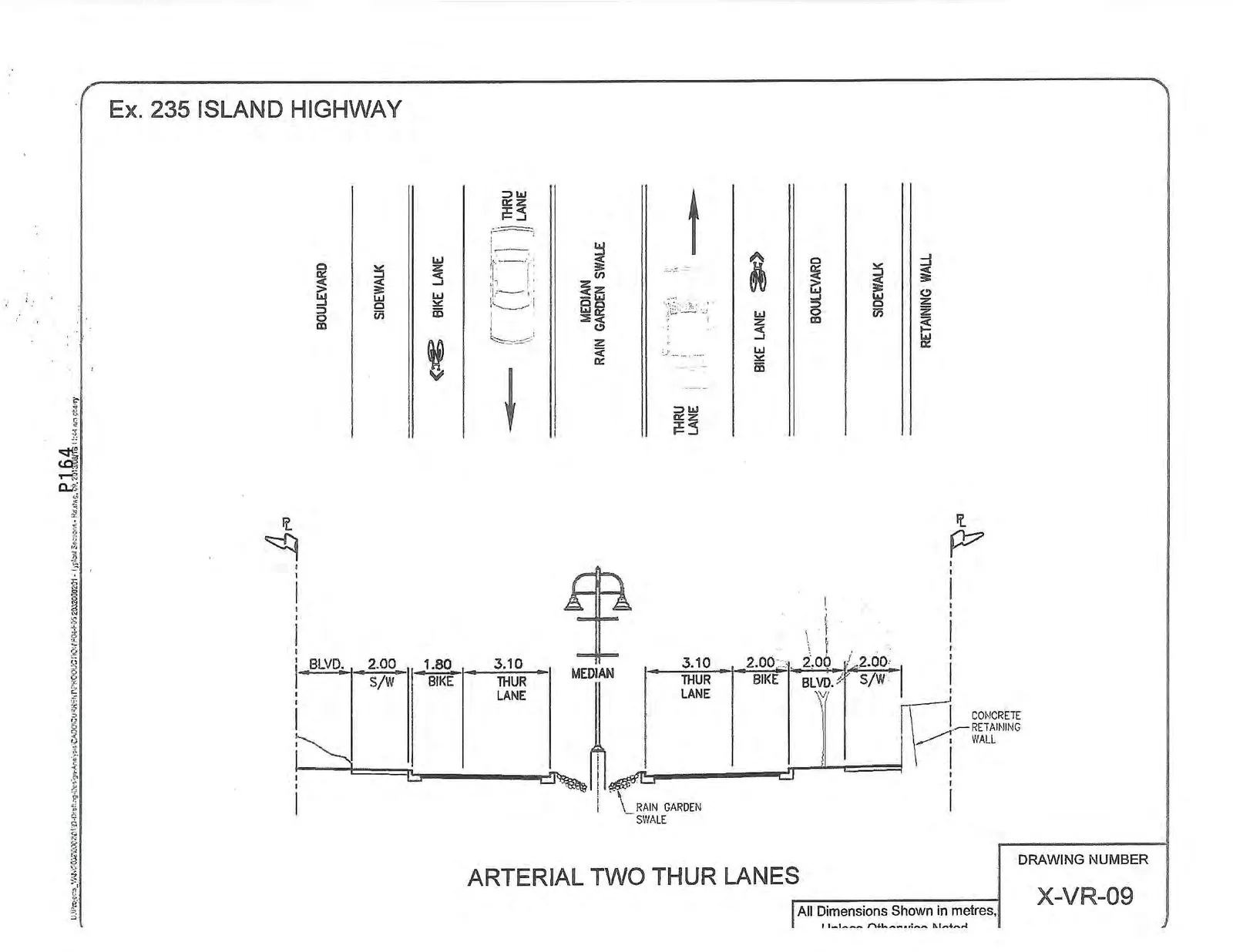

Engineering cross-section diagram for Ex. 235 Island Highway, titled "ARTERIAL TWO THUR LANES" with Drawing Number X-VR-09.
Engineering cross-section diagram for Ex. 235 Island Highway, titled "ARTERIAL TWO THUR LANES" with Drawing Number X-VR-09.

ARTERIAL TWO THUR LANES Drawing Number: X-VR-09

Feature Dimension (metres)
Boulevard (BLVD.) 2.00
Sidewalk (S/W) 2.00
Bike Lane (BIKE) 1.80
Thru Lane (THUR LANE) 3.10
Median Rain Garden Swale Varies
Thru Lane (THUR LANE) 3.10
Bike Lane (BIKE) 2.00
Boulevard (BLVD.) 2.00
Sidewalk (S/W) 2.00

Notes:

  • Includes Concrete Retaining Wall.
  • All Dimensions Shown in metres, Unless Otherwise Noted.
Google Maps street view photo of 231 Island Highway showing the road with a landscaped rain garden median, dated 13/08/2013.
Google Maps street view photo of 231 Island Highway showing the road with a landscaped rain garden median, dated 13/08/2013.

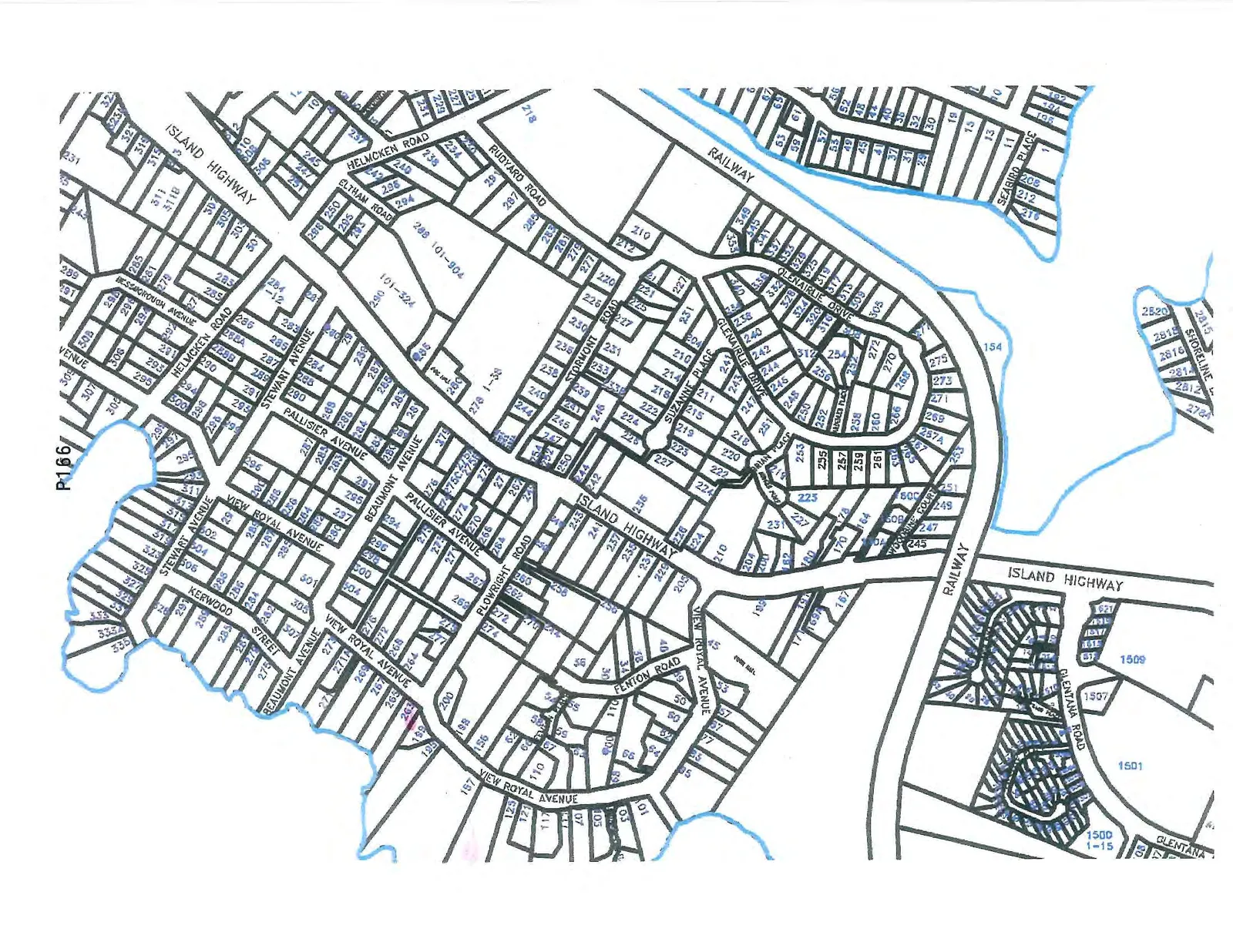

Property map of the Island Highway area with several lots highlighted.
Property map of the Island Highway area with several lots highlighted.
Page 169–198

Ex. 1671 ISLAND HIGHWAY

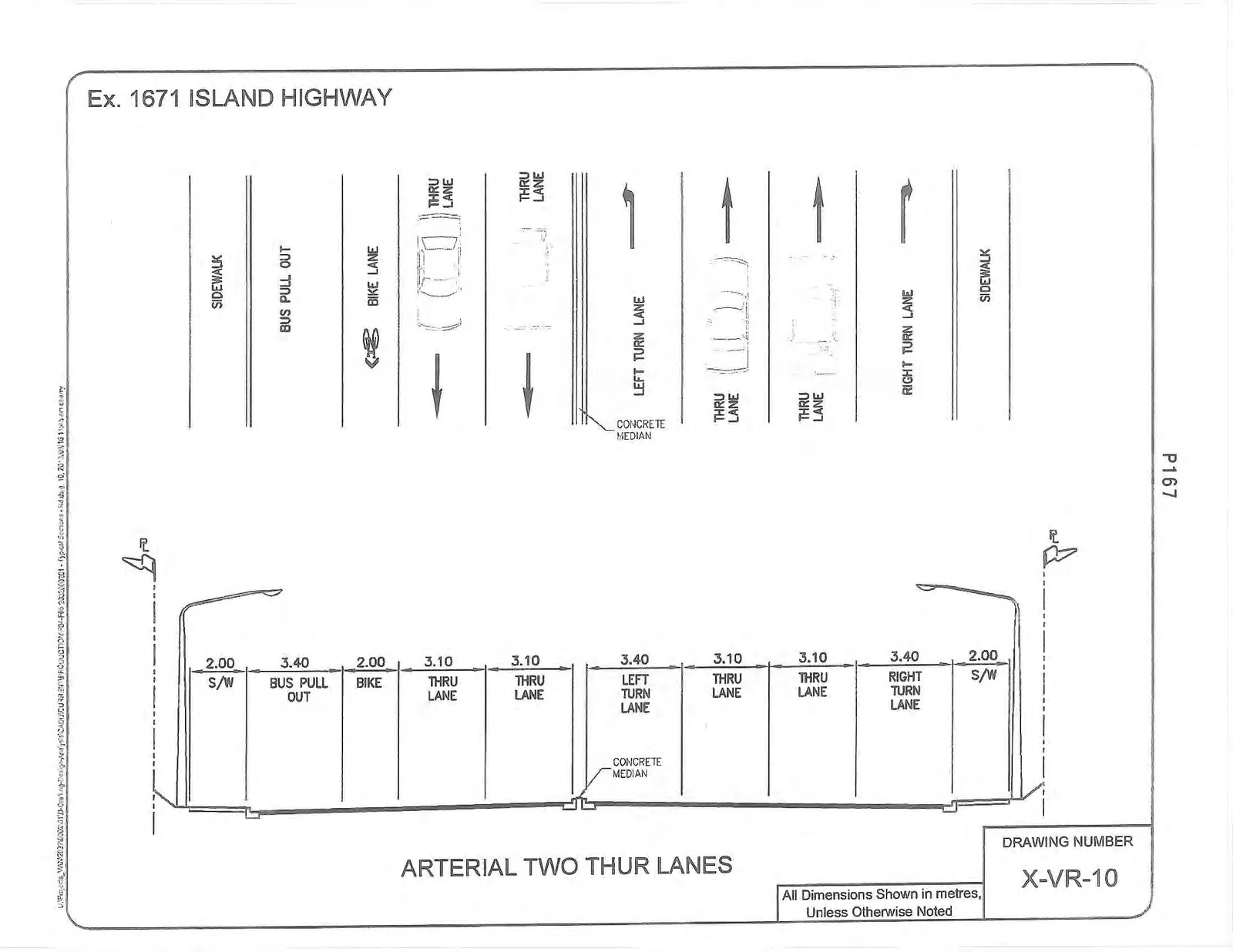

Engineering cross-section diagram for Ex. 1671 Island Highway, titled "ARTERIAL TWO THUR LANES" with Drawing Number X-VR-10.
Engineering cross-section diagram for Ex. 1671 Island Highway, titled "ARTERIAL TWO THUR LANES" with Drawing Number X-VR-10.

ARTERIAL TWO THUR LANES Drawing Number: X-VR-10

Feature Dimension (metres)
Sidewalk (S/W) 2.00
Bus Pull Out 3.40
Bike Lane (BIKE) 2.00
Thru Lane (THUR LANE) 3.10
Thru Lane (THUR LANE) 3.10
Left Turn Lane 3.40
Thru Lane (THUR LANE) 3.10
Thru Lane (THUR LANE) 3.10
Right Turn Lane 3.40
Sidewalk (S/W) 2.00

Notes:

  • Features a Concrete Median.
  • All Dimensions Shown in metres, Unless Otherwise Noted.
Google Maps street view photo of Old Island Highway (Address 1671) showing a multi-lane highway with a median, dated 13/08/2013.
Google Maps street view photo of Old Island Highway (Address 1671) showing a multi-lane highway with a median, dated 13/08/2013.

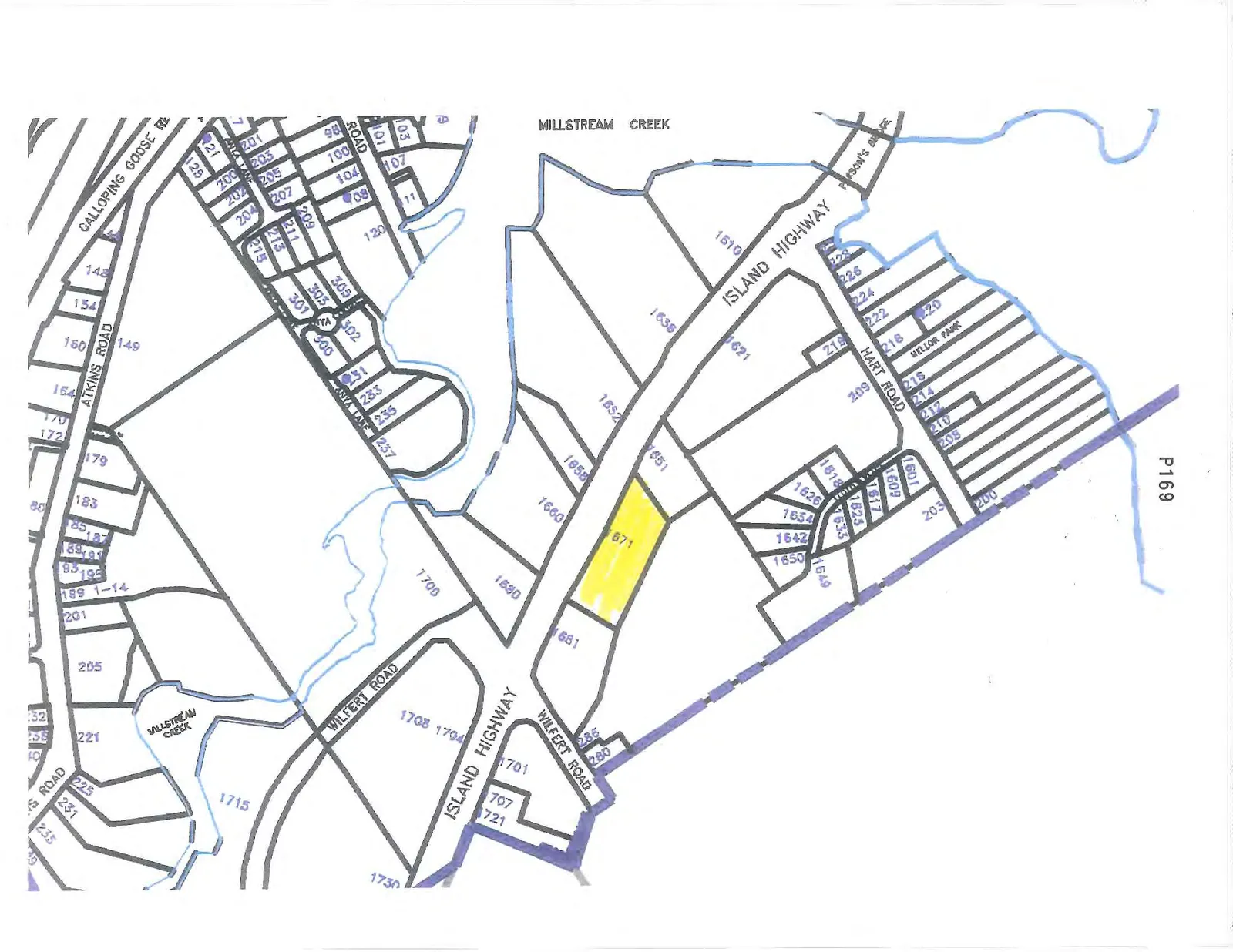

Property map for the Island Highway and Hart Road area with lot 671 highlighted.
Property map for the Island Highway and Hart Road area with lot 671 highlighted.
Page 169–198

Ex. 230 HELMCKEN ROAD

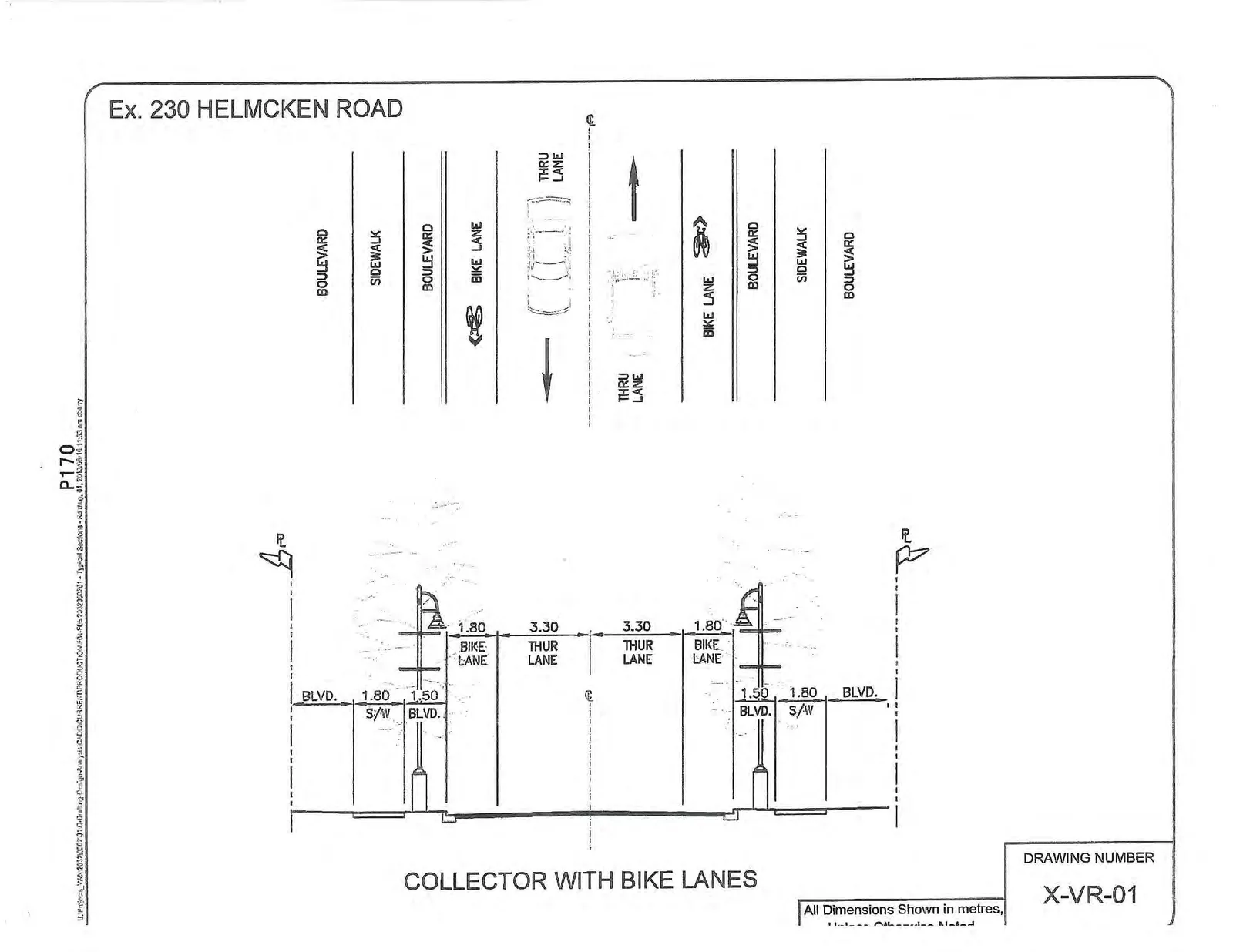

Engineering cross-section diagram for Ex. 230 Helmcken Road, titled "COLLECTOR WITH BIKE LANES" with Drawing Number X-VR-01.
Engineering cross-section diagram for Ex. 230 Helmcken Road, titled "COLLECTOR WITH BIKE LANES" with Drawing Number X-VR-01.

COLLECTOR WITH BIKE LANES Drawing Number: X-VR-01

Feature Dimension (metres)
Sidewalk (S/W) 1.80
Boulevard (BLVD.) 1.50
Bike Lane (BIKE LANE) 1.80
Thru Lane (THUR LANE) 3.30
Thru Lane (THUR LANE) 3.30
Bike Lane (BIKE LANE) 1.80
Boulevard (BLVD.) 1.50
Sidewalk (S/W) 1.80

Notes:

  • All Dimensions Shown in metres, Unless Otherwise Noted.

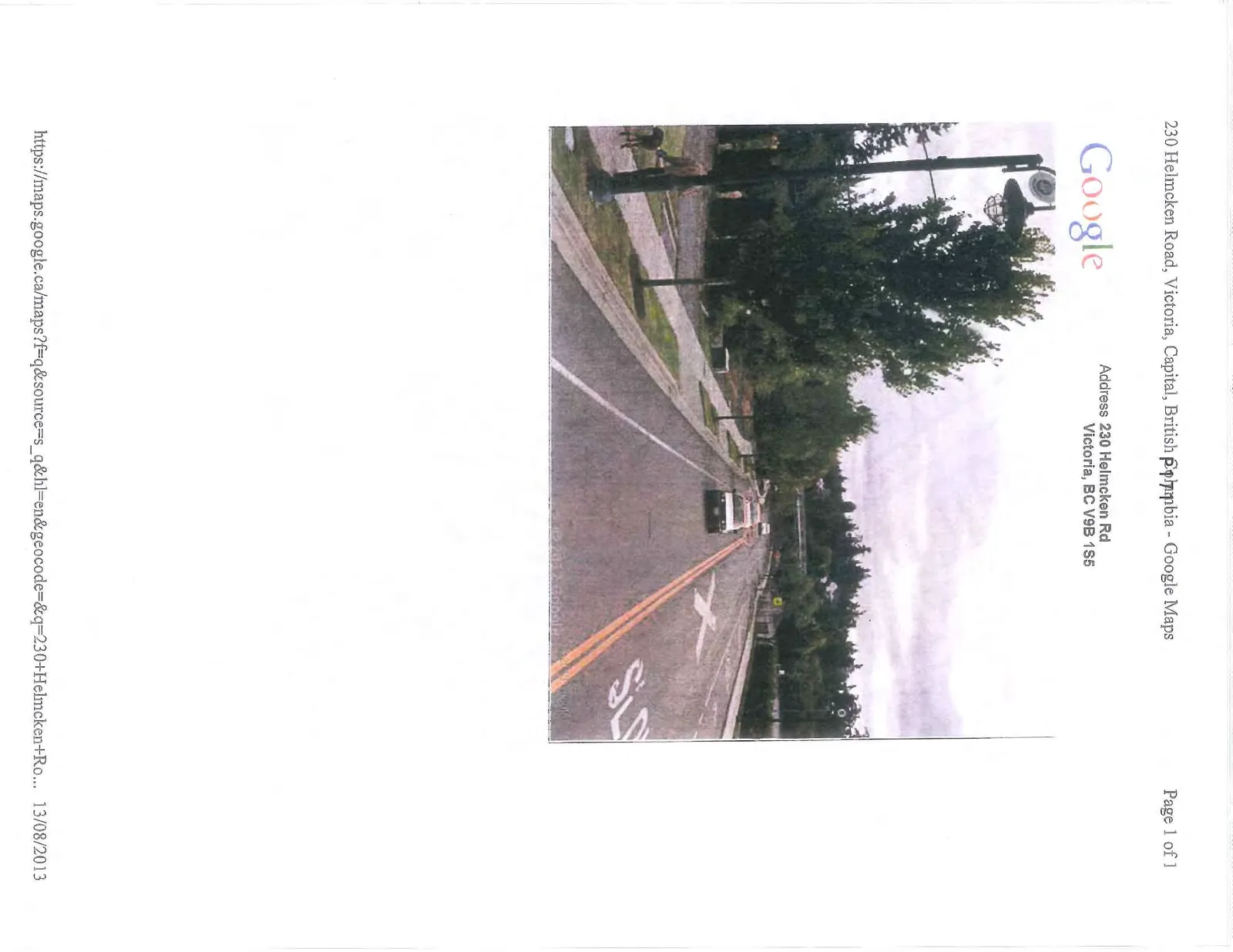

Google Maps street view photo of 230 Helmcken Road showing a two-lane road with sidewalks and double yellow lines, dated 13/08/2013.
Google Maps street view photo of 230 Helmcken Road showing a two-lane road with sidewalks and double yellow lines, dated 13/08/2013.

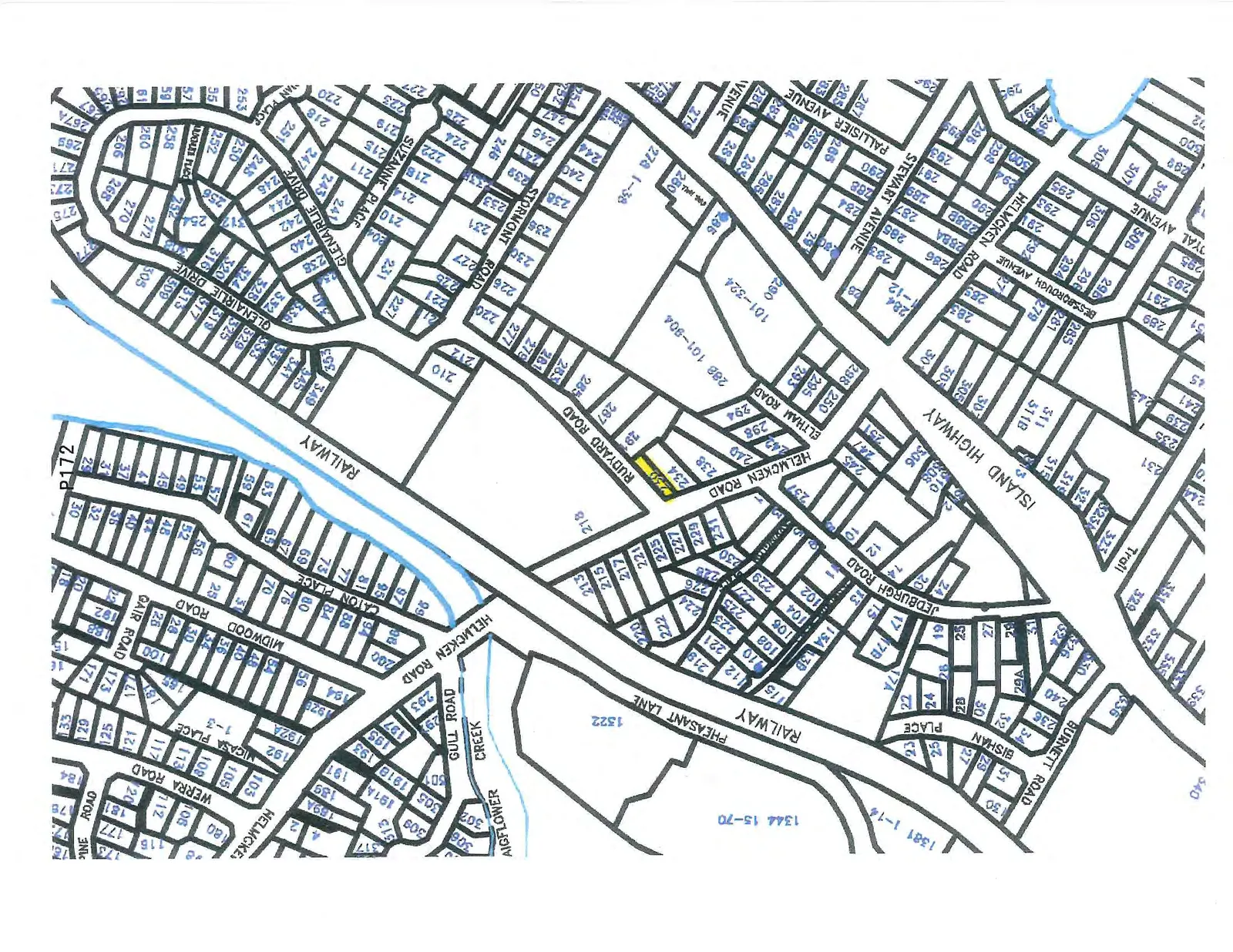

Property map of the Helmcken Road area with lot 230 highlighted.
Property map of the Helmcken Road area with lot 230 highlighted.
Page 169–198

Ex. 90 ATKINS ROAD

Engineering cross-section diagram for Ex. 90 Atkins Road, titled "COLLECTOR WITHOUT BIKE LANES" with Drawing Number X-VR-02.
Engineering cross-section diagram for Ex. 90 Atkins Road, titled "COLLECTOR WITHOUT BIKE LANES" with Drawing Number X-VR-02.

COLLECTOR WITHOUT BIKE LANES Drawing Number: X-VR-02

Feature Dimension (metres)
Sidewalk (S/W) 1.80
Boulevard (BLVD.) 1.50
Thru Lane (THUR LANE) 3.30
Median 3.00
Thru Lane (THUR LANE) 3.30
Sidewalk (S/W) 2.00
Boulevard (BLVD.) 1.50

Notes:

  • All Dimensions Shown in metres, Unless Otherwise Noted.

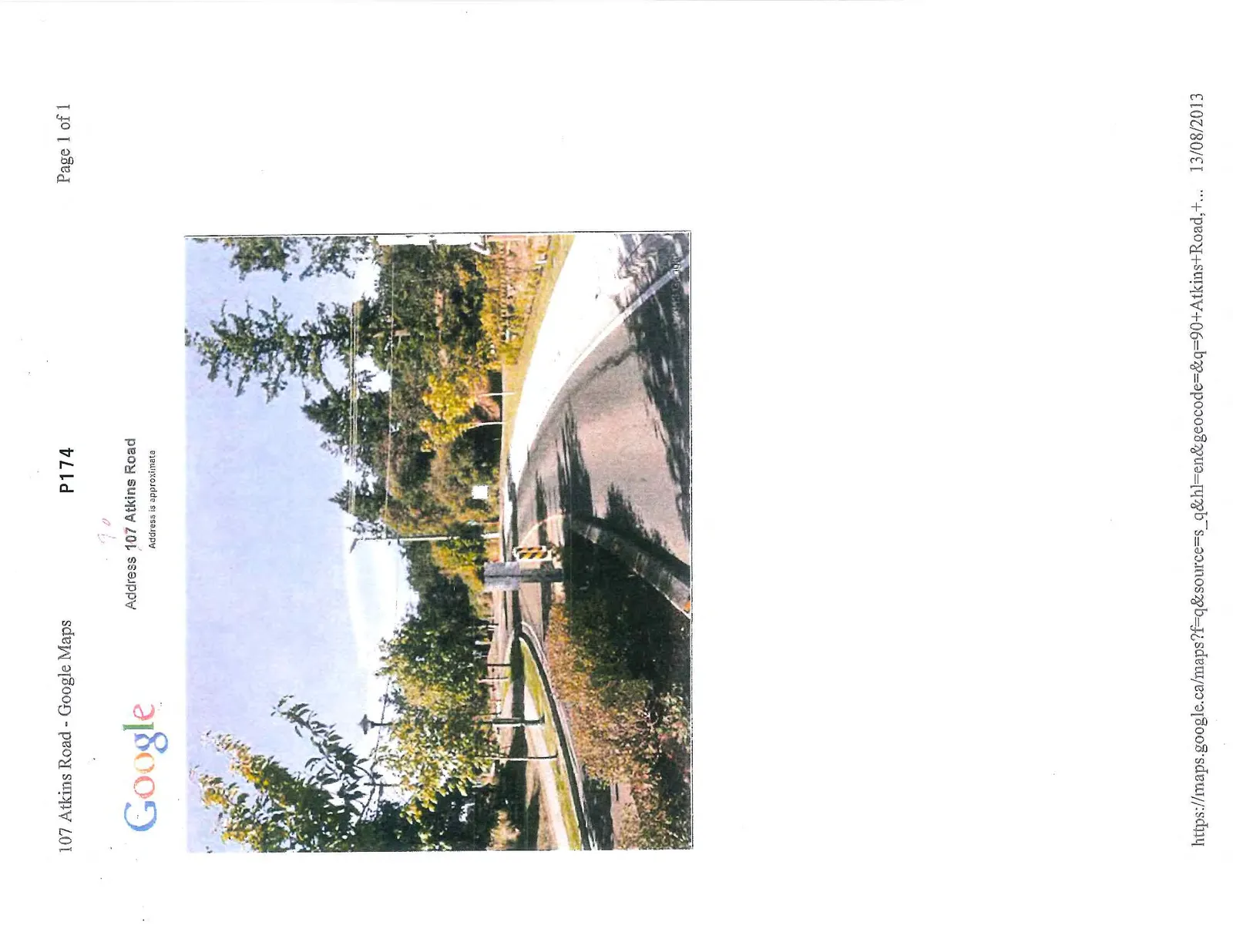

Google Maps street view photo of Atkins Road (Address 107/90) showing a road with a separate sidewalk and landscaping, dated 13/08/2013.
Google Maps street view photo of Atkins Road (Address 107/90) showing a road with a separate sidewalk and landscaping, dated 13/08/2013.

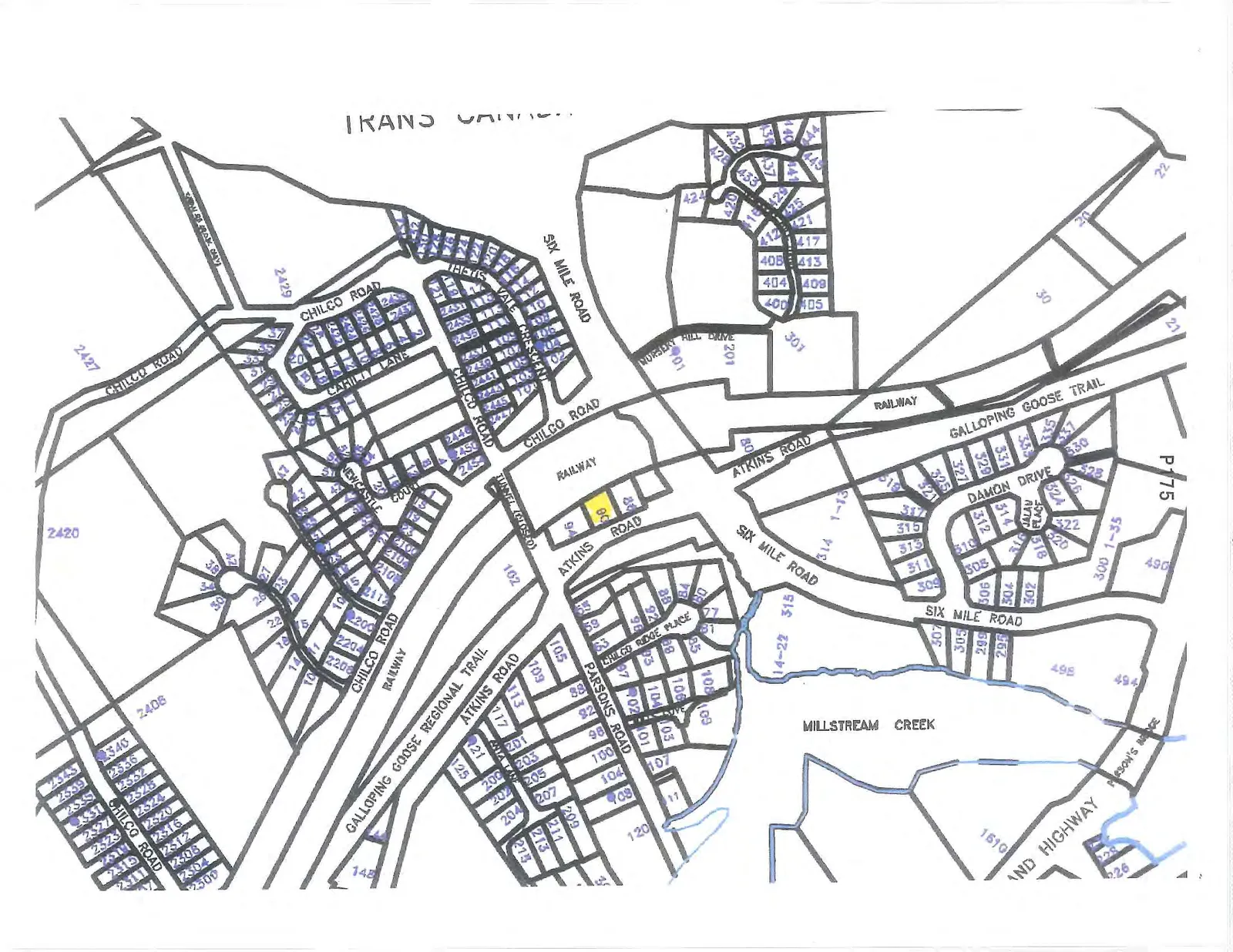

Property map for the Atkins Road and Six Mile Road area with lot 90 highlighted.
Property map for the Atkins Road and Six Mile Road area with lot 90 highlighted.
Page 169–198

Ex. 267 VIEW ROYAL AVE.

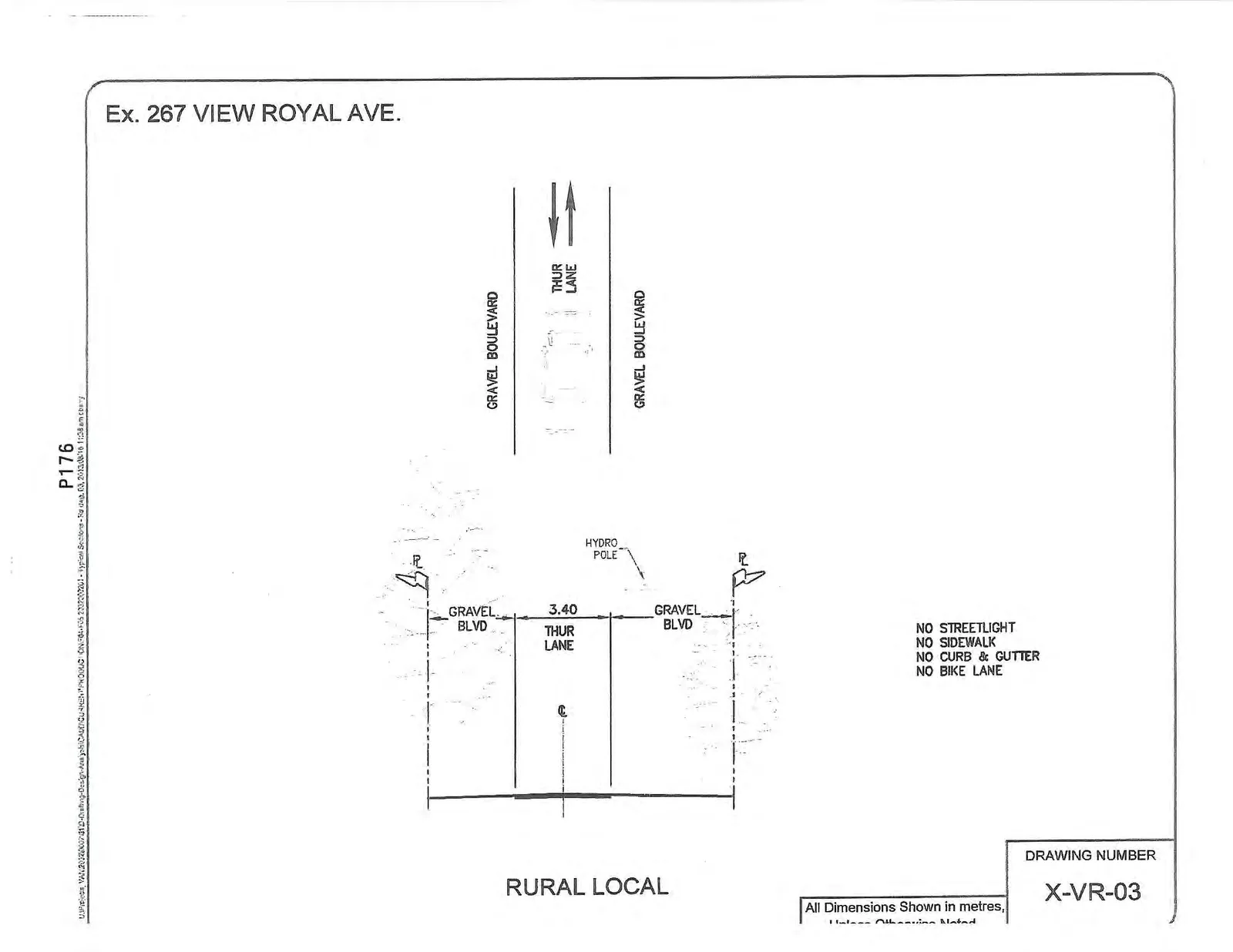

Engineering cross-section diagram for Ex. 267 View Royal Ave., titled "RURAL LOCAL" with Drawing Number X-VR-03.
Engineering cross-section diagram for Ex. 267 View Royal Ave., titled "RURAL LOCAL" with Drawing Number X-VR-03.

RURAL LOCAL Drawing Number: X-VR-03

Feature Dimension (metres)
Gravel Boulevard (GRAVEL BLVD) Varies
Thru Lane (THUR LANE) 3.40
Gravel Boulevard (GRAVEL BLVD) Varies

Notes:

  • NO STREETLIGHT
  • NO SIDEWALK
  • NO CURB & GUTTER
  • NO BIKE LANE
  • Includes Hydro Pole.
  • All Dimensions Shown in metres, Unless Otherwise Noted.

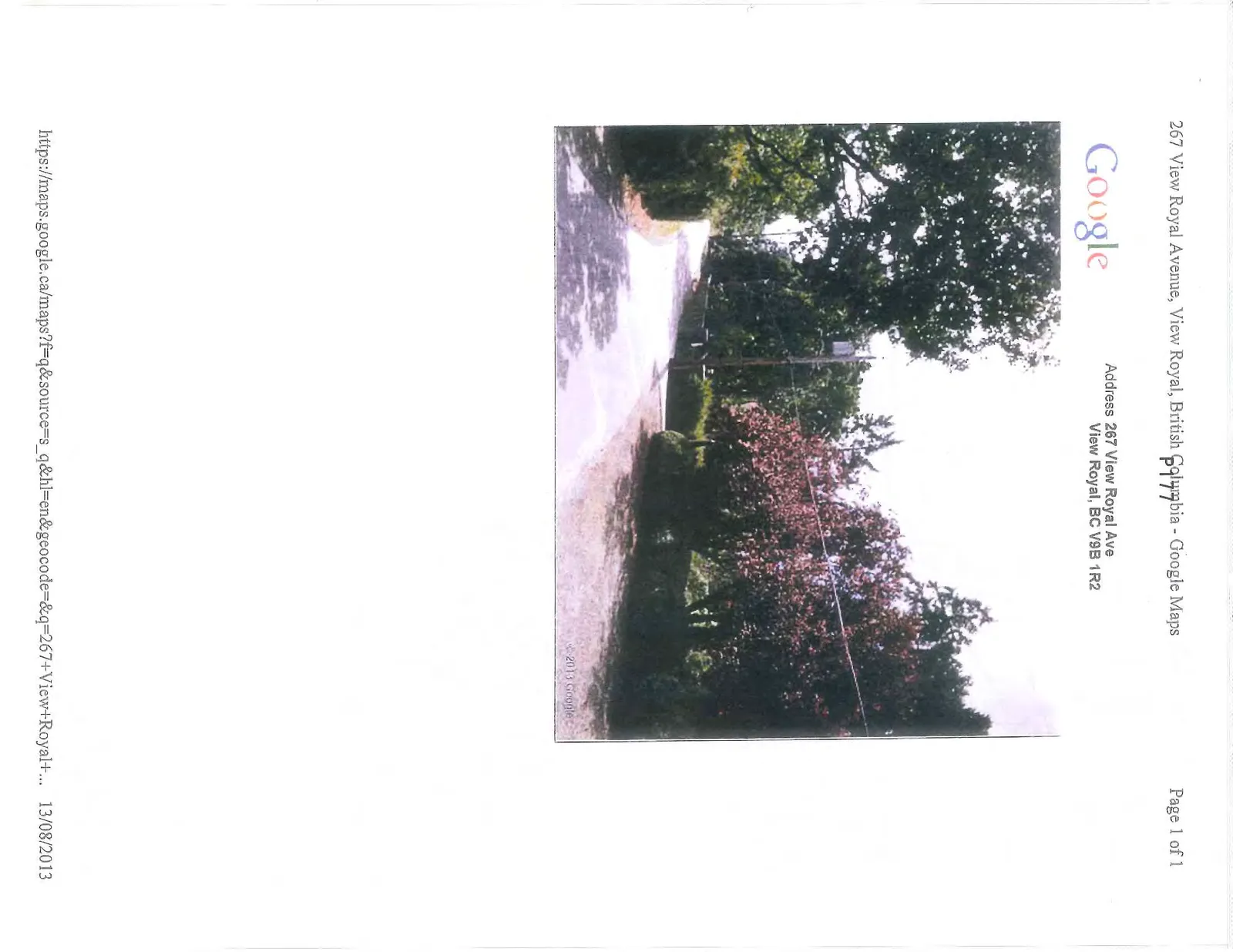

Google Maps street view photo of 267 View Royal Ave. showing a narrow rural-style paved road with no sidewalks, dated 13/08/2013.
Google Maps street view photo of 267 View Royal Ave. showing a narrow rural-style paved road with no sidewalks, dated 13/08/2013.

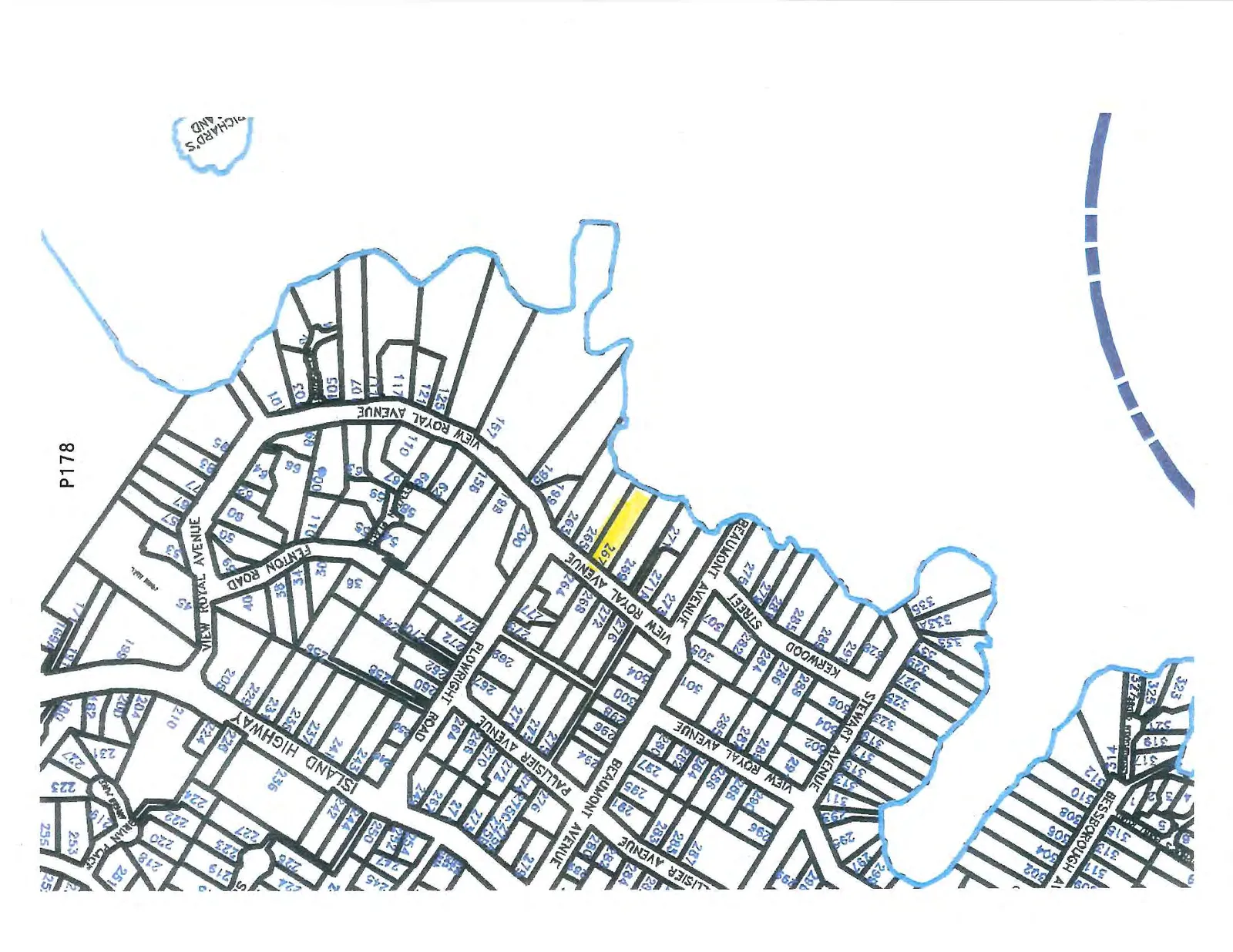

Property map of View Royal Avenue and Beaumont Avenue area with lot 267 highlighted.
Property map of View Royal Avenue and Beaumont Avenue area with lot 267 highlighted.
Page 169–198

Ex. 125 CONARD STREET

Engineering cross-section diagram for Ex. 125 Conard Street, titled "LOCAL - ULTIMATE ONE SIDE" with Drawing Number X-VR-04.
Engineering cross-section diagram for Ex. 125 Conard Street, titled "LOCAL - ULTIMATE ONE SIDE" with Drawing Number X-VR-04.

LOCAL - ULTIMATE ONE SIDE Drawing Number: X-VR-04

Feature Dimension (metres)
Boulevard (BLVD.) 2.00
Sidewalk (S/W) Varies
Thru Lane (THUR LANE) 3.10
Thru Lane (THUR LANE) 3.10
Gravel Shoulder 0.60

Notes:

  • Includes Ditch.
  • Parking on side.
  • All Dimensions Shown in metres, Unless Otherwise Noted.

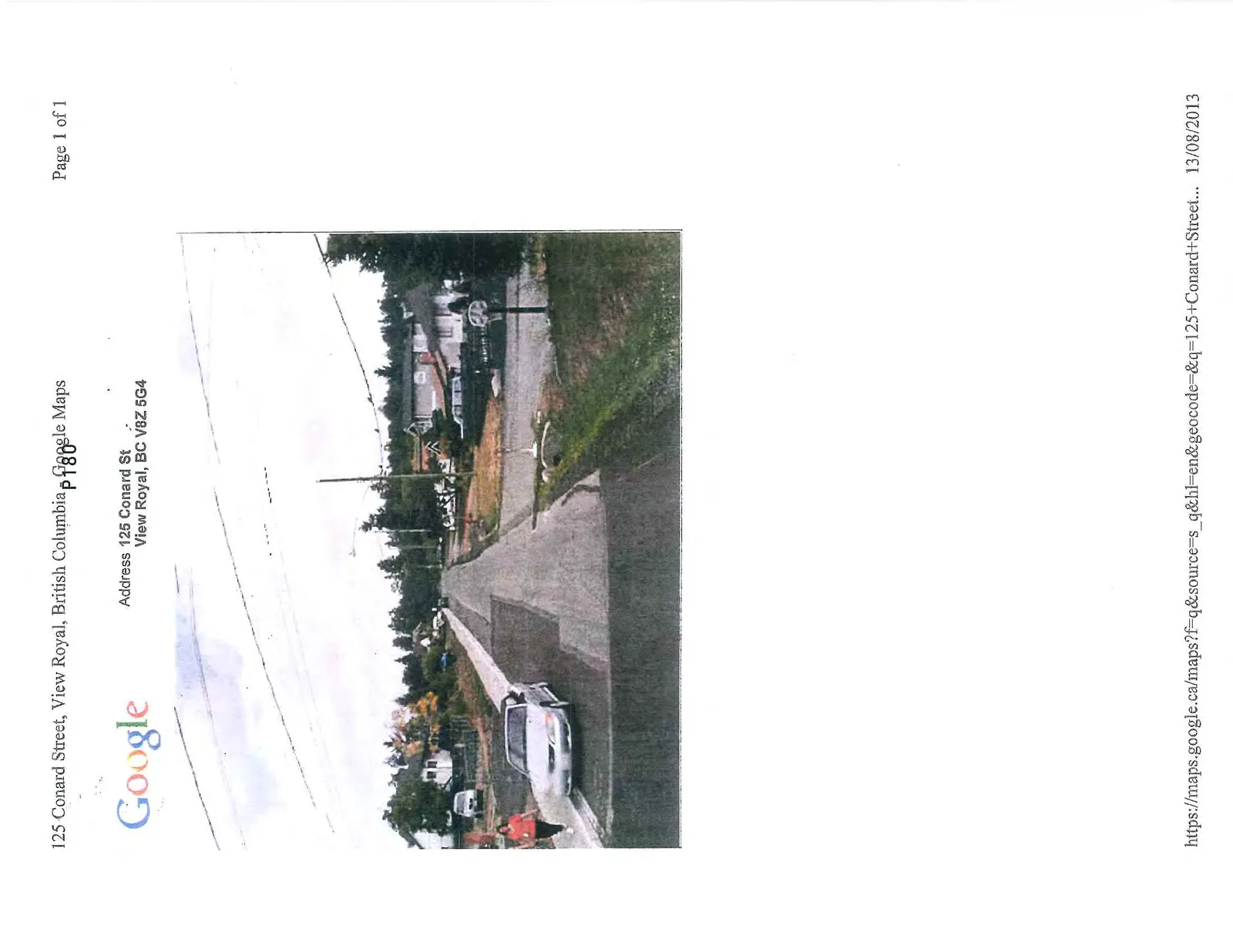

Google Maps street view photo of 125 Conard Street showing a residential street with paved and unpaved sections, dated 13/08/2013.
Google Maps street view photo of 125 Conard Street showing a residential street with paved and unpaved sections, dated 13/08/2013.

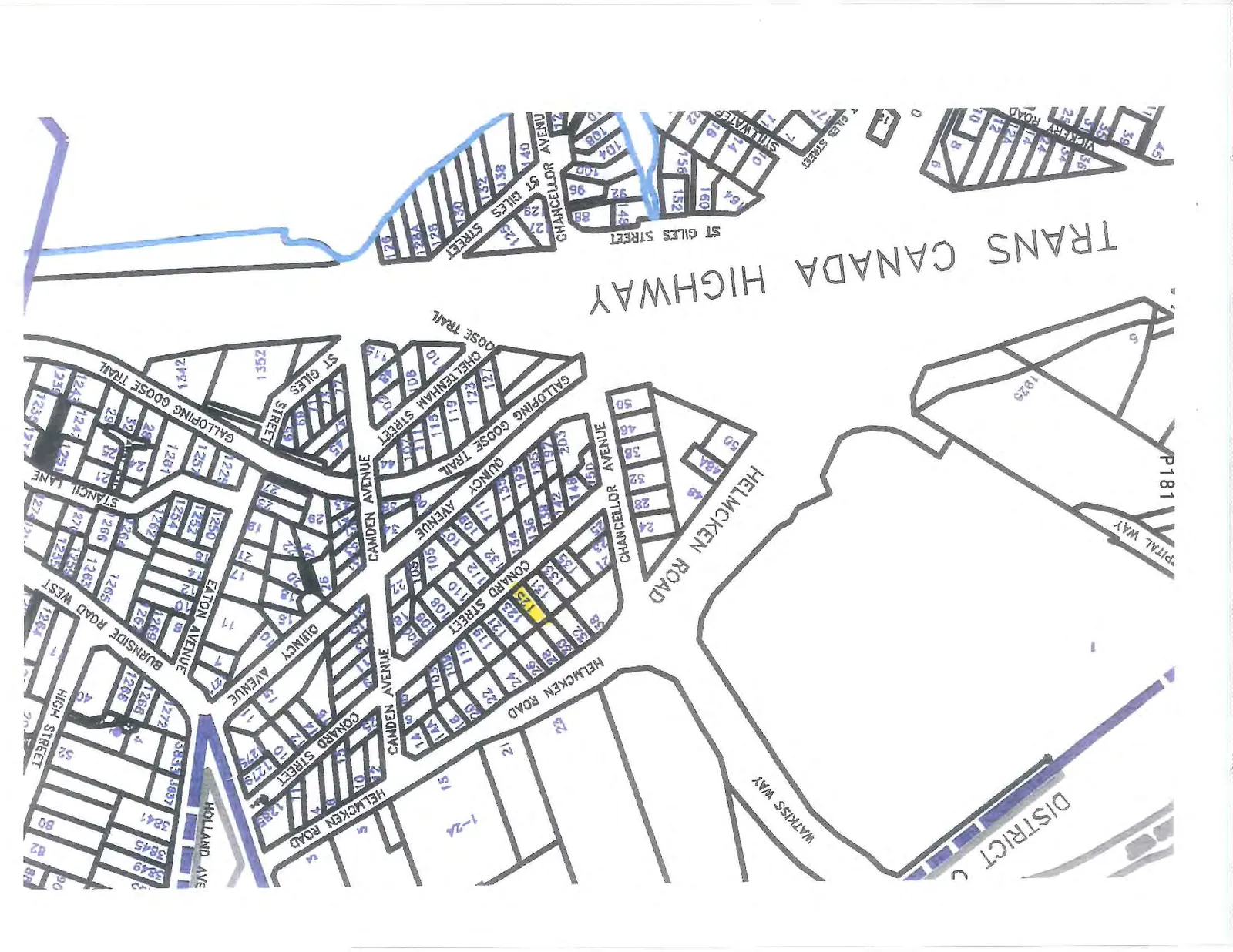

Property map of the Conard Street and Helmcken Road area with lot 125 highlighted.
Property map of the Conard Street and Helmcken Road area with lot 125 highlighted.
Page 169–198

Ex. 2333 EVELYN HEIGHTS

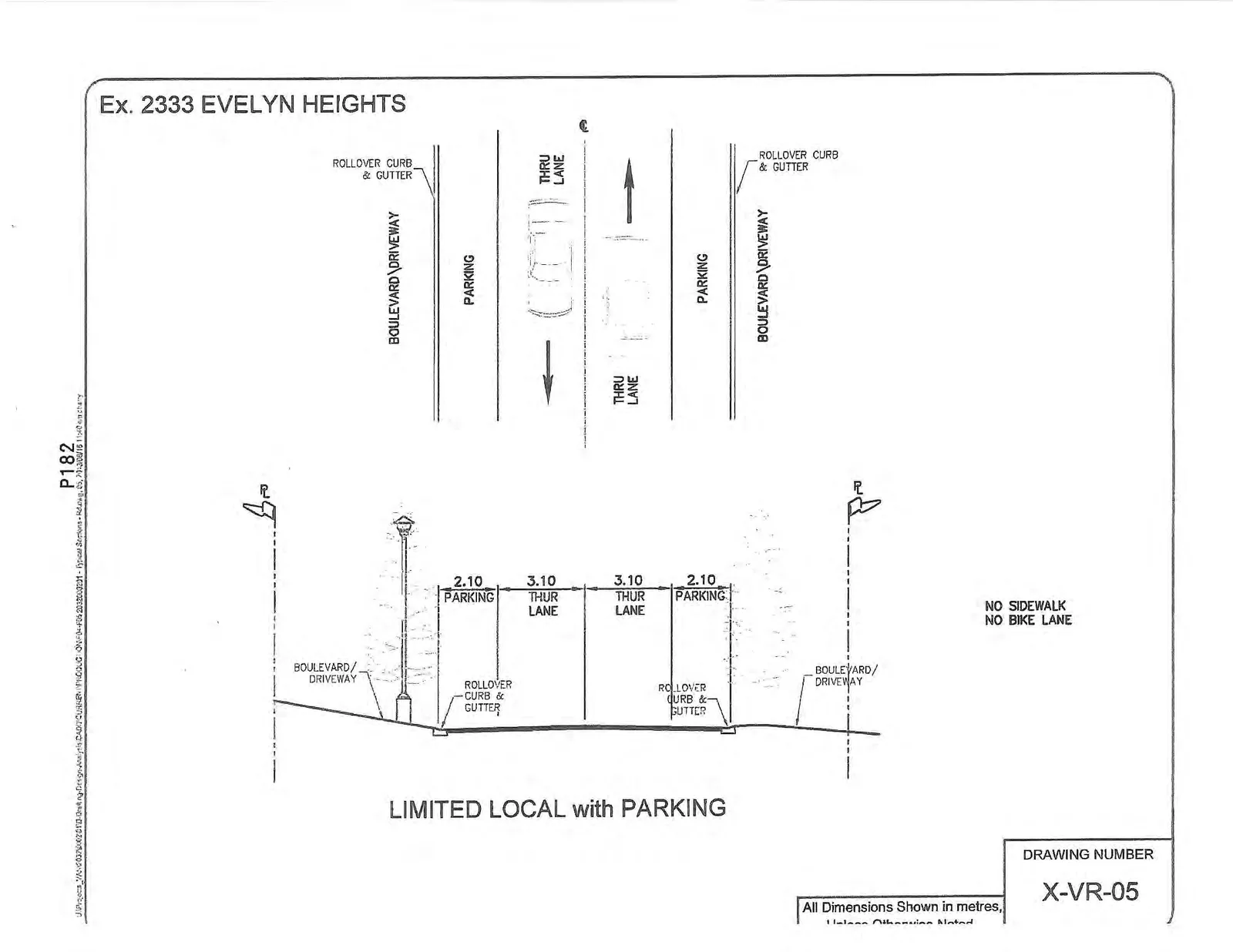

Engineering cross-section diagram for Ex. 2333 Evelyn Heights, titled "LIMITED LOCAL with PARKING" with Drawing Number X-VR-05.
Engineering cross-section diagram for Ex. 2333 Evelyn Heights, titled "LIMITED LOCAL with PARKING" with Drawing Number X-VR-05.

LIMITED LOCAL with PARKING Drawing Number: X-VR-05

Feature Dimension (metres)
Parking 2.10
Thru Lane (THUR LANE) 3.10
Thru Lane (THUR LANE) 3.10
Parking 2.10

Notes:

  • NO SIDEWALK
  • NO BIKE LANE
  • Rollover Curb & Gutter.
  • Boulevard / Driveway.
  • All Dimensions Shown in metres, Unless Otherwise Noted.

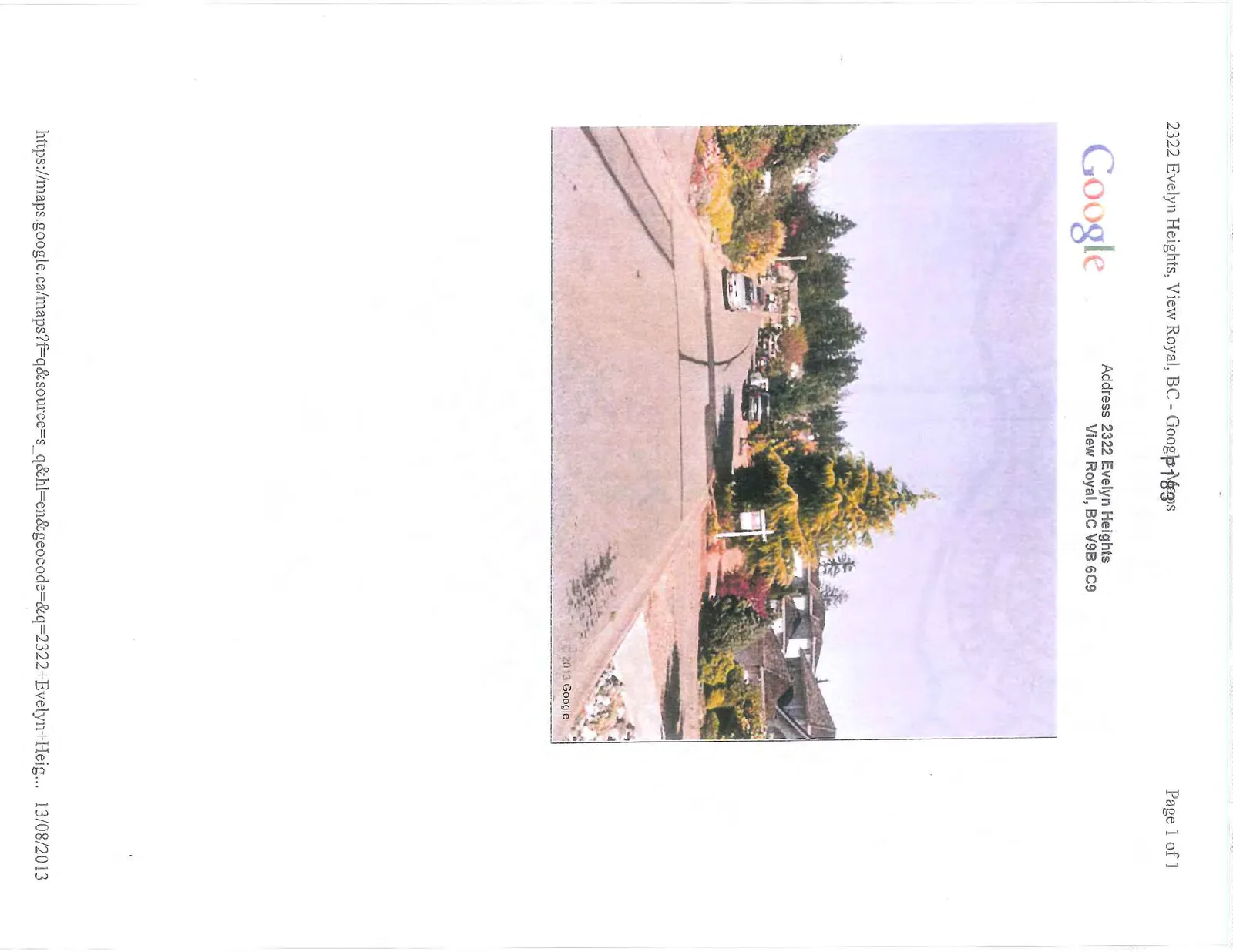

Google Maps street view photo of 2322 Evelyn Heights showing a residential cul-de-sac, dated 13/08/2013.
Google Maps street view photo of 2322 Evelyn Heights showing a residential cul-de-sac, dated 13/08/2013.

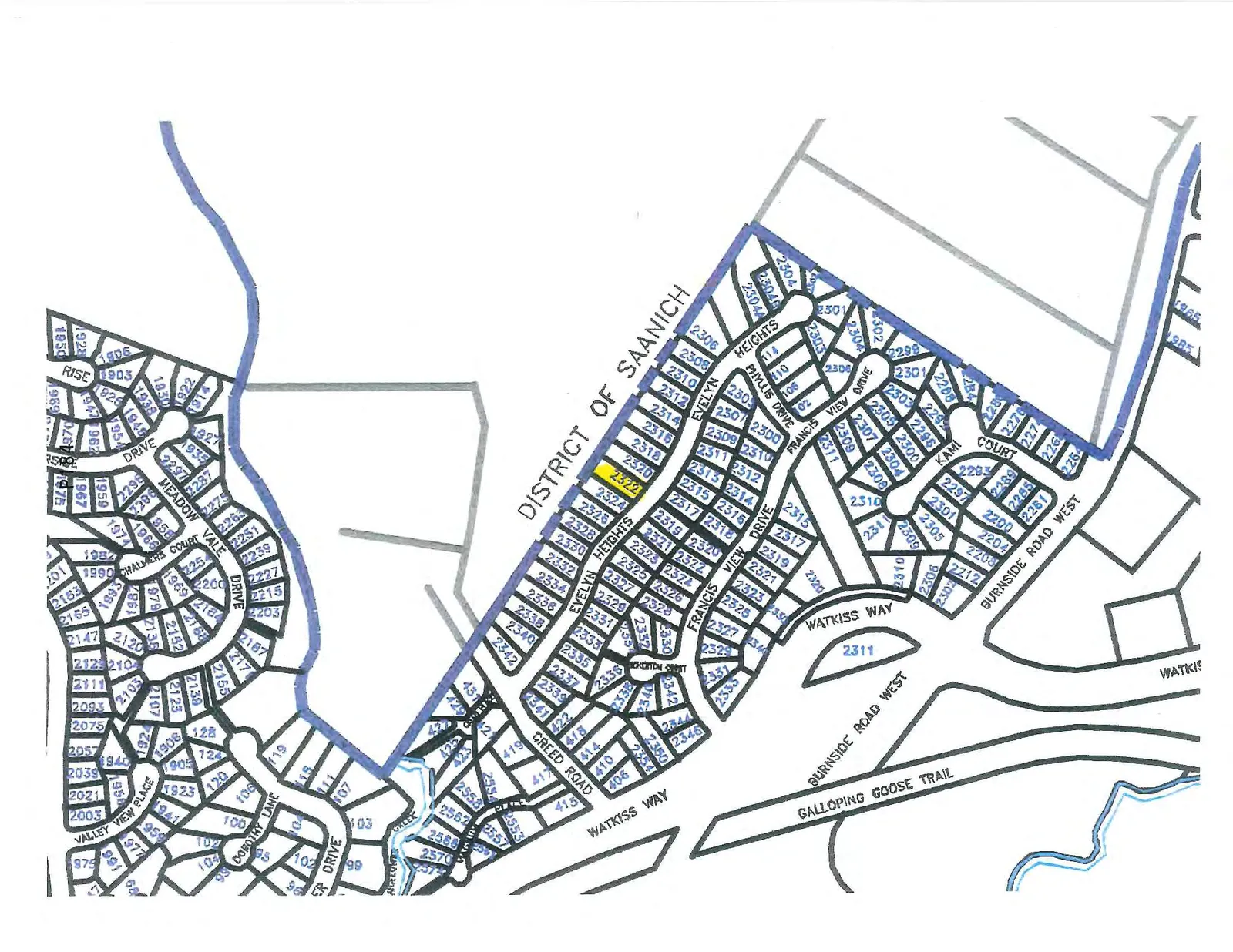

Property map of the Evelyn Heights area in the District of Saanich with lot 2322 highlighted.
Property map of the Evelyn Heights area in the District of Saanich with lot 2322 highlighted.
Page 169–198

Ex. 40 STONE RIDGE DRIVE

Engineering cross-section diagram for Ex. 40 Stone Ridge Drive, titled "LIMITED LOCAL with PARKING and STREETLIGHTS" with Drawing Number X-VR-06.
Engineering cross-section diagram for Ex. 40 Stone Ridge Drive, titled "LIMITED LOCAL with PARKING and STREETLIGHTS" with Drawing Number X-VR-06.

LIMITED LOCAL with PARKING and STREETLIGHTS Drawing Number: X-VR-06

Feature Dimension (metres)
Parking 2.00
Thru Lane (THUR LANE) 4.50
Parking 2.00

Notes:

  • NO SIDEWALK
  • NO BIKE LANE
  • Rollover Curb & Gutter.
  • Boulevard / Driveway.
  • All Dimensions Shown in metres, Unless Otherwise Noted.

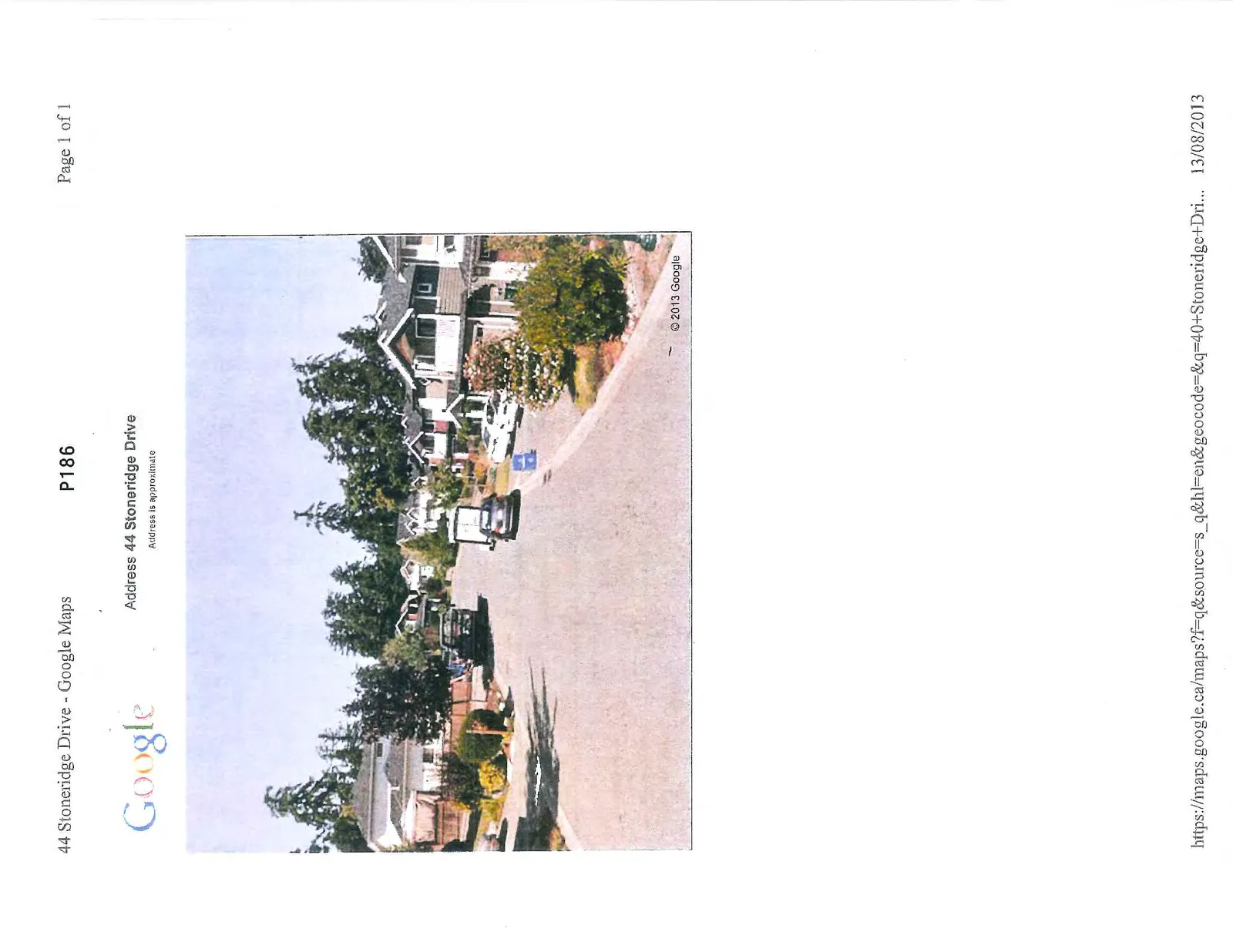

Google Maps street view photo of 44 Stoneridge Drive showing a modern residential street with rollover curbs, dated 13/08/2013.
Google Maps street view photo of 44 Stoneridge Drive showing a modern residential street with rollover curbs, dated 13/08/2013.

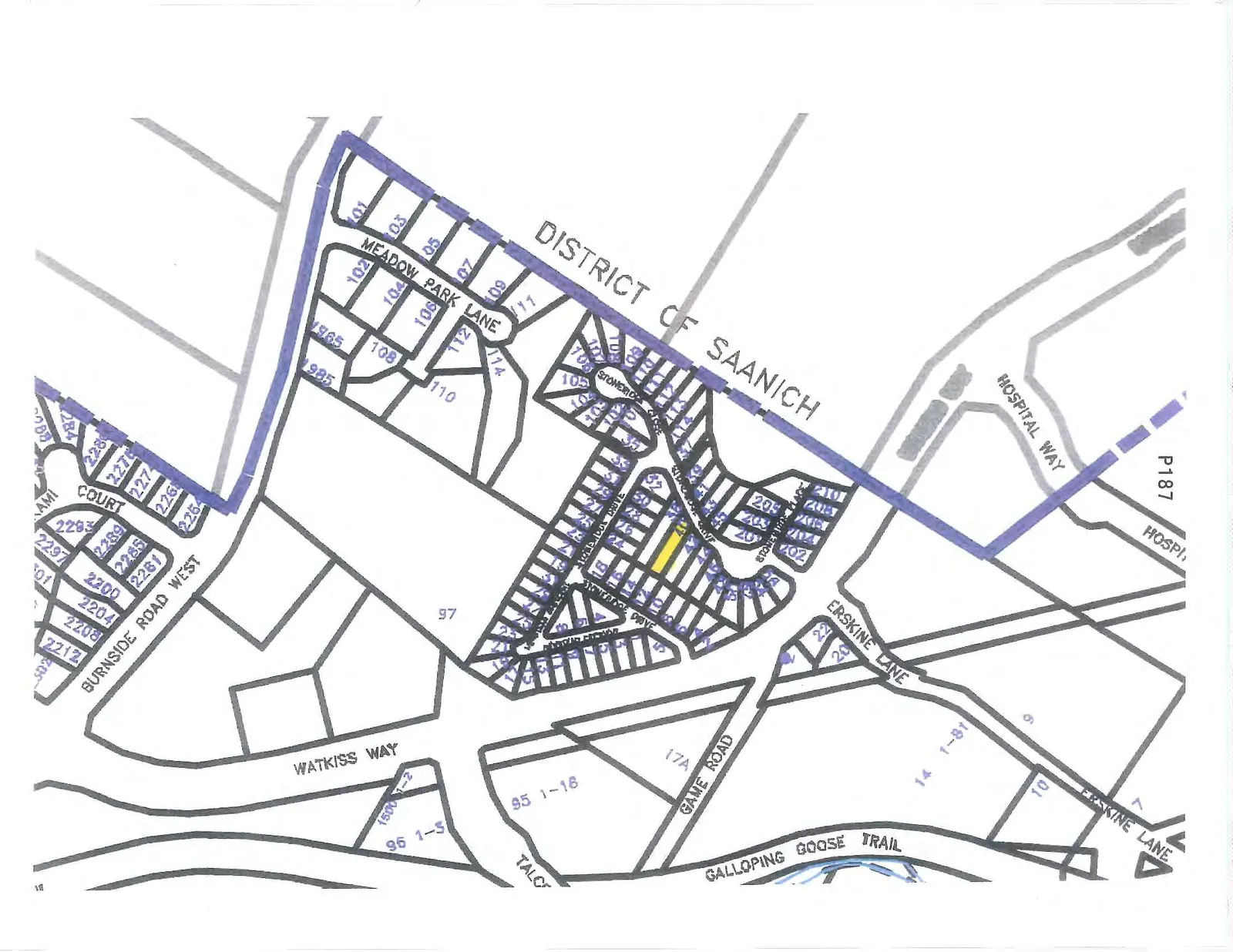

Property map of the Stoneridge Drive area in the District of Saanich with lot 44 highlighted.
Property map of the Stoneridge Drive area in the District of Saanich with lot 44 highlighted.
Page 169–198

Ex. 2339 CHILCO ROAD

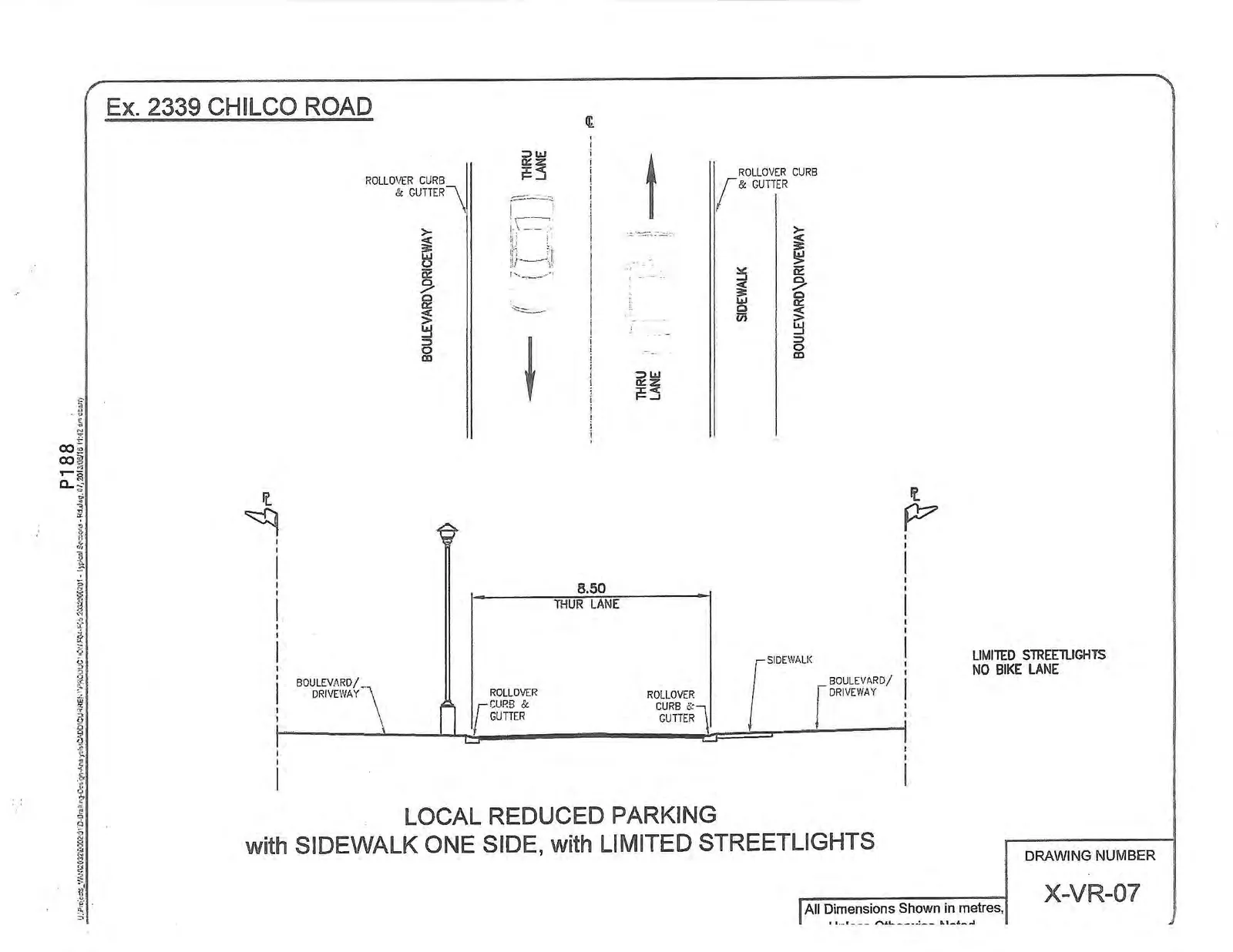

Engineering cross-section diagram for Ex. 2339 Chilco Road, titled "LOCAL REDUCED PARKING with SIDEWALK ONE SIDE, with LIMITED STREETLIGHTS" with Drawing Number X-VR-07.
Engineering cross-section diagram for Ex. 2339 Chilco Road, titled "LOCAL REDUCED PARKING with SIDEWALK ONE SIDE, with LIMITED STREETLIGHTS" with Drawing Number X-VR-07.

LOCAL REDUCED PARKING with SIDEWALK ONE SIDE, with LIMITED STREETLIGHTS Drawing Number: X-VR-07

Feature Dimension (metres)
Thru Lane (THUR LANE) 8.50
Sidewalk Varies

Notes:

  • LIMITED STREETLIGHTS
  • NO BIKE LANE
  • Rollover Curb & Gutter.
  • Boulevard / Driveway.
  • All Dimensions Shown in metres, Unless Otherwise Noted.

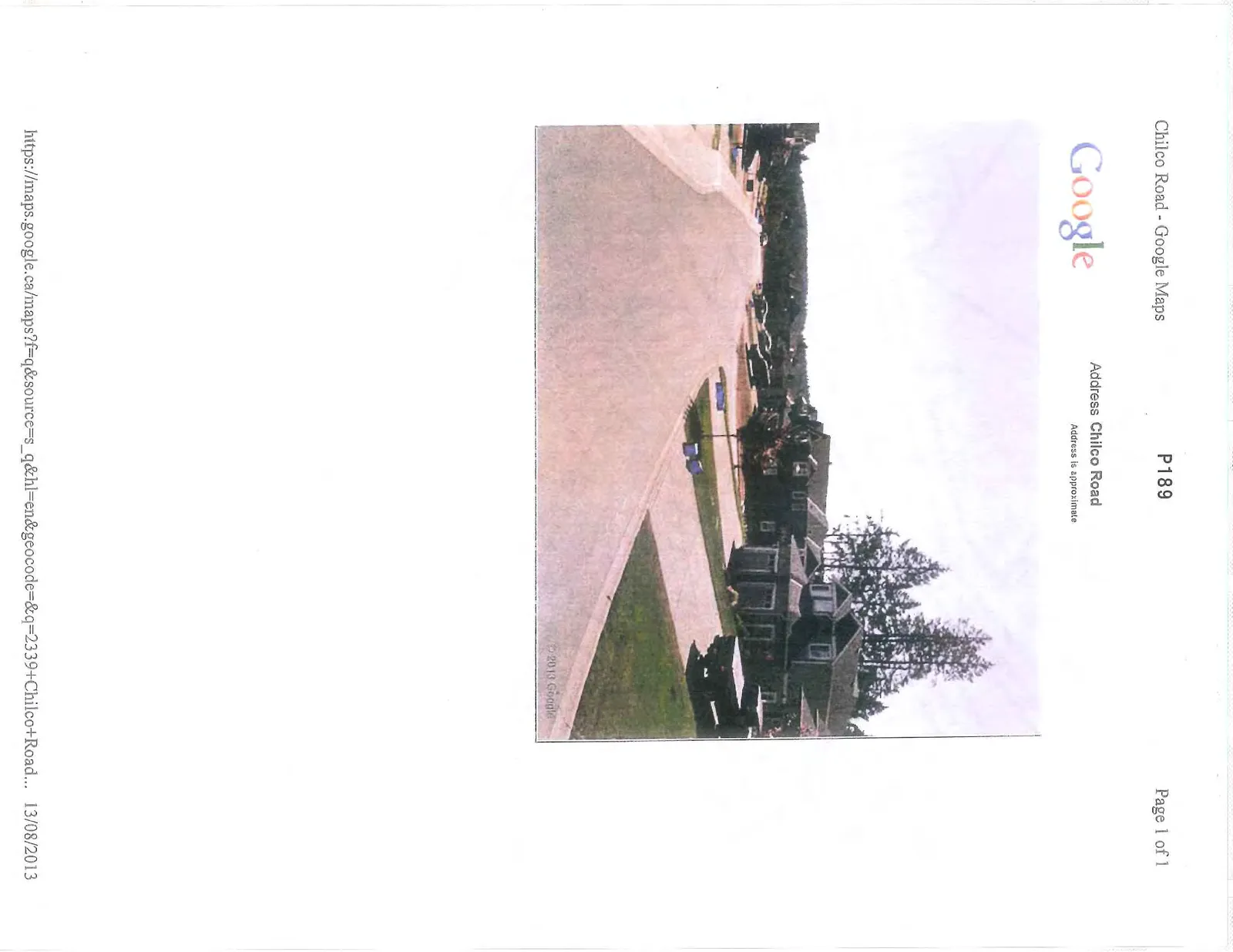

Google Maps street view photo of Chilco Road showing a residential street with wide paving and sidewalk on one side, dated 13/08/2013.
Google Maps street view photo of Chilco Road showing a residential street with wide paving and sidewalk on one side, dated 13/08/2013.

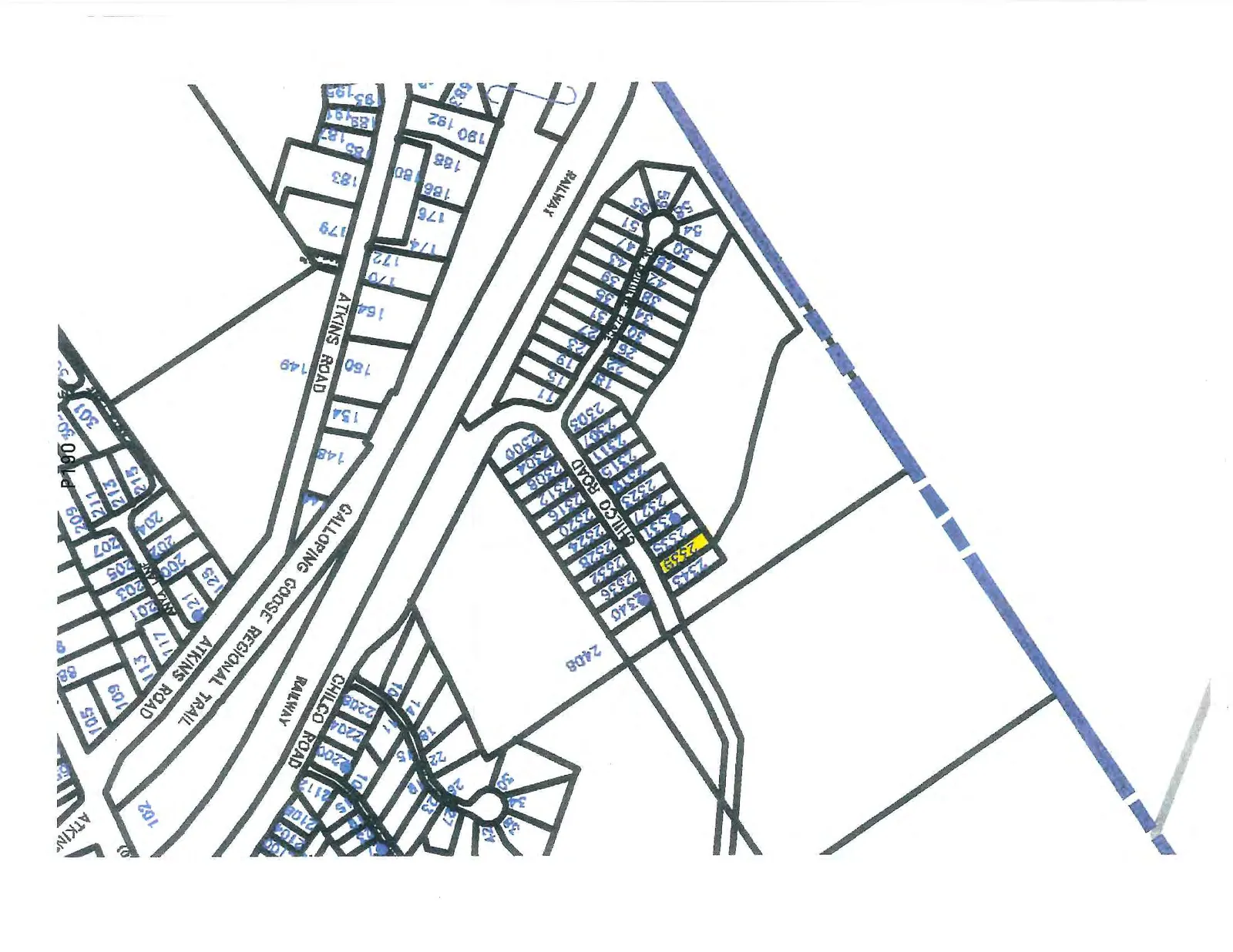

Property map of the Chilco Road area with lot 2339 highlighted.
Property map of the Chilco Road area with lot 2339 highlighted.
Page 169–198

Ex. 317 GLENAIRLIE DRIVE

Engineering cross-section diagram for Ex. 317 Glenairlie Drive, titled "LOCAL with INFILLED DITCHES" with Drawing Number X-VR-08.
Engineering cross-section diagram for Ex. 317 Glenairlie Drive, titled "LOCAL with INFILLED DITCHES" with Drawing Number X-VR-08.

LOCAL with INFILLED DITCHES Drawing Number: X-VR-08

Feature Dimension (metres)
Thru Lane (THUR LANE) 8.50

Notes:

  • LIMITED LEASE LIGHTS
  • NO SIDEWALK
  • NO CURB & GUTTER
  • NO BIKE LANE
  • PARKING ON SHOULDER
  • Gravel Shoulder.
  • Boulevard / Driveway.
  • All Dimensions Shown in metres, Unless Otherwise Noted.
Google Maps street view photo of 317 Glenairlie Drive showing a residential street with wide gravel shoulders and parked vehicles, dated 13/08/2013.
Google Maps street view photo of 317 Glenairlie Drive showing a residential street with wide gravel shoulders and parked vehicles, dated 13/08/2013.

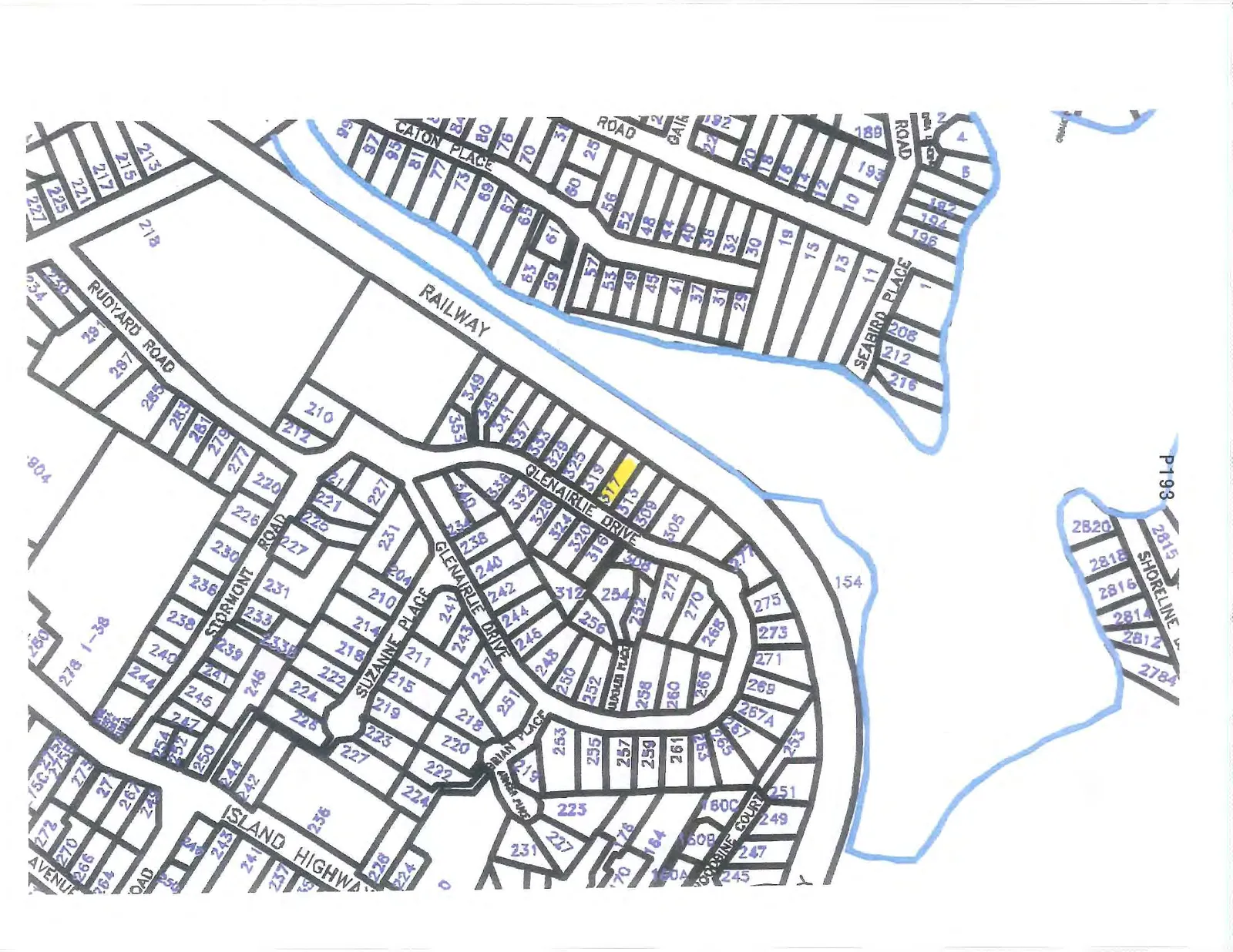

Property map of the Glenairlie Drive area with lot 317 highlighted.
Property map of the Glenairlie Drive area with lot 317 highlighted.
Page 169–198
