Committee of the Whole/Documents/Schedules 'C' & 'D' - Garden Map and Plot Legend
Appendix

Schedules 'C' & 'D' - Garden Map and Plot Legend

March 11, 2014Pages 156–1581 section

Visual layout and detailed dimensions for all community garden plots.

VIEW ROYAL PARK

COMMUNITY GARDEN PLOTS

Schedule "C"

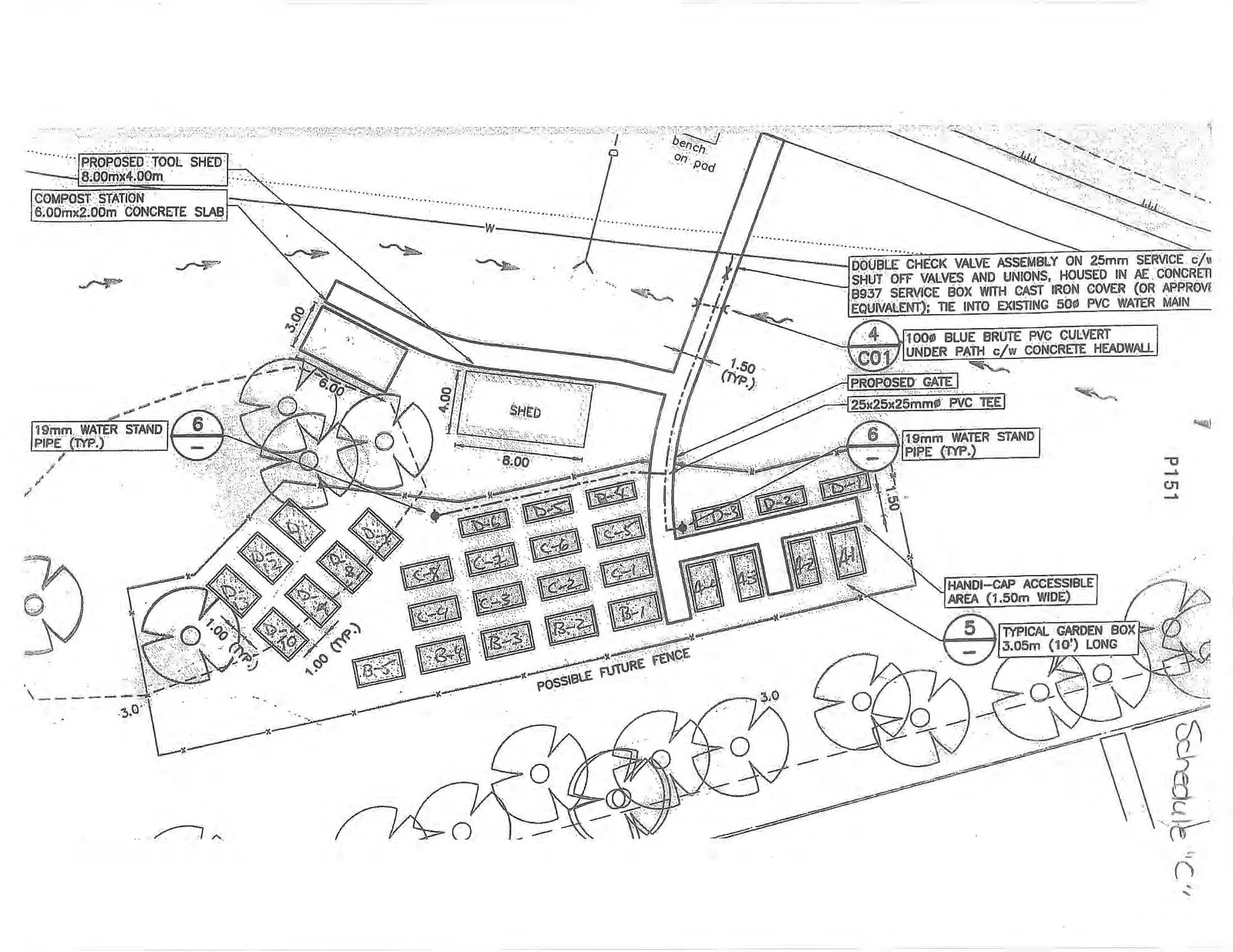

Site plan for View Royal Park Community Garden Plots featuring layouts for various garden plot sizes (A, B, C, D series), a tool shed, compost station, shed, and utility details.
Site plan for View Royal Park Community Garden Plots featuring layouts for various garden plot sizes (A, B, C, D series), a tool shed, compost station, shed, and utility details.

Site Plan Annotations:

  • PROPOSED TOOL SHED 8.00m x 4.00m
  • COMPOST STATION 6.00m x 2.00m CONCRETE SLAB
  • bench on pad
  • SHED (8.00 x 4.00)
  • 19mm WATER STAND PIPE (TYP.)
  • DOUBLE CHECK VALVE ASSEMBLY ON 25mm SERVICE c/w SHUT OFF VALVES AND UNIONS, HOUSED IN AE CONCRETE B937 SERVICE BOX WITH CAST IRON COVER (OR APPROVED EQUIVALENT); TIE INTO EXISTING 50ø PVC WATER MAIN
  • 100ø BLUE BRUTE PVC CULVERT UNDER PATH c/w CONCRETE HEADWALL
  • PROPOSED GATE
  • 25x25x25mmø PVC TEE
  • HANDI-CAP ACCESSIBLE AREA (1.50m WIDE)
  • TYPICAL GARDEN BOX 3.05m (10') LONG
  • POSSIBLE FUTURE FENCE

Schedule "D"

GARDEN PLOT LEGEND: (All Plots are 10 ft. long)

Legend for garden plots detailing Special Access (A series), Large (B series), and Medium (C series) plot dimensions.
Legend for garden plots detailing Special Access (A series), Large (B series), and Medium (C series) plot dimensions.
  • A1 - Special Access Plot "5" ft. wide
  • A2 - Special Access Plot "4" ft. wide
  • A3 - Special Access Plot "4" ft. wide
  • A4 - Special Access Plot "5" ft. wide
  • B1 - Large Plot "5" ft. wide
  • B2 - Large Plot "5" ft. wide
  • B3 - Large Plot "5" ft. wide
  • B4 - Large Plot "5" ft. wide
  • B5 - Large Plot "5" ft. wide
  • C1 - Medium Plot "4" ft. wide
  • C2 - Medium Plot "4" ft. wide
  • C3 - Medium Plot "4" ft. wide
  • C4 - Medium Plot "4" ft. wide
  • C5 - Medium Plot "4" ft. wide
  • C6 - Medium Plot "4" ft. wide
  • C7 - Medium Plot "4" ft. wide
  • C8 - Medium Plot "4" ft. wide

GARDEN PLOT LEGEND CONT'D:

Continuation of garden plot legend detailing Small (D series) plot dimensions.
Continuation of garden plot legend detailing Small (D series) plot dimensions.
  • D1 - Small Plot "3" ft. wide
  • D2 - Small Plot "3" ft. wide
  • D3 - Small Plot "3" ft. wide
  • D4 - Small Plot "3" ft. wide
  • D5 - Small Plot "3" ft. wide
  • D6 - Small Plot "3" ft. wide
  • D7 - Small Plot "3" ft. wide
  • D8 - Small Plot "3" ft. wide
  • D9 - Small Plot "3" ft. wide
  • D10 - Small Plot "3" ft. wide
  • D11 - Small Plot "3" ft. wide
  • D12 - Small Plot "3" ft. wide
  • D13 - Small Plot "3" ft. wide
