Tree Resource Spreadsheets and Site Mapping

March 11, 2014Pages 189–1974 sections

Detailed technical data for every significant tree on the property and protection fencing diagrams.

2. APPROVAL OF AGENDA

26 tagged trees listed

November 27, 2013

Page 189–197

TREE RESOURCE

Tagged, bylaw-protected trees 256 and 258 Plowright Road

Tree #	d.b.h. (cm)	CRZ	Species	Condition Health	Condition Structure	Relative Tolerance	Remarks / Recommendations
436	51	6.0	Douglas-fir	good	fair	poor	Topped historically, multiple growth leaders arise from topping location. Recent limb failure. Recently impacted by construction on adjacent property.
437	47	6.0	Douglas-fir	good	fair	poor	Topped historically, multiple growth leaders arise from topping location. Recent limb failure. Recently impacted by construction on adjacent property.
446	2x28, 1x33	6.0	Garry oak	fair	good	good	Multiple stemmed oak tree located along the property boundary. Some deadwood and health stress visible in canopy.
443, 444, 445	17/25/3 1/38	8.0	Garry oak	fair	fair	good	Grouping of oak stems that grow from one root mass. Some deadwood and health stress visible in canopy. Two small stems are dead.
438	17	2.0	Garry oak	fair	fair	good	Asymmetric form due to shading from adjacent tree. Some backfill from neighbouring property over root system.
439	26/32/3 3/33	8.0	Garry oak	poor	poor	good	Declining health. Little annual growth of the shoots and leaders. Cankers along trunk. Multiple stems with narrow angles of attachment and weakness at the stem unions.
440	28/30/4 5	8.0	Garry oak	fair	good	good	Multiple stems. Large deadwood in canopy.
441	1x12, 2x24, 3x20	8.0	Garry oak	fair	fair	good
442	20/20	4.0	Garry oak	fair	fair	good	Deep backfill placed around tree historically. Recent fill material placed in tree well.

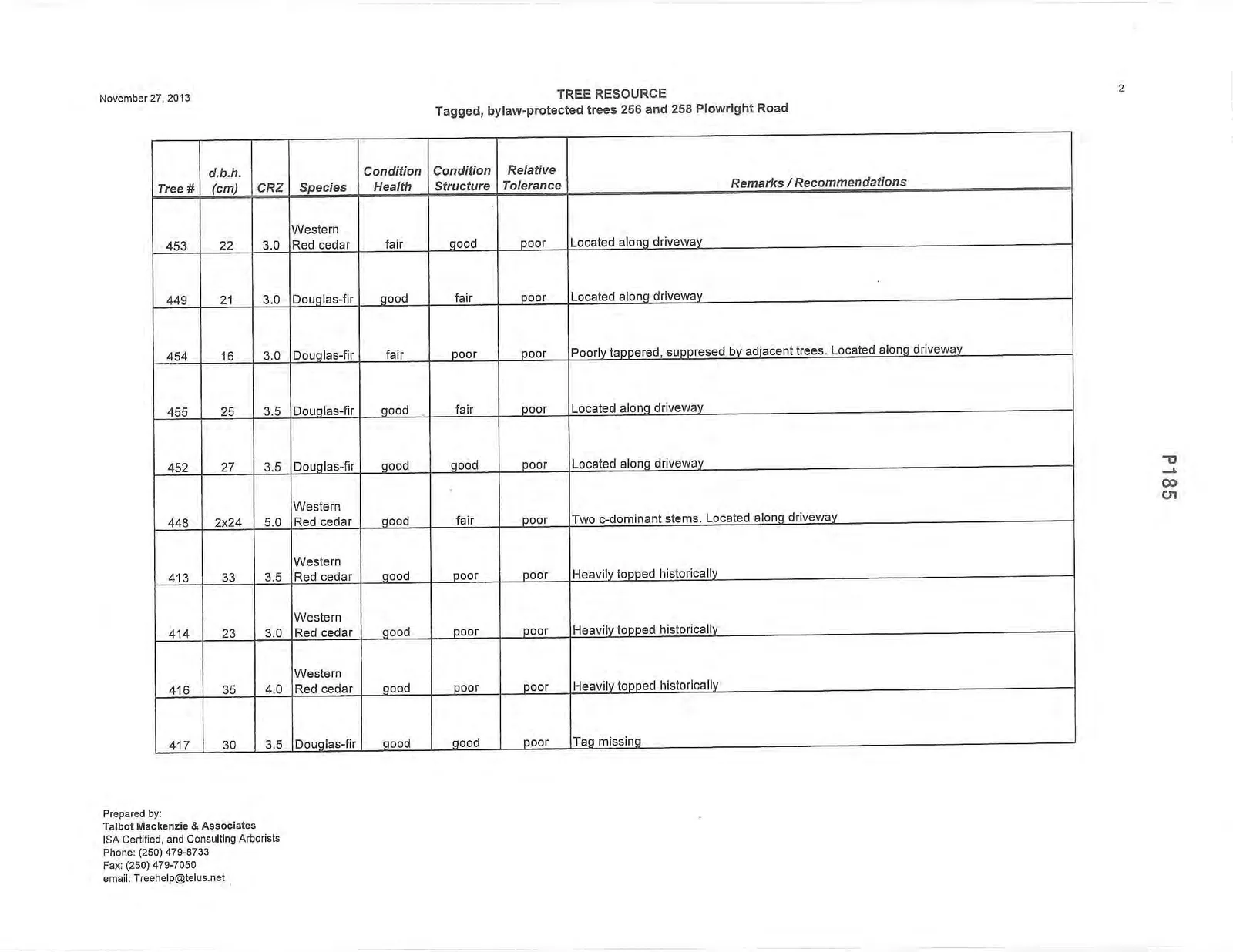

Tree #	d.b.h. (cm)	CRZ	Species	Condition Health	Condition Structure	Relative Tolerance	Remarks / Recommendations
453	22	3.0	Western Red cedar	fair	good	poor	Located along driveway
449	21	3.0	Douglas-fir	good	fair	poor	Located along driveway
454	16	3.0	Douglas-fir	fair	poor	poor	Poorly tappered, suppressed by adjacent trees. Located along driveway
455	25	3.5	Douglas-fir	good	fair	poor	Located along driveway
452	27	3.5	Douglas-fir	good	good	poor	Located along driveway
448	2x24	5.0	Western Red cedar	good	fair	poor	Two c-dominant stems. Located along driveway
413	33	3.5	Western Red cedar	good	poor	poor	Heavily topped historically
414	23	3.0	Western Red cedar	good	poor	poor	Heavily topped historically
416	35	4.0	Western Red cedar	good	poor	poor	Heavily topped historically
417	30	3.5	Douglas-fir	good	good	poor	Tag missing

Tree #	d.b.h. (cm)	CRZ	Species	Condition Health	Condition Structure	Relative Tolerance	Remarks / Recommendations
418	32	3.5	Hemlock	poor	fair	poor	Nearly dead
419	56	8.0	Douglas-fir	good	fair	poor
420	33	3.5	Western Red cedar	good	poor	poor	Tag missing
412	51	8.0	Douglas-fir	good	poor	poor	Topped historically,
421	35	4.0	Hemlock	fair	poor	poor	Topped historically
415	18	2.0	Western Red cedar	fair	poor	poor	Heavily topped historically
422	34	4.0	Western Red cedar	good	poor	poor	Heavily topped historically
423	30	3.5	Western Red cedar	fair	poor	poor	Some health stress Heavily topped historically
425	40	4.5	Douglas-fir	good	poor	poor	Heavily topped historically
431	35	4.0	Western Red cedar	good	poor	poor	Multiple stemmed. Heavily topped historically

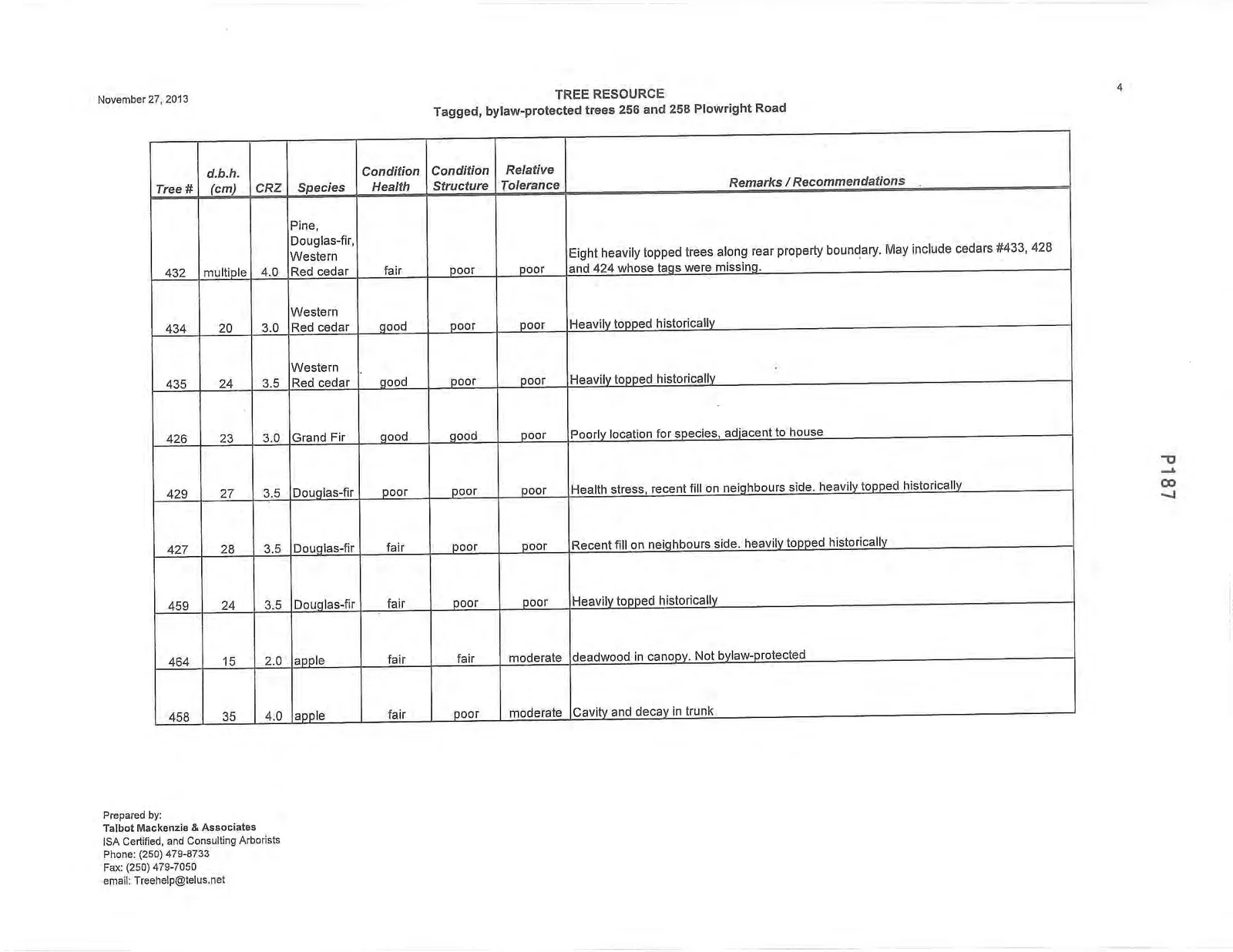

Tree #	d.b.h. (cm)	CRZ	Species	Condition Health	Condition Structure	Relative Tolerance	Remarks / Recommendations
432	multiple	4.0	Pine, Douglas-fir, Western Red cedar	fair	poor	poor	Eight heavily topped trees along rear property boundary. May include cedars #433, 428 and 424 whose tags were missing.
434	20	3.0	Western Red cedar	good	poor	poor	Heavily topped historically
435	24	3.5	Western Red cedar	good	poor	poor	Heavily topped historically
426	23	3.0	Grand Fir	good	good	poor	Poorly location for species, adjacent to house
429	27	3.5	Douglas-fir	poor	poor	poor	Health stress, recent fill on neighbours side. heavily topped historically
427	28	3.5	Douglas-fir	fair	poor	poor	Recent fill on neighbours side. heavily topped historically
459	24	3.5	Douglas-fir	fair	poor	poor	Heavily topped historically
464	15	2.0	apple	fair	fair	moderate	deadwood in canopy. Not bylaw-protected
458	35	4.0	apple	fair	poor	moderate	Cavity and decay in trunk

Tree #	d.b.h. (cm)	CRZ	Species	Condition Health	Condition Structure	Relative Tolerance	Remarks / Recommendations
461	35	4.0	apple	poor	poor	moderate	Extremely decayed, almost dead
462	15		cherry	poor	fair	moderate	Nearly dead. Not bylaw-protected.

Page 189–197

Key to Headings in Resource Table

d.b.h. – diameter at breast height - diameter of trunk, measured in centimetres at 1.4 metres above ground level
CRZ – critical root zone - estimated optimal size of tree protection zone based on tree species, condition and age of specimen and the species tolerance to root disturbance. Indicates the radial distance from the trunk, measured in metres.
Condition health/structure –
- Good – no visible or minor health or structural flaw
- Fair – health or structural flaw present that can be corrected through normal arboricultural or horticultural care.
- Poor – significant health or structural defects that compromise the long-term survival or retention of the specimen.
Relative Tolerance – relative tolerance of the selected species to development impacts.

Page 189–197

TREE RESOURCE

bylaw-protected trees not identified by tag onsite 256 and 285 Plowright Road

Tree	d.b.h. (cm)	Crown Spread(m)	Species	Condition Health	Condition Structure	Relative Tolerance	Remarks / Recommendations
1	multiple	n/a	Western Red cedar	good	poor	poor	Three trees growing in a short hedgerow to the west of the house at 258 Plowright. Topped heavily.
2	27	n/a	Douglas-fir	good	poor	poor	Topped
3	multiple	n/a	Western Red cedar	fair	poor	poor	Three trees growing in a short hedgerow to the west of the house at 258 Plowright. Topped heavily.
4	multiple	n/a	Western Red cedar, Douglas-fir	fair	poor	poor	Six cedar and 3 Douglas-fir trees growing as a hedgerow. Topped historically.
5	45	n/a	Douglas-fir	good	poor	poor	Topped historically
6	multiple	n/a	Western Red cedar, Douglas-fir	fair	poor	poor	Six cedar and 3 Douglas-fir trees growing as a hedgerow. Topped historically.
7	multiple	n/a	Western Red cedar, Douglas-fir,	good	poor	poor	Three cedar, and eleven Douglas-fir trees growing as a hedgerow. Topped historically.
8	multiple	n/a	Western Red cedar,	good	poor	poor	Five Western Red cedar. Topped historically
9	multiple	n/a	Western Red cedar	fair	poor	poor	Fifteen topped cedar trees growing in a hedgerow along the edge of the driveway.

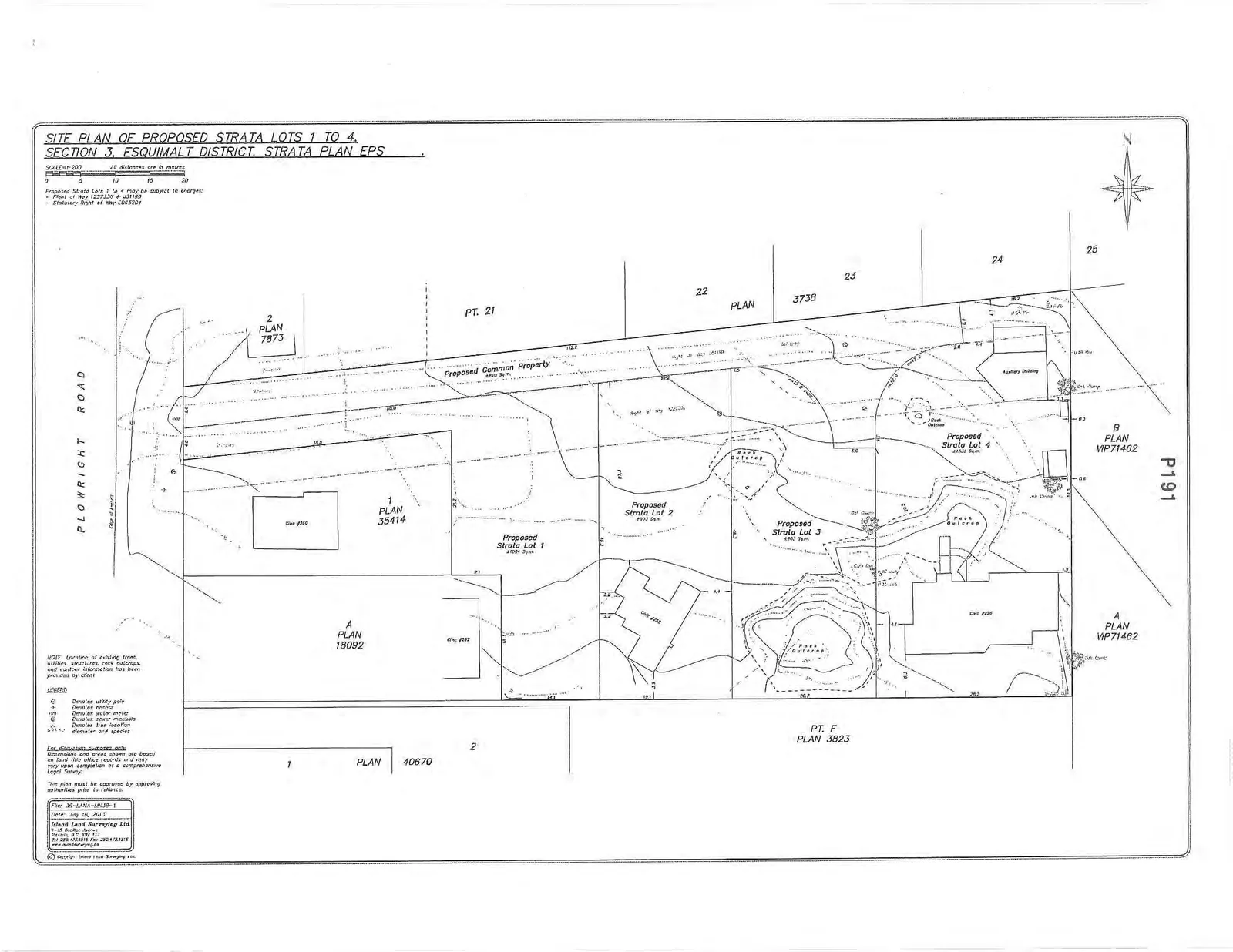

Site Plan of Proposed Strata Lots 1 to 4, Section 3, Esquimalt District, Strata Plan EPS

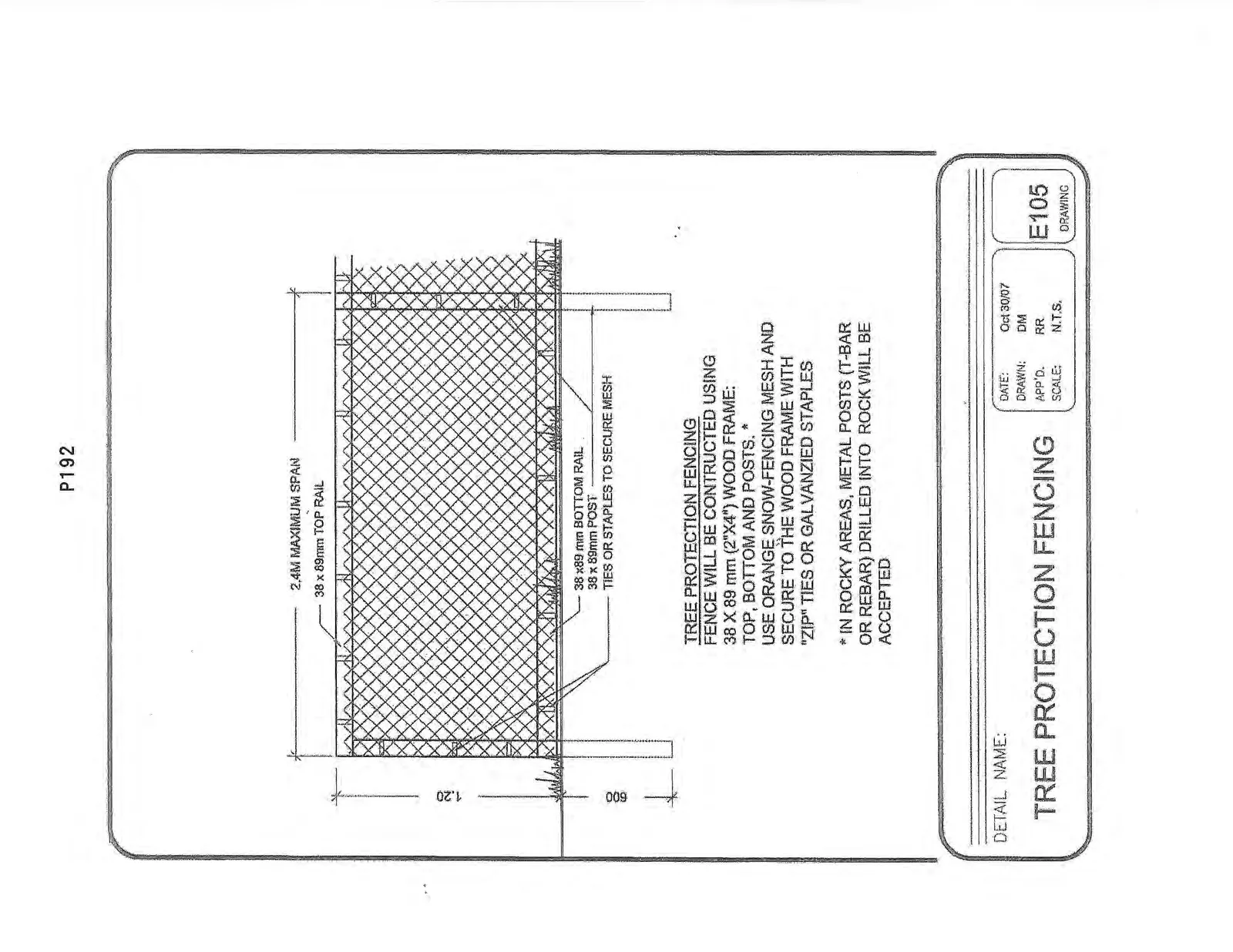

TREE PROTECTION FENCING

FENCE WILL BE CONTRUCTED USING 38 X 89 mm (2"X4") WOOD FRAME: TOP, BOTTOM AND POSTS. * USE ORANGE SNOW-FENCING MESH AND SECURE TO THE WOOD FRAME WITH "ZIP" TIES OR GALVANZIED STAPLES

IN ROCKY AREAS, METAL POSTS (T-BAR OR REBAR) DRILLED INTO ROCK WILL BE ACCEPTED

DETAIL NAME: TREE PROTECTION FENCING DATE: Oct 30/07 DRAWN: DM APP'D: RR SCALE: N.T.S. DRAWING: E105

Page 189–197
