Attachment 2: VICTORIA GENERAL HOSPITAL ELECTRICAL ENERGY CENTRE Architectural and Civil Plans
February 11, 2025Pages 25–4016 sections
Detailed architectural and civil drawings for the proposed energy centre at 1 Hospital Way.
November 12, 2024Stantec Architecture Ltd.Project number 2102165
VICTORIA GENERAL HOSPITAL ELECTRICAL ENERGY CENTRE
1 HOSPITAL WAY, VICTORIA, BC V8Z 6R5
ISLAND HEALTH PROJECT NUMBER: 2102165 STANTEC PROJECT NUMBER: 144322032 DATE: NOVEMBER 12, 2024 RE-ISSUED FOR: VARIANCE PERMIT APPLICATION
ARCHITECTURAL SHEET LIST
| SHEET NUMBER | SHEET NAME |
|---|---|
| A-000 | COVER |
| A-001 | PROJECT INFORMATION |
| A-100 | OVERALL SITE PLAN |
| A-101 | SITE PLAN EEC - EXISTING AND DEMO |
| A-102 | SITE PLAN D&T ELEC. RM - EXISTING AND DEMO |
| A-103 | SITE PLAN EEC - NEW |
| A-104 | SITE PLAN D&T ELEC. RM - NEW |
| A-111 | MAIN FLOOR PLAN |
| A-112 | MEZZANINE FLOOR PLAN |
| A-113 | ROOF PLAN |
| A-151 | PLANS - D&T ELECTRICAL ROOM |
| A-201 | ELEVATIONS |
| A-202 | ELEVATIONS |
| A-301 | BUILDING SECTIONS |
| A-302 | BUILDING SECTIONS |
| A-351 | D&T ELECTRICAL ROOM ELEVATIONS AND SECTIONS |
CIVIL SHEET LIST
| SHEET NUMBER | SHEET NAME |
|---|---|
| C-000 | LOCATION PLAN, GENERAL NOTES, DRAWING LIST AND LEGEND |
| C-101 | EXISTING CONDITIONS AND REMOVALS |
| C-102 | SITE CURB, PAVING AND PAINT MARKING REINSTATEMENT |
| C-103 | ENERGY CENTRE SITE GRADING |
| C-104 | NEW PARKING LAYOUT |
| C-201 | SITE UTILITIES |
| C-202 | SITE UTILITIES |
| C-301 | SITE UTILITY PROFILES |
| C-302 | SITE UTILITY PROFILES |
| C-303 | DRIVEWAY PROFILE |
| C-401 | DETAILS |
Page 25–40
PROJECT INFORMATION AND BUILDING CODE ANALYSIS
PROJECT SUMMARY
- ADDRESS: 1 HOSPITAL WAY, VICTORIA, BC V8Z 6R5
- LEGAL DESCRIPTION: PROPERTY ID 001161300, LOT 1, PLAN VIP31445
- ZONE: P-1: COMMUNITY INSTITUTIONAL
- SITE AREA: 105685.3334 m²
- BUILDING AREA:
- ELECTRICAL ENERGY CENTRE: 469.5 m²
- GENERATOR AREA: 500.5 m²
- D&T ELECTRICAL ROOM: 173.5 m²
- TRANSFORMER ENCLOSURE: 72.5 m²
- SITE COVERAGE:
- ZONING MAXIMUM: 40%
- EXISTING COVERAGE: 18%
- NEW COVERAGE: 1%
- TOTAL COVERAGE: 19%
- SETBACKS:
- ZONING MINIMUM - FRONT LOT LINE: 7.5m
- REAR LOT LINE: 7.5m
- SIDE LOT LINE: 6.0m
- FLANKING LOT LINE: 6.0m
- BUILDING HEIGHT:
- ZONING MAXIMUM: 9m
- PROPOSED: 8.5m
- PARKING STALLS:
- ADDITIONAL STALL REQUIRED: 1 STALL
- PROPOSED: 1 STALL
- EXISTING TO BE REMOVED: 16 STALLS
- NEW TO BE INSTALLED: 17 STALLS
- NET INCREASE: 1 STALL
BUILDING CODE ANALYSIS
- GOVERNING CODE: BC BUILDING CODE 2024 (BCBC)
- BUILDING HEIGHT: 2 STOREY
- BUILDING AREA: 469.5 m²
- MAJOR OCCUPANCIES: GROUP F, DIVISION 3, LOW HAZARD INDUSTRIAL
- SUBSIDIARY USES: NONE
- ARTICLE OF CONSTRUCTION: 3.2.2.85
- CONSTRUCTION TYPE: COMBUSTIBLE AND NON-COMBUSTIBLE
- FLOOR ASSEMBLIES: 45 MIN. FRR REQUIRED
- LOAD BEARING WALLS, COLUMNS: 45 MIN. FRR REQUIRED
- MEZZANINES: APPLICABLE
- ROOF ASSEMBLY: NO RATING REQUIRED
- SPRINKLERS: NOT PROVIDED
- FIREWALLS: NOT APPLICABLE
- SPATIAL SEPARATIONS: NOT APPLICABLE
- NUMBER OF STREETS BUILDING FACES: 2 STREETS
- TRAVEL DISTANCE: 3.4.2.5. f) 30m in any floor area other than those referred to in Clauses (a) to (e). Maximum 30m travel distance to an exit permitted when more than one exit is required from a floor area.
Page 25–40

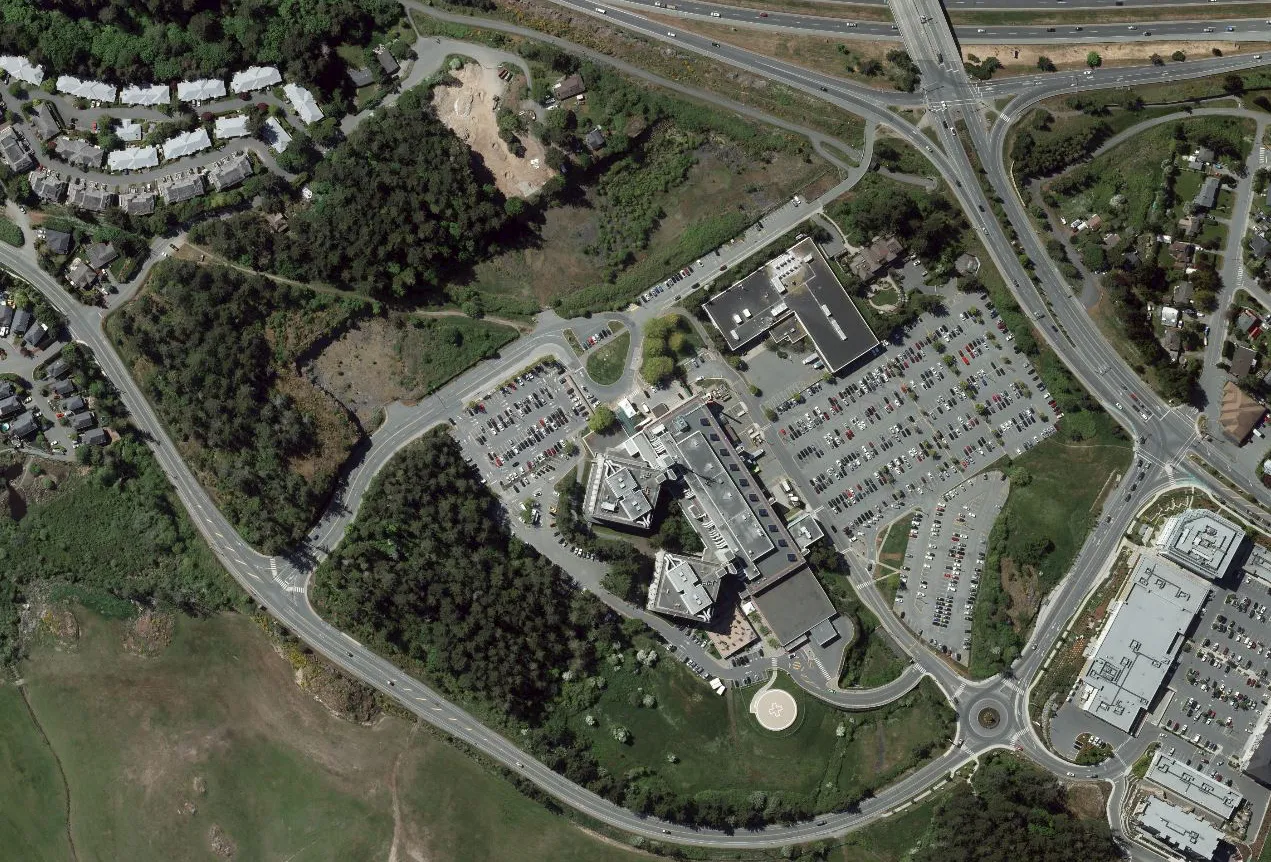

OVERALL SITE PLAN
SITE PLAN LEGEND
- PROPERTY LINE
- SETBACK LINE
- EXISTING TO REMAIN
- EXISTING TO BE DEMOLISHED
- APPROX. AREA TO BE EXCAVATED FOR NEW SERVICES
- NEW ELEMENTS
- NEW PARKING
- NEW LANDSCAPE AREA
Page 25–40
SITE PLAN EEC - EXISTING AND DEMO
Includes area to be excavated for new electrical energy centre and new generators. Existing curbs and retaining walls to be demolished.
Page 25–40
SITE PLAN D&T ELEC. RM AND LAUNDRY BLDG - EXISTING AND DEMO
Includes area of work for new D&T Elec. Rm and outdoor transformers adjacent to the main entrance. Existing trees and parking stalls to be removed.
Page 25–40
SITE PLAN EEC - NEW
Details of the new Electrical Energy Centre, generators, security fencing, drive aisle, and landscaped areas.
Page 25–40
SITE PLAN D&T ELEC. RM AND LAUNDRY BLDG - NEW
Details of the new D&T Electrical Room, transformer enclosure, and relocated parking meters.
Page 25–40
MAIN FLOOR PLAN
FLOOR PLAN KEYNOTES
| TAG | DESCRIPTION |
|---|---|
| 1 | ELECTRICAL EQUIPMENT - REFER TO ELEC. |
| 2 | GENERATORS ON HOUSEKEEPING PAD - REFER TO ELEC. |
| 3 | LOAD BANK - REFER TO ELEC. |
| 4 | TRANSFORMER - REFER TO ELEC. |
| 5 | FUEL TRANSFER / POLISHING SYSTEM, WALL MOUNTED - REFER TO MECH. |
| 6 | HEAT RECOVERY CONDENSING UNIT - REFER TO MECH. |
| 8 | PULL PIT W/ DRAIN AND REMOVABLE CHECKER PLATE COVER - REFER TO ELEC. |
Page 25–40
MEZZANINE FLOOR PLAN
FLOOR PLAN KEYNOTES
| TAG | DESCRIPTION |
|---|---|
| 7 | FAN COIL AND DUCT - REFER TO MECH. |
Page 25–40
ROOF PLAN
Proposed standing seam metal roof, stacks, and ACM ridge caps.
Page 25–40
SLAB EDGE AND FLOOR PLANS - D&T ELECTRICAL ROOM
Page 25–40

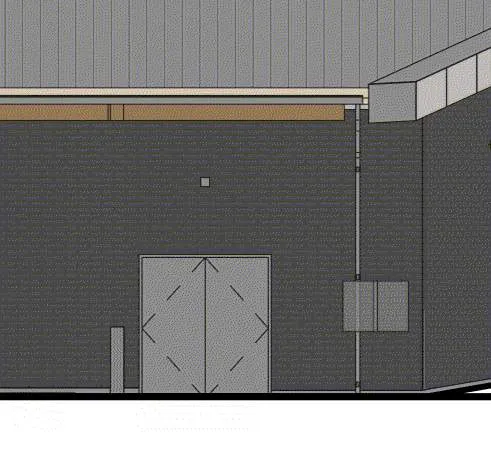

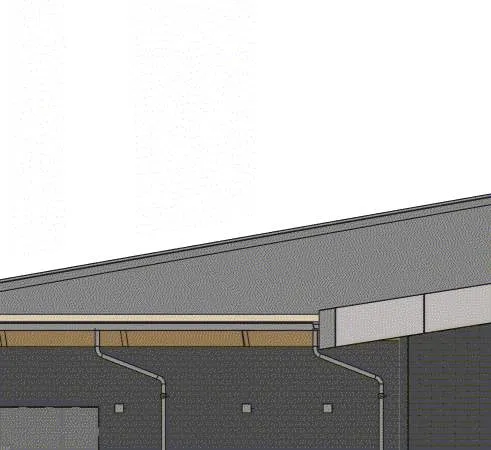

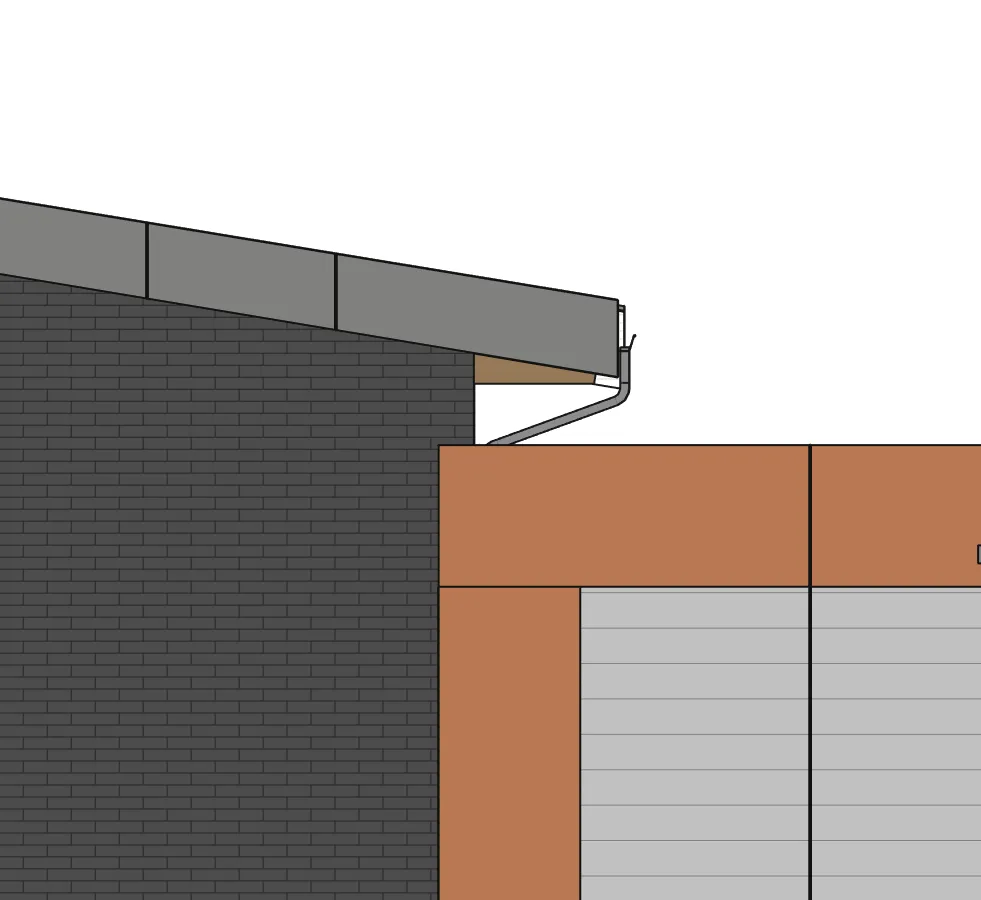

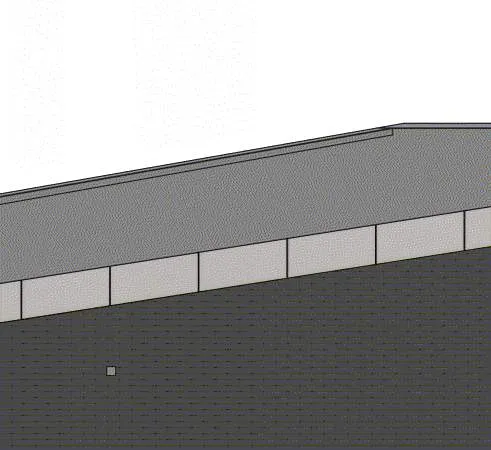

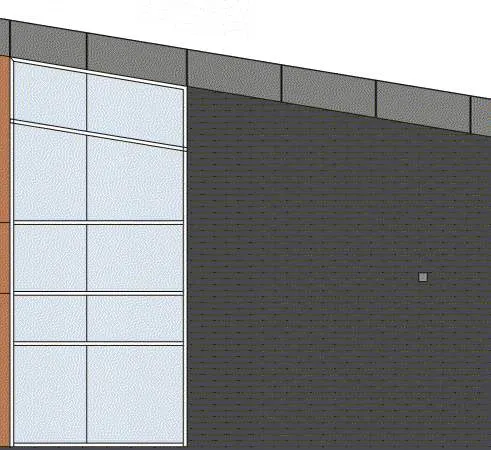

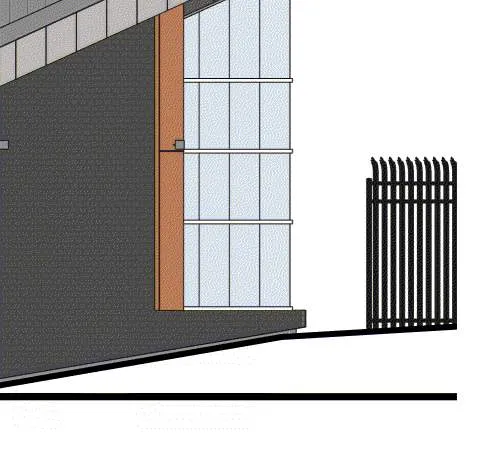

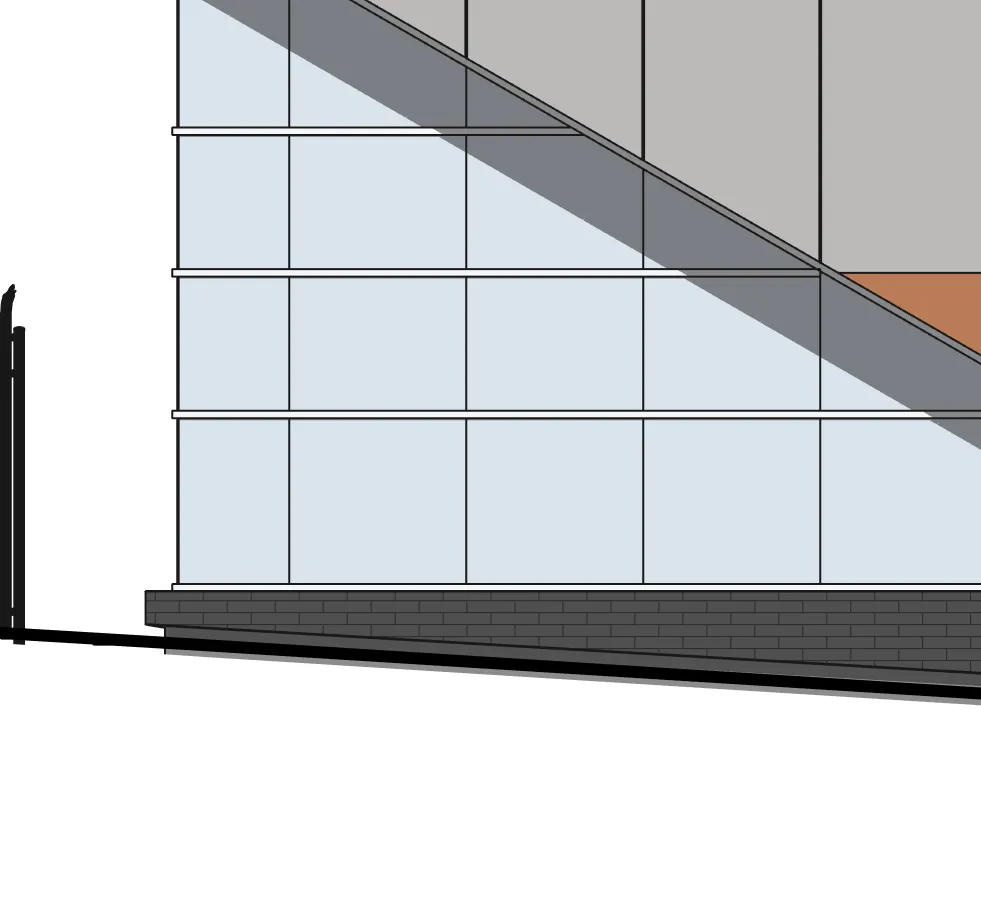

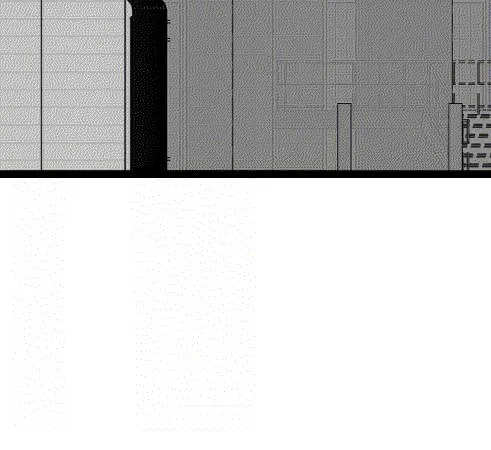

ELEVATIONS - SOUTH AND WEST
MATERIAL LEGEND
| TAG | MATERIAL AND FINISHES |
|---|---|
| BR-1 | BRICK VENEER, NORMAN BRICK, COLOUR: EBONY - TBC |
| CO-1 | BOARD FORM CAST-IN-PLACE CONCRETE WALL - TBC |
| CO-2 | CONCRETE FACED INSULATION |
| GL-1 | CLEAR GLAZING |
| MT-1 | ACM PANEL, COLOUR: CHAMPAGNE METALLIC (ALUCOBOND) OR BRIGHT SILVER METALLIC (REYNOBOND) - TBC |
| MT-2 | ACM PANEL, COLOUR: BEACHSTONE GREY METALLIC (ALUCOBOND) - TBC |
| MT-3 | ACM PANEL, COLOUR: NATIVE COPPER MICA (ALUCOBOND) OR COPPER PENNY (REYNOBOND) - TBC |
| SP-1 | SPANDREL PANEL, COLOUR: GREY - TBC |
Page 25–40

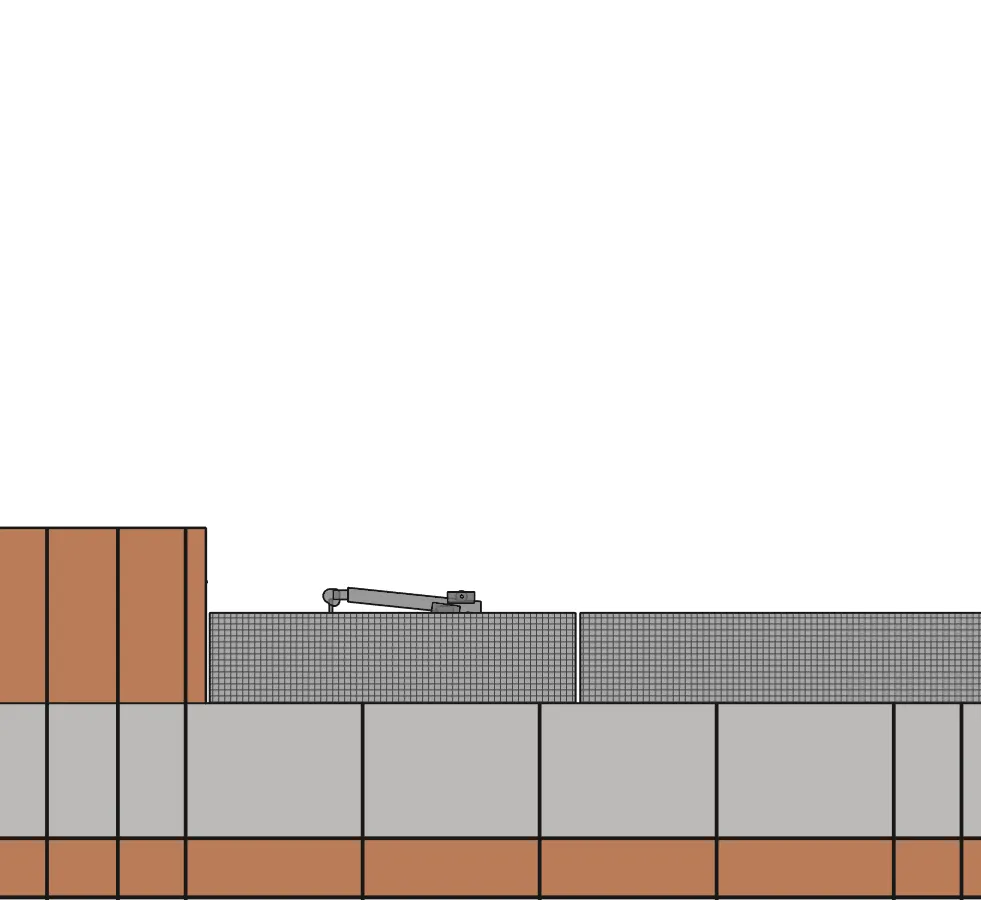

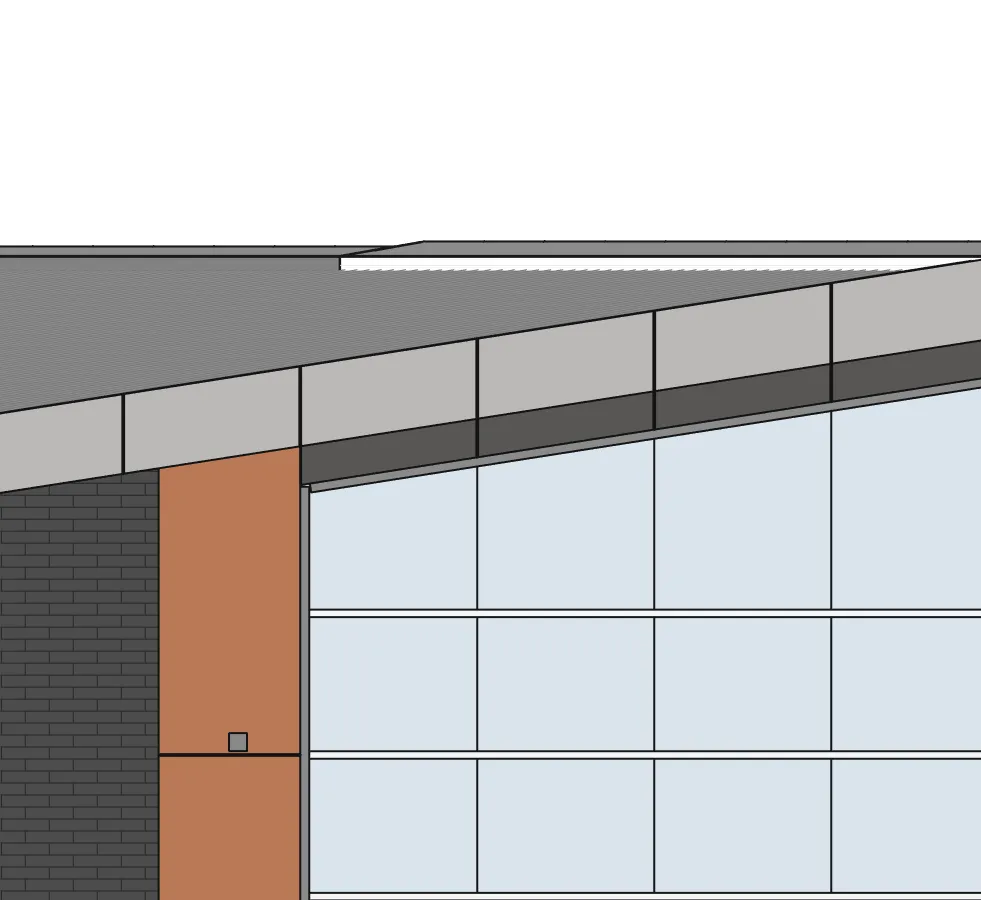

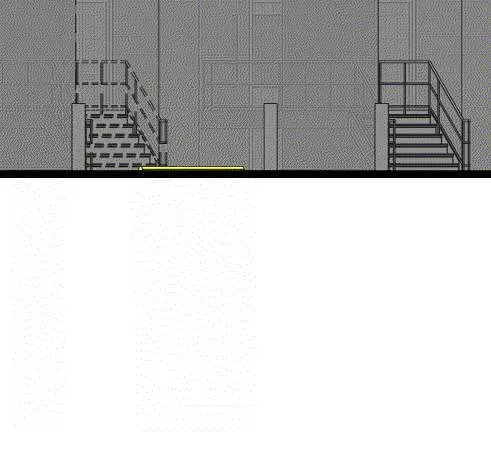

ELEVATIONS - NORTH, EAST, AND EAST GENERATOR AREA
MATERIAL LEGEND
| TAG | MATERIAL AND FINISHES |
|---|---|
| BR-1 | BRICK VENEER, NORMAN BRICK, COLOUR: EBONY - TBC |
| CO-1 | BOARD FORM CAST-IN-PLACE CONCRETE WALL - TBC |
| CO-2 | CONCRETE FACED INSULATION |
| GL-1 | CLEAR GLAZING |
| MT-1 | ACM PANEL, COLOUR: CHAMPAGNE METALLIC (ALUCOBOND) OR BRIGHT SILVER METALLIC (REYNOBOND) - TBC |
| MT-2 | ACM PANEL, COLOUR: BEACHSTONE GREY METALLIC (ALUCOBOND) - TBC |
| MT-3 | ACM PANEL, COLOUR: NATIVE COPPER MICA (ALUCOBOND) OR COPPER PENNY (REYNOBOND) - TBC |
Page 25–40

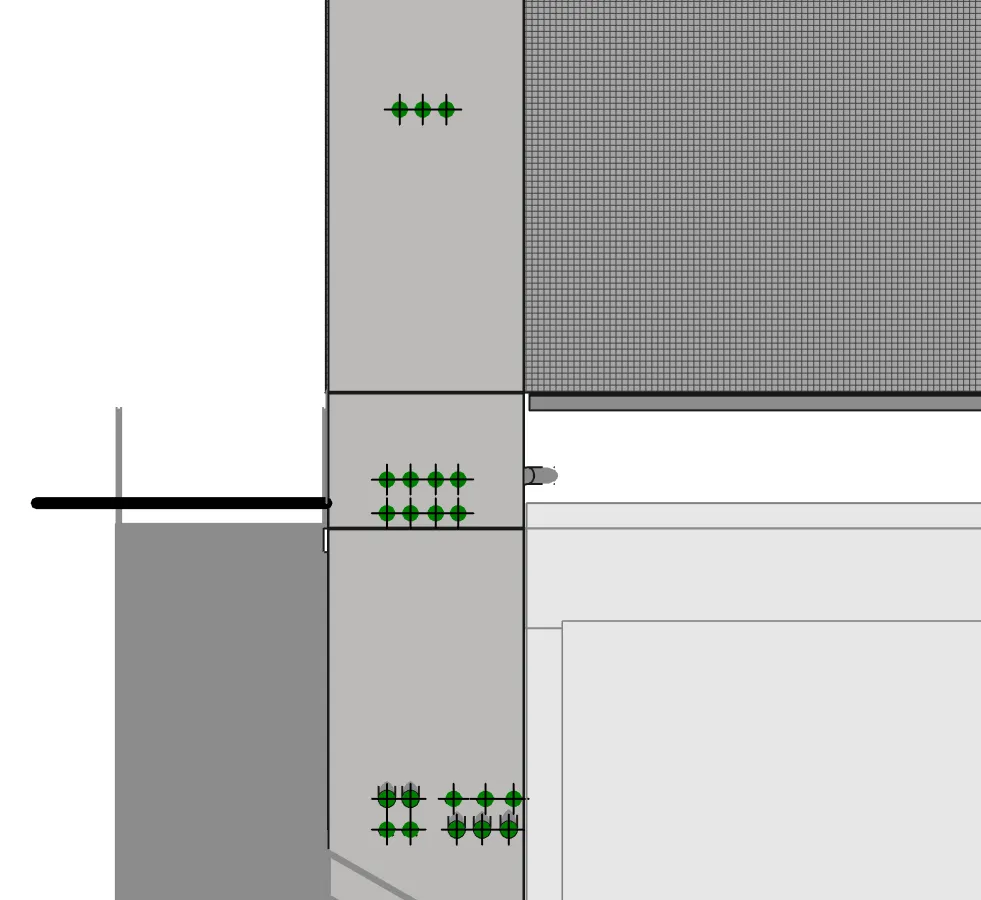

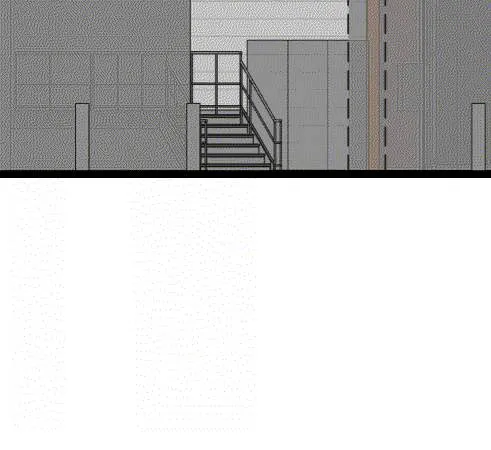

BUILDING SECTIONS
Sections through the main Electrical Energy Centre showing generators, electrical rooms, and mezzanine levels.
Page 25–40
BUILDING SECTIONS
Additional sections through the building showing foundations, office areas, and equipment layouts.
Page 25–40

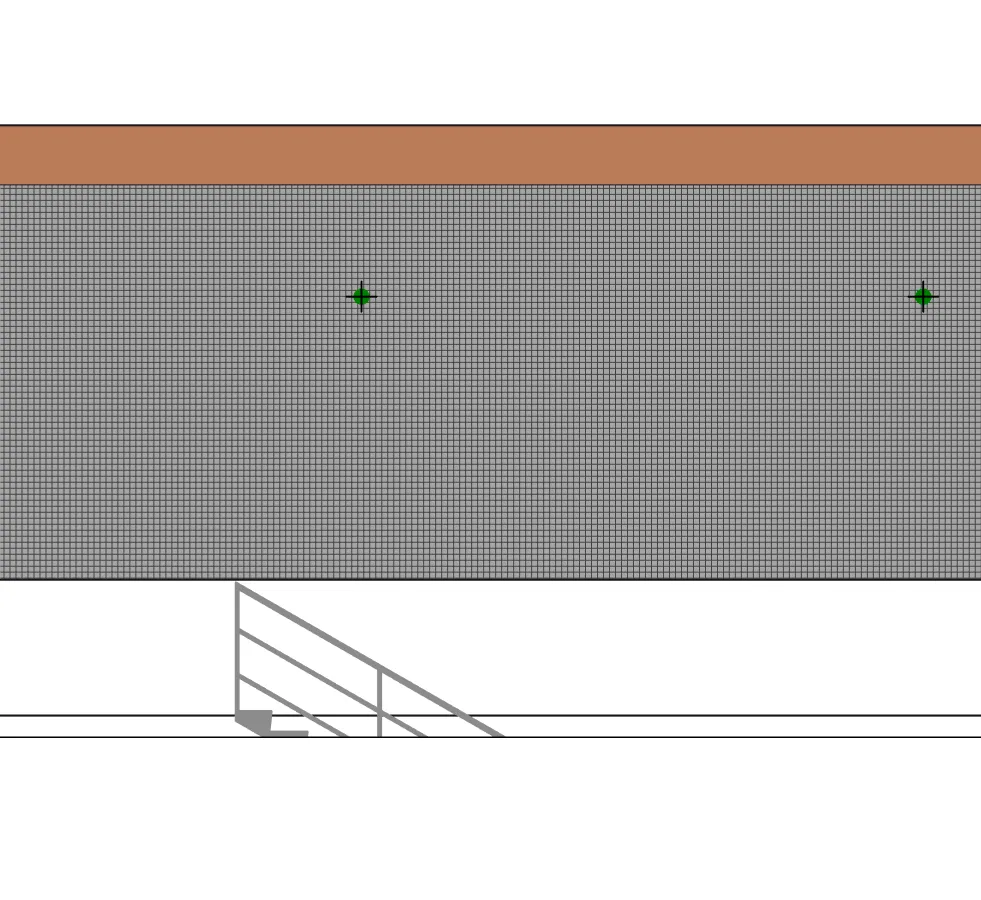

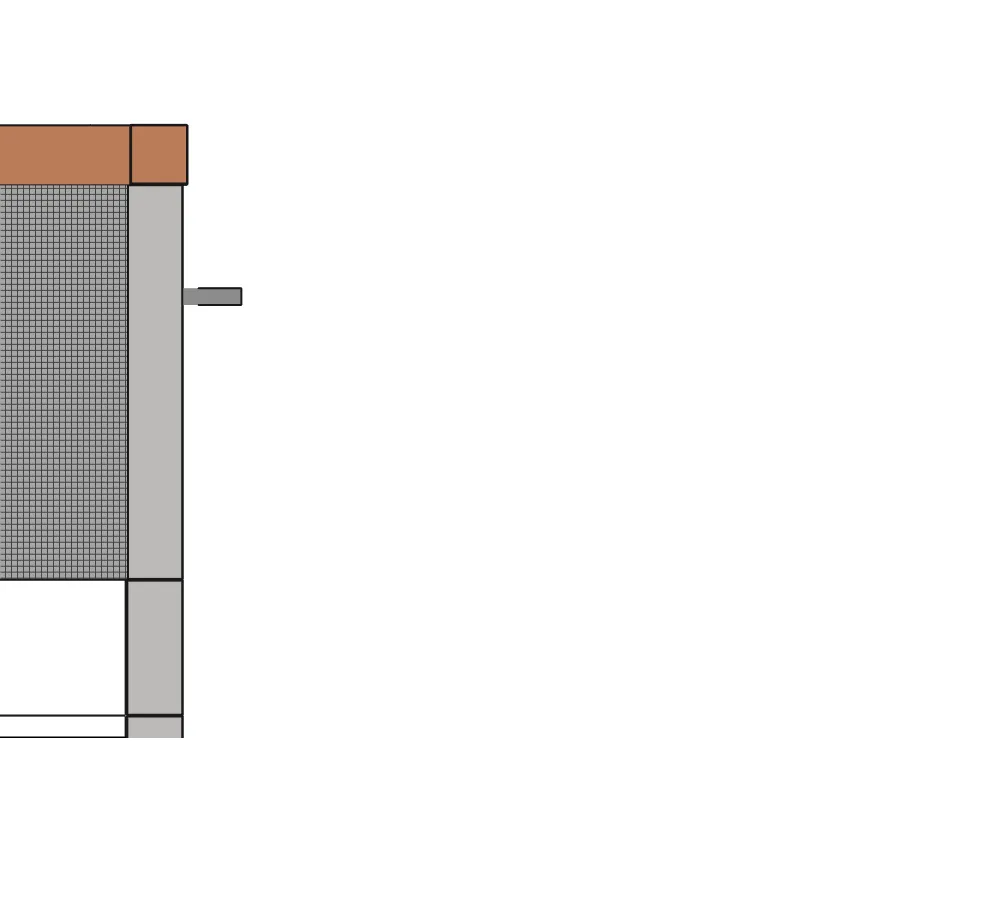

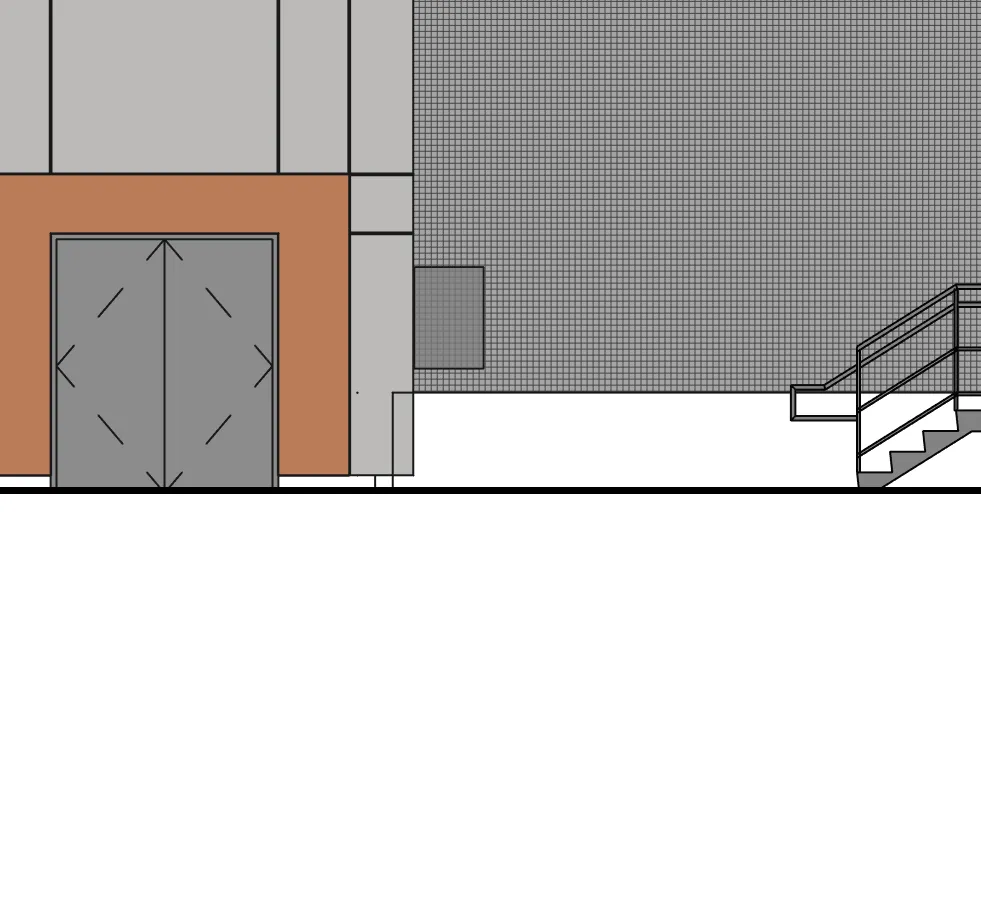

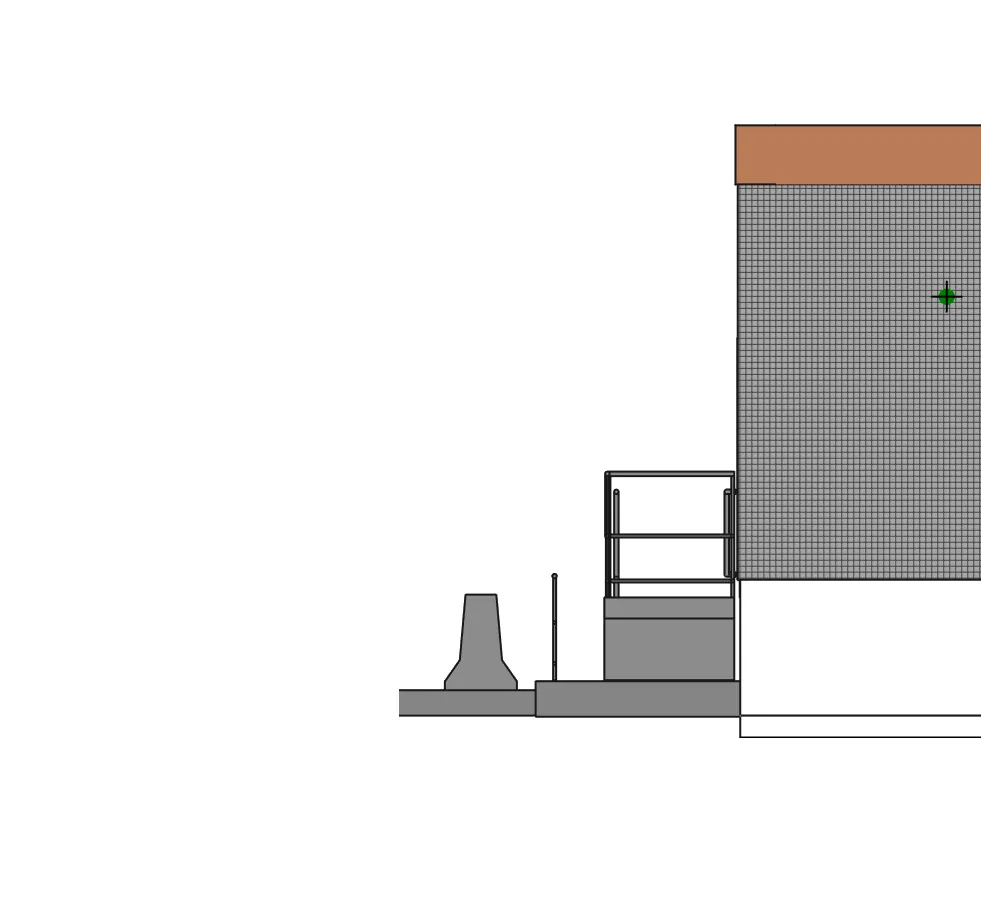

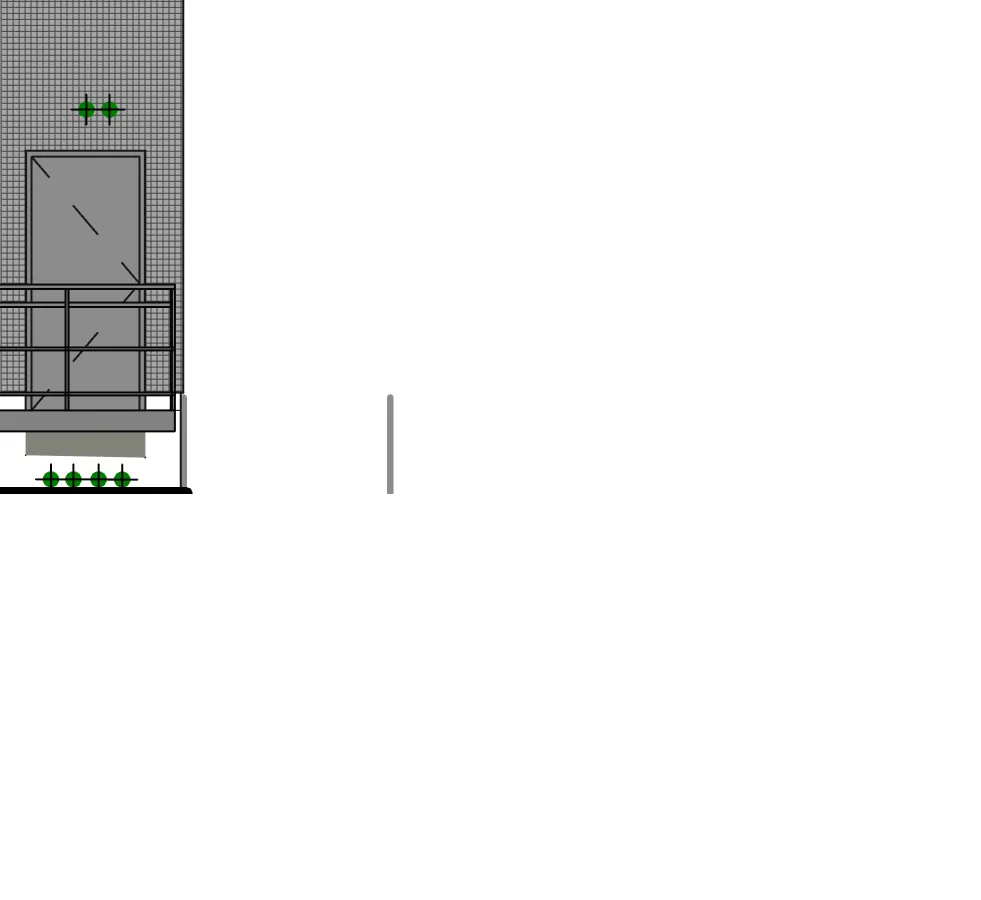

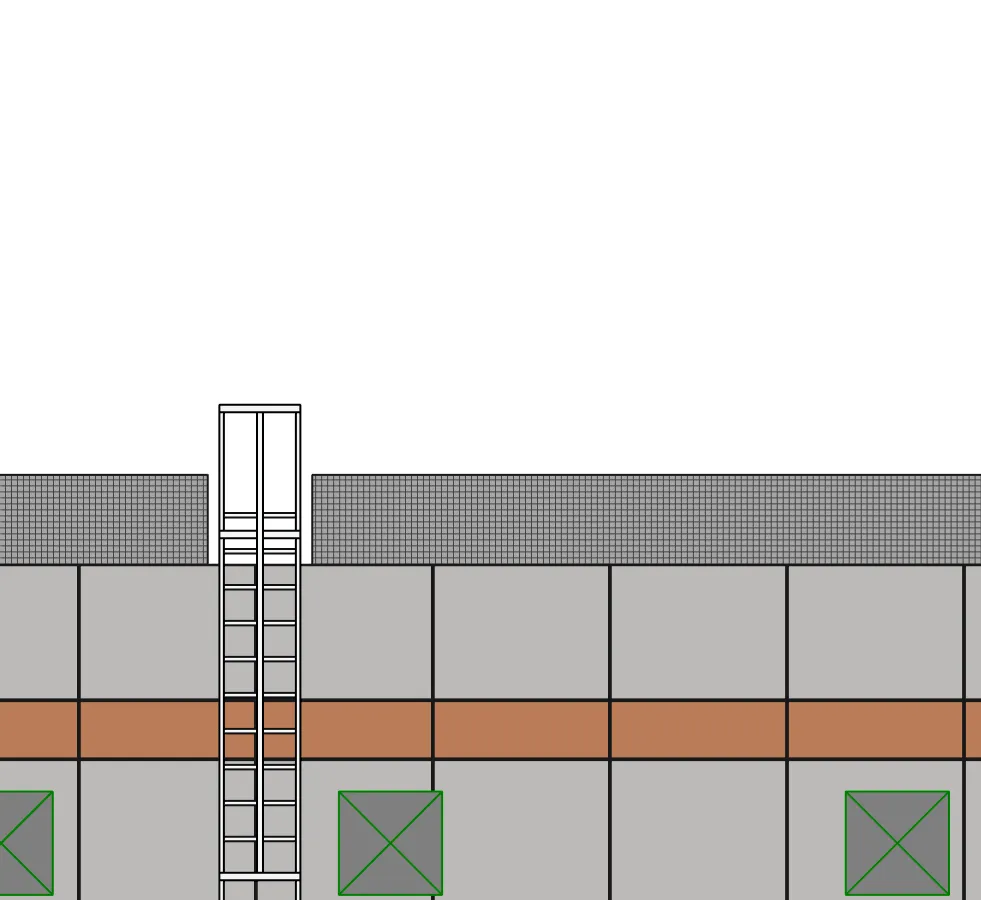

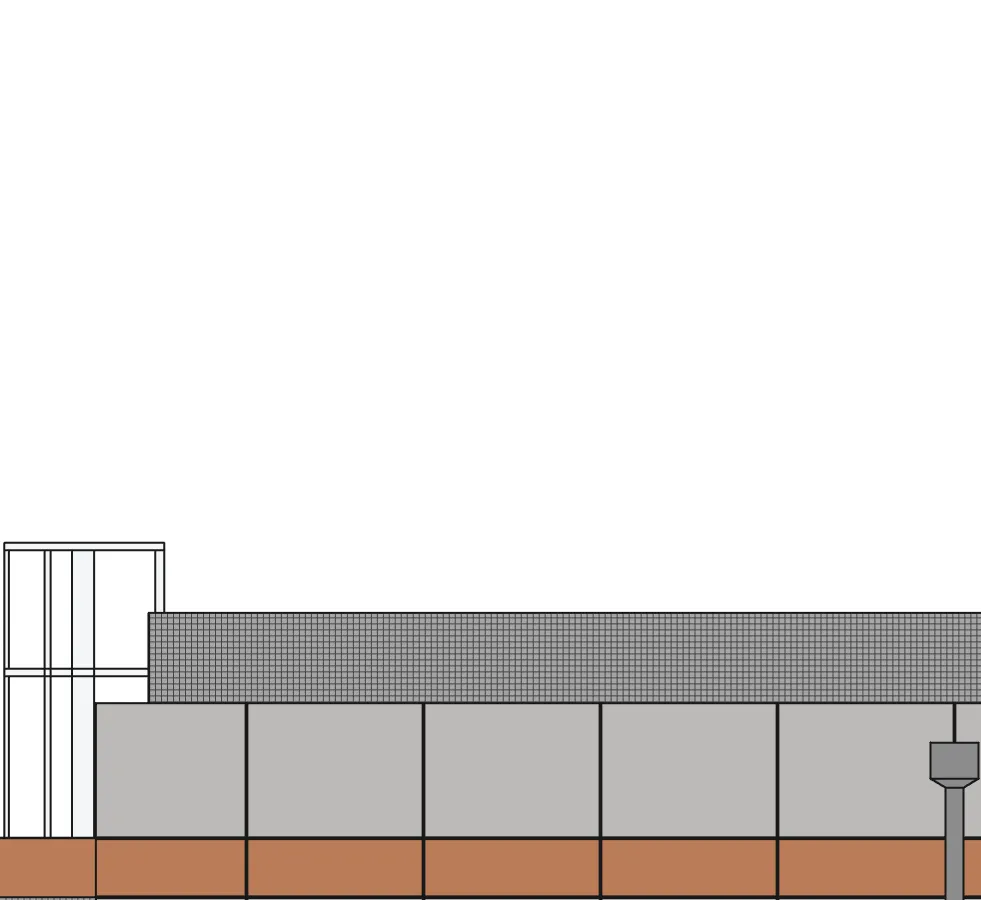

D&T ELECTRICAL ROOM ELEVATIONS AND SECTIONS
MATERIAL LEGEND
| TAG | MATERIAL AND FINISHES |
|---|---|
| CO-3 | EXPOSED CONCRETE |
| MS-1 | METAL SCREEN, PERFORATED, COLOUR: GREY - TBC |
| MT-1 | ACM PANEL, COLOUR: CHAMPAGNE METALLIC (ALUCOBOND) OR BRIGHT SILVER METALLIC (REYNOBOND) - TBC |
| MT-3 | ACM PANEL, COLOUR: NATIVE COPPER MICA (ALUCOBOND) OR COPPER PENNY (REYNOBOND) - TBC |
Page 25–40
