Attachment 1: Helmcken Road Intersection Design Drawing

February 11, 2025Pages 207–2093 sections

Engineering drawings showing planned intersection improvements and the location of the traffic calming curb.

February 4, 2025ISL Engineering

HELMCKEN RD 0+000 - 0+130

SCALE 1:250

Helmcken Road section starting from the intersection towards Highway 1.

Directional Indicator:
Red arrow pointing west to "TO HWY 1"
Stationing:

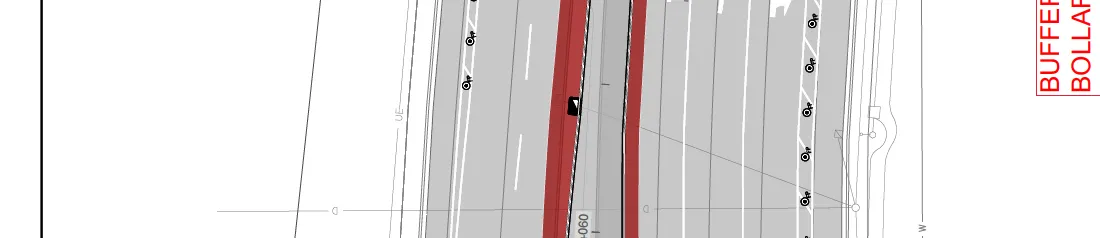

Plan view station 0+000

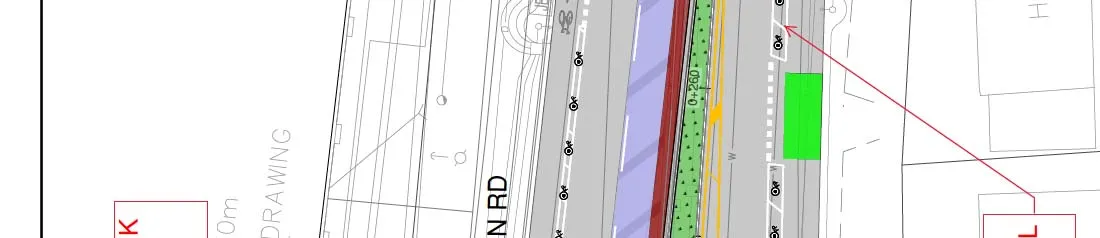

Buffered Bike Lane: Illustrated with green hatching and bicycle symbols.
Green hatching detail
,
Bicycle symbol on green hatching
,
Extended green hatched lane segment
Lane Configuration callouts (Red text):

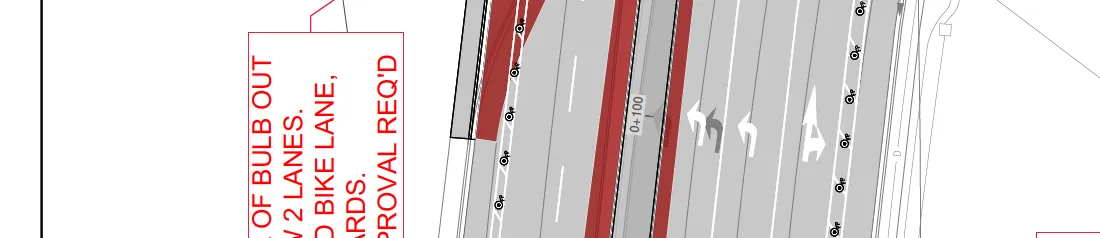

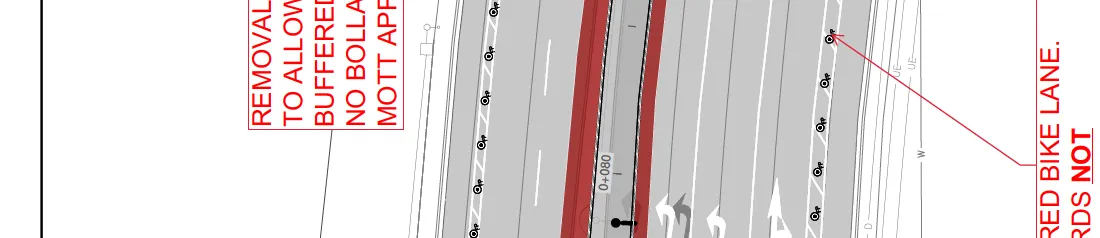

- REMOVAL OF BULB OUT TO ALLOW 2 LANES. BUFFERED BIKE LANE, NO BOLLARDS. MOTT APPROVAL REQ'D
  Callout detail for lane removal and buffered bike lane

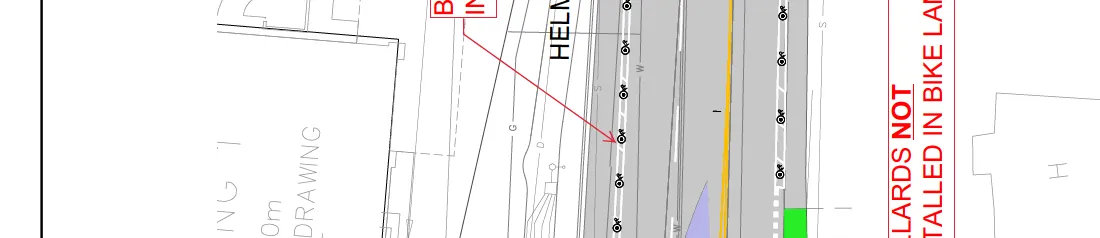

- BUFFERED BIKE LANE. BOLLARDS NOT INSTALLED IN BIKE LANE. MOTT APPROVAL REQ'D
  Callout detail for bike lane bollards
Jurisdictional Boundaries:
- MINISTRY OF TRANSPORTATION JURISDICTION
  Jurisdictional boundary line callout
- TOWN OF VIEW ROYAL JURISDICTION
  Boundary intersection detail

SCALE 1:250

Graph of Original Ground (OG) and Finished Grade (FG) elevations from station 0+000 to 0+130.

Profile view grid lines

Elevation Markers (meters): 10, 12, 14, 16, 18
Station Elevation Data:
- 0+000: OG 11.226, FG 11.226
  Station 0+000 profile data
- 0+010: OG 11.122, FG 11.122
  Station 0+010 profile data
- 0+020: OG 11.226, FG 11.226
  Station 0+020 profile data
- 0+030: OG 11.423, FG 11.423
- 0+040: OG 11.714, FG 11.714
  Station 0+040 profile data
- 0+050: OG 12.095, FG 12.095
- 0+060: OG 12.574, FG 12.574
  Station 0+060 profile data
- 0+080:
  Profile station indicator 0+080
- 0+120: OG 15.866, FG 15.866
- 0+130: OG 16.329, FG 16.329

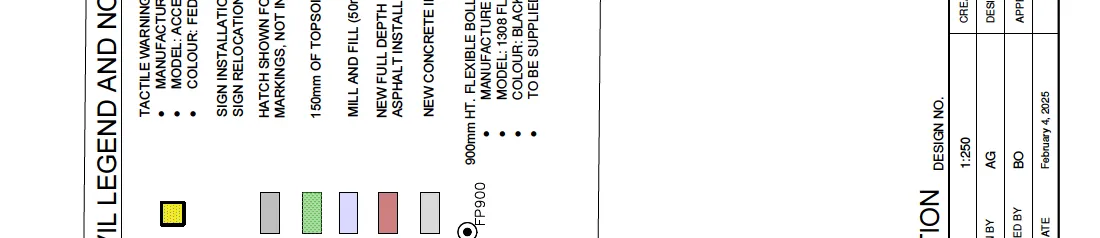

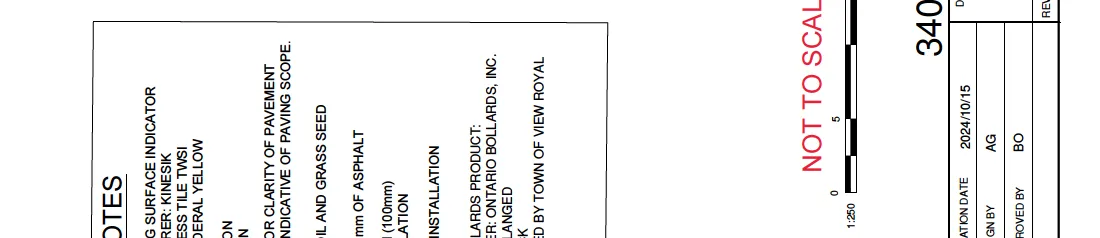

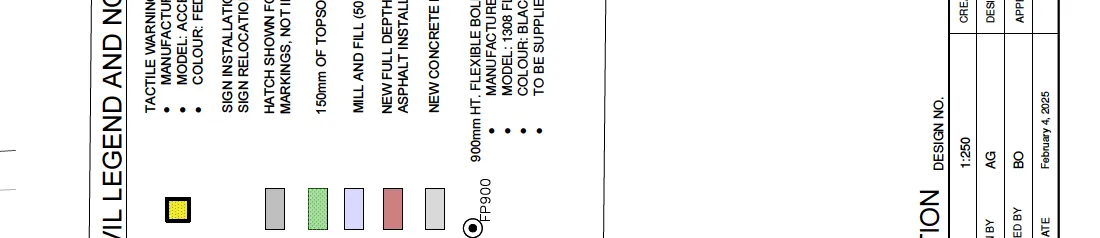

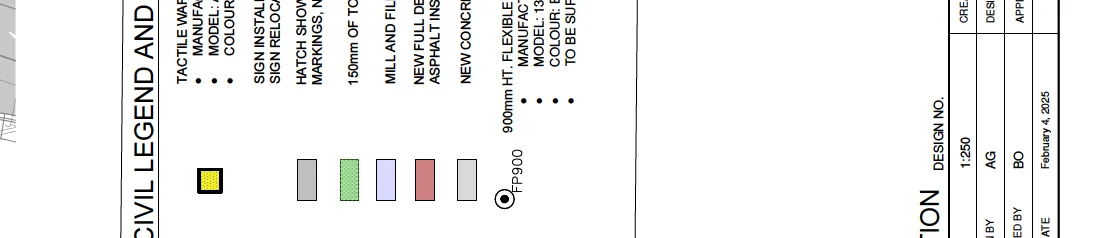

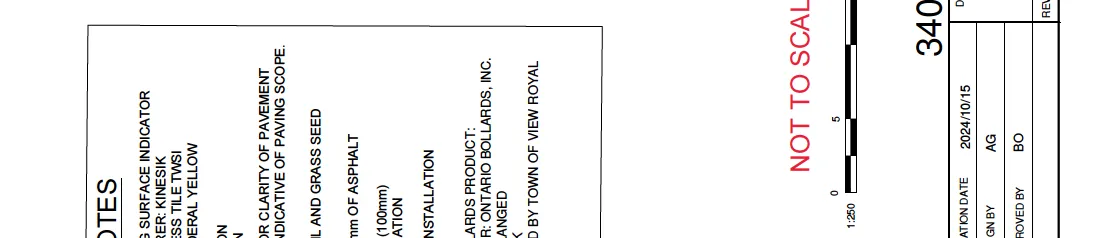

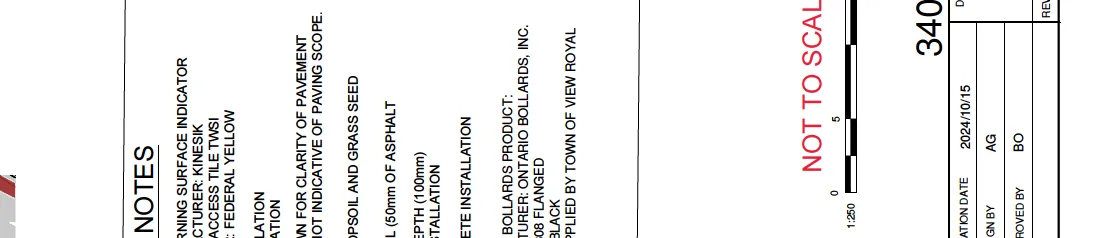

Symbol	Description
Yellow Square	TACTILE WARNING SURFACE INDICATOR. MANUFACTURER: KINESIK. MODEL: ACCESS TILE TWSI. COLOUR: FEDERAL YELLOW
Grey Line	SIGN INSTALLATION / SIGN RELOCATION
Dotted Hatch	HATCH SHOWN FOR CLARITY OF PAVEMENT MARKINGS, NOT INDICATIVE OF PAVING SCOPE.
Green Hatch	150mm OF TOPSOIL AND GRASS SEED
Blue Box	MILL AND FILL (50mm OF ASPHALT)
Red Box	NEW FULL DEPTH (100mm) ASPHALT INSTALLATION
Grey Box	NEW CONCRETE INSTALLATION
Circle (FP900)	900mm HT. FLEXIBLE BOLLARDS PRODUCT. MANUFACTURER: ONTARIO BOLLARDS, INC. MODEL: 1308 FLANGED. COLOUR: BLACK. TO BE SUPPLIED BY TOWN OF VIEW ROYAL

Page 207–209

SCALE 1:250

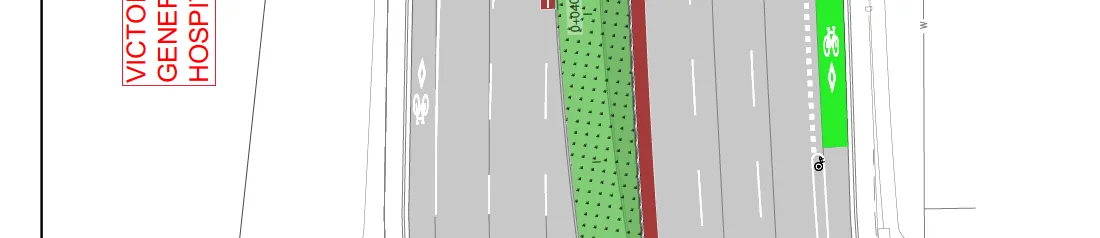

Intersection area of Helmcken Road, Chancellor Avenue, and Watkiss Way.

Key Landmarks:
- VICTORIA GENERAL HOSPITAL
  Hospital location label

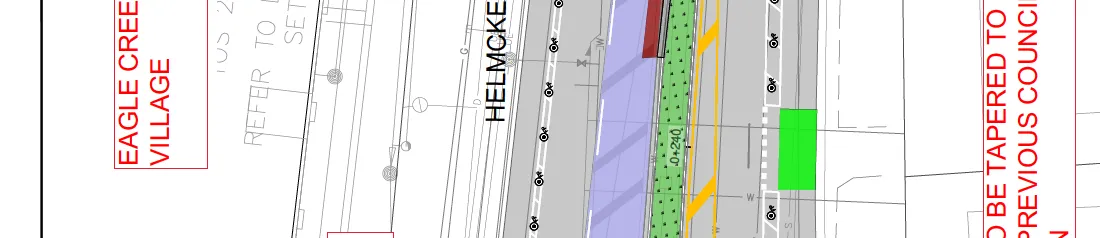

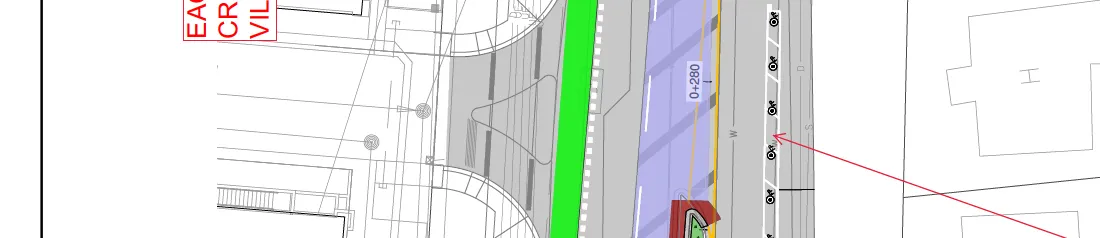

- EAGLE CREEK VILLAGE
  Shopping village label
Intersection Features:
Intersection plan detail
,

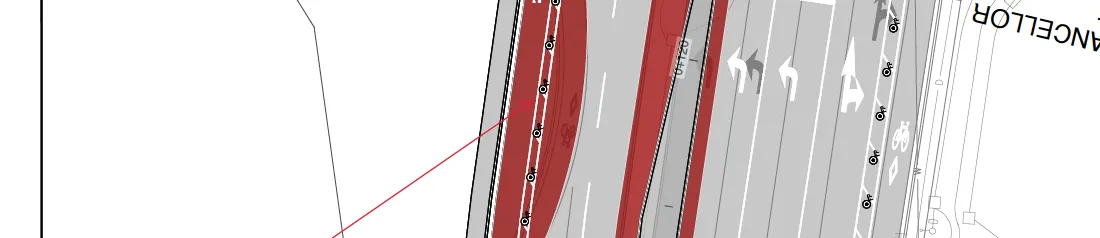

Helmcken and Chancellor intersection layout
,
Road marking and lane layout detail
,
Pavement markings and arrows
,

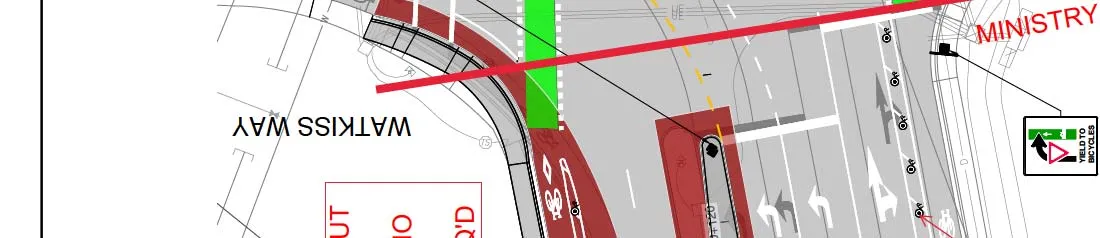

Watkiss Way intersection layout
Design Callouts (Red text):

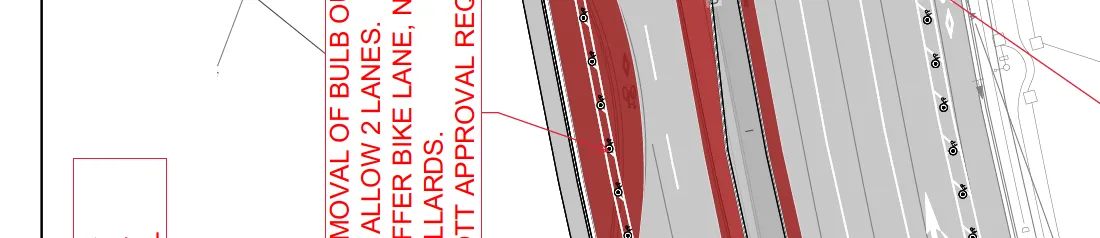

- REMOVAL OF BULB OUT TO ALLOW 2 LANES. BUFFER BIKE LANE, NO BOLLARDS. MOTT APPROVAL REQ'D
  Callout regarding bulb out removal
- BOLLARDS NOT INSTALLED IN BIKE LANE MOTT APPROVAL REQ'D

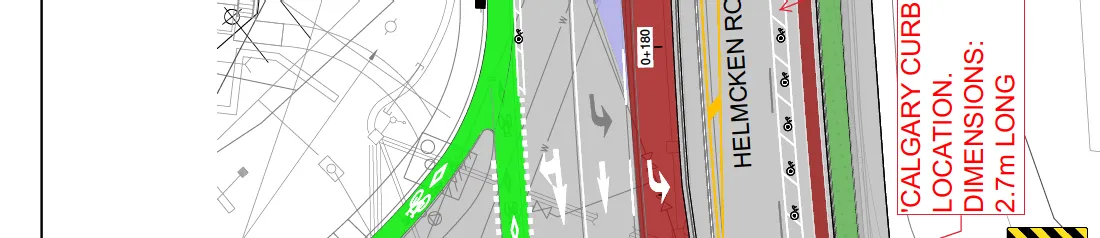

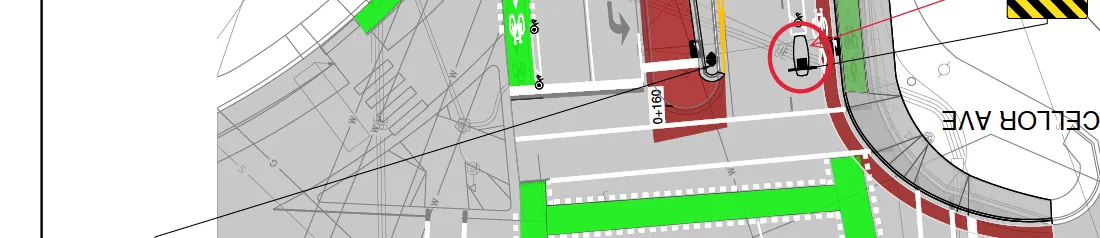

- 'CALGARY CURB' LOCATION. DIMENSIONS: 2.7m LONG
  Calgary Curb callout with red circle

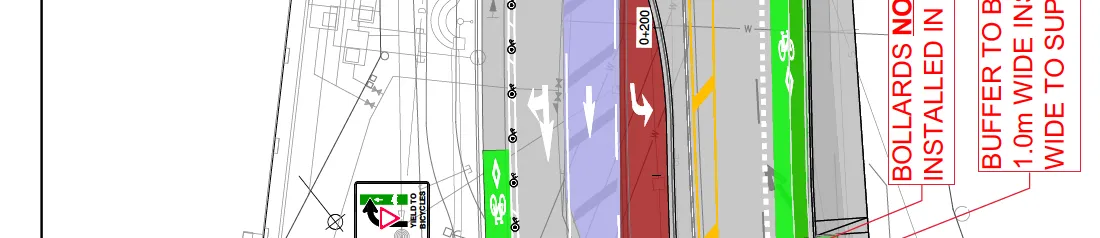

- BOLLARDS NOT INSTALLED IN BIKE LANE

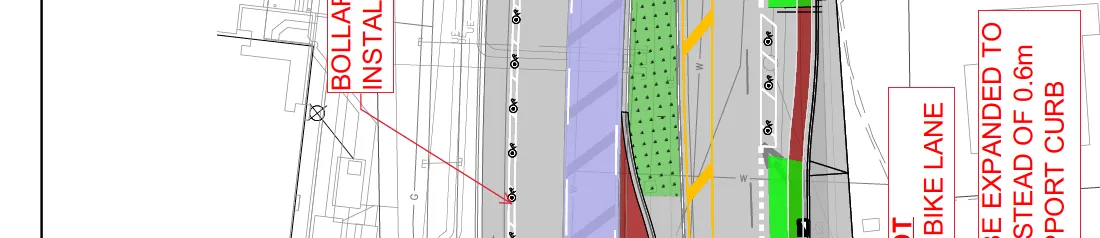

- BUFFER TO BE EXPANDED TO 1.0m WIDE INSTEAD OF 0.6m WIDE TO SUPPORT CURB
- BUFFER TO BE TAPERED TO 0.6m PER PREVIOUS COUNCIL DIRECTION
Stationing:

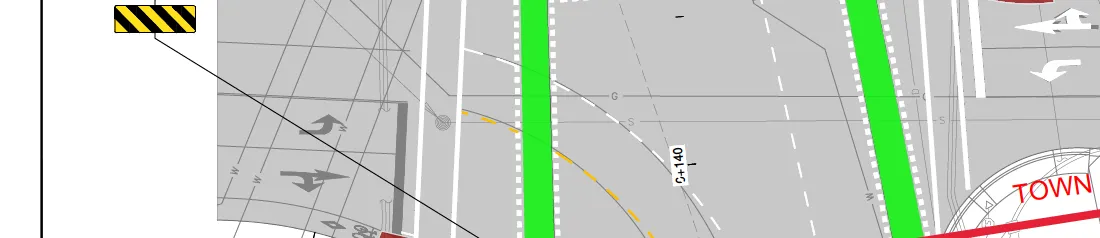

Plan view station 0+140 marker

SCALE 1:250

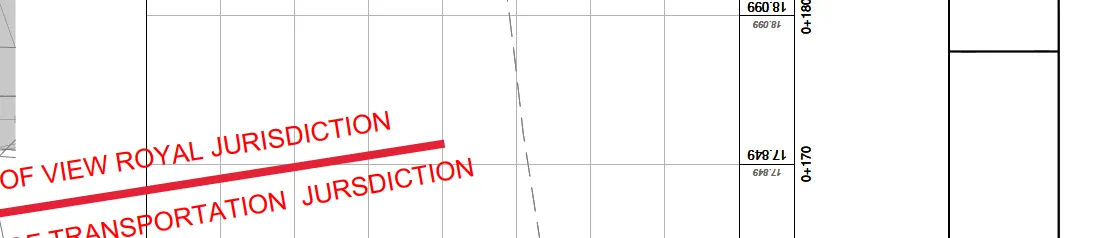

OG and FG elevations from station 0+130 to 0+265.

Station Elevation Data:
- 0+130: OG 16.329, FG 16.329
  Station 0+130 profile data
- 0+140: OG 16.739, FG 16.739
  Station 0+140 profile data
- 0+150: OG 17.125, FG 17.125
  Station 0+150 profile data
- 0+160: OG 17.508, FG 17.508
- 0+170: OG 17.849, FG 17.849
  Station 0+170 profile data
- 0+180: OG 18.099, FG 18.099
- 0+190: OG 18.330, FG 18.330
  Station 0+190 profile data
- 0+200: OG 18.497, FG 18.497
  Station 0+200 profile data
- 0+210: OG 18.644, FG 18.644
- 0+250: OG 19.218, FG 19.218
  Station 0+250 profile data
- 0+260: OG 19.451, FG 19.451
  Station 0+260 profile data
- 0+265: OG 19.575, FG 19.575
  Station 0+265 profile data

(Legend contents match the table in the 0+000 - 0+130 section.)

Page 207–209

SCALE 1:250

Helmcken Road section continuing towards Burnside Road.

Directional Indicator:
Red arrow pointing north/east to "TO BURNSIDE ROAD"
Layout details:
Lane layout details
,
Helmcken Road plan segment
,
Intersection and driveway layout details
Stationing callouts:
- Station 0+411 marker
- Station 0+380 marker
- Station 0+360 marker
- Station 0+340 marker

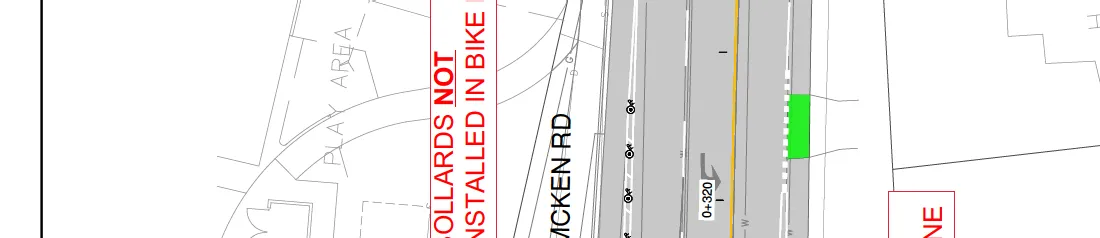

- Station detail at 0+320

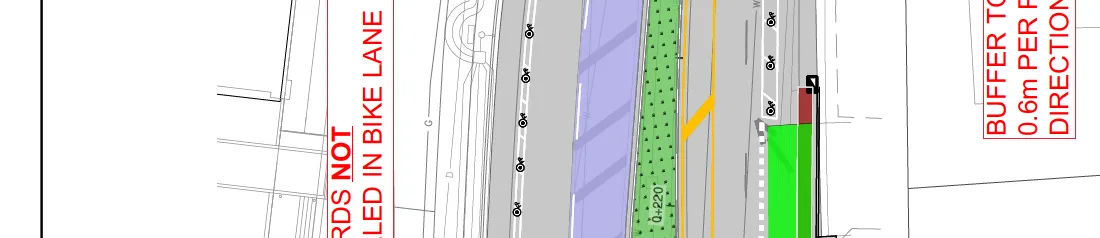

Design Callouts (Red text):

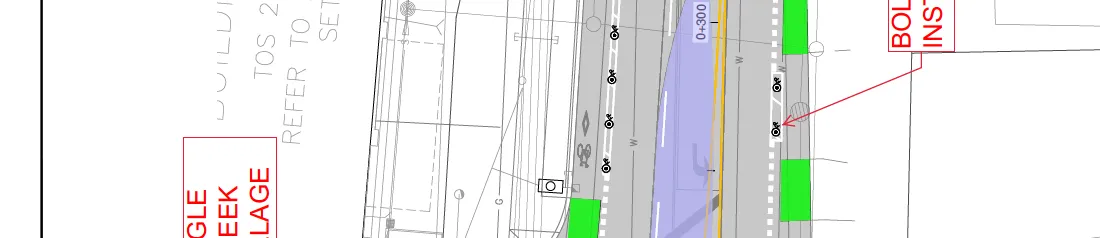

- BOLLARDS NOT INSTALLED IN BIKE LANE (multiple locations)

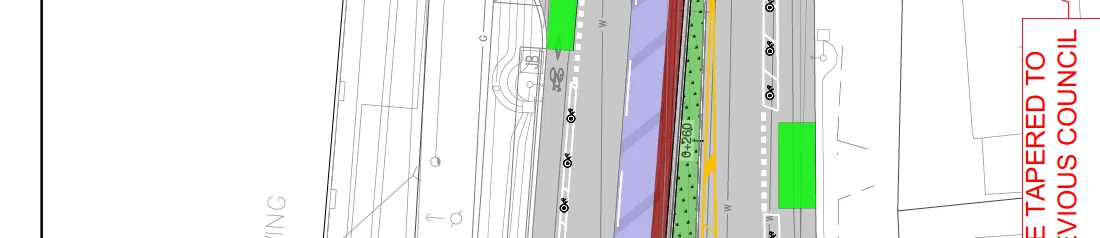

- BUFFER TO BE TAPERED TO 0.6m PER PREVIOUS COUNCIL DIRECTION
  Taper layout detail
- BUFFERED BIKE LANE TO BE INSTALLED IN FUTURE (FUTURE CAPITAL PROJECT AND/OR DEVELOPMENT DRIVEN)

SCALE 1:250

OG and FG elevations from station 0+265 to 0+410.

Station Elevation Data:
- 0+265: OG 19.575, FG 19.575
  Station 0+265 profile data
- 0+270: OG 19.697, FG 19.697
- 0+280:
  Station 0+280 profile marker
- 0+300:
  Station 0+300 profile marker
- 0+330:
  Station 0+330 profile marker
- 0+340:
  Station 0+340 profile marker
- 0+350:
  Station 0+350 profile marker
