Committee of the Whole/Documents/Site Plan and Building Elevations - Lot 20 - Java Designs
Appendix

Site Plan and Building Elevations - Lot 20 - Java Designs

May 12, 2015Pages 62–949 sections

Comprehensive set of architectural drawings including site layout, floor plans, and front/rear/side elevations for various duplex units on Lot 20.

9.2.3 a Mixed Residential Form and Character Development Permit No. 2014/10 - 2429 Chilco Road Lot 20 (Thetis Vale Phase 6 - 16 Duplex Residential Units)
February 8, 2015Building coverage = 23.97%F.S.R. = 0.30Max building height = 8.3m

Site Plan - Lot 20

Date: FEB 08, 2015

  • House Area (Total): 24,668 Sq Ft
  • Garage Area (Total): 5,004 Sq Ft
  • Coverage: 23.97%
  • F.S.R.: 0.30

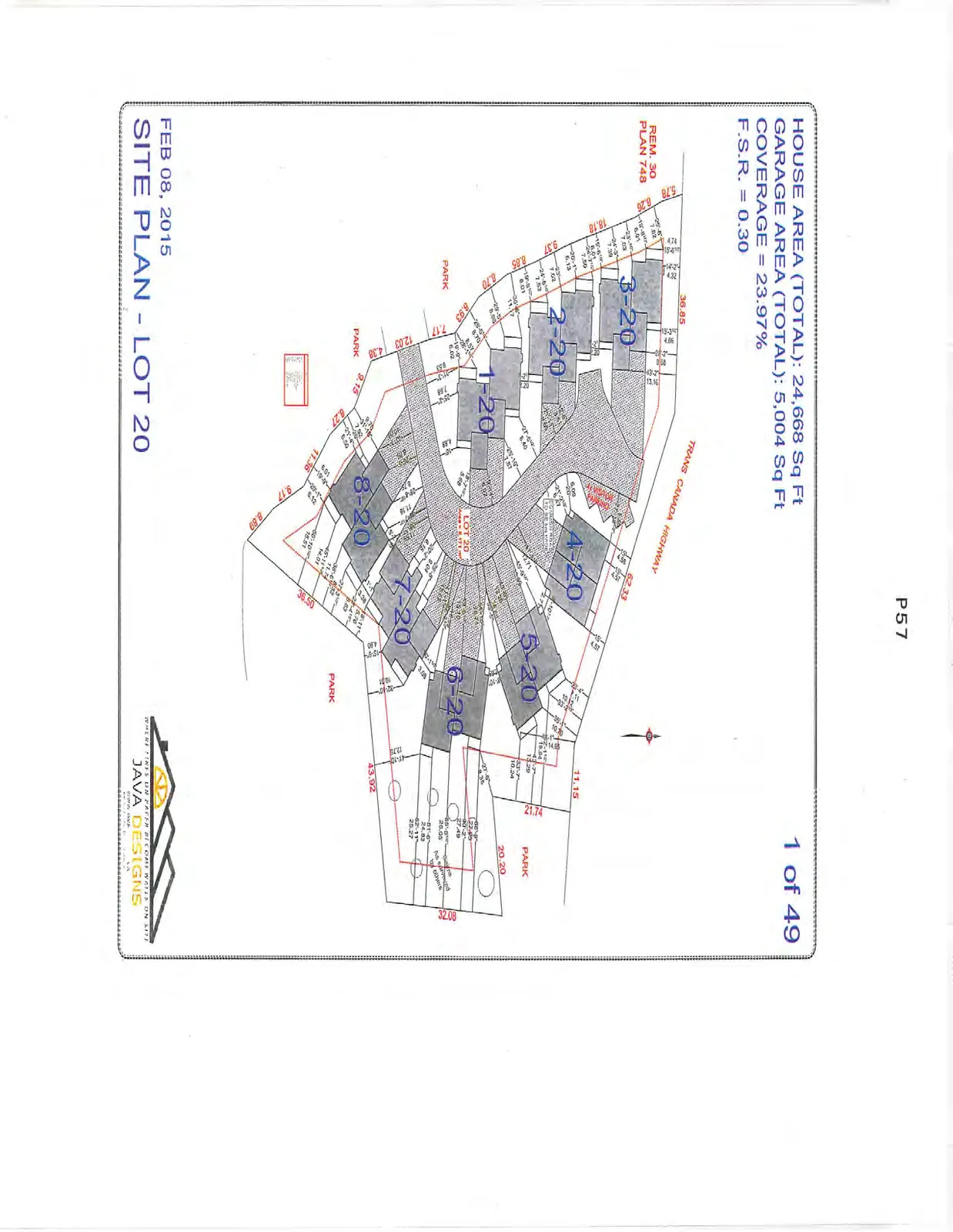

Site plan for Lot 20 showing building units 1-20 through 8-20, parking areas, and adjacent park land, situated south of the Trans Canada Highway.
Site plan for Lot 20 showing building units 1-20 through 8-20, parking areas, and adjacent park land, situated south of the Trans Canada Highway.

Exterior Finishes Schedule

Key Item Description
A Roofing Asphalt Shingles (Weathered Wood)
B Gutter & Soffit Aluminum Gutter and Soffit (White)
C Barge Board 2x8 Painted Fascia Board
D Windows & Door Trim 5/4 Trim Boards - Painted (White)
E Corner Trim 5/4 Corner Boards - Painted (White)
F Wall Finish Hardie Plank Siding (Lapp Siding) - 7 1/4" Exposure - Color as per Owners Specs
G Wall Finish Hardie Shakes (Staggered Edge)
H Shingles Cedar Shakes - Raw
I Shingles Wood Board and Batten as per B.C. Hardwoods
J Belly Band 2x8 Painted Belly Band with Flashing, Painted Trim Color
K Railing Wood Railings
L Knee Braces Decorative Wood Braces
M Arts & Crafts Posts Arts & Crafts Columns with Tapered Siding and Wood Base. Color as per Owners Specs
Page 62–94

Unit 1-20 Elevations

Date: FEB 08, 2015 Scale: 1/4" = 1'-0"

1-20 Front Elevation showing two garage doors and multiple gabled roof lines.
1-20 Front Elevation showing two garage doors and multiple gabled roof lines.

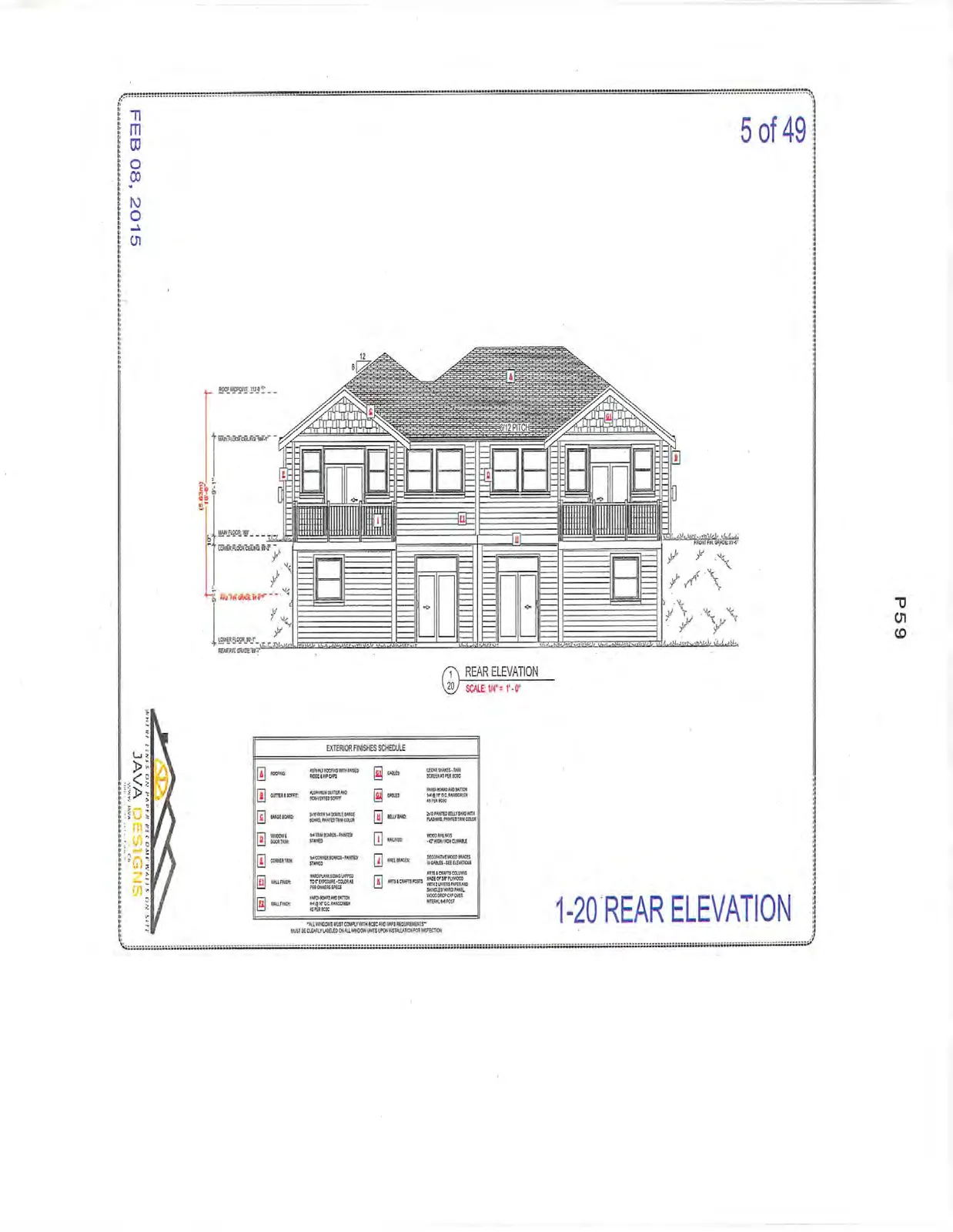

1-20 Rear Elevation showing two stories with balconies and multiple sets of windows and doors.
1-20 Rear Elevation showing two stories with balconies and multiple sets of windows and doors.

1-20 Left Elevation

  • Exposing Building Face: 92.2m²
  • Limiting Distance: 8.3m
  • Area of Glazed Openings: 2.9m²
  • % Glazed Openings: 3.1%
  • % Permitted Glazing (as per Table 9.10.15.4): 66%
1-20 Left Elevation rendering showing building side profile and window placement.
1-20 Left Elevation rendering showing building side profile and window placement.

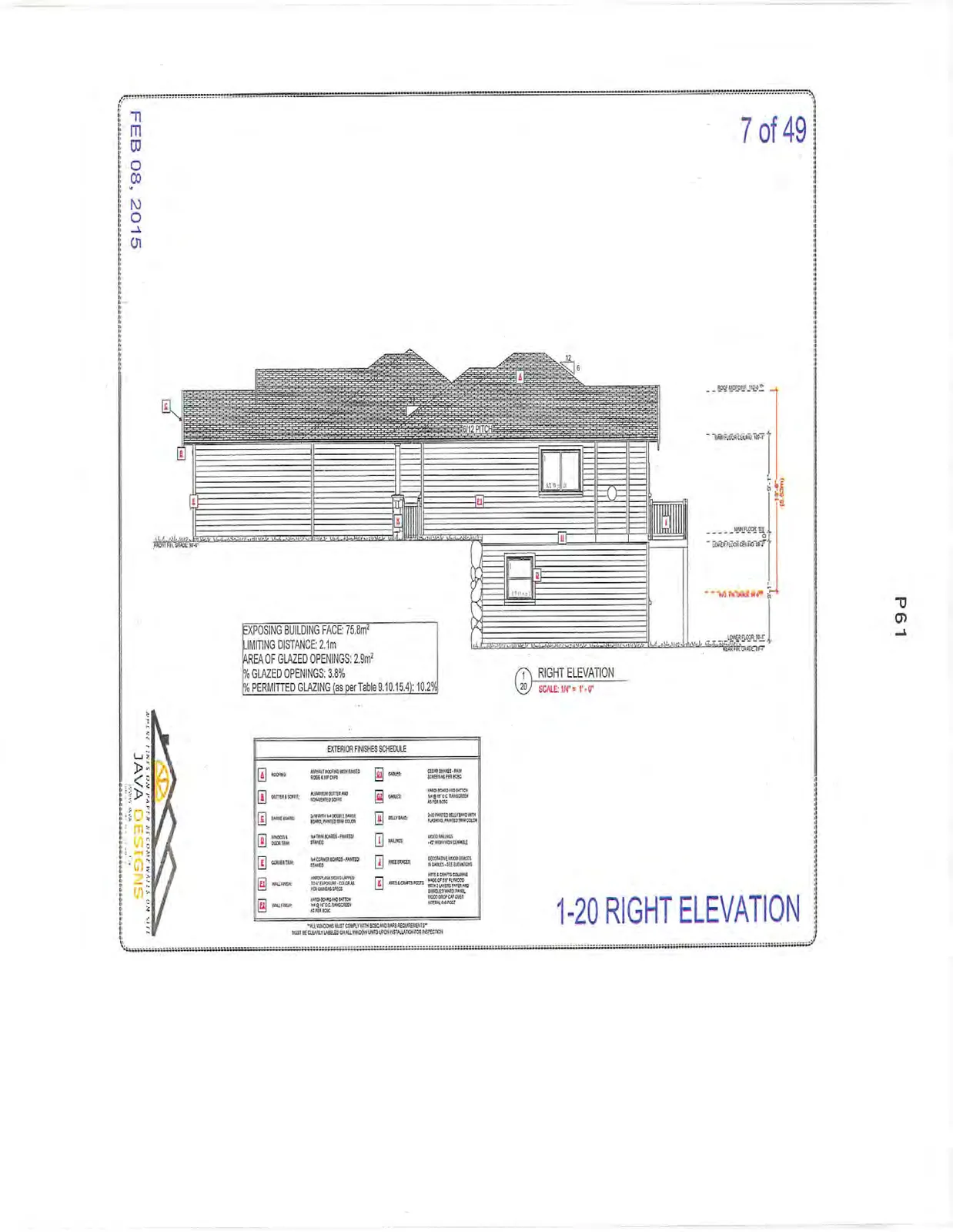

1-20 Right Elevation

  • Exposing Building Face: 75.8m²
  • Limiting Distance: 2.1m
  • Area of Glazed Openings: 2.9m²
  • % Glazed Openings: 3.8%
  • % Permitted Glazing (as per Table 9.10.15.4): 10.2%
1-20 Right Elevation rendering showing building side profile and window placement.
1-20 Right Elevation rendering showing building side profile and window placement.
Page 62–94

Unit 2-20 Elevations

Date: FEB 08, 2015 Scale: 1/4" = 1'-0"

2-20 Front Elevation showing architectural design with garage doors and decorative gables.
2-20 Front Elevation showing architectural design with garage doors and decorative gables.

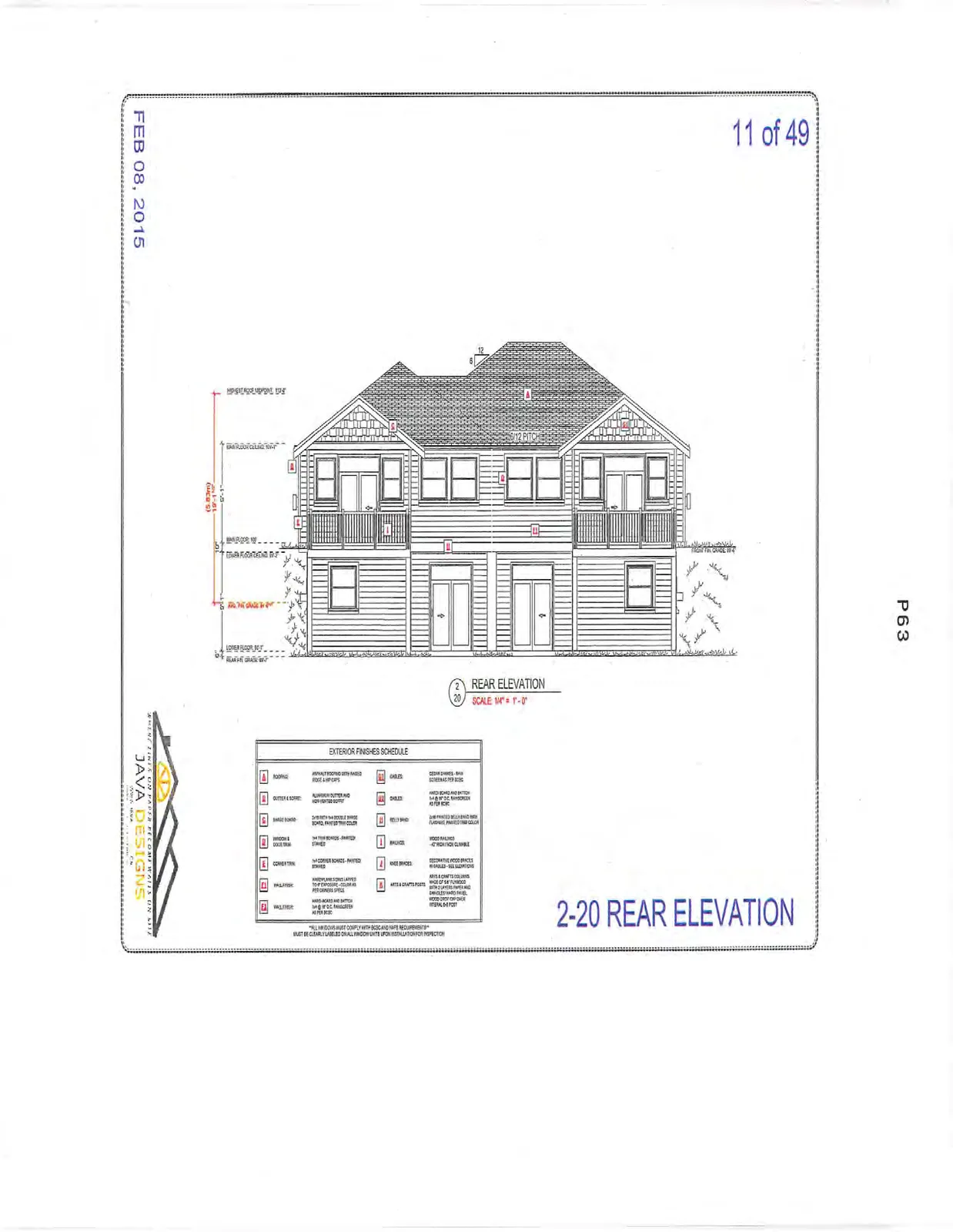

2-20 Rear Elevation showing the two-story back view with upper balconies.
2-20 Rear Elevation showing the two-story back view with upper balconies.

2-20 Left Elevation

  • Exposing Building Face: 83.7m²
  • Limiting Distance: 2.1m
  • Area of Glazed Openings: 2.9m²
  • % Glazed Openings: 3.5%
  • % Permitted Glazing (as per Table 9.10.15.4): 9.9%
2-20 Left Elevation showing building side profile.
2-20 Left Elevation showing building side profile.

2-20 Right Elevation

  • Exposing Building Face: 71.6m²
  • Limiting Distance: ---m
  • Area of Glazed Openings: 2.9m²
  • % Glazed Openings: 4.0%
  • % Permitted Glazing (as per Table 9.10.15.4): 8.6%

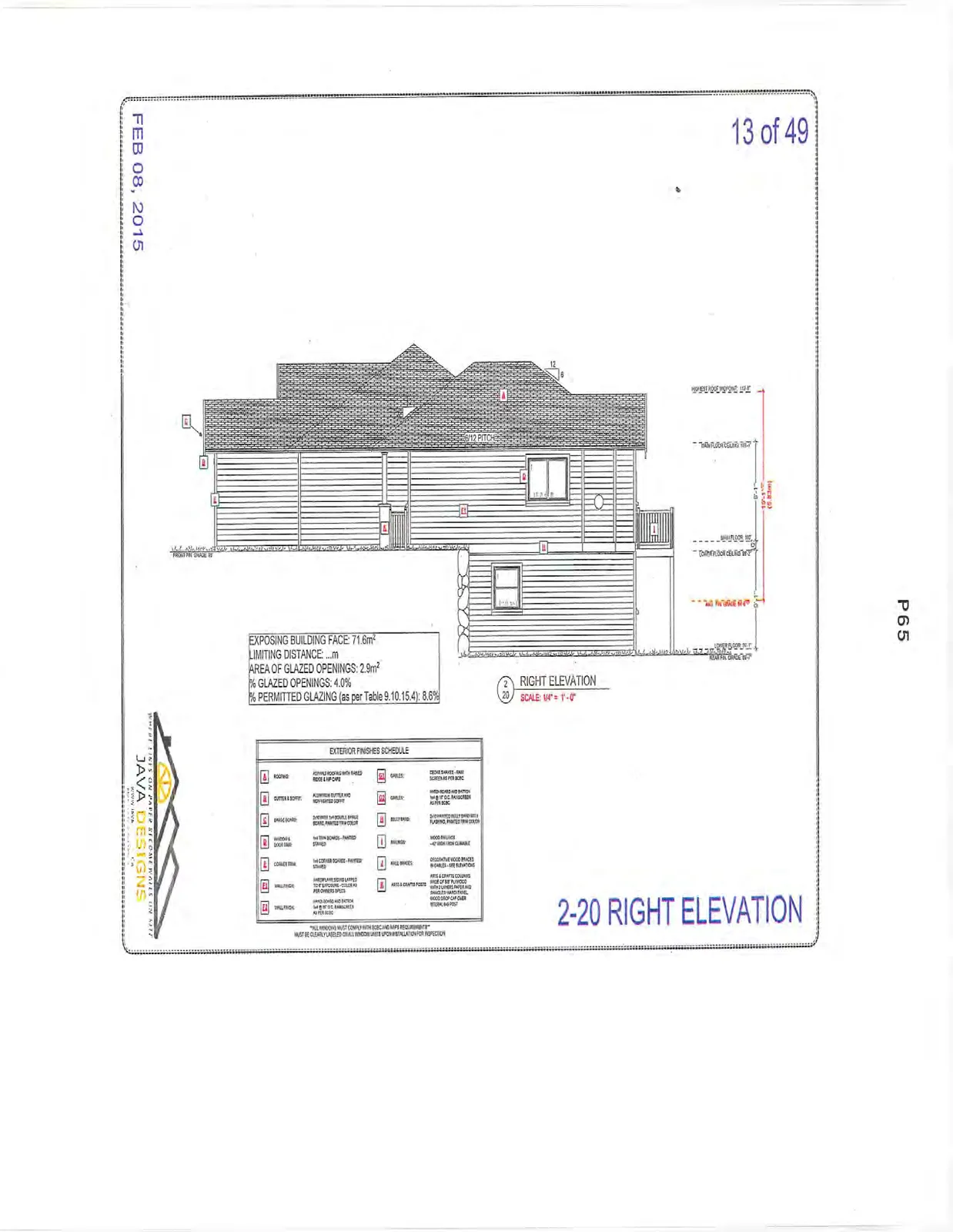

2-20 Right Elevation showing building side profile.
2-20 Right Elevation showing building side profile.
Page 62–94

Unit 3-20 Elevations

Date: FEB 08, 2015 Scale: 1/4" = 1'-0"

3-20 Front Elevation showing dual garage entry architectural design.
3-20 Front Elevation showing dual garage entry architectural design.

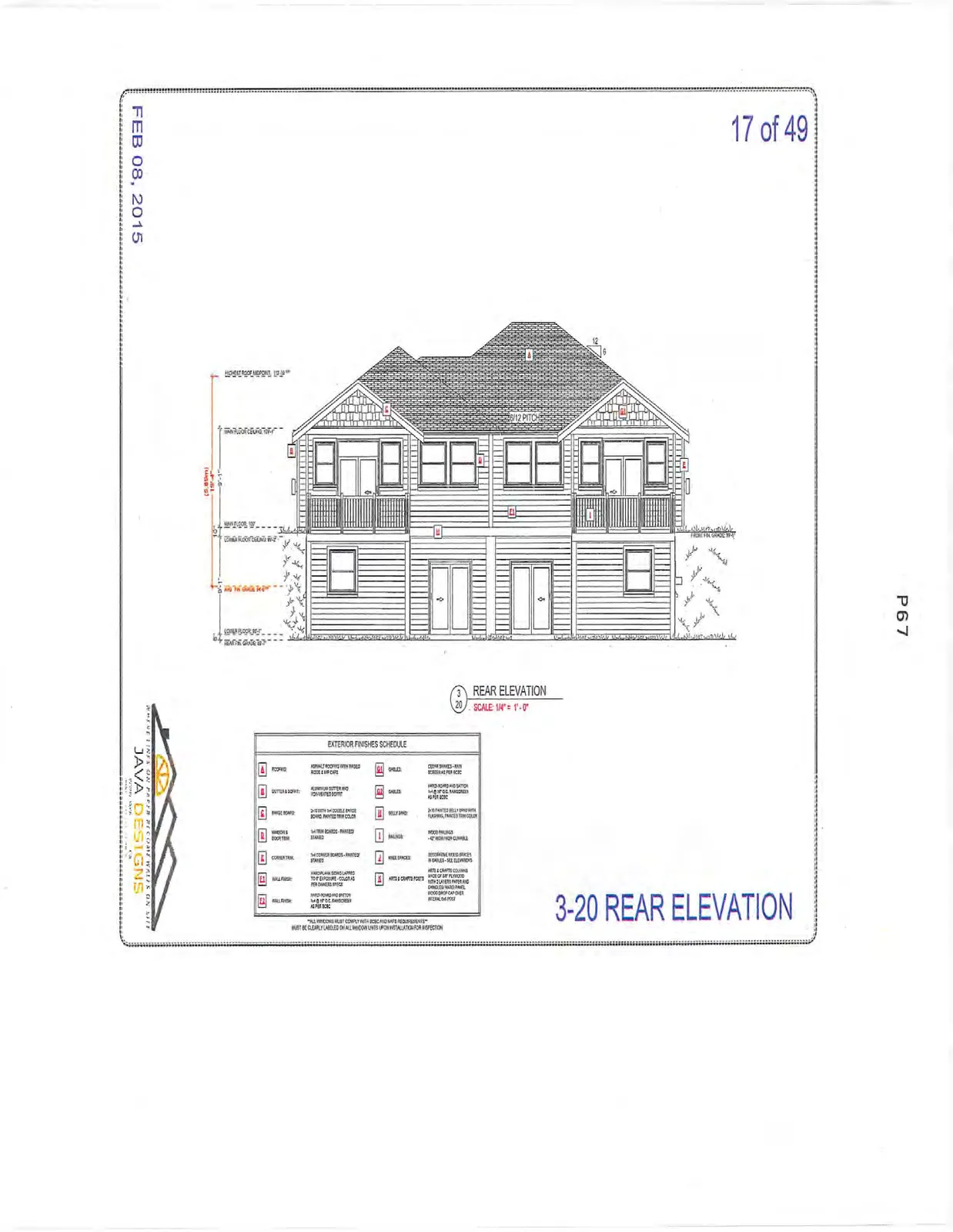

3-20 Rear Elevation showing two-story residential design with balconies.
3-20 Rear Elevation showing two-story residential design with balconies.

3-20 Left Elevation

  • Exposing Building Face: 81.2m²
  • Limiting Distance: 1.7m
  • Area of Glazed Openings: 2.2m²
  • % Glazed Openings: 2.7%
  • % Permitted Glazing (as per Table 9.10.15.4): 8.6%
3-20 Left Elevation showing building side profile.
3-20 Left Elevation showing building side profile.

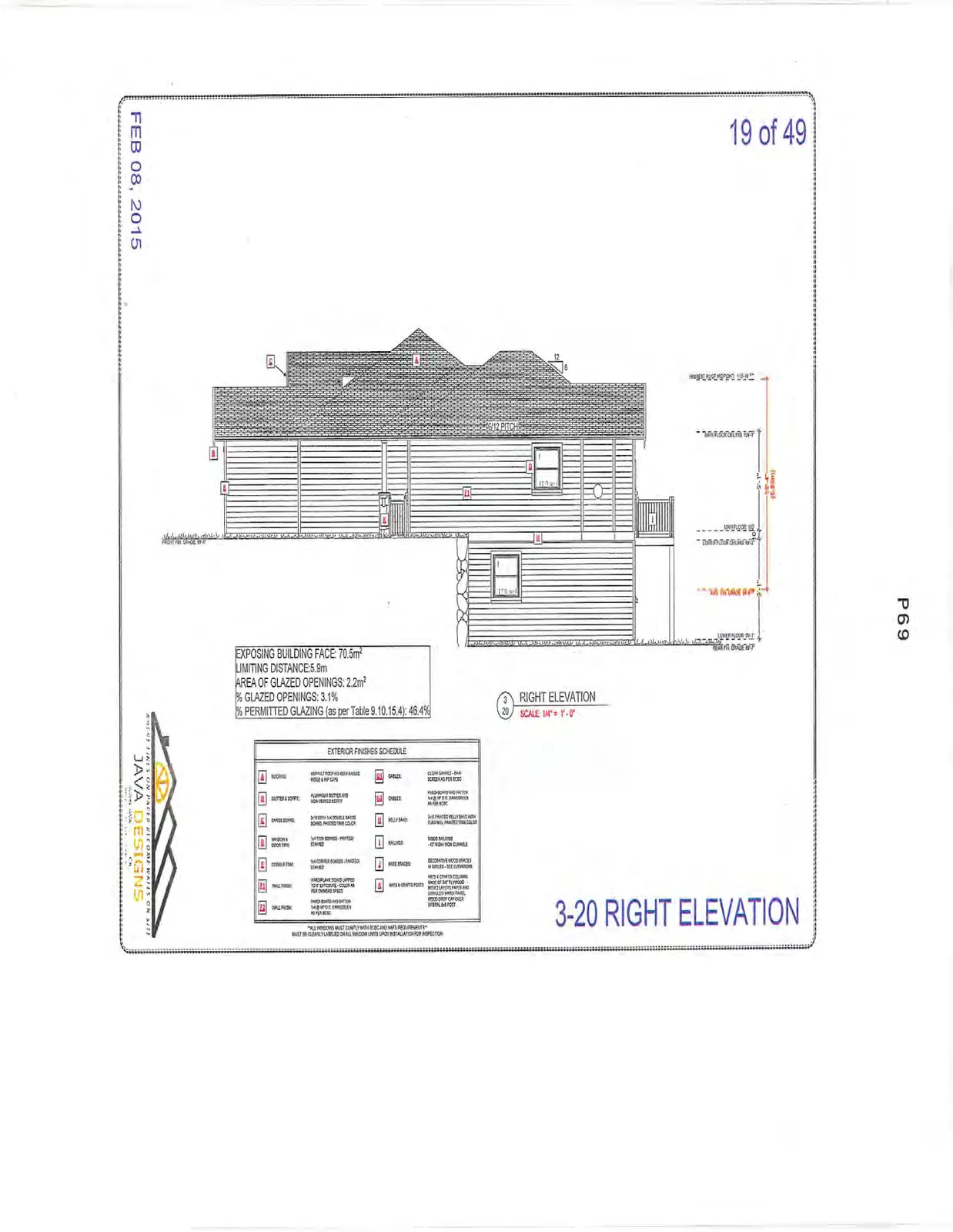

3-20 Right Elevation

  • Exposing Building Face: 70.5m²
  • Limiting Distance: 5.9m
  • Area of Glazed Openings: 2.2m²
  • % Glazed Openings: 3.1%
  • % Permitted Glazing (as per Table 9.10.15.4): 46.4%
3-20 Right Elevation showing building side profile.
3-20 Right Elevation showing building side profile.
Page 62–94

Unit 4-20 Elevations

Date: FEB 08, 2015 Scale: 1/4" = 1'-0"

4-20 Front Elevation showing staggered roof lines and garage doors.
4-20 Front Elevation showing staggered roof lines and garage doors.

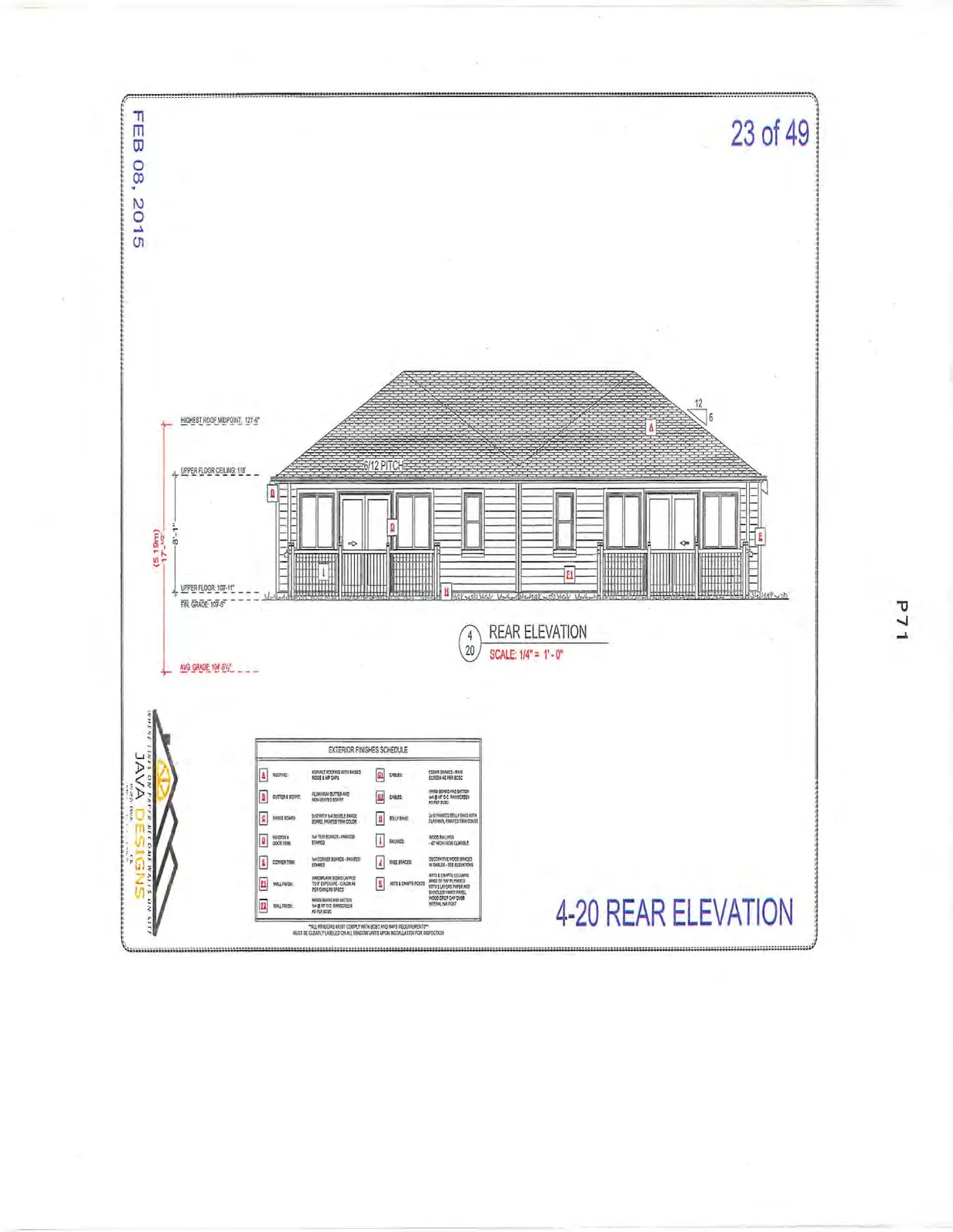

4-20 Rear Elevation showing two-story design with large window sections.
4-20 Rear Elevation showing two-story design with large window sections.

4-20 Left Elevation

  • Exposing Building Face: 64.7m²
  • Limiting Distance: 7.2m
  • Area of Glazed Openings: 5.9m²
  • % Glazed Openings: 9.1%
  • % Permitted Glazing (as per Table 9.10.15.4): 72.3%
4-20 Left Elevation showing building side profile.
4-20 Left Elevation showing building side profile.

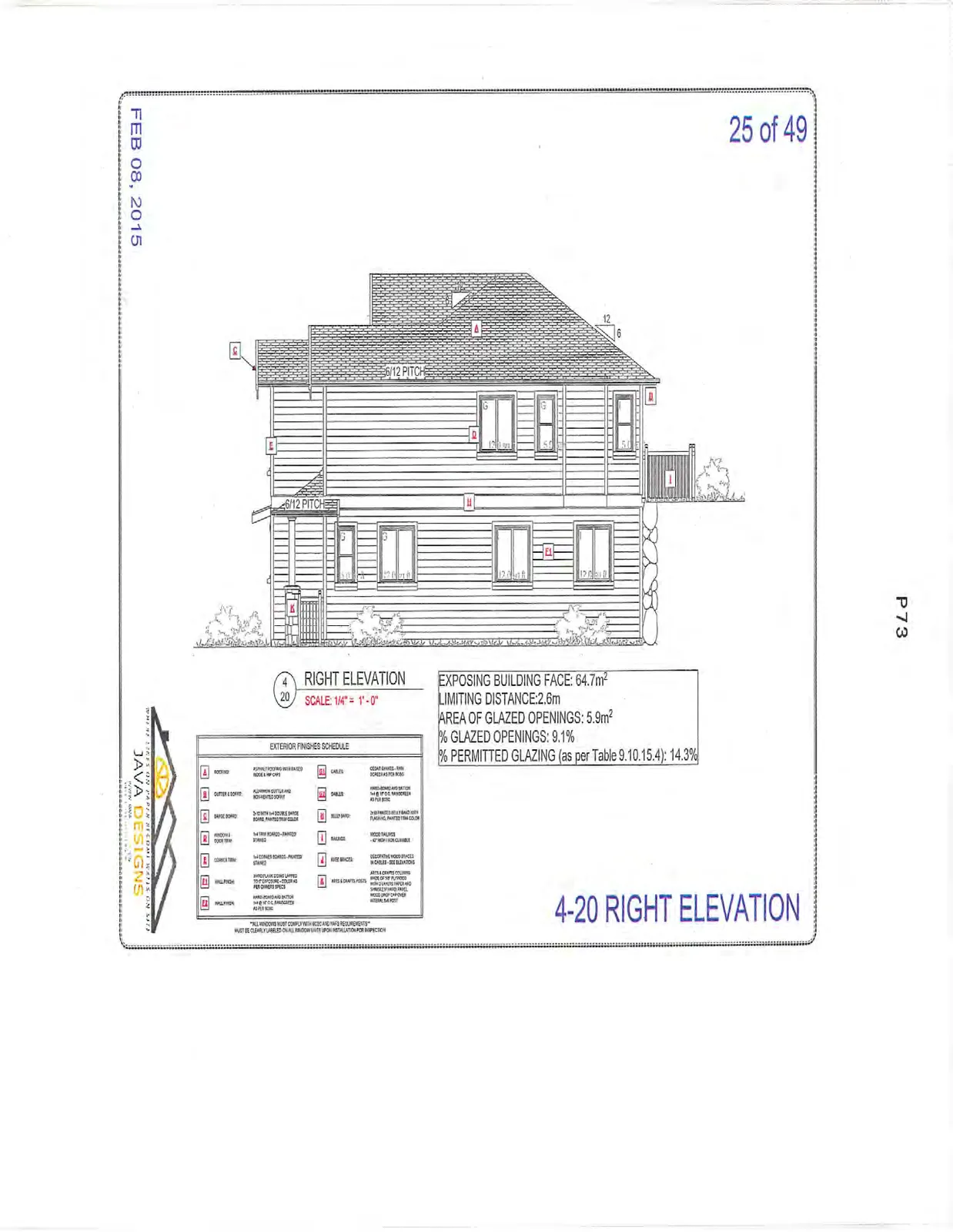

4-20 Right Elevation

  • Exposing Building Face: 64.7m²
  • Limiting Distance: 2.6m
  • Area of Glazed Openings: 5.9m²
  • % Glazed Openings: 9.1%
  • % Permitted Glazing (as per Table 9.10.15.4): 14.3%
4-20 Right Elevation showing building side profile.
4-20 Right Elevation showing building side profile.
Page 62–94

Unit 5-20 Elevations

Date: FEB 08, 2015 Scale: 1/4" = 1'-0"

5-20 Front Elevation showing architectural design.
5-20 Front Elevation showing architectural design.

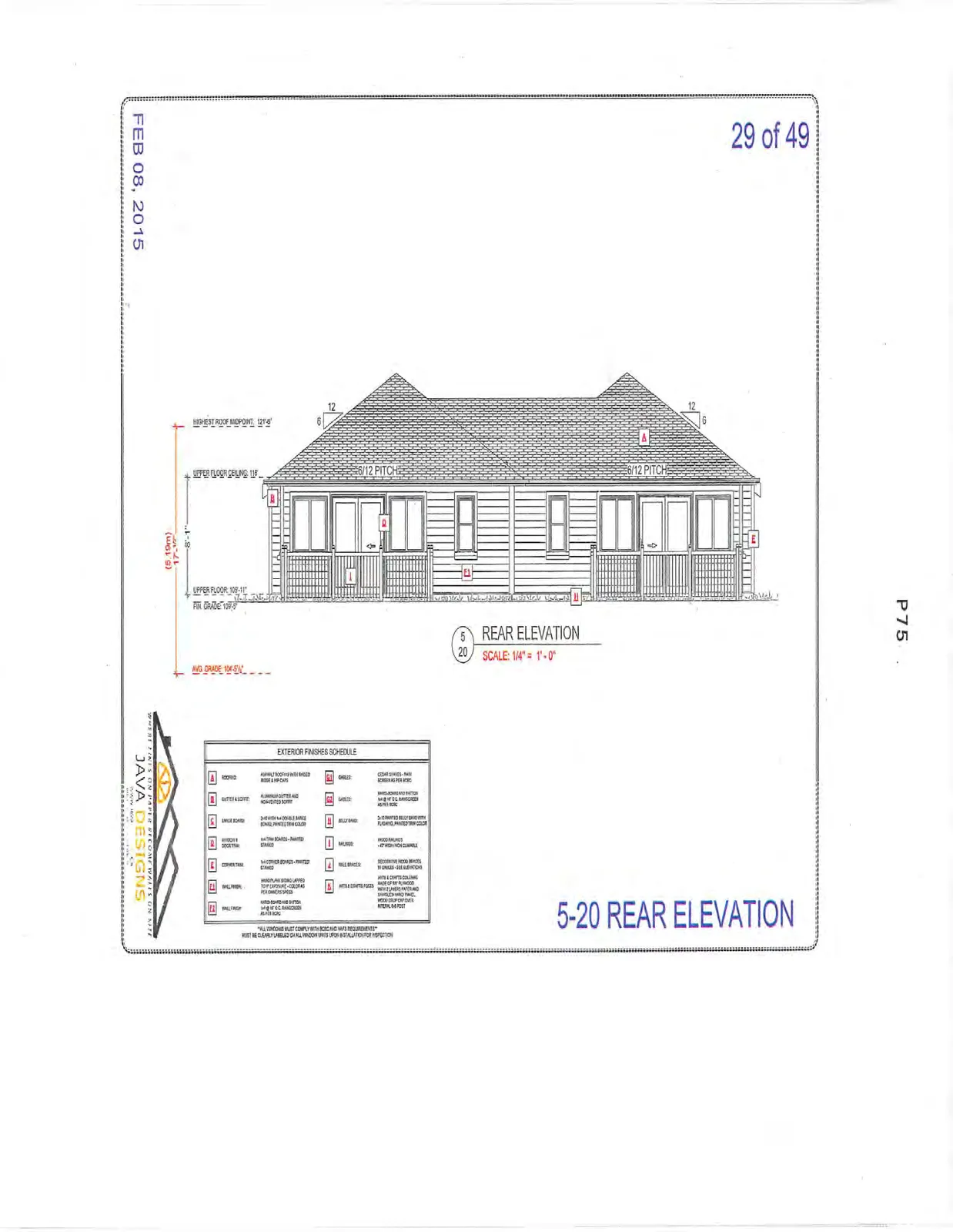

5-20 Rear Elevation showing rear facade design.
5-20 Rear Elevation showing rear facade design.

5-20 Left Elevation

  • Exposing Building Face: 79.8m²
  • Limiting Distance: 2.6m
  • Area of Glazed Openings: 5.9m²
  • % Glazed Openings: 7.4%
  • % Permitted Glazing (as per Table 9.10.15.4): 13.2%
5-20 Left Elevation showing building side profile.
5-20 Left Elevation showing building side profile.

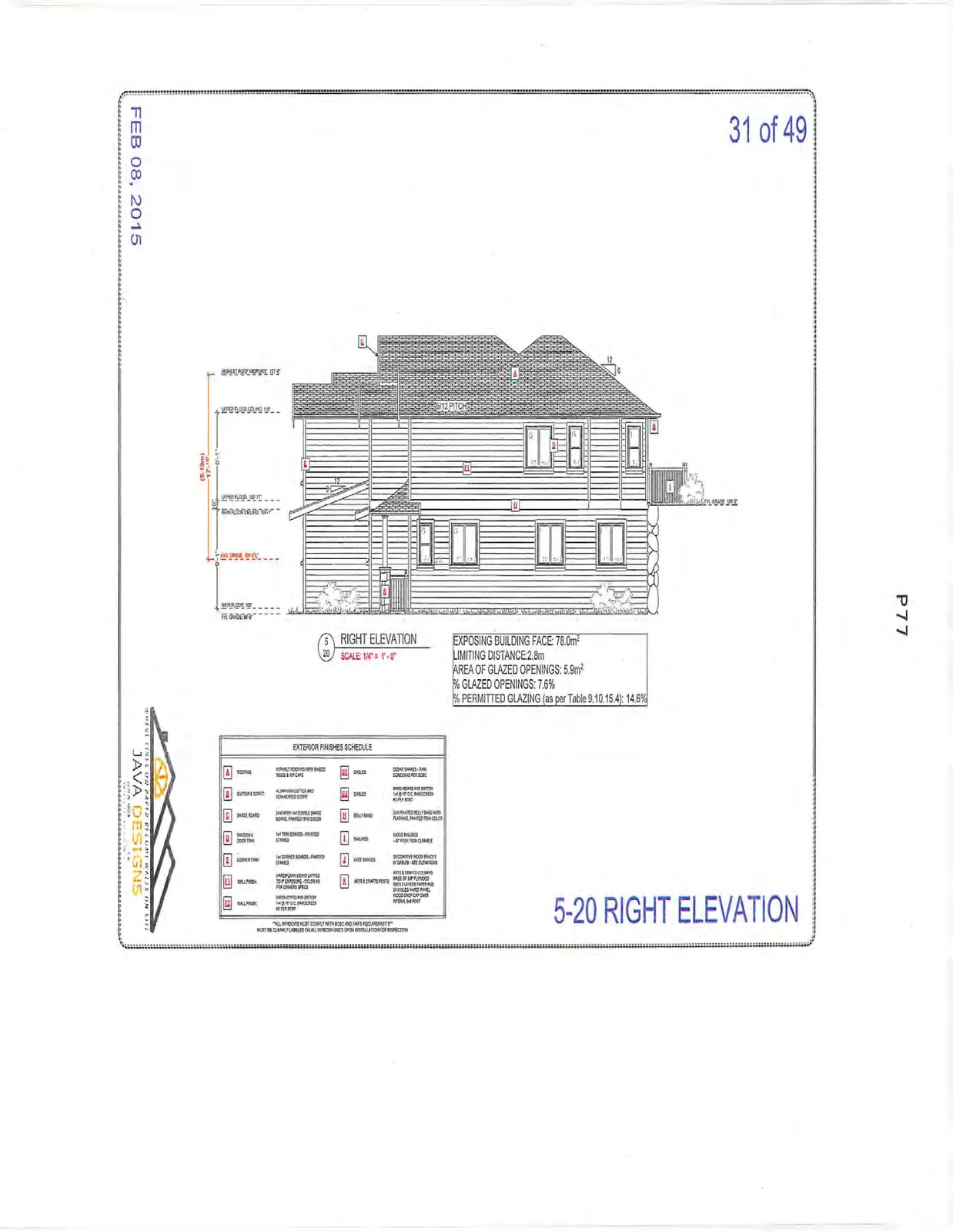

5-20 Right Elevation

  • Exposing Building Face: 78.0m²
  • Limiting Distance: 2.8m
  • Area of Glazed Openings: 5.9m²
  • % Glazed Openings: 7.6%
  • % Permitted Glazing (as per Table 9.10.15.4): 14.8%
5-20 Right Elevation showing building side profile.
5-20 Right Elevation showing building side profile.
Page 62–94

Unit 6-20 Elevations

Date: FEB 08, 2015 Scale: 1/4" = 1'-0"

6-20 Front Elevation showing architectural rendering.
6-20 Front Elevation showing architectural rendering.

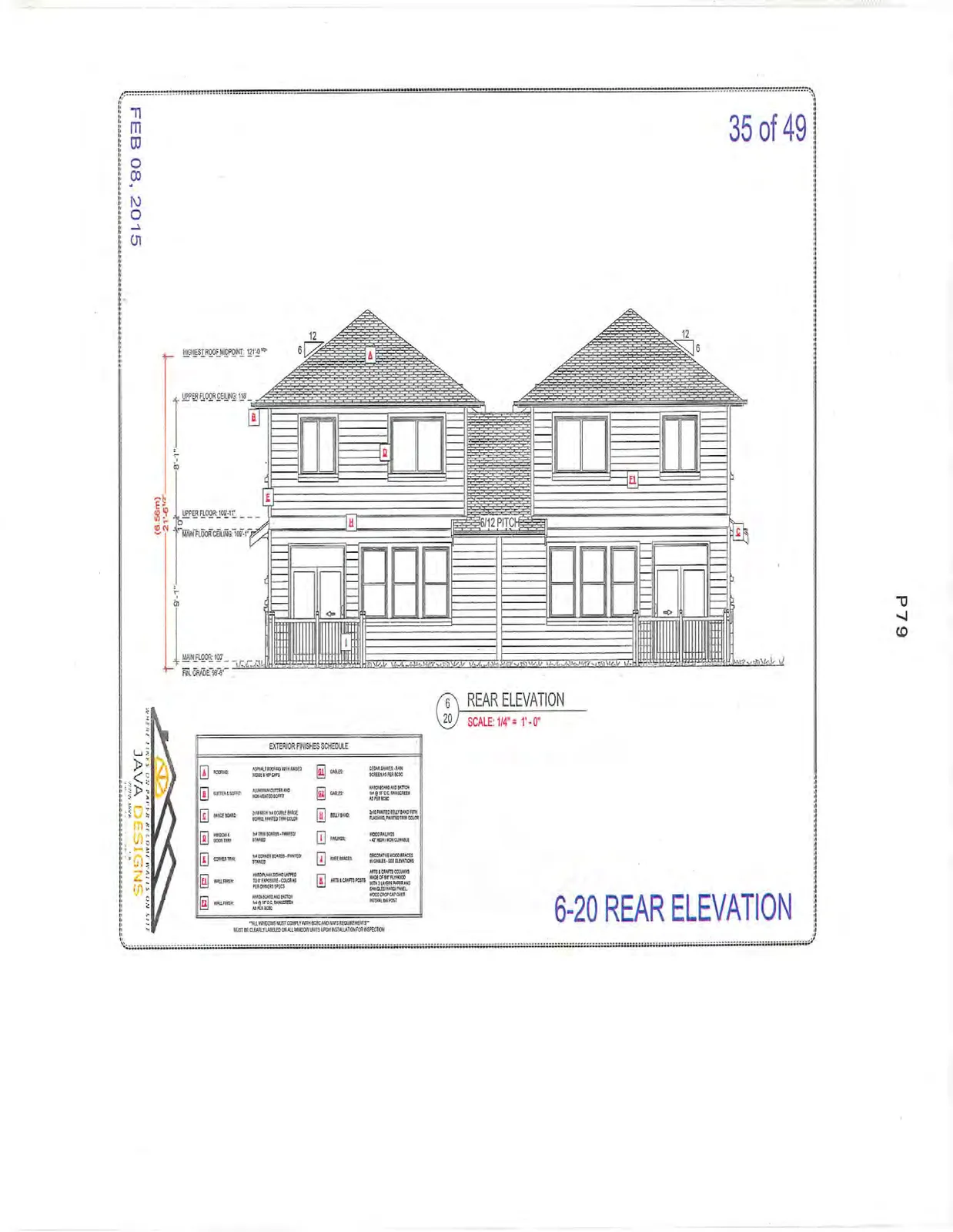

6-20 Rear Elevation showing architectural rendering.
6-20 Rear Elevation showing architectural rendering.

6-20 Left Elevation

  • Exposing Building Face: 79.9m²
  • Limiting Distance: 2.8m
  • Area of Glazed Openings: 3.3m²
  • % Glazed Openings: 4.1%
  • % Permitted Glazing (as per Table 9.10.15.4): 14.4%
6-20 Left Elevation showing building side profile.
6-20 Left Elevation showing building side profile.

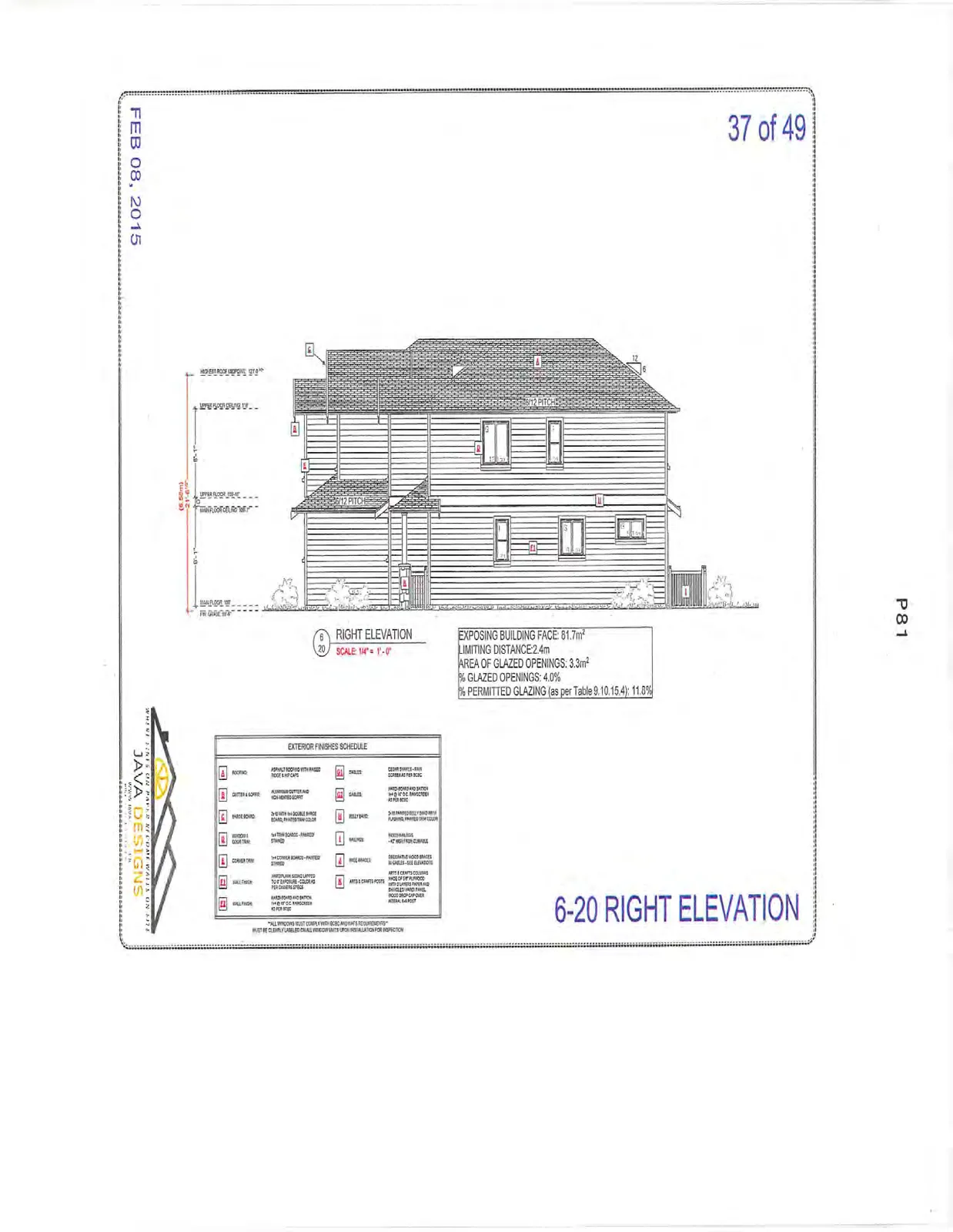

6-20 Right Elevation

  • Exposing Building Face: 81.7m²
  • Limiting Distance: 2.4m
  • Area of Glazed Openings: 3.3m²
  • % Glazed Openings: 4.0%
  • % Permitted Glazing (as per Table 9.10.15.4): 11.8%
6-20 Right Elevation showing building side profile.
6-20 Right Elevation showing building side profile.
Page 62–94

Unit 7-20 Elevations

Date: FEB 08, 2015 Scale: 1/4" = 1'-0"

7-20 Front Elevation showing architectural design.
7-20 Front Elevation showing architectural design.

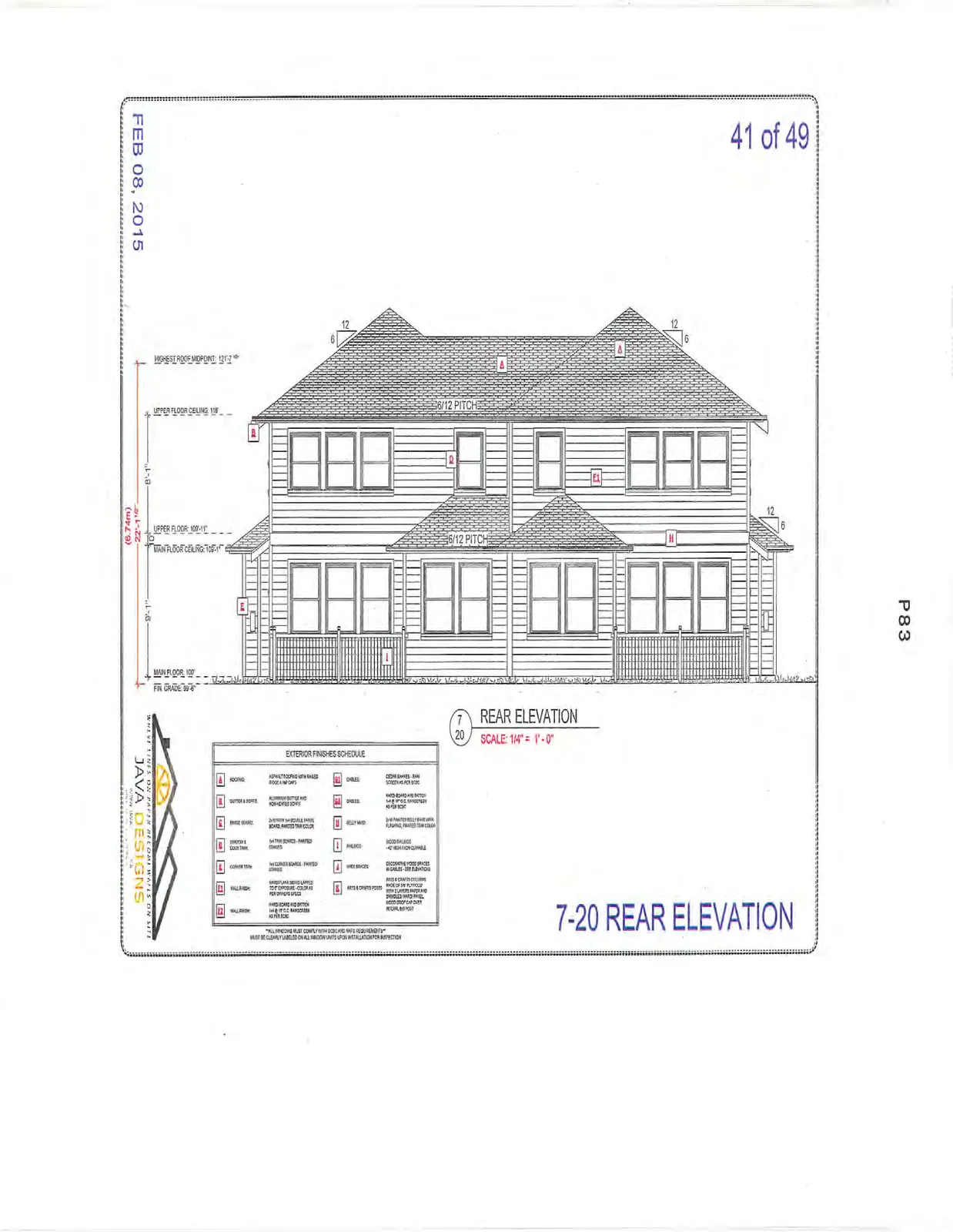

7-20 Rear Elevation showing architectural design.
7-20 Rear Elevation showing architectural design.

7-20 Left Elevation

  • Exposing Building Face: 72.5m²
  • Limiting Distance: 2.4m
  • Area of Glazed Openings: 2.7m²
  • % Glazed Openings: 3.7%
  • % Permitted Glazing (as per Table 9.10.15.4): 12.3%
7-20 Left Elevation showing building side profile.
7-20 Left Elevation showing building side profile.

7-20 Right Elevation

  • Exposing Building Face: 74.3m²
  • Limiting Distance: 1.2m
  • Area of Glazed Openings: 2.7m²
  • % Glazed Openings: 3.6%
  • % Permitted Glazing (as per Table 9.10.15.4): 7%

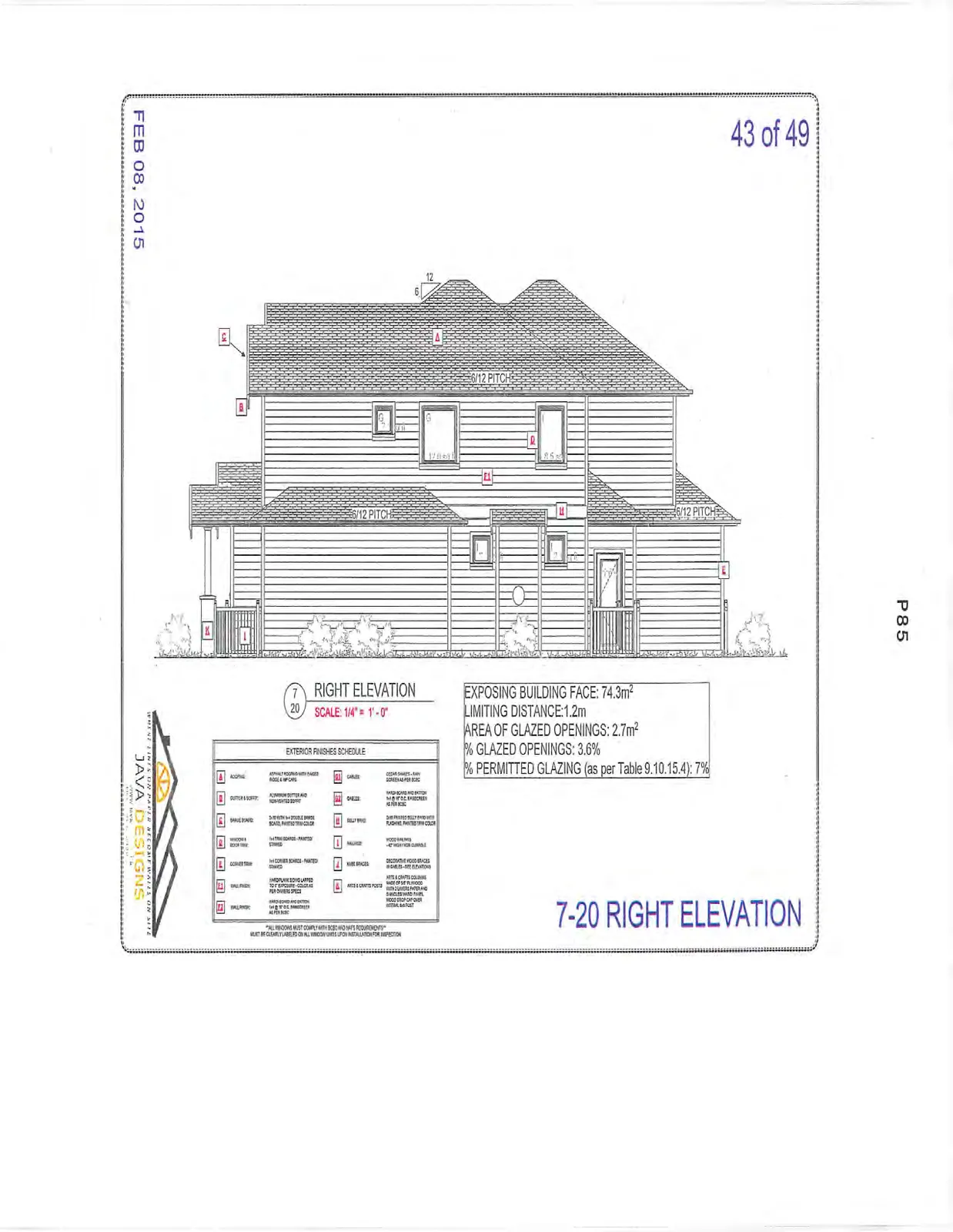

7-20 Right Elevation showing building side profile.
7-20 Right Elevation showing building side profile.
Page 62–94

Unit 8-20 Elevations

Date: FEB 08, 2015 Scale: 1/4" = 1'-0"

8-20 Front Elevation showing architectural design.
8-20 Front Elevation showing architectural design.

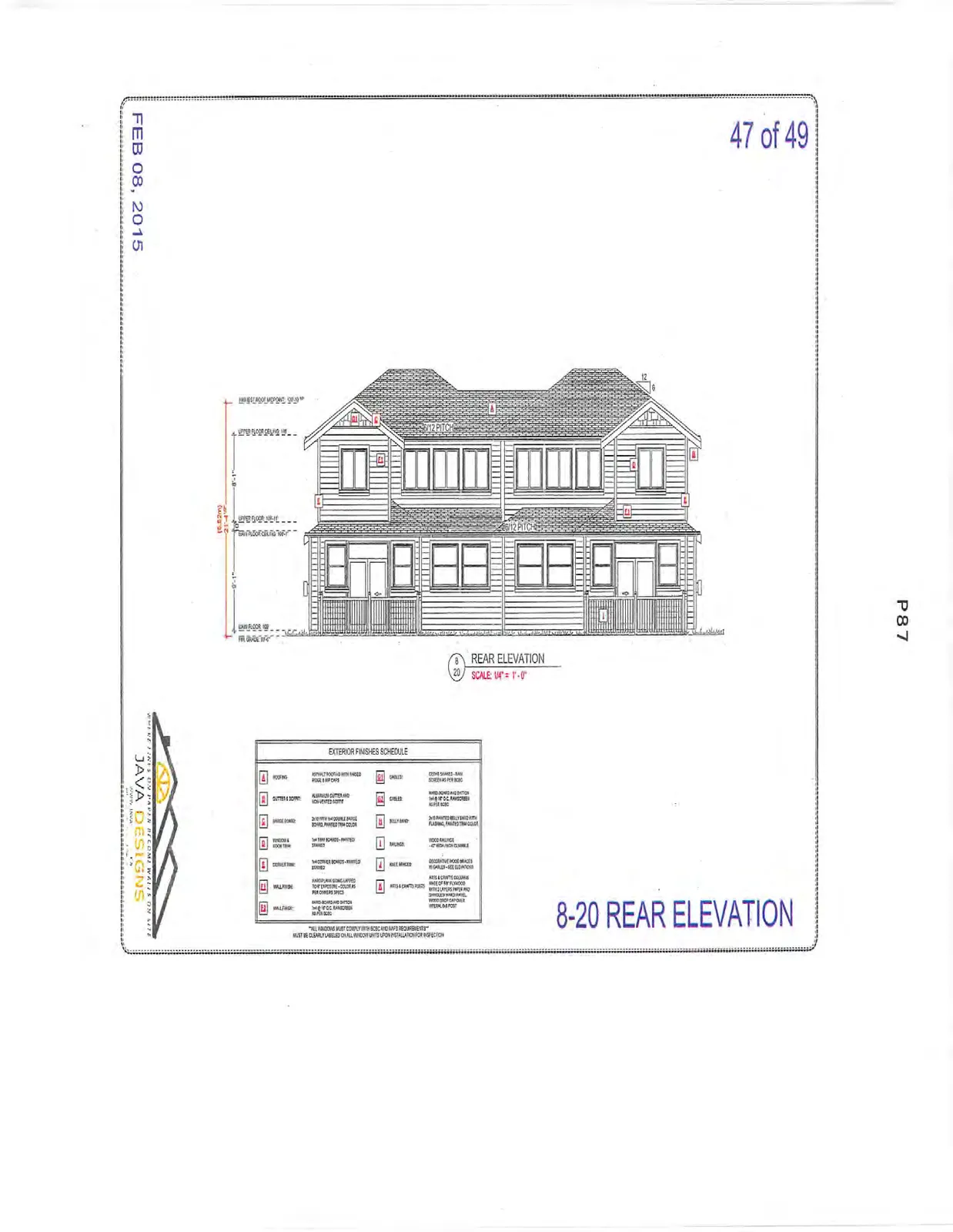

8-20 Rear Elevation showing architectural design.
8-20 Rear Elevation showing architectural design.

8-20 Left Elevation

  • Exposing Building Face: 67.8m²
  • Limiting Distance: 5.5m
  • Area of Glazed Openings: 1.4m²
  • % Glazed Openings: 2.1%
  • % Permitted Glazing (as per Table 9.10.15.4): 42.8%
8-20 Left Elevation showing building side profile.
8-20 Left Elevation showing building side profile.

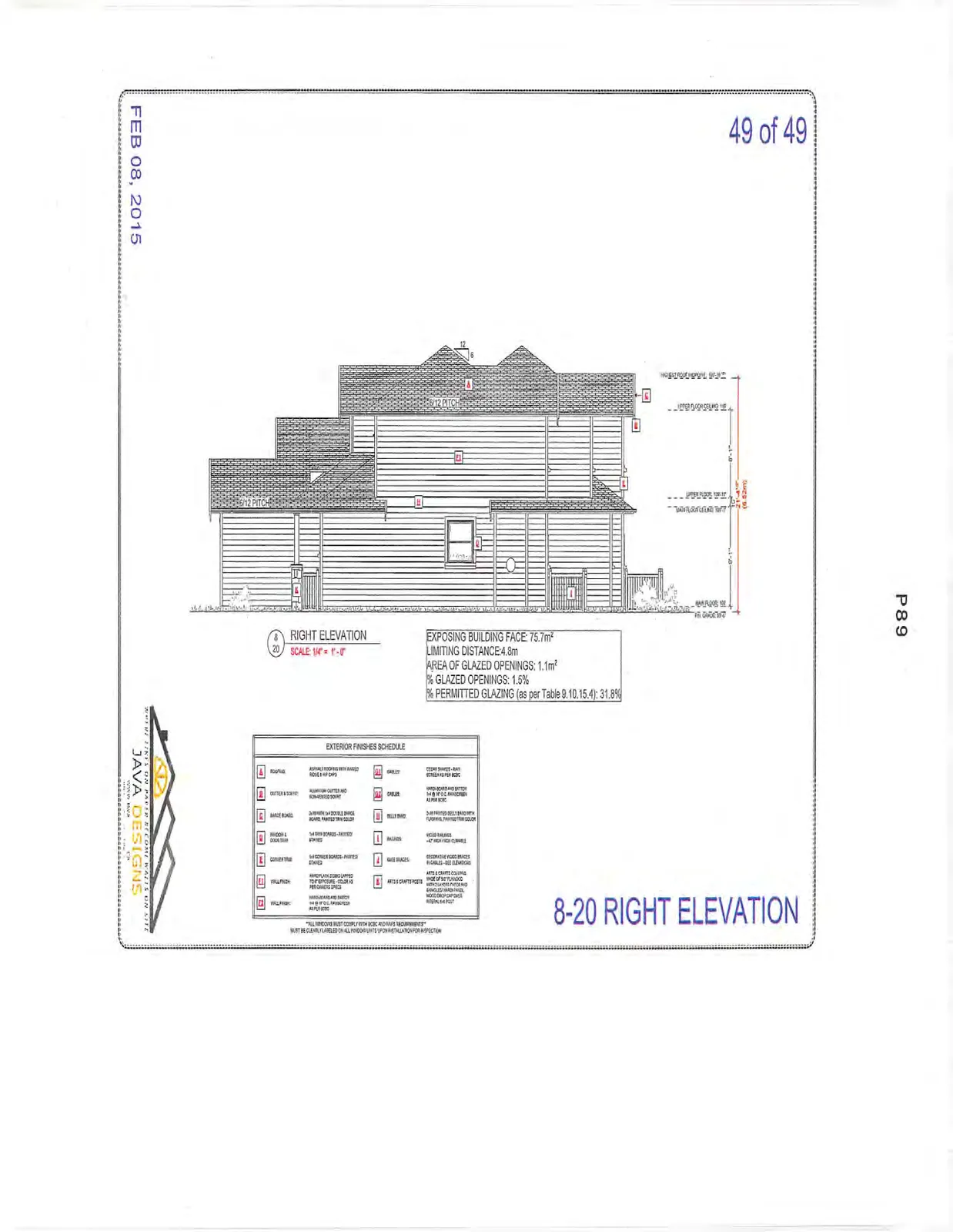

8-20 Right Elevation

  • Exposing Building Face: 75.7m²
  • Limiting Distance: 4.8m
  • Area of Glazed Openings: 1.1m²
  • % Glazed Openings: 1.5%
  • % Permitted Glazing (as per Table 9.10.15.4): 31.8%
8-20 Right Elevation showing building side profile.
8-20 Right Elevation showing building side profile.
Page 62–94
