Committee of the Whole/Documents/Site Visibility and Line of Sight Studies
Appendix

Site Visibility and Line of Sight Studies

May 12, 2015Pages 106–1094 sections

Photos and technical profiles showing sightlines from the Six Mile Exit Ramp and adjacent areas.

9.2.3 a Mixed Residential Form and Character Development Permit No. 2014/10 - 2429 Chilco Road Lot 20 (Thetis Vale Phase 6 - 16 Duplex Residential Units)
Includes 1:250 profiles of sections A-A and B-B
A photograph showing a green multi-story residential building partially obscured by trees, viewed from across a roadway with a concrete barrier.
A photograph showing a green multi-story residential building partially obscured by trees, viewed from across a roadway with a concrete barrier.
Page 106–109

THIS PAGE INTENTIONALLY LEFT BLANK

Page 106–109

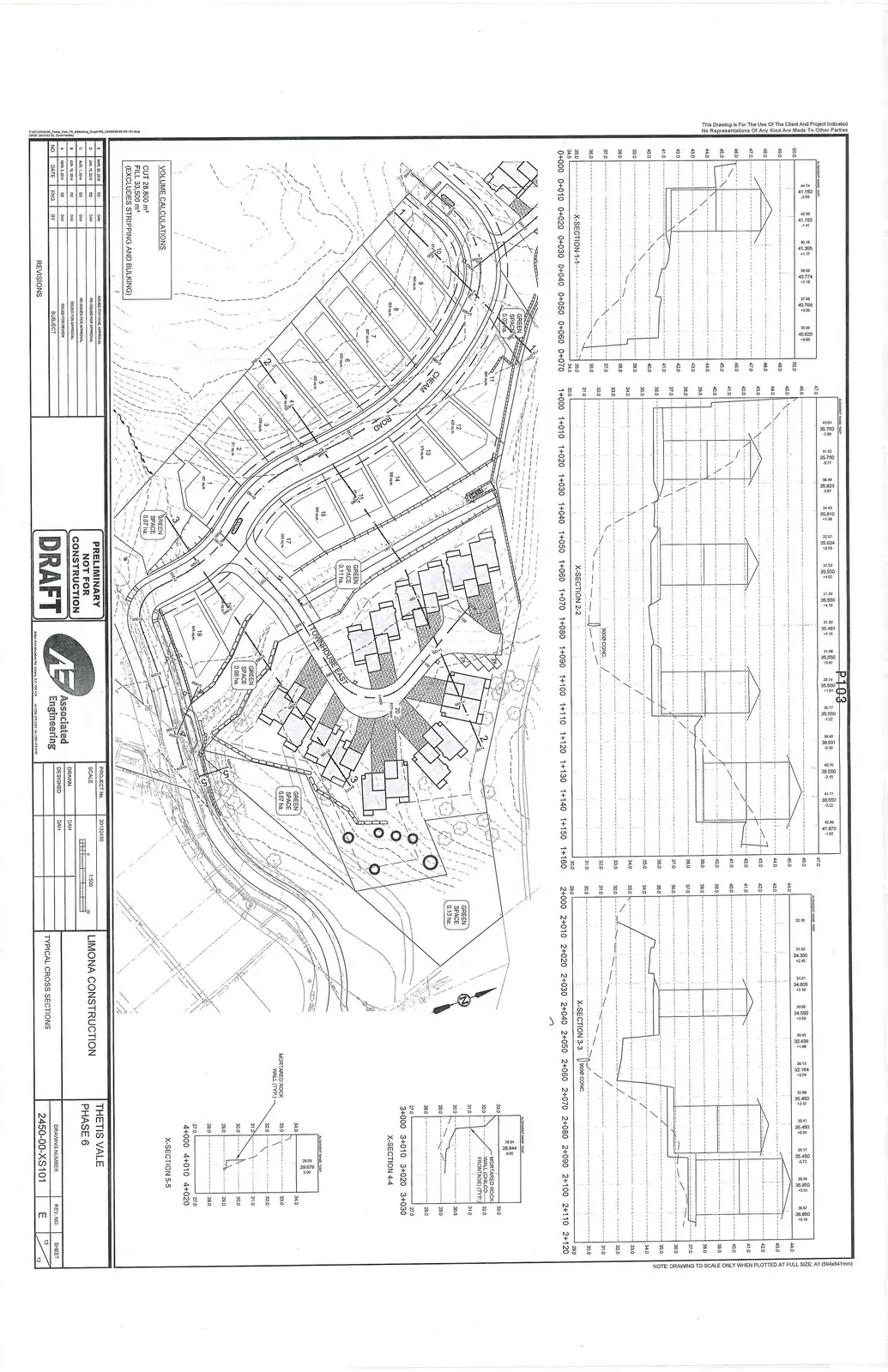

THETIS VALE PHASE 6 - TYPICAL CROSS SECTIONS

Cross-Section Diagrams

Engineering charts for X-Section 1-1, X-Section 2-2, X-Section 3-3, X-Section 4-4, and X-Section 5-5 showing terrain elevation, proposed building profiles, and mortared rock walls.
Engineering charts for X-Section 1-1, X-Section 2-2, X-Section 3-3, X-Section 4-4, and X-Section 5-5 showing terrain elevation, proposed building profiles, and mortared rock walls.

Subdivision Plan View

Volume Calculations

Description Measurement
CUT 28,800 m³
FILL 33,500 m³

Note: Excludes stripping and bulking.

Revisions

No. Date Subject
E MAR 20, 2015 ISSUED FOR FINAL APPROVAL
D JAN 19, 2015 RE-ISSUED FOR APPROVAL
C AUG 1, 2014 RE-ISSUED FOR APPROVAL
B JUN 16, 2014 RE-ISSUED FOR APPROVAL
A MAR 3, 2014 ISSUED FOR REVIEW

Project Details

  • Project No: 20132450
  • Scale: 1:500
  • Client: LIMONA CONSTRUCTION
  • Drawing Title: TYPICAL CROSS SECTIONS
  • Drawing Number: 2450-00-XS101
  • Revision: E
Page 106–109

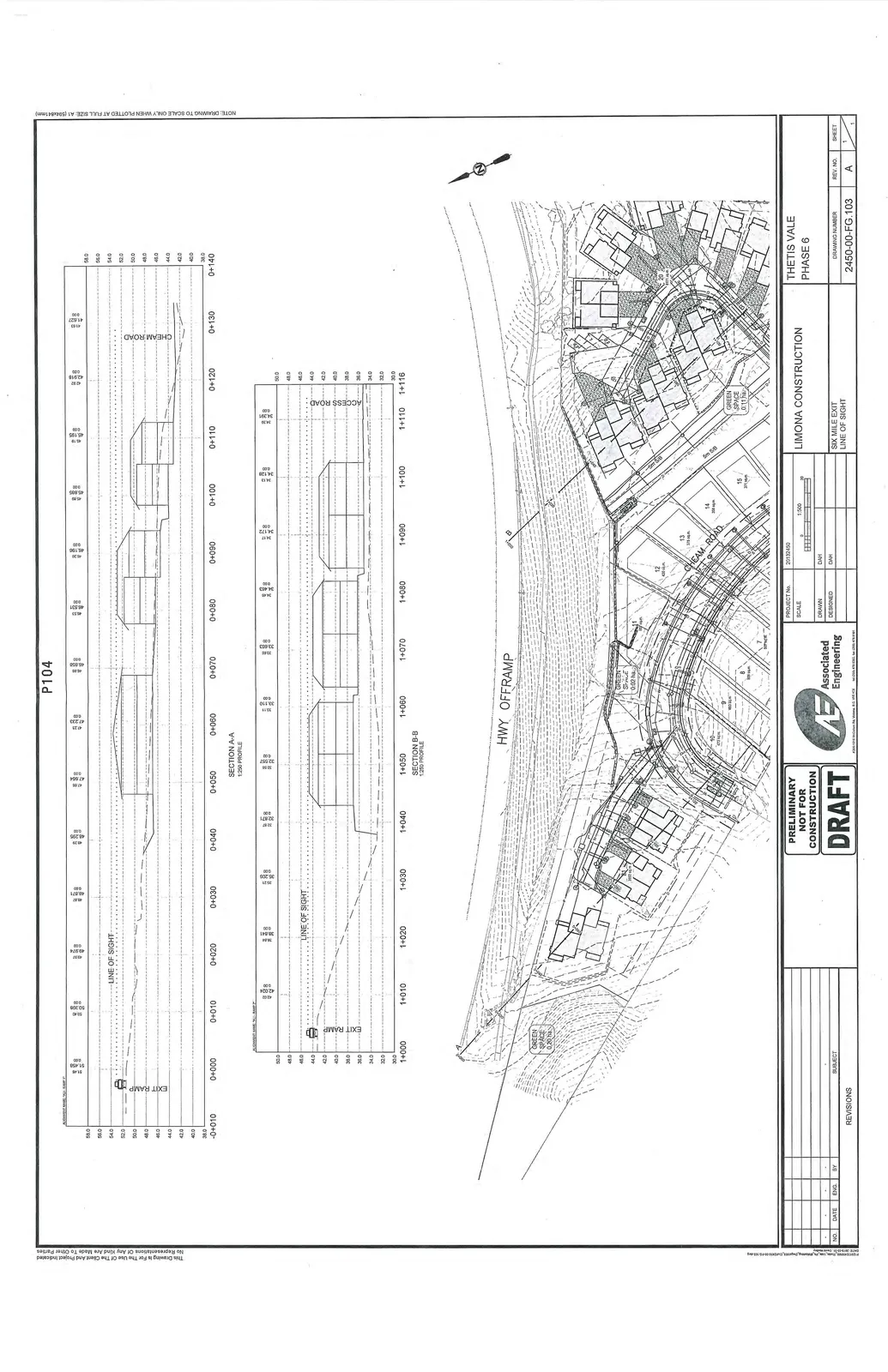

THETIS VALE PHASE 6 - SIX MILE EXIT LINE OF SIGHT

Line of Sight Profiles

Engineering profiles for Section A-A and Section B-B, illustrating the line of sight relative to an exit ramp, Cheam Road, and an access road.
Engineering profiles for Section A-A and Section B-B, illustrating the line of sight relative to an exit ramp, Cheam Road, and an access road.

Site Plan

Project Details

  • Project No: 20132450
  • Scale: 1:500
  • Client: LIMONA CONSTRUCTION
  • Drawing Title: SIX MILE EXIT LINE OF SIGHT
  • Drawing Number: 2450-00-FG.103
  • Revision: A
Page 106–109
