South Elevation - 327 Bessborough Close

September 8, 2015Page 551 section

Architectural elevation drawing of the retaining wall.

9.2.3 a) Environmental Development Permit Application No. 2015/14 - 327 Bessborough Close

Hamel Residence

Matthew Bergink AutoCad Technician tel: 250.512.6046 email: mbergink@gmail.com

Note: Elevations are to assumed datum. The decimal point of the elevation denotes the location of the shot taken unless otherwise noted.

Issues / Revisions

no. date for:
1 2016/06/20 Issued for D.P.

THESE DRAWINGS MAY NOT BE COPIED, THE DESIGN INFORMATION CONTAINED THEREIN IS THE PROPERTY OF MATTHEW BERGINK AND IS NOT TO BE USED WITHOUT PERMISSION. MATTHEW BERGINK SHALL NOT BE RESPONSIBLE FOR ERRORS AND OMISSIONS WHICH MAY BE DISCLOSED BY SAID DRAWINGS AND SPECIFICATIONS. CONTRACTOR IS RESPONSIBLE FOR ALL DIMENSIONS. ANY ERRORS OR OMISSIONS SHALL BE REPORTED TO MATTHEW BERGINK BEFORE ANY WORK IS CARRIED OUT. USE WRITTEN DIMENSIONS IN ALL CASES.

CLIENT: Hamel Residence

PROJECT: 327 Bessborough Close Town of View Royal, BC

DRAWING TITLE: Schedule 4 South Elevation

Design / Drawn by: MDB Checked by: - Scale: 1:50 A2.0

Elevation Details

  • EL 495.11m Lower Floor
  • EL ±492.50m Approx. Top Of Wall
  • EL ±491.00m Approx. Toe Of Wall

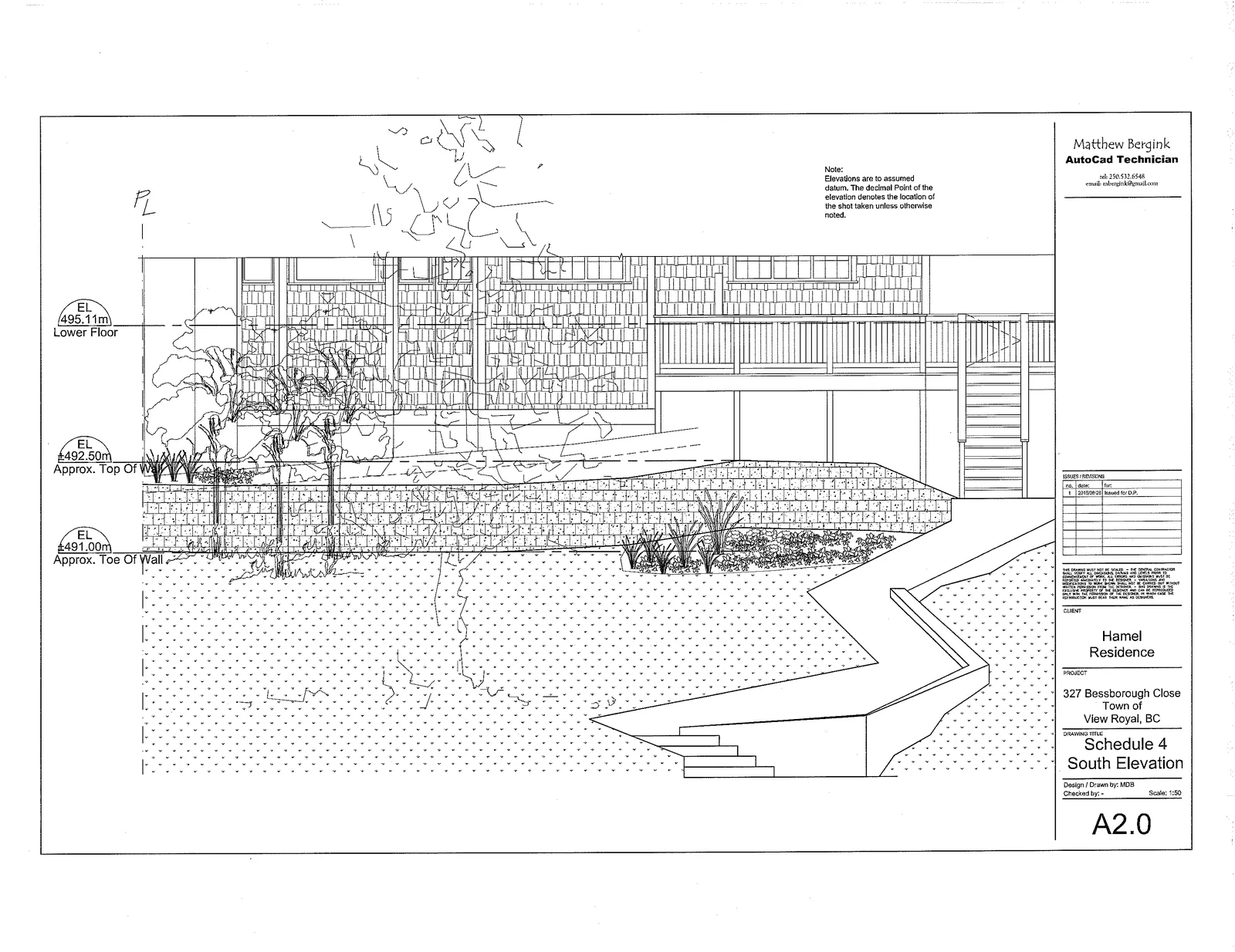

Architectural drawing of the South Elevation for the Hamel Residence, featuring the lower floor exterior, a multi-level retaining wall, outdoor stairs, and landscaping.
Architectural drawing of the South Elevation for the Hamel Residence, featuring the lower floor exterior, a multi-level retaining wall, outdoor stairs, and landscaping.
Page 55
Extracted from: 2015 09 08 Committee of the Whole Agenda
