Appendix: Tree Resource Table and Protection Detail

June 9, 2015Pages 114–1173 sections

Detailed inventory of specific trees on the property and standard construction detail for tree protection fencing.

2. APPROVAL OF AGENDA
Lists Douglas-fir, Big leaf maple, and Arbutus speciesDetail Name: TREE PROTECTION FENCING (Saanich standard)

TREE RESOURCE for 148 Atkins Road

April 2, 2015

Tree # d.b.h. (cm) CRZ Species Condition Health Condition Structure Relative Tolerance Remarks / Recommendations
No tag 1 75 8.0 Douglas-fir Good Good Poor Located on neighbouring property, lower limbs extend over property line, may be impacted by blasting and excavation, may require lower limb clearance pruning.
No tag 2 multiple stems 4.0 Big leaf maple Fair Fair Moderate Growing near rear property line, approximately 10 stems between 8-12cm dbh.
101 40 6.0 Douglas-fir Good Fair Poor Pitching, deflected top.
102 19 3.0 Arbutus Good Fair Poor Suppressed.
103 25, 30 5.5 Flowering plum Fair Fair Moderate Top of slope.
104 20 2.0 Cherry Fair Fair/Poor Moderate Included bark, cherry bark tortrix.
105 15, 15, 16, 18, 20, 25, 32, 35 6.0 Big leaf maple Fair Fair Moderate Multiple stems, girdling surface root.
106 22, 22, 27 4.0 Cherry Fair Fair/Poor Moderate Tri-dominant, trunk wound, included bark, surface rooted, cherry bark tortrix.
107 22, 27 4.0 Arbutus Fair Fair Poor Surface rooted, canopy weighted toward proposed lot.
108 59 7.0 Leyland cypress Good Fair Moderate Corrected lean, top of slope.
109 61 7.0 Leyland cypress Good Fair Moderate Corrected lean, top of slope.
110 12, 12, 14 3.0 Cherry Fair Fair Moderate Tri-dominant, included bark, cherry bark tortrix.
111 10, 11, 19, 20, 32 6.0 Flowering plum Fair Fair Moderate Clearance pruned for hydro.
112 29 3.0 Tree of Heaven Good Fair Good Deflected top.
113 27 3.0 Chamaecyparis Good Fair Moderate Co-dominant tops.
0946 31 3.0 Flowering plum Fair Fair Moderate Growing near southern property line.

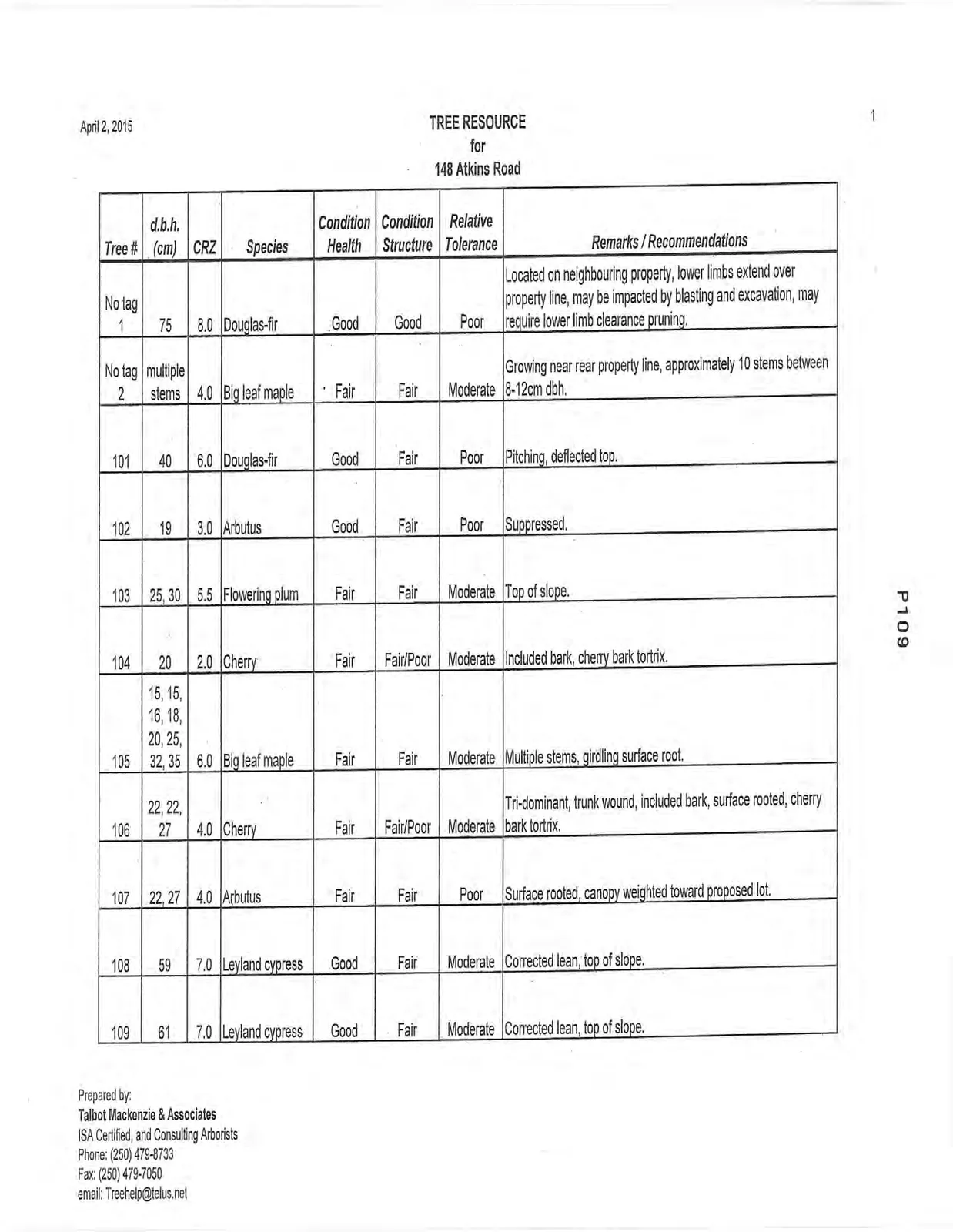

Tree Resource inventory table for 148 Atkins Road, trees no tag 1 through 109
Tree Resource inventory table for 148 Atkins Road, trees no tag 1 through 109
Tree Resource inventory table for 148 Atkins Road, trees 110 through 0946
Tree Resource inventory table for 148 Atkins Road, trees 110 through 0946
Page 114–117

ISSUED FOR SUBDIVISION APPLICATION

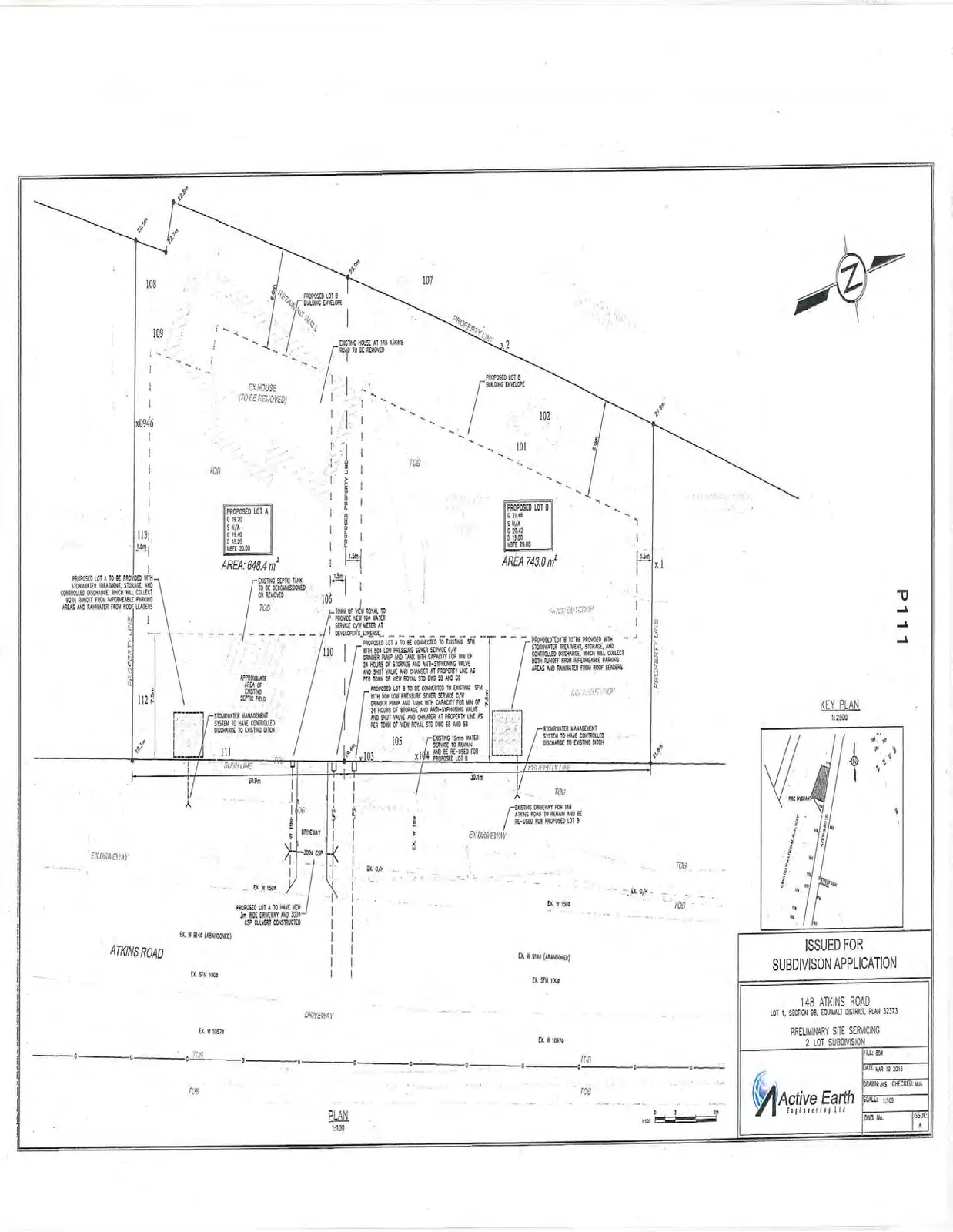

Preliminary Site Servicing plan for 2 lot subdivision at 148 Atkins Road, showing proposed lots A and B, building envelopes, and existing tree locations
Preliminary Site Servicing plan for 2 lot subdivision at 148 Atkins Road, showing proposed lots A and B, building envelopes, and existing tree locations
Page 114–117

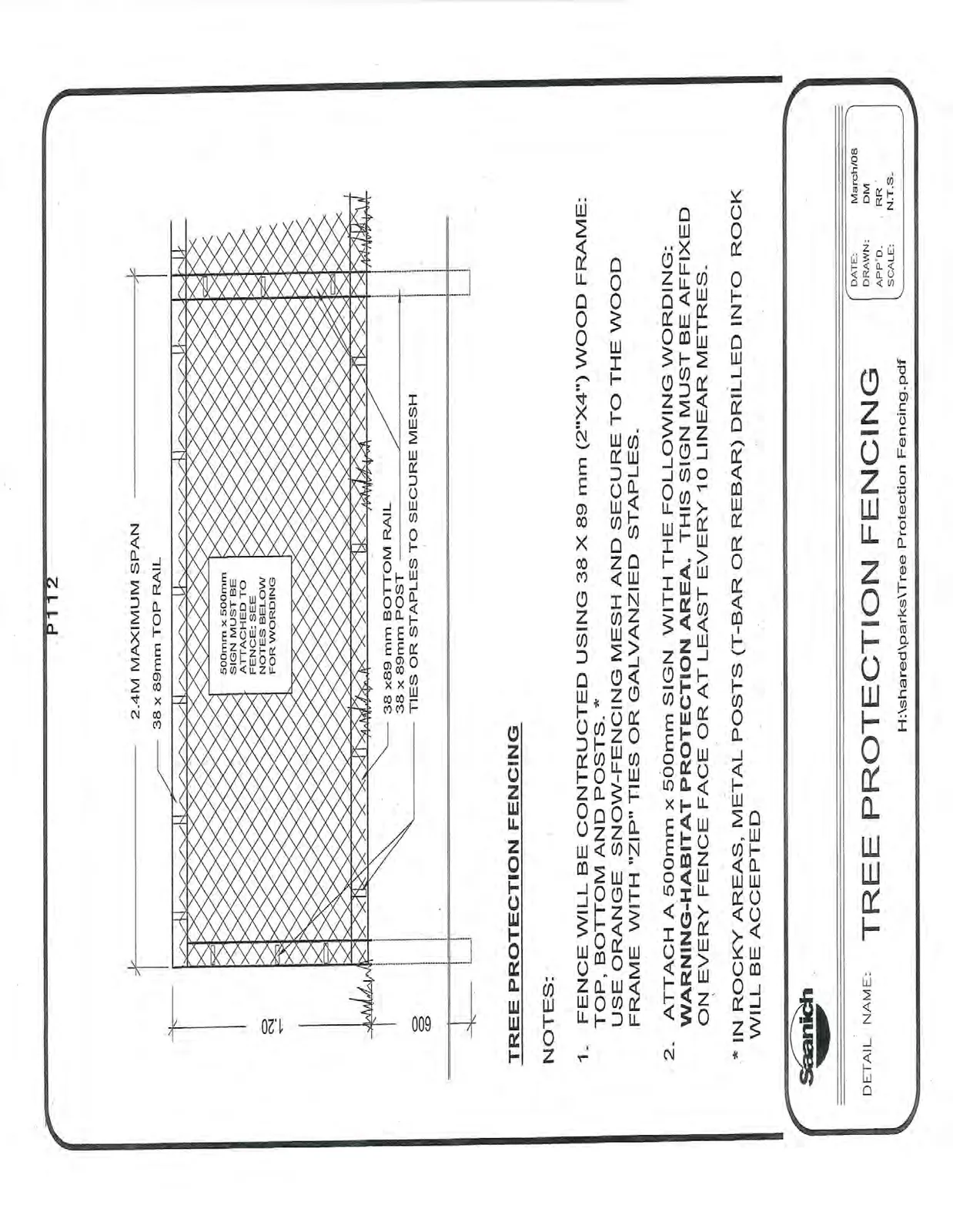

TREE PROTECTION FENCING

Technical diagram of Tree Protection Fencing detailing a 2.4M maximum span with 38 x 89mm wood frame and orange snow-fencing mesh
Technical diagram of Tree Protection Fencing detailing a 2.4M maximum span with 38 x 89mm wood frame and orange snow-fencing mesh

NOTES:

  1. FENCE WILL BE CONTRUCTED USING 38 X 89 mm (2"X4") WOOD FRAME: TOP, BOTTOM AND POSTS. * USE ORANGE SNOW-FENCING MESH AND SECURE TO THE WOOD FRAME WITH "ZIP" TIES OR GALVANZIED STAPLES.
  2. ATTACH A 500mm x 500mm SIGN WITH THE FOLLOWING WORDING: WARNING-HABITAT PROTECTION AREA. THIS SIGN MUST BE AFFIXED ON EVERY FENCE FACE OR AT LEAST EVERY 10 LINEAR METRES.
  • IN ROCKY AREAS, METAL POSTS (T-BAR OR REBAR) DRILLED INTO ROCK WILL BE ACCEPTED

Prepared by: Talbot Mackenzie & Associates ISA Certified, and Consulting Arborists Phone: (250) 479-8733 Fax: (250) 479-7050 email: Treehelp@telus.net

Page 114–117
