Proposed Construction Plans - 2329 Evelyn Heights

MR. CHRIS BARKER - DECK PLANS

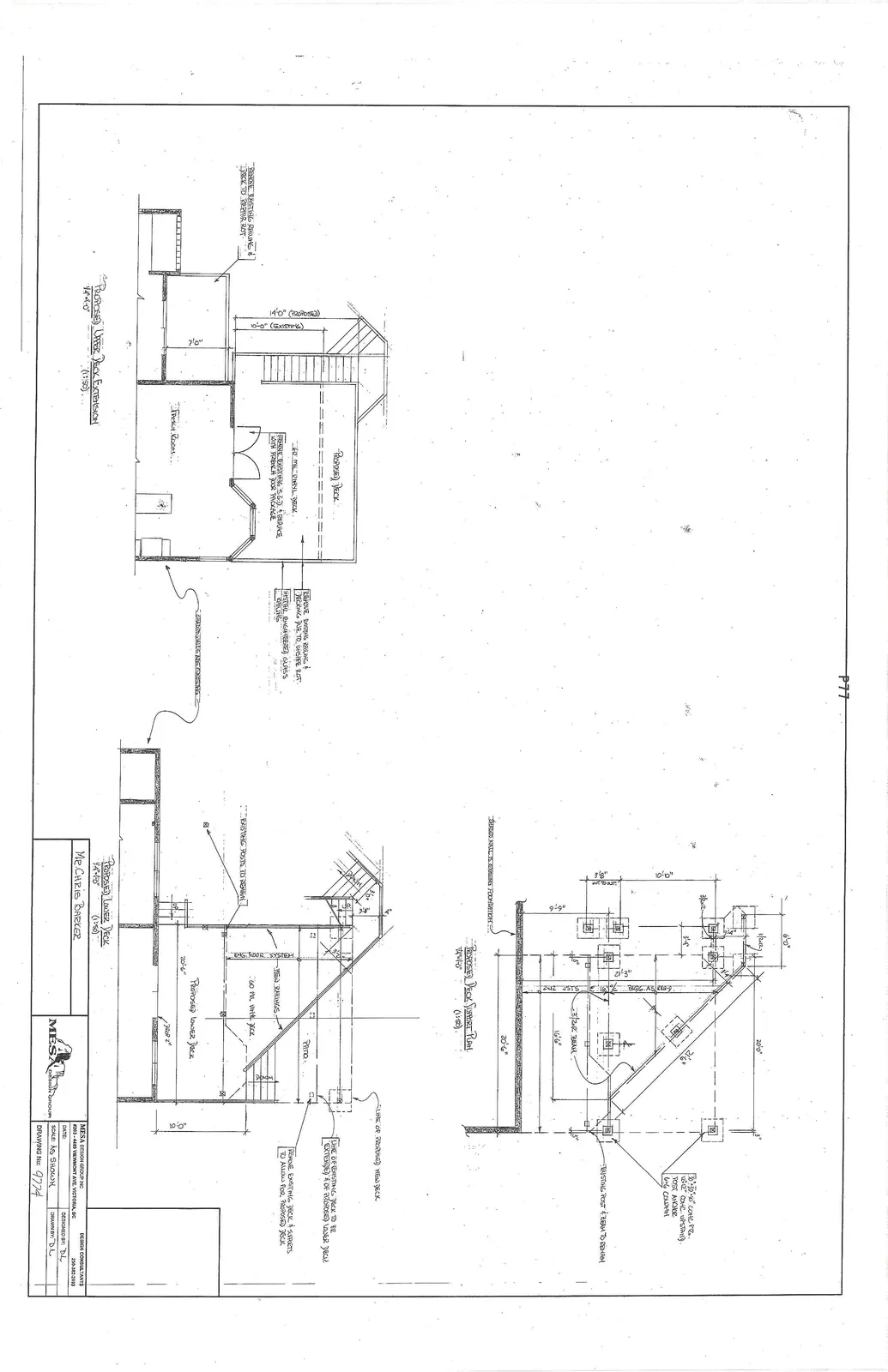

Proposed Deck Support Plan (1:100)

• Dimensions: 6'-0", 12'-0", 10'-0", 9'-9", 20'-0", 16'-6", 20'-6"
• Notes:
  • Existing wall as internal foundation
  • 18" x 30" x 10" CONC. FTG. 10"-12" CONC. UPSTAND POST ANCHOR 6x6 COLUMN
  • Existing post & beam to remain
  • 2-2x12 BEAM

Proposed Upper Deck Extension (1:100)

• Dimensions: 14'-0" (Proposed), 11'-0" (Existing), 7'-0"
• Notes:
  • Remove existing railing & deck to repair rot
  • Proposed deck
  • 60 mil vinyl deck
  • Remove existing S.G.D. & replace with French door package
  • Remove existing railing & decking due to severe rot. Install engineered glass railing
  • Family Room
  • Stairs wells are existing

Proposed Lower Deck (1:100)

• Dimensions: 20'-6", 20'-2", 10'-0"
• Notes:
  • Existing posts to remain
  • New posts beyond
  • Patio
  • 60 mil vinyl deck
  • Proposed lower deck
  • Line of proposed new deck
  • Line of existing deck to be extended & of proposed lower deck
  • Remove existing deck & stairs to allow for proposed deck

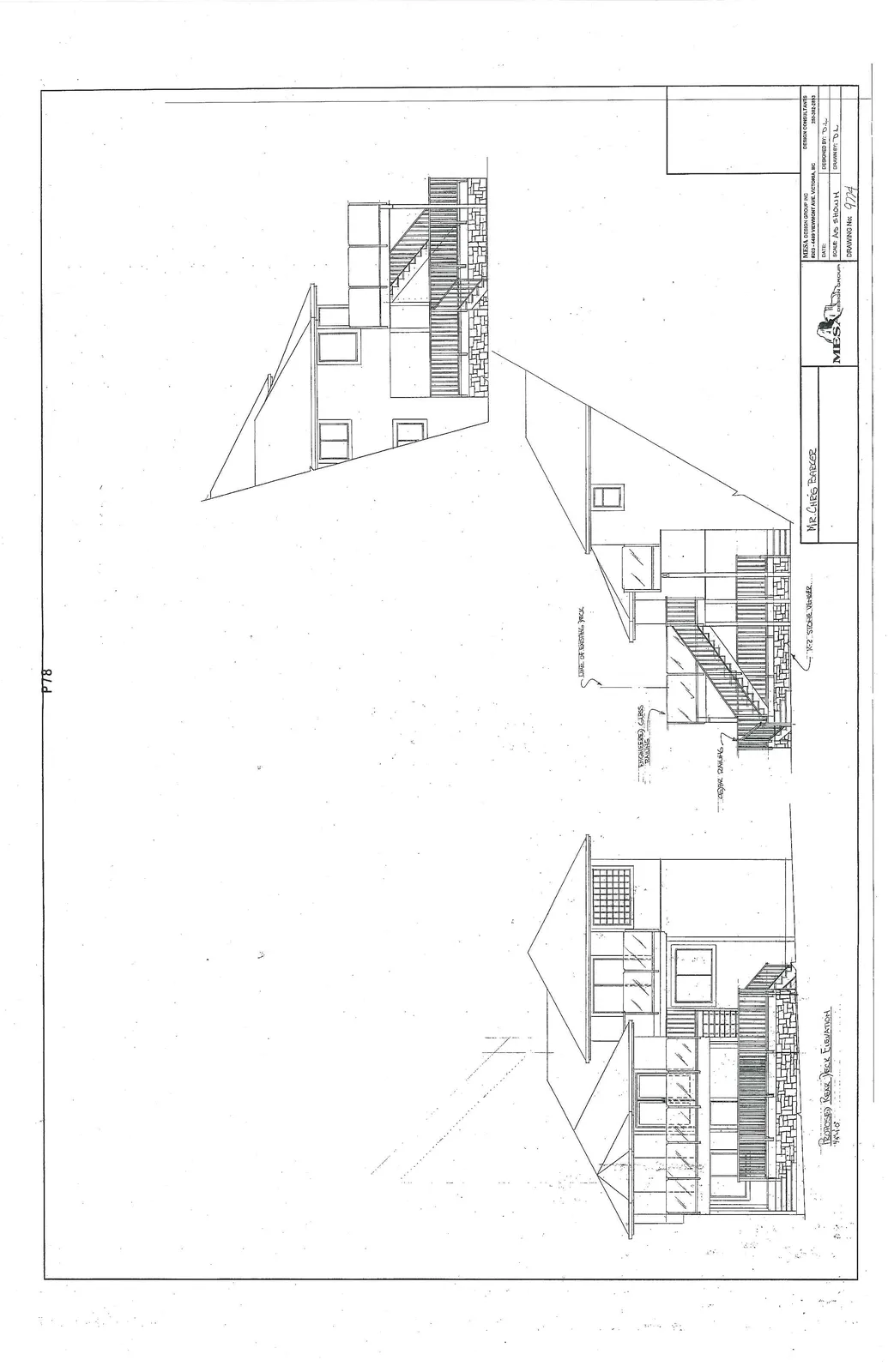

Proposed Rear Deck Elevation

• Notes:
  • Engineered glass railing
  • Cedar railing
  • 7x12 stone veneer
  • Line of existing deck

Project Information

• Client: MR. CHRIS BARKER
• Company: MESA DESIGN GROUP INC
• Address: #203 - 4489 VIEWMONT AVE. VICTORIA, BC
• Telephone: 250-382-3193
• Drawing No: 9774
• Scale: AS SHOWN
• Designed by: D.L.
• Drawn by: D.L.
