Site Plan - Prince Robert Ridge

PRINCE ROBERT RIDGE

547 - 549 Island Highway for Hale / Gray / Porter / Davies Joint Venture October 5, 2009 rev. Dec. 7, 2009

LEGAL DESCRIPTION

Lots 1 & 2, Section 92, Esquimalt District, Plan 5986, & Part in Plan 470R

NOTIFICATION OF ANY REQUIRED VARIANCE

1. Lot 2 - Rear Yard Required = 8.0m, Provided = 1.3m
2. Lot 6 - Flanking Side Yard Required = 4.0m, Provided = 1.3m

NOTES

1. Houses shown on Lots 2 & 5 are existing homes renovated, those shown on Lots 1, 3, 4 & 6 are footprints of possible homes subject to future Development Permit application.
2. Each Lot to have 2 parking spaces @ 2.75m x 6.0m.
3. All vegetation within Covenant area to remain.
4. Refer to Environment Assessment Report by Osiris Wildlife Consulting - Oct. 24, 2007.
5. All front yard, hard & soft landscaping for all lots must conform to Development Permit submission.
6. All exterior colours & finishes for Lots 1, 3, 4 & 6 to conform to Development Permit submission.

SITE AREA

• SITE AREA - 3323.9 sq m
• COVENANT AREA - 952.0 sq m
• COMMON ACCESS AREA - 344 sq m
• COMMON ACCESS ROAD ALLOWANCE - 7.5m req'd / 7.5m provided
• OPEN SPACE AREA (unbuilt) - 2719 sq m or 66%

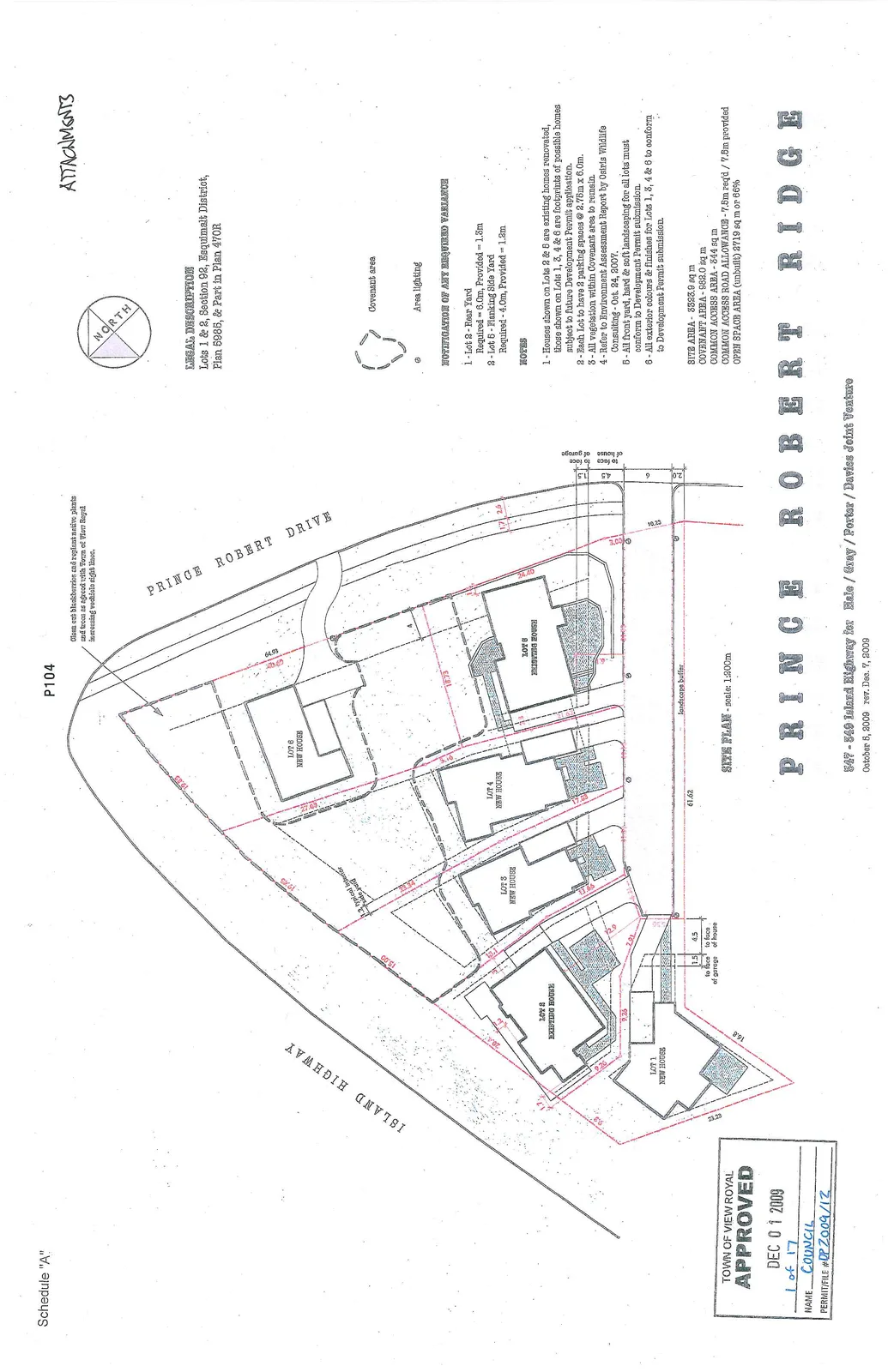

SITE PLAN - scale: 1:200m

Site Plan Annotations:

• Clean out blackberries and replant native plants and trees as agreed with Town of View Royal increasing vehicle sight lines.
• Legend:
  • Covenant area (indicated by dashed line)
  • Area lighting (indicated by circle symbol)
• Lot Labels:
  • Lot 1: New House
  • Lot 2: Existing House
  • Lot 3: New House
  • Lot 4: New House
  • Lot 5: Existing House
  • Lot 6: New House
