Attachment 3: Building Concept

September 12, 2023Pages 292–2931 section

Technical drawings and material specifications for the proposed accessory building at 25 Chancellor Avenue.

3.66m height3/4" Tongue & Grove Plywood coated with Vinyl

25 CHANCELLOR AVE

June 28 123

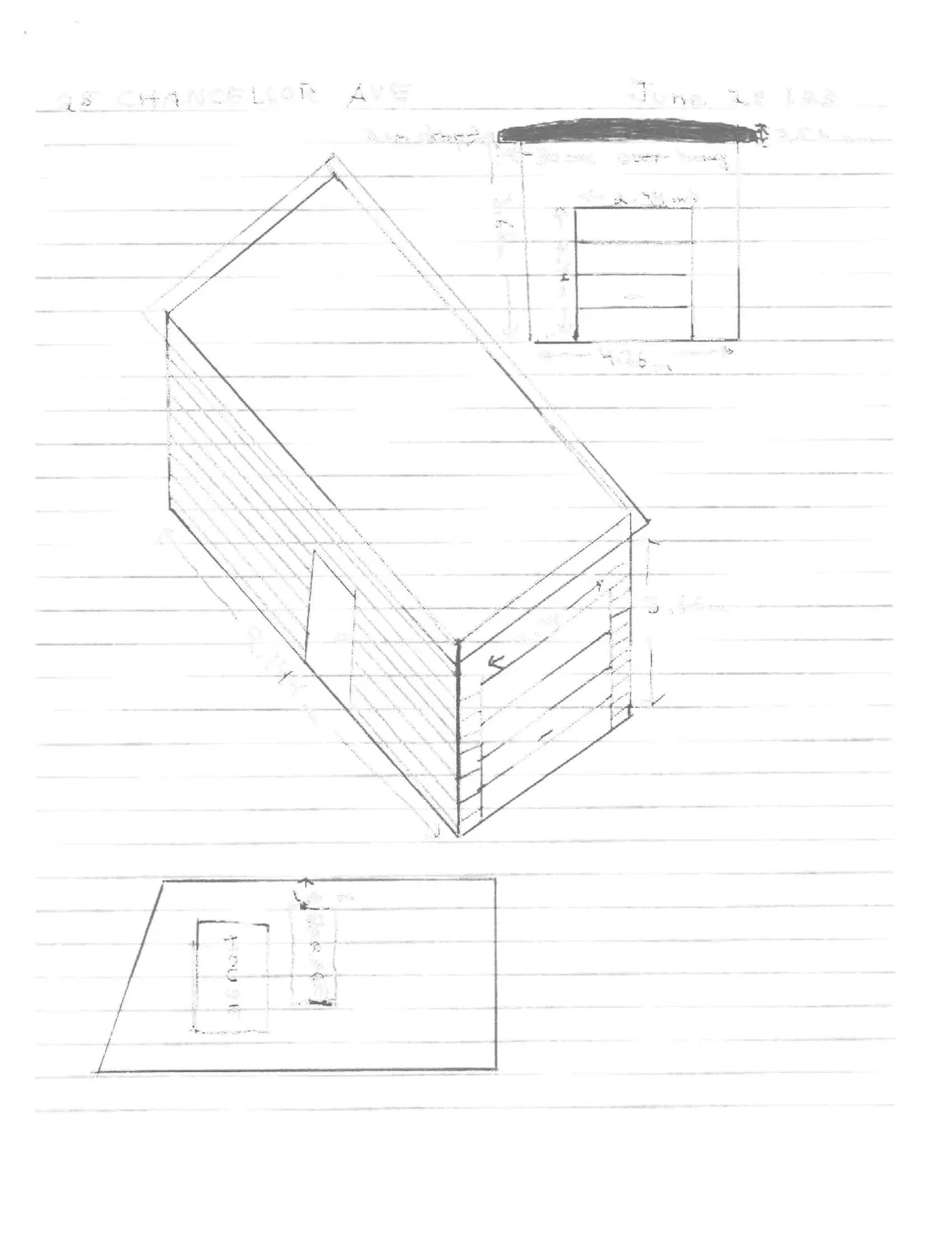

Hand-drawn architectural sketches of a proposed garage, including a 3D perspective, front elevation, and site layout
Hand-drawn architectural sketches of a proposed garage, including a 3D perspective, front elevation, and site layout

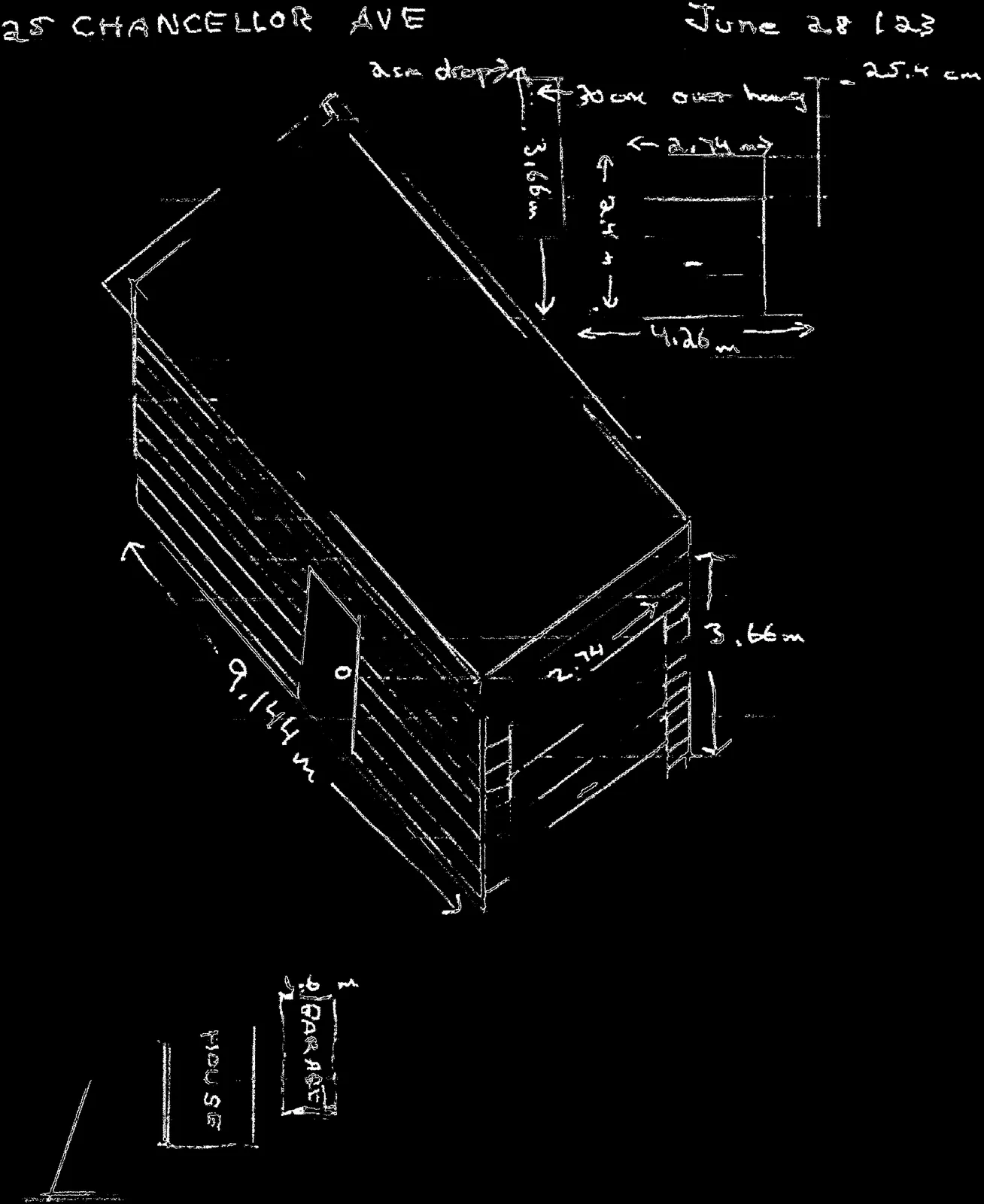

High-contrast version of the garage architectural sketches
High-contrast version of the garage architectural sketches

Garage Dimensions and Layout

Front Elevation (Top Right Diagram):

  • Total Width: 4.26 m
  • Total Height: 3.66 m
  • Garage Door: 2.74 m (width) x 2.44 m (height)
  • Overhang: 30 cm
  • Fascia/Trim: 25.4 cm
  • Notes: asm drop

3D Perspective Diagram:

  • Total Length: 9.144 m
  • Total Height: 3.66 m
  • Front Garage Door Width: 2.74 m

Site Plan (Bottom Diagram):

  • Diagram indicating the positioning of the "HOUSE" and the "GARAGE" on the property.

Construction Specifications

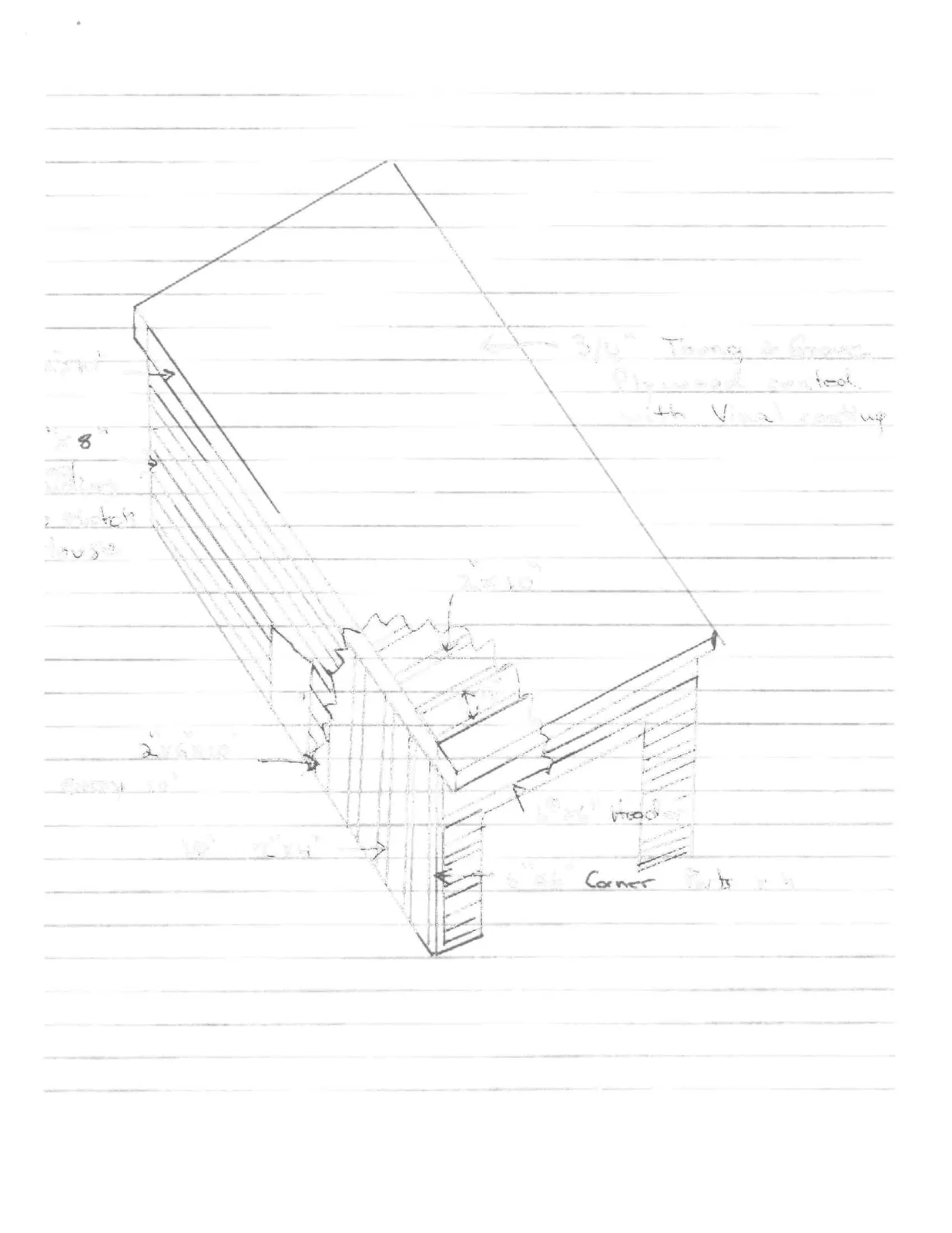

Hand-drawn structural cutaway diagram of the garage detailing framing, roofing, and siding materials
Hand-drawn structural cutaway diagram of the garage detailing framing, roofing, and siding materials

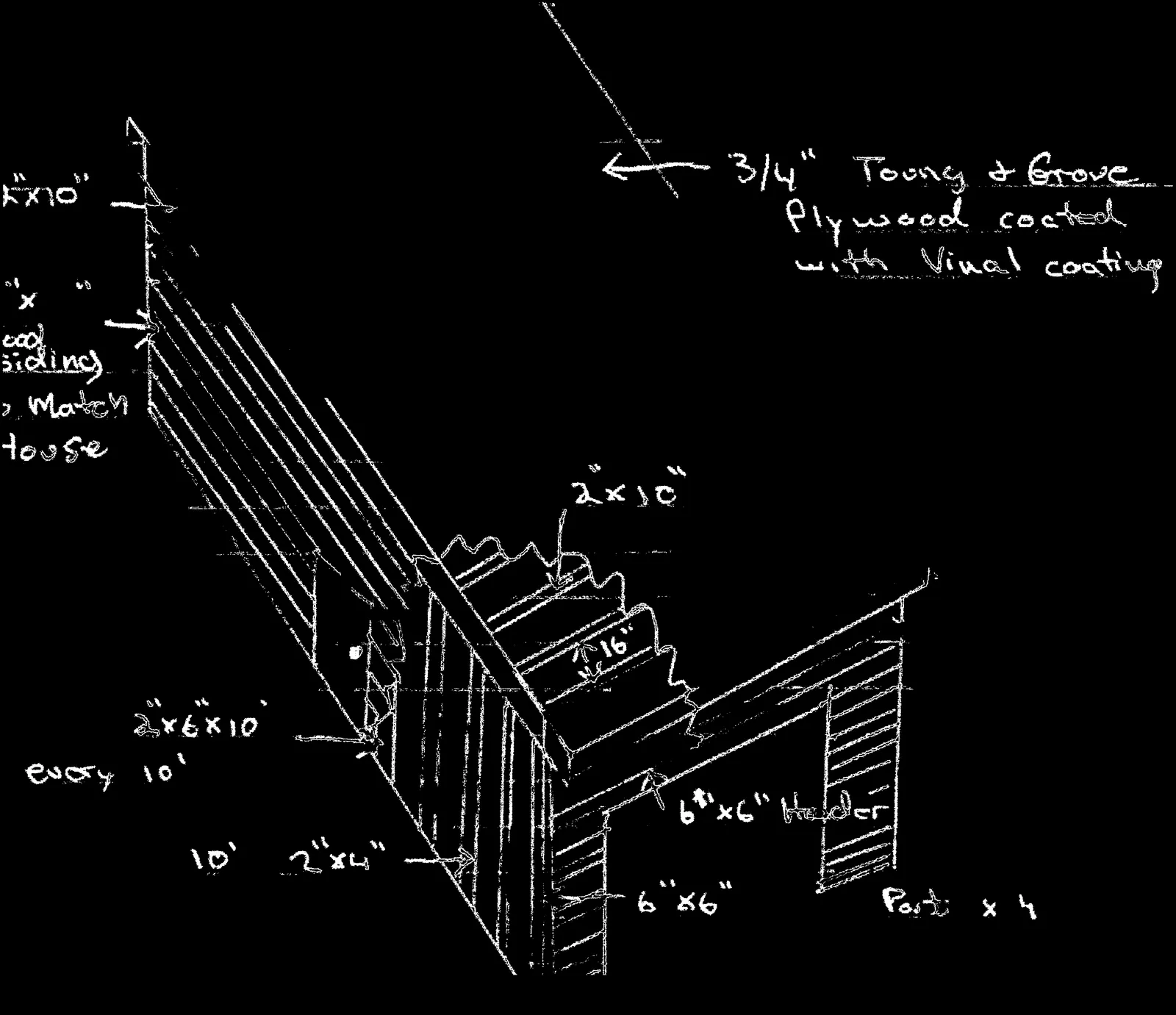

High-contrast version of the structural cutaway diagram
High-contrast version of the structural cutaway diagram
  • Roofing: 3/4" Toung & Grove Plywood coated with Vinal coating
  • Rafters: 2" x 10" rafters spaced at 16"
  • Siding: 1" x 10" and 1" x 8" wood siding to Match house
  • Wall Framing: 2" x 6" x 10' studs every 10'
  • Header: 6" x 6" Header
  • Corner Posts: 6" x 6" Corner Posts x 4
  • Base Plate: 10' 2" x 4"
