CROSS SECTION NEW DECK

May 11, 2021Page 1201 section

Technical cross-section drawing of the proposed deck construction and foundation.

2. APPROVAL OF AGENDA (motion to approve)
Scale: 3/16" = 1 ft16'0" deck width16"x 16"x 8" concrete footing specified

CROSS SECTION NEW DECK

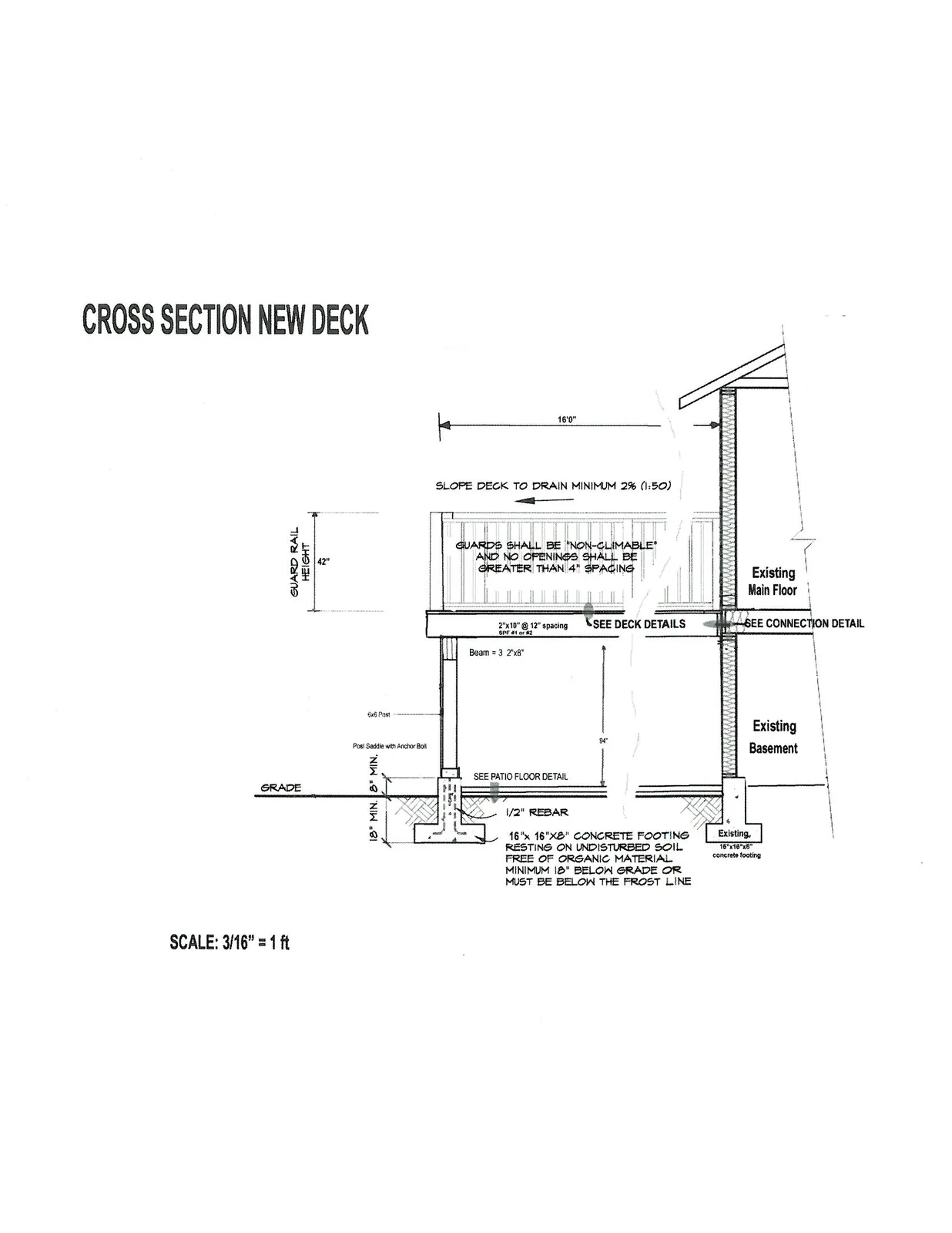

Architectural cross-section drawing of a new deck attached to an existing residence, detailing structural components, dimensions, and building specifications.
Architectural cross-section drawing of a new deck attached to an existing residence, detailing structural components, dimensions, and building specifications.

Scale: 3/16" = 1 ft

Deck and Guard Specifications:

  • Width: 16'0"
  • Slope: Slope deck to drain minimum 2% (1:50)
  • Guard Rail Height: 42"
  • Guard Construction: Guards shall be "non-climbable" and no openings shall be greater than 4" spacing.
  • Joists: 2"x10" @ 12" spacing SPF #1 or #2 (See Deck Details)
  • Beam: 3 2"x8"
  • Connection: See Connection Detail

Foundation and Support:

  • Posts: 6x6 Post
  • Anchorage: Post Saddle with Anchor Bolt
  • Vertical Clearance: 94" (from patio floor to beam)
  • Patio: See Patio Floor Detail
  • Footing: 16" x 16" x 8" concrete footing
    • Reinforced with 1/2" REBAR
    • Requirements: Resting on undisturbed soil free of organic material. Minimum 18" below grade or must be below the frost line.
    • Dimensions: 18" MIN. depth below grade; 8" MIN. footing thickness.

Existing Construction:

  • Existing Main Floor
  • Existing Basement
  • Existing 16"x16"x8" concrete footing (under basement wall)
