Landscape Plan - 315 Stewart Avenue
June 8, 2021Page 2371 section
A detailed landscaping design plan showing proposed retaining walls, patio area, and native plant substitutions within the Development Permit Area.
Proposed: 5m x 5m patio areaIncludes plant schedule with species like Douglas-fir, saskatoon, and salal

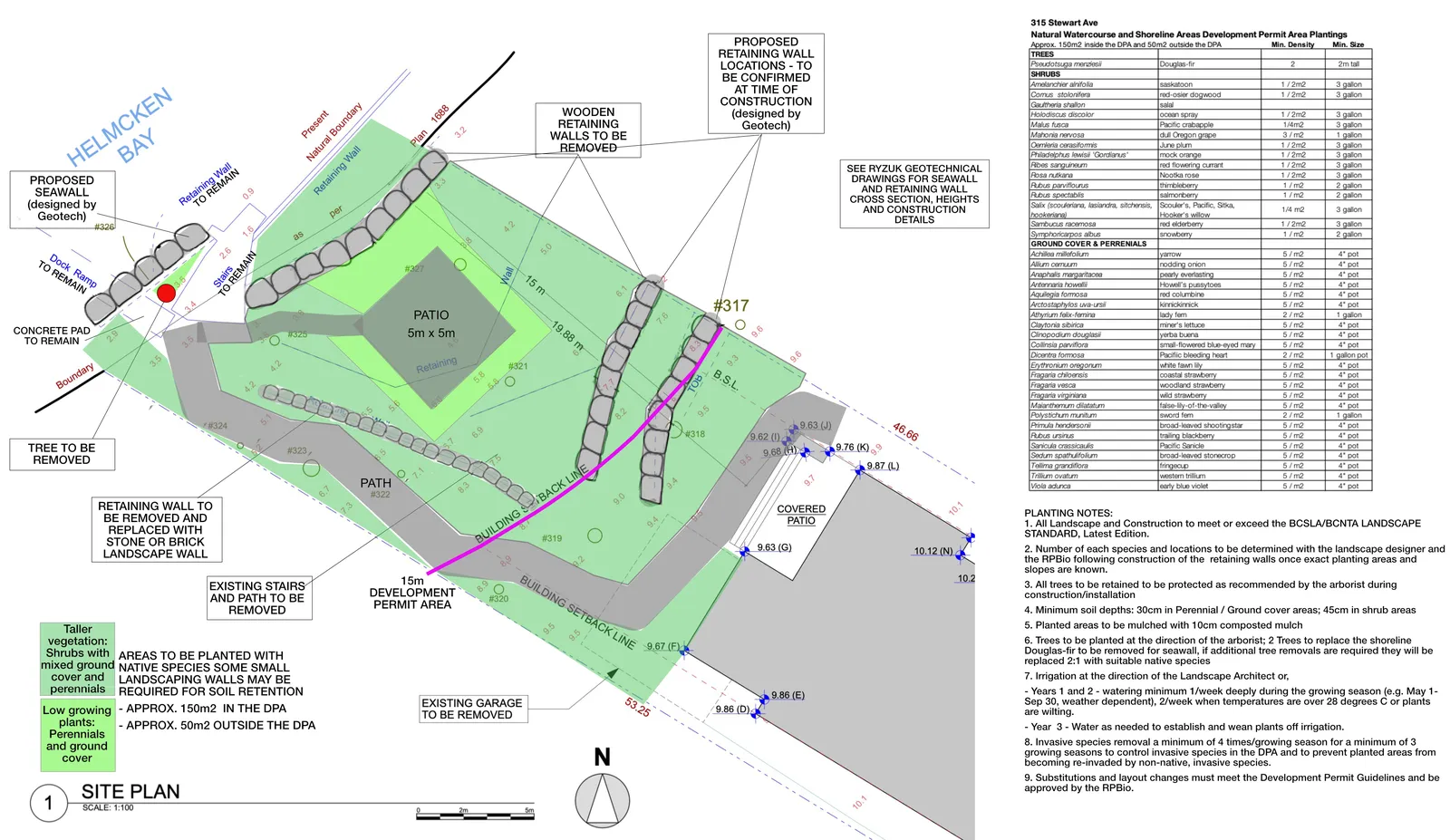

SITE PLAN
Map Labels and Legend:
- HELMKCEN BAY
- PROPOSED SEAWALL (designed by Geotech)
- Dock Ramp TO REMAIN
- CONCRETE PAD TO REMAIN
- TREE TO BE REMOVED
- RETAINING WALL TO BE REMOVED AND REPLACED WITH STONE OR BRICK LANDSCAPE WALL
- EXISTING STAIRS AND PATH TO BE REMOVED
- 15m DEVELOPMENT PERMIT AREA
- PATIO 5m x 5m
- BUILDING SETBACK LINE
- EXISTING GARAGE TO BE REMOVED
- WOODEN RETAINING WALLS TO BE REMOVED
- PROPOSED RETAINING WALL LOCATIONS - TO BE CONFIRMED AT TIME OF CONSTRUCTION (designed by Geotech)
- SEE RYZUK GEOTECHNICAL DRAWINGS FOR SEAWALL AND RETAINING WALL CROSS SECTION, HEIGHTS AND CONSTRUCTION DETAILS
- COVERED PATIO
- Taller vegetation: Shrubs with mixed ground cover and perennials - AREAS TO BE PLANTED WITH NATIVE SPECIES SOME SMALL LANDSCAPING WALLS MAY BE REQUIRED FOR SOIL RETENTION
- Low growing plants: Perennials and ground cover - APPROX. 150m2 IN THE DPA; APPROX. 50m2 OUTSIDE THE DPA
315 Stewart Ave
Natural Watercourse and Shoreline Areas Development Permit Area Plantings
Approx. 150m2 inside the DPA and 50m2 outside the DPA
| TREES | Common Name | Min. Density | Min. Size |
|---|---|---|---|
| Pseudotsuga menziesii | Douglas-fir | 2 | 2m tall |
| SHRUBS | |||
| Amelanchier alnifolia | saskatoon | 1 / 2m2 | 3 gallon |
| Cornus stolonifera | red-osier dogwood | 1 / 2m2 | 3 gallon |
| Gaultheria shallon | salal | 1 / 2m2 | 3 gallon |
| Holodiscus discolor | ocean spray | 1 / 2m2 | 3 gallon |
| Malus fusca | Pacific crabapple | 1 / 2m2 | 3 gallon |
| Mahonia nervosa | dull Oregon grape | 3 / m2 | 1 gallon |
| Oemleria cerasiformis | June plum | 1 / 2m2 | 3 gallon |
| Philadelphus lewisii 'Gordianus' | mock orange | 1 / 2m2 | 2 gallon |
| Ribes sanguineum | red flowering currant | 1 / 2m2 | 3 gallon |
| Rosa nutkana | Nootka rose | 1 / 2m2 | 2 gallon |
| Rubus parviflorus | thimbleberry | 1 / m2 | 2 gallon |
| Rubus spectabilis | salmonberry | 1 / m2 | 2 gallon |
| Salix (scouleriana, lasiandra, sitchensis, hookeriana) | Scouler's, Pacific, Sitka, Hooker's willow | 1 / 4 m2 | 3 gallon |
| Sambucus racemosa | red elderberry | 1 / 2m2 | 3 gallon |
| Symphoricarpos albus | snowberry | 1 / m2 | 2 gallon |
| GROUND COVER & PERENNIALS | |||
| Achillea millefolium | yarrow | 5 / m2 | 4" pot |
| Allium cernuum | nodding onion | 5 / m2 | 4" pot |
| Anaphalis margaritacea | pearly everlasting | 5 / m2 | 4" pot |
| Artemisia howellii | Howell's pussytoes | 5 / m2 | 4" pot |
| Aquilegia formosa | red columbine | 5 / m2 | 4" pot |
| Arctostaphylos uva-ursi | kinnikinnick | 5 / m2 | 4" pot |
| Athyrium felix-femina | lady fern | 2 / m2 | 1 gallon |
| Claytonia sibirica | miner's lettuce | 5 / m2 | 4" pot |
| Clinopodium douglasii | yerba buena | 5 / m2 | 4" pot |
| Collinsia parviflora | small-flowered blue-eyed mary | 5 / m2 | 4" pot |
| Dicentra formosa | Pacific bleeding heart | 2 / m2 | 1 gallon pot |
| Erythronium oregonum | white fawn lily | 5 / m2 | 4" pot |
| Fragaria chiloensis | coastal strawberry | 5 / m2 | 4" pot |
| Fragaria vesca | woodland strawberry | 5 / m2 | 4" pot |
| Fragaria virginiana | wild strawberry | 5 / m2 | 4" pot |
| Maianthemum dilatatum | false-lily-of-the-valley | 5 / m2 | 4" pot |
| Polystichum munitum | sword fern | 2 / m2 | 1 gallon |
| Primula hendersonii | broad-leaved shootingstar | 5 / m2 | 4" pot |
| Rubus ursinus | trailing blackberry | 5 / m2 | 4" pot |
| Sanicula crassicaulis | Pacific Sanicle | 5 / m2 | 4" pot |
| Sedum spathulifolium | broad-leaved stonecrop | 5 / m2 | 4" pot |
| Tellima grandiflora | fringecup | 5 / m2 | 4" pot |
| Trillium ovatum | western trillium | 5 / m2 | 4" pot |
| Viola adunca | early blue violet | 5 / m2 | 4" pot |
PLANTING NOTES:
- All Landscape and Construction to meet or exceed the BCSLA/BCNTA LANDSCAPE STANDARD, Latest Edition.
- Number of each species and locations to be determined with the landscape designer and the RPBio following construction of the retaining walls once exact planting areas and slopes are known.
- All trees to be retained to be protected as recommended by the arborist during construction/installation.
- Minimum soil depths: 30cm in Perennial / Ground cover areas; 45cm in shrub areas.
- Planted areas to be mulched with 10cm composted mulch.
- Trees to be planted at the direction of the arborist; 2 Trees to replace the shoreline Douglas-fir to be removed for seawall, if additional tree removals are required they will be replaced 2:1 with suitable native species.
- Irrigation at the direction of the Landscape Architect or,
- Years 1 and 2 - watering minimum 1/week deeply during the growing season (e.g. May 1- Sep 30, weather dependent), 2/week when temperatures are over 28 degrees C or plants are wilting.
- Year 3 - Water as needed to establish and wean plants off irrigation.
- Invasive species removal a minimum of 4 times/growing season for a minimum of 3 growing seasons to control invasive species in the DPA and to prevent planted areas from becoming re-invaded by non-native, invasive species.
- Substitutions and layout changes must meet the Development Permit Guidelines and be approved by the RPBio.
