LANDSCAPE PLAN EAST SITE L4

WESTURBAN DEVELOPMENTS - Erskine Lane

Drawing No: L 4 Date: May 10, 2020 Scale: 1:300 METERS Drawn By: LS/SD

The Landscape Plan for the East Site features two primary residential structures:

The site includes various amenity areas, gardens, and natural pathways.

Healing Garden: A selection of perennial herbs and medicinal plants located in the feature front garden, with open dirt plot spaces for resident gardening.

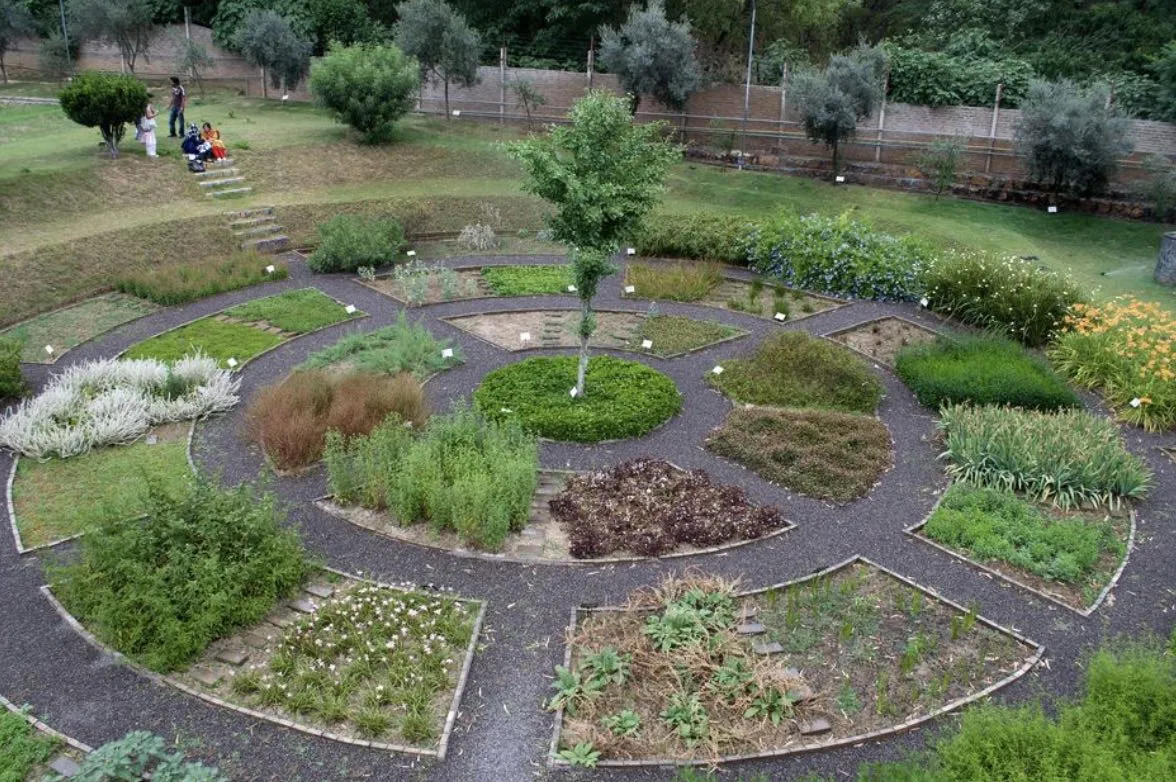

- Circular medicinal herb and perennial garden layout

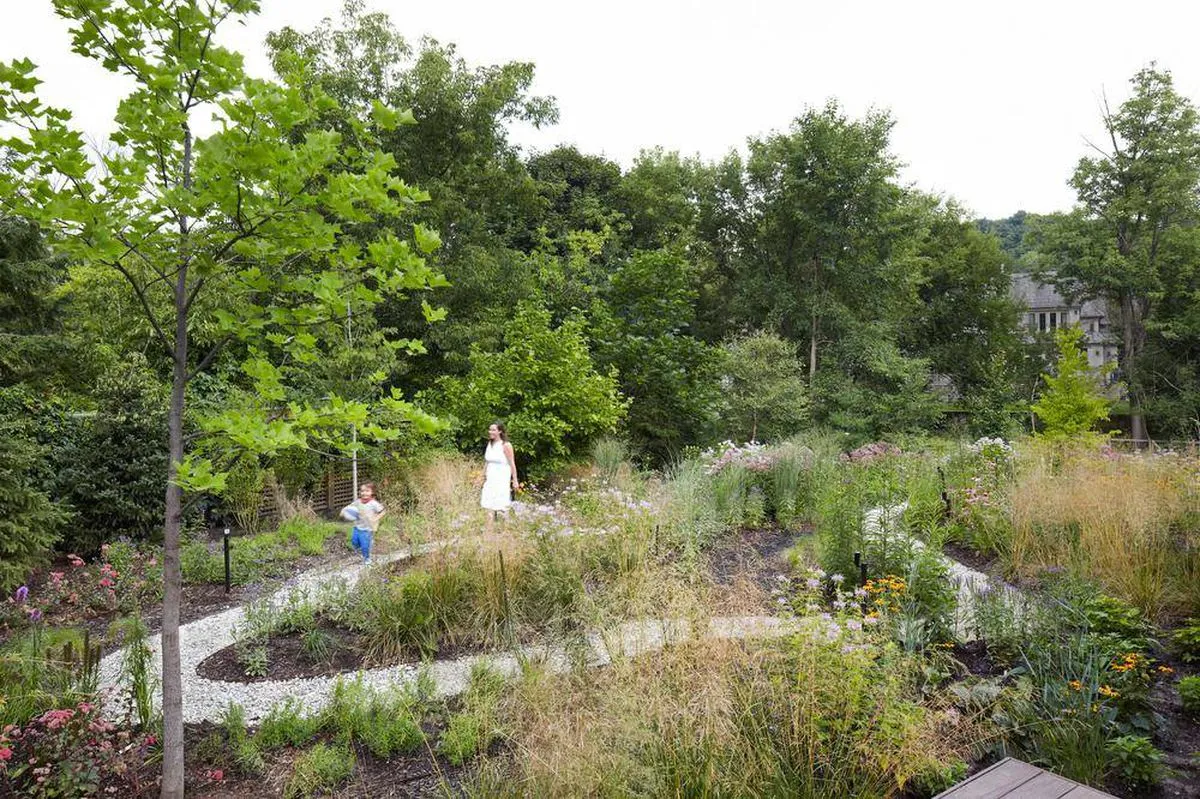

- Naturalized meadow planting with informal walking path
Feature Seating: A long bench seat feature set located in the center of the main amenity patio area.

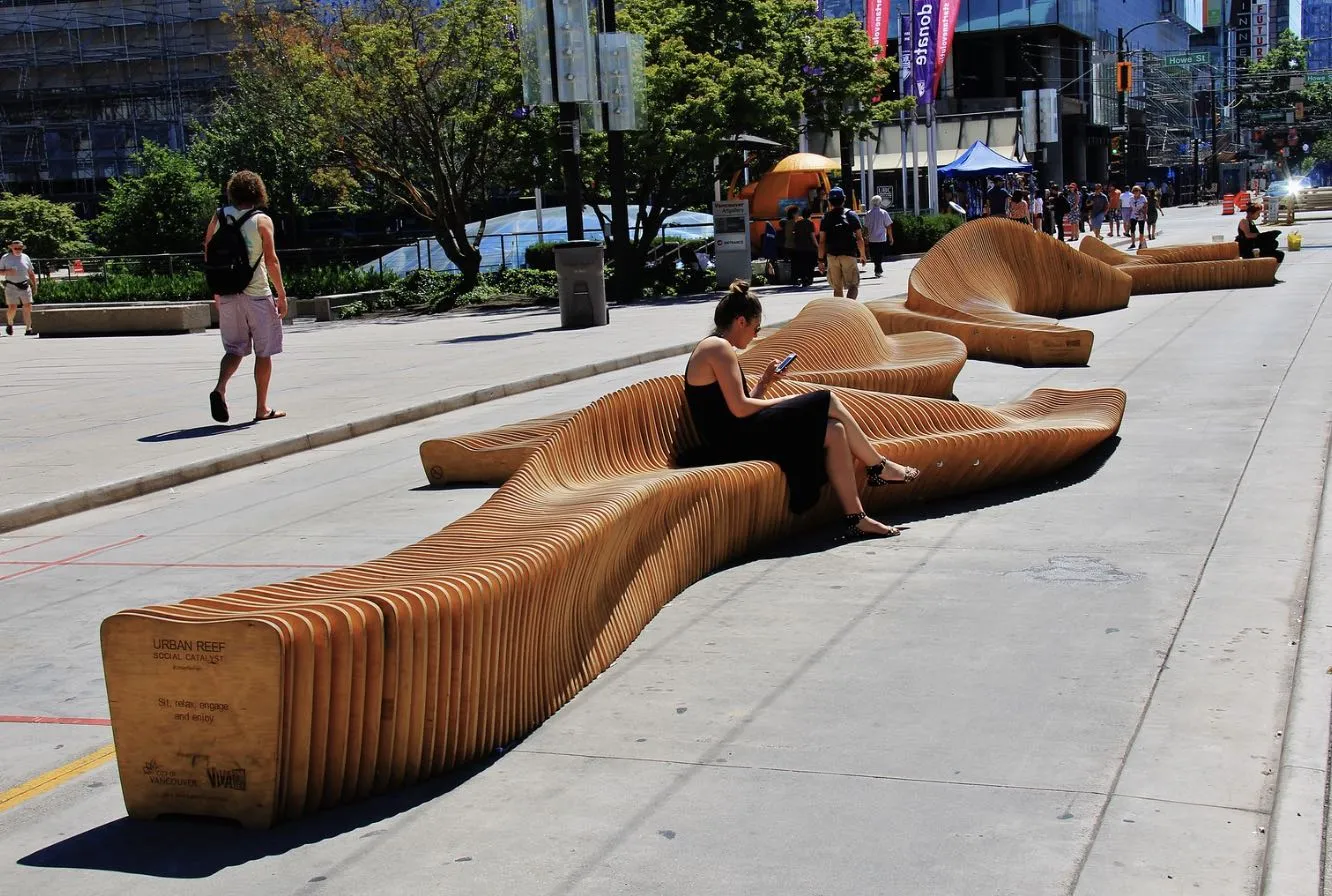

- Large-scale wavy wooden bench feature in a public space

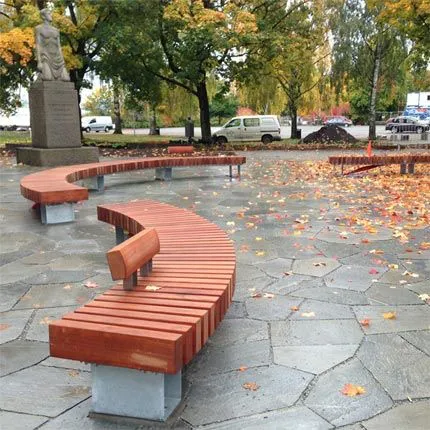

- Curved slatted wood benches on a stone plaza
Resident Gardening Corner: Features 2' x 2' x 4' and 2' x 2' x 6' aluminum horse trough containers set on a crush gravel surface over the parking slab. Includes a chain link fence surround for fall and deer protection.

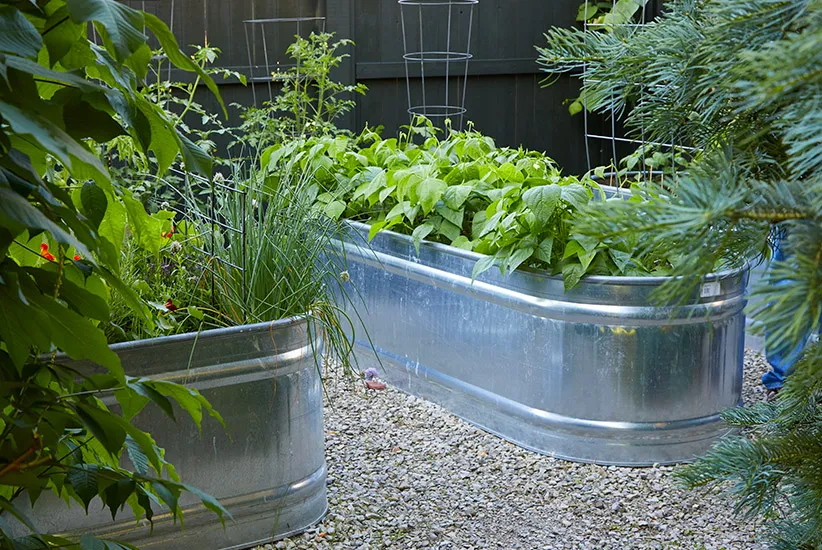

- Aluminum horse trough vegetable garden planters

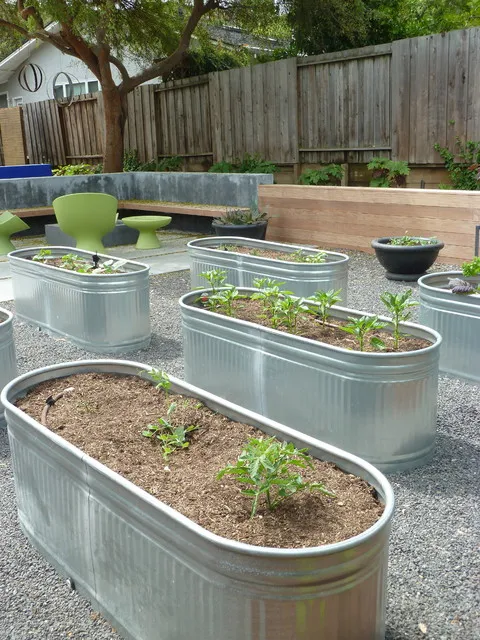

- Group of galvanized metal trough planters on gravel
Discovery Nature Walk: (Idea could be incorporated into both sites). Potential gravel surface walking trail winding through the forest. To be site-fit to create accessible access to the natural forested area under arborist supervision.

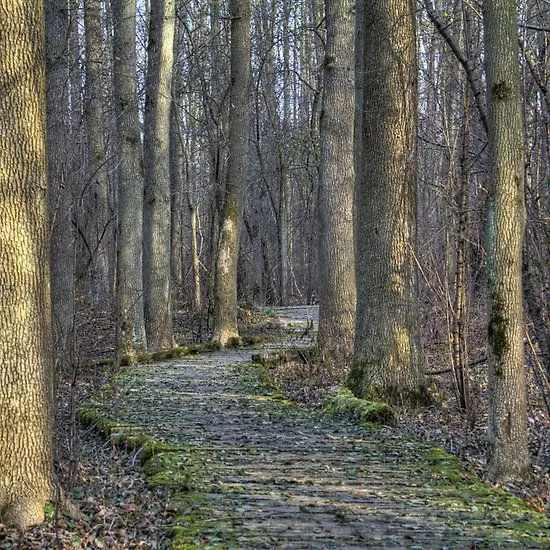

- Moss-covered wooden boardwalk or stone path through a forest
- Person in a wheelchair navigating a natural forest trail
Open Lawn & Play Area: Located in Lot B, adjacent to Building D.
Dog Run: Located near Building C and the retained existing vegetation.
Main Entries: Access points for both Building C and Building D.
Service Areas: Dedicated garbage and recycle area with loading zones.

Symbol	Description
CS	Brushed Concrete, Patterns TBD - Refer to Civil Eng. Dwgs.
(Pattern)	Proposed ROW Sidewalk - Refer to Civil For Details
(Pattern)	Compacted 3/4" Crush Rock For Informal Walkways & Dog Runs
(Pattern)	Planting Beds c/w 60 mm Bark Mulch on Filter Fabric on Approved Growing Medium At Specified Depths (450 mm minimum For Shrubs & 750 mm minimum For Trees). For both on and off slab conditions.
(Pattern)	Sedum Feature Planting Display c/w 150 mm Depth Approved Growing Medium On Slab.
LAWN	Seeded Lawn Areas c/w 150 mm Min. Depth of Approved Growing Medium
(Pattern)	Existing Vegetation Area To Be Retained
(Pattern)	Decorative (1" - 3") Washed Round Cobble Rock Groundcover Sized Cobble TBD With Detailed Design To Coordinate With On Slab Drainage
(Boulders)	Feature Decorative Boulders as Locally Available & Sourced From Site. Size Range 600mm - 1200mm.
(Wall)	Boulder Rock Stack Retaining Walls, Utilizing Rock From Site. *Refer to Eng. For Final Wall Design, Location & Details.
(Fence 1)	Black Vinyl Coated Chain Link Fence 5' Ht.
(Fence 2)	Rough Cedar Wood Fence / Fall Protection 4' Ht.
(Marker)	Indicates Location of Waypoint ID Pin. For Existing Trees To Be Retained If Possible INSIDE & OUTSIDE BUILDING ENVELOPE. Refer To MJR Tree Report For Detailed Information.

Raised Planters Over Underground Parking On Slab (3 Types):

Powder Coated Metal Style, Insulated for 4 Season Planting - Approx Size 24" x 72"
CIP Concrete Tree Planter, Insulated for 4 Season Planting - Approx Size 1.2m x 2.5m (1 m ht.)
Aluminum Horse Trough Vegetable Garden Planters - 2 Sizes - 2' x 2' x 4' & 6' Set On Crush Gravel On Slab

Site Furniture & Features:

Bench Seating - Wood or Wood Composite Construction
Bike Racks - Dero Rolling Rack or Approved Equivalent. Colour TBD to Complement Building Character.
Decorative Screen Feature, With Semi Transparent Style For Screening Between Parking & Mini Plaza Spaces
Light Bollard or Interpretive Signage 36" Height
Bench Feature Style & Colour TBD
Existing Contours For Reference Only
Proposed New On Site Trees: TOTAL PROPOSED 238
Proposed New Trees in ROW (TO BE APPROVED BY CITY): TOTAL PROPOSED 12

Date	Revisions	By
May 20 2020	Preliminary Draft issued for Review	LS/SS
May 22 2020	SUBMISSION 1 FOR REVIEW	LS
AUG 7 2020	FOR REZONING	LS

NOTE: ALL WORK AND MATERIALS SHALL BE TO BCSLA / CNLA STANDARDS
