APPENDIX V

Page 481–485

Photographs

Phase I Environmental Site Assessment 9 Erskine Lane, View Royal, British Columbia Pinchin File: 243564.000

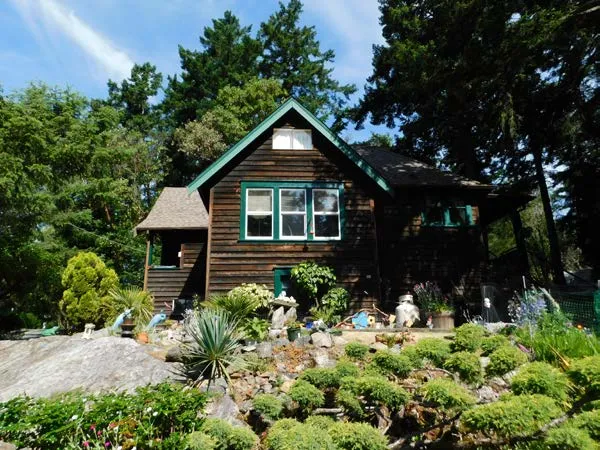

View of the south elevation of Site Building A.
View of the south elevation of Site Building A.
Photo 1 – View of the south elevation of Site Building A.

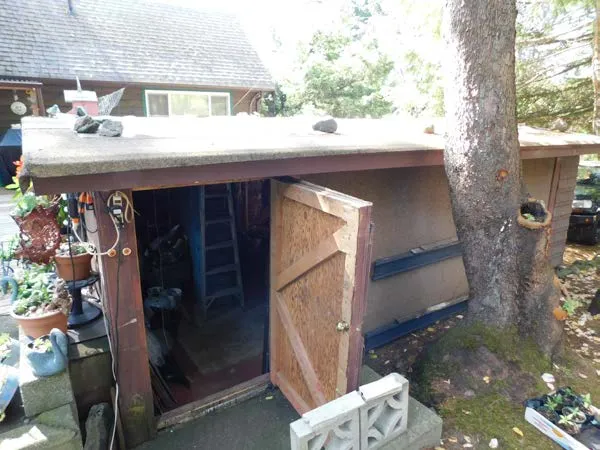

West elevation of Site Building B.
West elevation of Site Building B.
Photo 2 – West elevation of Site Building B.

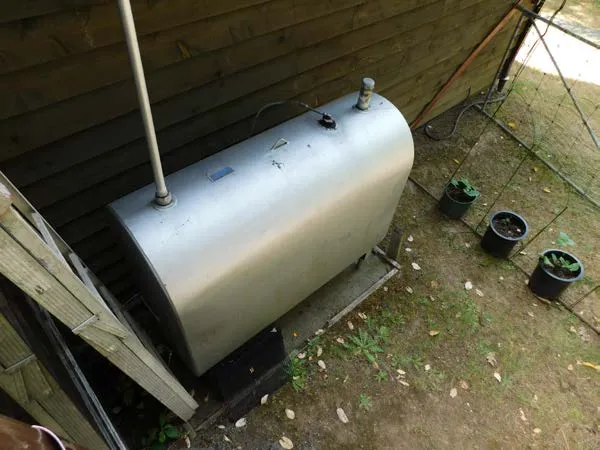

Heating oil AST adjacent to the west wall of Site Building A.
Heating oil AST adjacent to the west wall of Site Building A.
Photo 3 – Heating oil AST adjacent to the west wall of Site Building A.

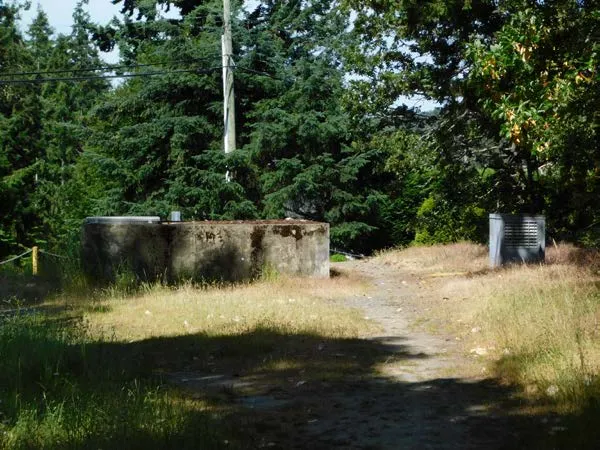

Municipal water line and associated infrastructure constructed through the Site.
Municipal water line and associated infrastructure constructed through the Site.
Photo 4 – Municipal water line and associated infrastructure constructed through the Site, as well as the northern portion of the Site.

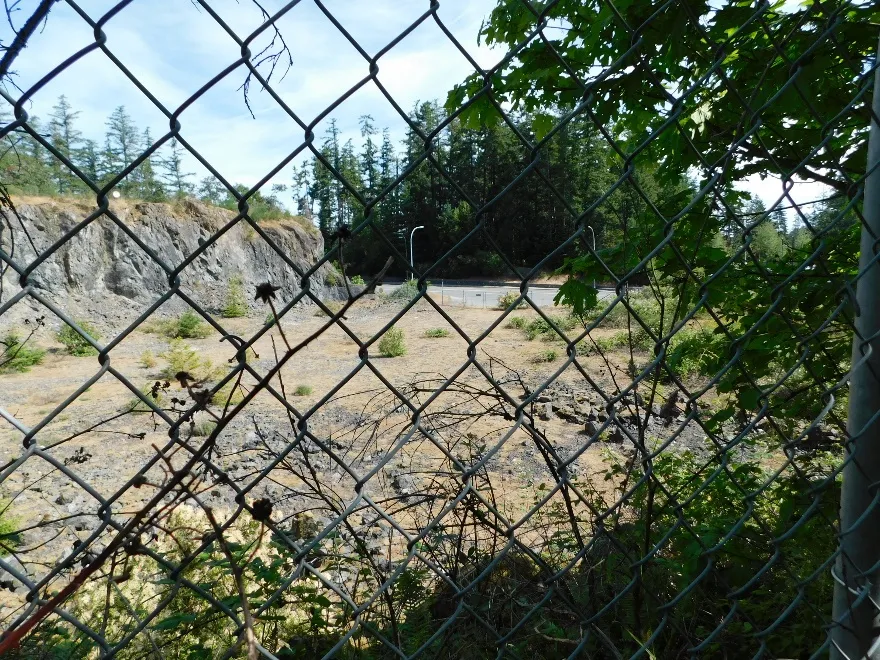

Properties located north of the Site.
Properties located north of the Site.
Photo 5 – Properties located north of the Site.

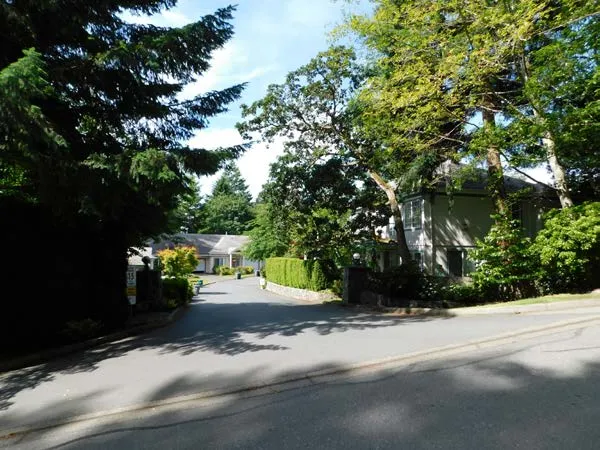

Properties located south of the Site.
Properties located south of the Site.
Photo 6 – Properties located south of the Site.

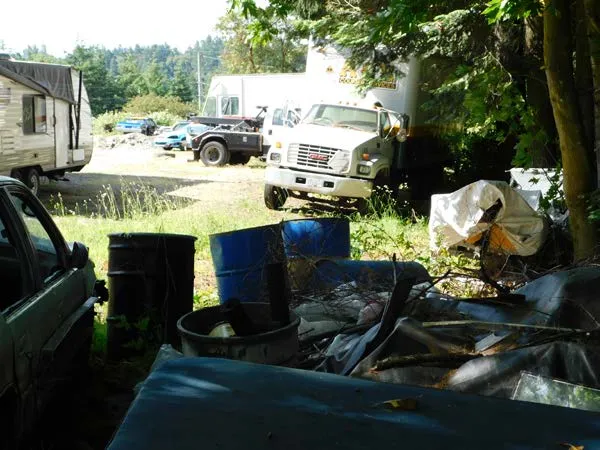

Properties located east of the Site.
Properties located east of the Site.
Photo 7 – Properties located east of the Site.

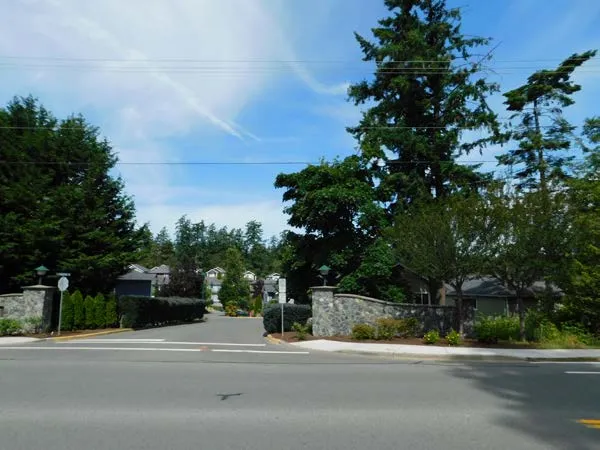

Properties located west of the Site.
Properties located west of the Site.
Photo 8 – Properties located west of the Site.
