LAW RESIDENCE EXTERIOR CONCRETE STAIRS

EXTERIOR CONCRETE STAIRS - LAW RESIDENCE

Project Information

• Project: LAW RESIDENCE
• Address: 275 KENWOOD RD, VIEW ROYAL, BC
• Date: MAY 29, 2020
• Drawing Number: A18
• Scale: AS SHOWN
• Drawn By: RP

General Notes

• REPRODUCTION NOTE: THESE DRAWINGS ARE MEANT TO BE PRINTED IN COLOUR FOR CLARITY. ONE LAMINATED SET & A UNSEALED REFERENCE SET TO BE KEPT ON-SITE.
• NOTE: REFER TO STRUCTURAL PLANS FOR ALL WALL THICKNESSES, FOOTINGS & REINFORCEMENT.
• COPYRIGHT KEITH BAKER DESIGN INC.

Drawing Details

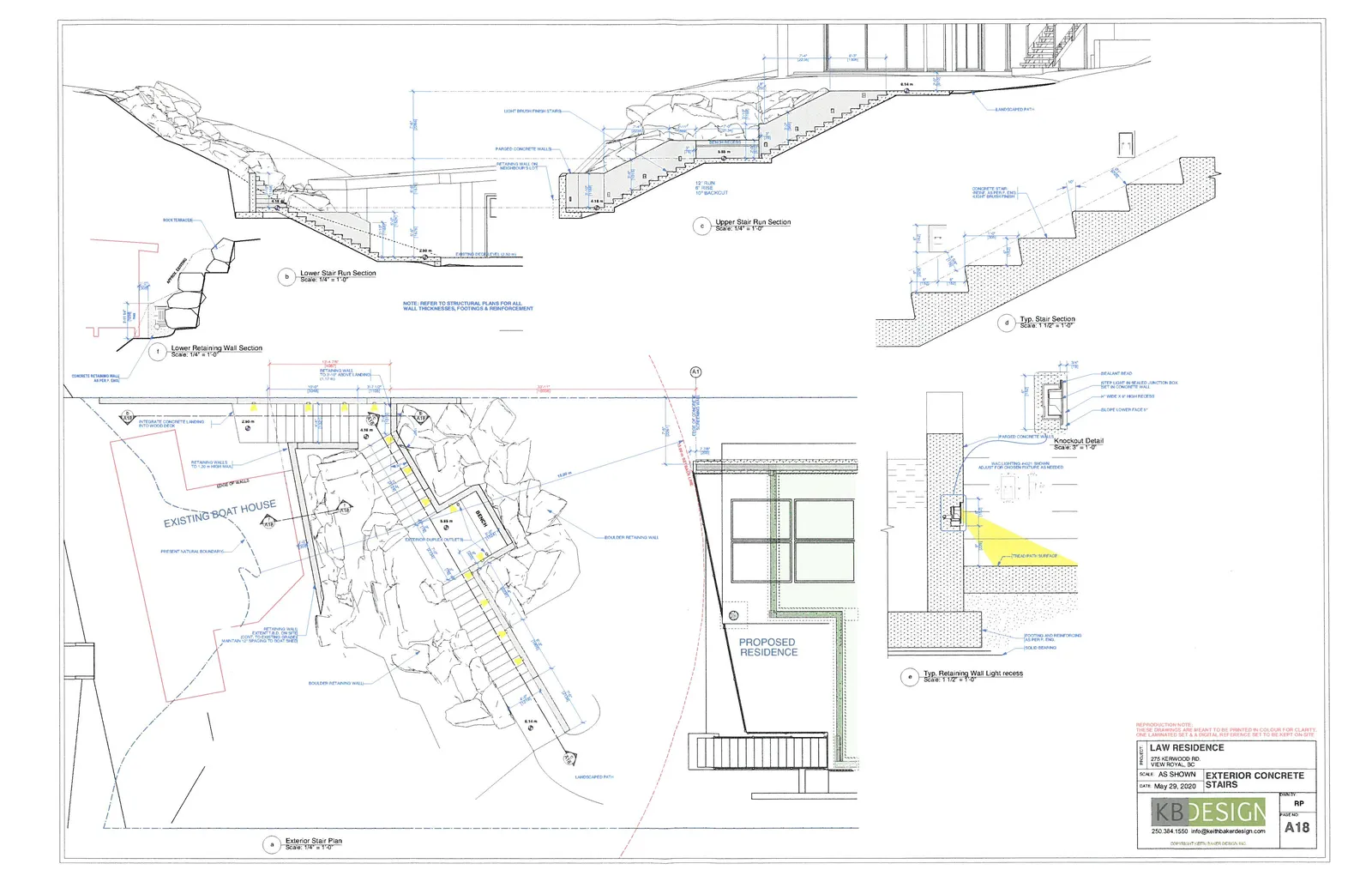

a. Exterior Stair Plan

• Scale: 1/4" = 1'-0"
• Key Features:
  • Existing Boat House
  • Proposed Residence
  • Landscaped Path
  • Boulder Retaining Wall
  • Bench
  • Exterior Duplex Outlets
  • Retaining Walls (to 1.20 m high max)

b. Lower Stair Run Section

• Scale: 1/4" = 1'-0"
• Key Features:
  • Rock Terrace
  • Light Brush Finish Stairs
  • Parged Concrete Walls
  • Retaining Wall on Neighbour's Lot

c. Upper Stair Run Section

• Scale: 1/4" = 1'-0"
• Key Features:
  • 12" Run / 6" Rise
  • 10" Backout
  • Landscaped Path
  • Concrete Stair Reinforcing as per P. Eng. (Light Brush Finish)

d. Typ. Stair Section

• Scale: 1 1/2" = 1'-0"
• Details: Cross-section showing stair profile.

e. Typ. Retaining Wall Light recess

• Scale: 1 1/2" = 1'-0"
• Key Features:
  • Parged Concrete Wall
  • Path Lighting (Rigid-Brown) - Adjust for chosen fixture as needed
  • Tread/Path Surface
  • Footing and Reinforcing (As Per P. Eng)
  • Solid Bearing

Knockout Detail (Within Section E)

• Scale: 3" = 1'-0"
• Components:
  • Sealant Bead
  • Step Light in Sealed Junction Box Set in Concrete Wall
  • 3" Wide x 8" High Recess
  • Slope Lower Face 1"

f. Lower Retaining Wall Section

• Scale: 1/4" = 1'-0"
• Key Features:
  • Rock Terrace
  • Existing Grade
