Attachment 5. 2017 Original Site Concept

April 9, 2019Page 1351 section

Architectural rendering of the original 2017 development layout for the site.

2 APPROVAL OF AGENDA

4 Five-storey buildings260 units

2017 Original Site Concept

THETIS LAKE RESIDENTIAL

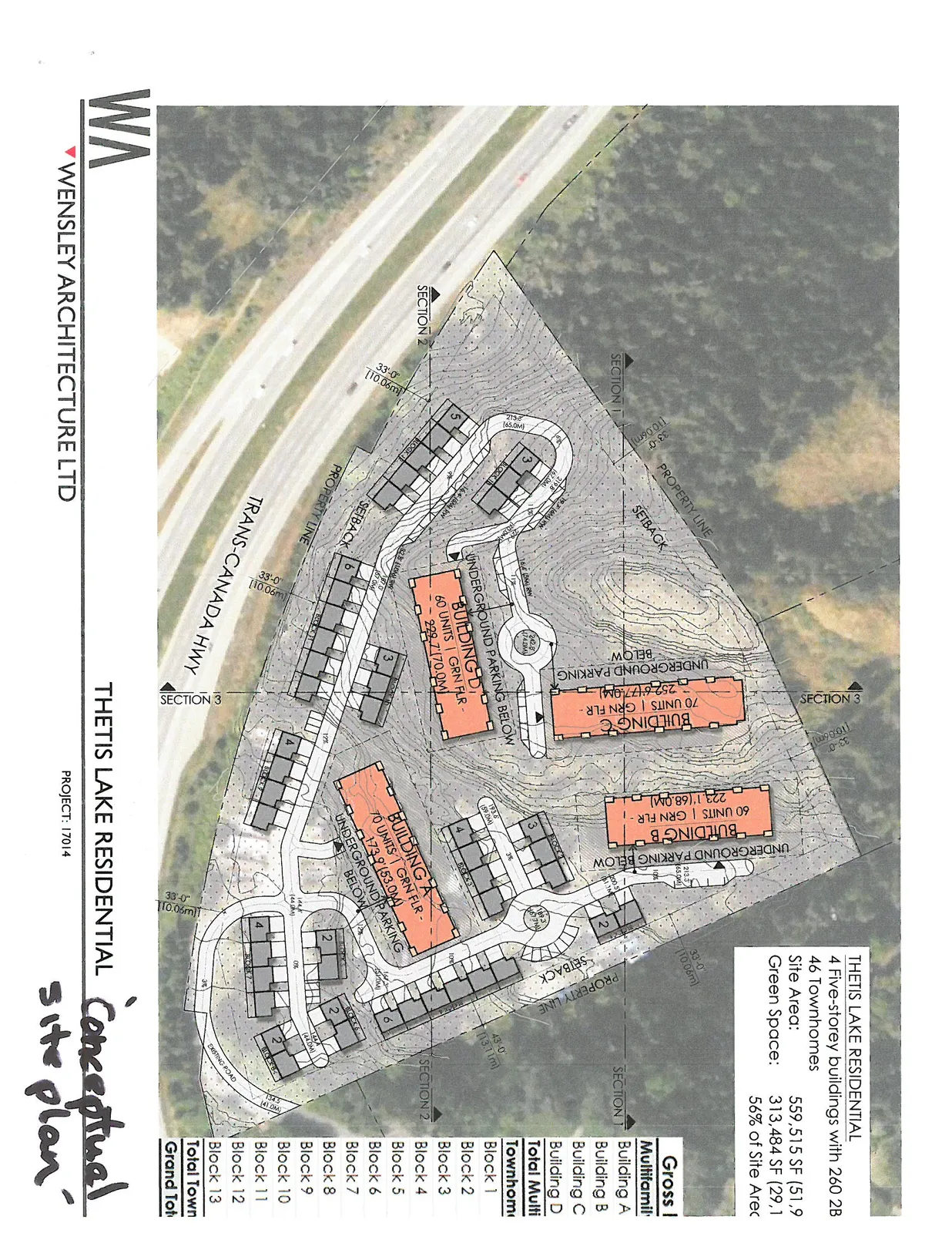

Conceptual site plan for Thetis Lake Residential, showing four five-storey multifamily buildings (labeled A through D) and 13 blocks of townhomes. The site is bounded by the Trans-Canada Highway and includes significant green space and underground parking.

Project Statistics

Metric	Value
Buildings	4 Five-storey buildings with 260 2B (2-bedroom units)
Townhomes	46 Townhomes
Site Area	559,515 SF (51,984 m²)
Green Space	313,484 SF (29,124 m²)
Percent Green Space	56% of Site Area

Unit Breakdown

Category	Description	Units
Multifamily	Building A	70 units
	Building B	60 units
	Building C	70 units
	Building D	60 units
	Total Multifamily	260
Townhomes	Block 1	3 units
	Block 2	2 units
	Block 3	3 units
	Block 4	6 units
	Block 5	5 units
	Block 6	6 units
	Block 7	6 units
	Block 8	2 units
	Block 9	2 units
	Block 10	4 units
	Block 11	4 units
	Block 12	2 units
	Block 13	1 unit
	Total Townhomes	46
Grand Total		306

Building Details from Site Plan

Building A: 70 UNITS | GRN FLR - 17,291.63 SQ. FT. | Underground Parking Below
Building B: 60 UNITS | GRN FLR - 22,311.68 SQ. FT. | Underground Parking Below
Building C: 70 UNITS | GRN FLR - 25,261.77 SQ. FT. | Underground Parking Below
Building D: 60 UNITS | GRN FLR - 22,217.00 SQ. FT. | Underground Parking Below

Architect: WENSLEY ARCHITECTURE LTD Project: 17014 Handwritten Note: Conceptual site plan
