Wall Plan and Elevation – Applicant – Undated

240 HELMCKEN ROAD

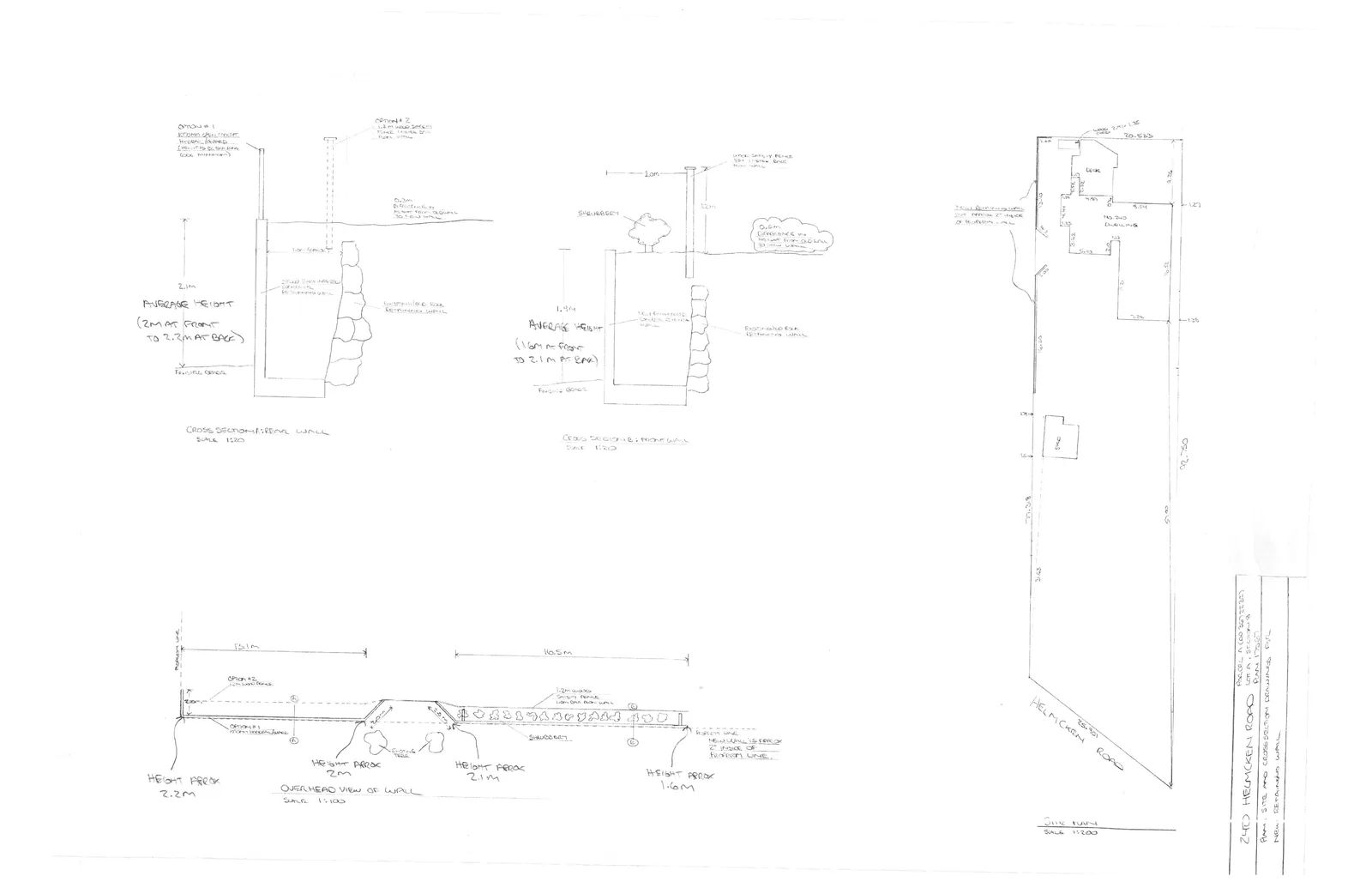

PLAN: SITE AND CROSS SECTION DRAWINGS FOR NEW RETAINING WALL

Property Information:

• Address: 240 Helmcken Road
• Legal Description: Parcel A (DD 367223I), Lot 4, Section 13
• PID: 005-475-618

---

Cross Section: Rear Wall

Scale: 1:20

• Average Height: 2.1m (2m at front to 2.2m at back)
• Option #1: 1.07m glass/metal safety fence bolted to new wall (COG requirement)
• Option #2: 1.2m wood safety fence timber posts bolted to new wall
• Structural Details:
  • New concrete retaining wall
  • Existing rock retaining wall
  • 0.1m difference in height from glass to new wall
  • Existing ground level

Cross Section: Front Wall

Scale: 1:20

• Average Height: 1.9m (1.6m at front to 2.1m at rear)
• Safety Fence: 1.2m wood safety fence timber posts bolted to new wall
• Structural Details:
  • New concrete retaining wall
  • Existing rock retaining wall
  • Shrubbery
  • 0.5m difference in height from rock to new wall
  • Existing ground level

---

Overhead View of Wall

Scale: 1:100

• Wall Segments: 13.1m and 16.5m
• Height Specifications:
  • Height Approx 2.2m
  • Height Approx 2m
  • Height Approx 2.1m
  • Height Approx 1.6m
• Notes:
  • New wall is approx 2' inside of property line.
  • Existing trees and shrubbery locations indicated.
  • Option #1 (1.07m glass/metal fence) and Option #2 (1.2m wood safety fence) locations noted.

---

Site Plan

Scale: 1:200

• Property Line Dimensions:
  • North: 20.583m
  • East: 72.750m
  • South (Helmcken Road): 20.901m
  • West: 77.318m
• Structures:
  • No. 240 Dwelling
  • Deck
  • Shed (approx. 3.66m x 3.66m)
• Proposed Work:
  • New retaining wall set approx 2' inside of property line along the western boundary.
