Eagle Nest Residences - Project Data

Page 82–103

Project Description

Civic Address: 3 Helmcken, 5 Helmcken, Lot 10 Helmcken 1449 Burnside Rd W

Legal Description:

  • Lot 1, Section 9, Esquimalt District Plan 3963, Except part in 18753
  • Lot 1, Section 9, Esquimalt District Plan 18753
  • Lot 2, Section 9, Esquimalt District Plan 3963
  • Lot 10, Block 5, Section 9, Esquimalt District Plan 1726

Registered Owner: 1179773 BC Ltd. 4548 Rocky Pt. Road Victoria, BC V9L 4C4

Architect: dHKarchitects 977 Fort Street Victoria, BC V8V 3K3 Peter de Hoog tel: 250-658-3367 pdh@dhk.ca

Landscape Architect: Murdoch de Greeff Inc. 200 - 524 Culduthel Road Victoria, BC V8Z 1G1 Scott Murdoch tel: 250-412-1891 scott@mdidesign.ca

Civil Consultant: McElhanney Consulting Services Ltd. 500 - 3960 Quadra Street Victoria, BC V8X 4A3 Nathan Dunlop tel: 250-370-9221 ndunlop@mcelhanney.com

Page 82–103

View Royal Bylaw Summary

Building Description: Four multi-unit residential buildings from 4 to 8 storeys above parkade. Pavilion in central green space.

Zone:

  • Existing: RM-1 Ground-Oriented Multiple Unit Residential
  • R-1 Detached Residential (Large Lot)

Development Statistics

Category Site Area 01 Site Area 02
Site Area 3,545 m² 10,255 m²
Floor Space Ratio (Proposed) 2.89 : 1 FSR (10,232 m²) 1.09 : 1 FSR (11,220 m²)
Floor Space Ratio (Combined) 1.57 : 1 FSR (21,452 m²) 1.57 : 1 FSR (21,452 m²)
Site Coverage (Proposed) 33% 29%
Impermeable Surface Coverage 46% 60%
Open Site Space 54% 40%

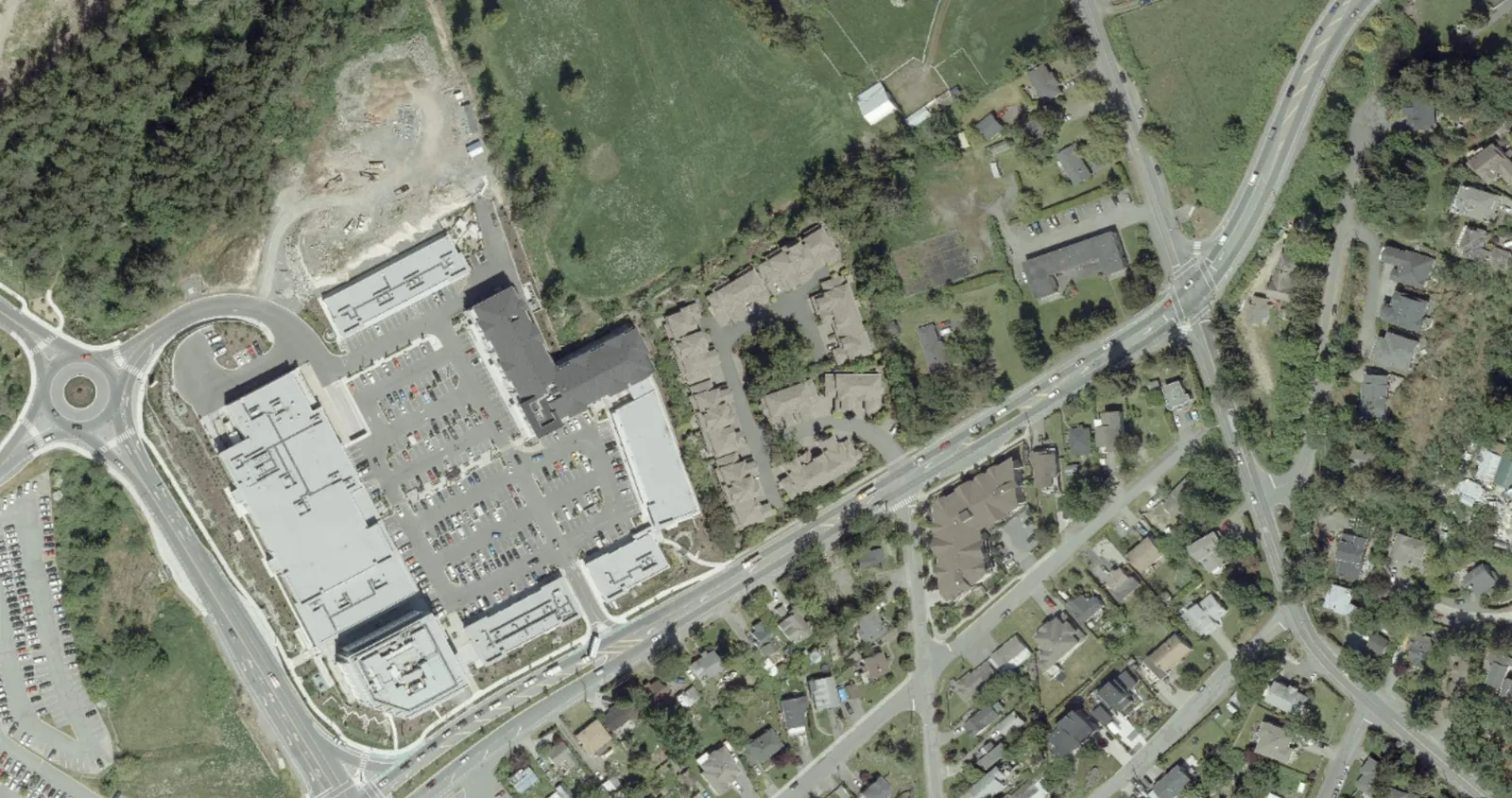

Context Plan - aerial view of the development site location
Context Plan - aerial view of the development site location

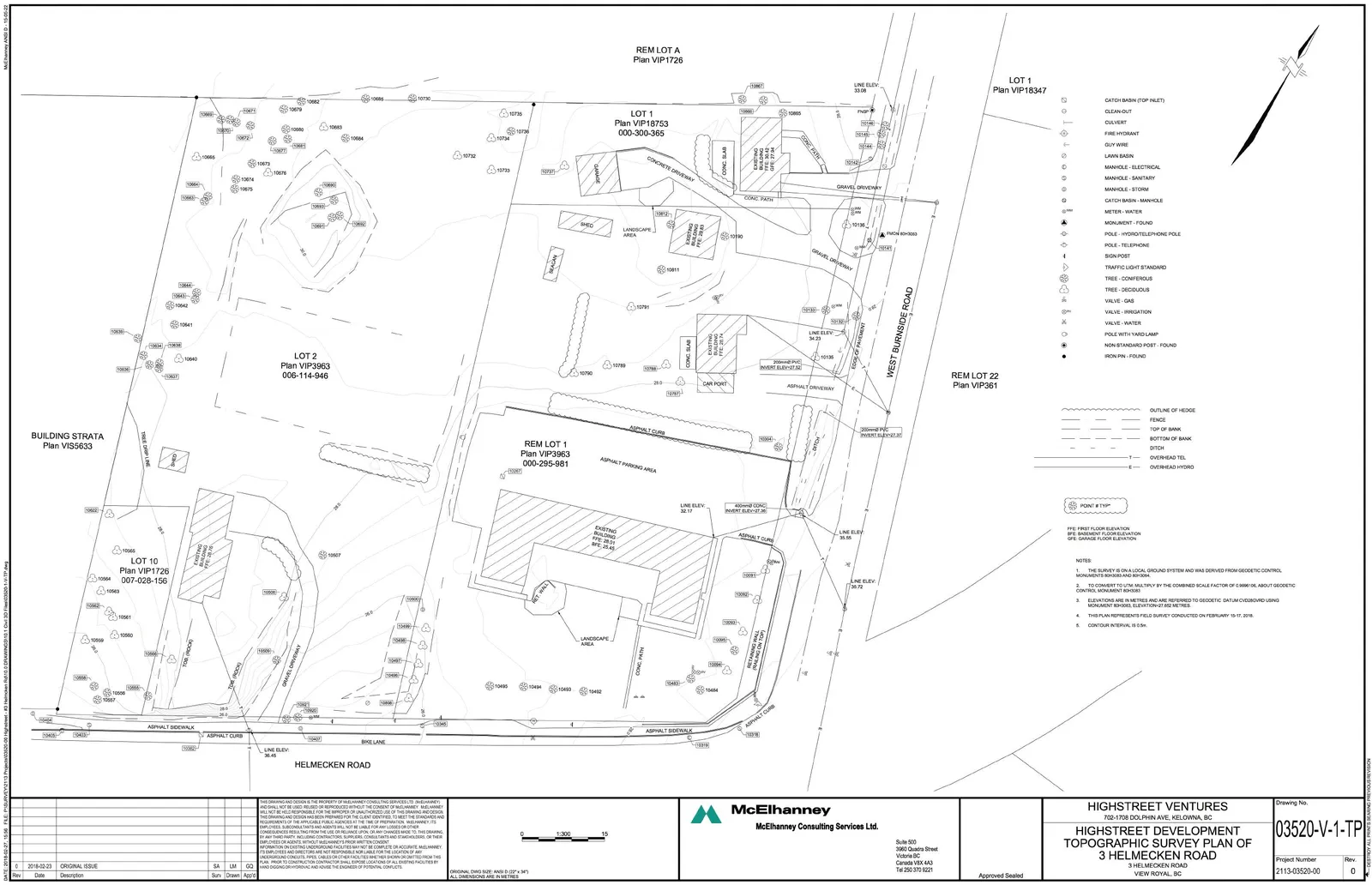

Topographic Survey Plan of 3 Helmcken Road by McElhanney
Topographic Survey Plan of 3 Helmcken Road by McElhanney

Building Grade and Height

Grade of Building:

  • Building 1: 28.75 m geodetic
  • Building 2: 28.25 m geodetic
  • Building 3: 27.00 m geodetic
  • Building 4: 27.38 m geodetic

Height of Building:

  • BUILDING 1: 24.55 m
  • BUILDING 2: 12.65 m
  • BUILDING 3: 12.90 m
  • BUILDING 4: 13.50 m

Number of Storeys:

  • BUILDING 1: 8 storeys
  • BUILDING 2: 4 storeys
  • BUILDING 3: 4 storeys
  • BUILDING 4: 4 storeys

Residential Parking

Required Stalls:

  • Site Area 01: 170
  • Site Area 02: 186
  • Total Required: 356

Provided Stalls:

  • Site Area 01: 170 stalls
  • Site Area 02: 222 stalls
  • Total Provided: 392 stalls

Bicycle Parking

  • Required: 1 per suite = 262 (100% Class I) + 6-space rack
  • Provided: 262 Class I in Bicycle Rooms + 6-space rack at entry

Setbacks

Setback Site Area 01 Site Area 02
Front 3.3 - 4.0m (South) 7.5 m (Helmcken Road)
Side 7.5 m (Burnside Road West) 7.5 m (Burnside Road West)
Side 10 m (West) 10 m (West)
Rear 8.0 m (North) 6.3 - 10.10 m (North)
Page 82–103

Suite Mix Summary

Site Area 1

Building 1

  • ONE BED: 40 @ 54 m² [32%]
  • TWO BED: 83 @ 82 m² [66%]
  • THREE BED: 3 @ 102.5 m² [2%]
  • TOTAL: 126 units

Site Area 2

Building 2

  • ONE BED: 20
  • TWO BED: 40
  • THREE BED: 4
  • TOTAL: 64

Building 3

  • ONE BED: 12
  • TWO BED: 22
  • THREE BED: 4
  • TOTAL: 38

Building 4

  • ONE BED: 12
  • TWO BED: 22
  • THREE BED: 0
  • TOTAL: 34

Site Area 2 Total

  • ONE BED: 44 @ 54 m² [32%]
  • TWO BED: 84 @ 82 m² [62%]
  • THREE BED: 08 @ 102.5 m² [6%]
  • TOTAL: 136 units

Project Grand Total: 262 Units

Page 82–103

Building Code Summary

Referenced Document: BRITISH COLUMBIA BUILDING CODE 2012 - PART 3

Major Occupancy Classification:

  • GROUP C - RESIDENTIAL
  • GROUP F3 - PARKING GARAGE

Building Area:

  • BUILDING 1: 1,239 m²
  • BUILDING 2: 1,429 m²
  • BUILDING 3: 940 m²
  • BUILDING 4: 821 m²

Accessible Facilities:

  • ACCESSIBLE ENTRANCE
  • ACCESSIBLE PARKING STALL

Construction Requirements:

  • 3.2.2.50 GROUP C, UP TO 6 STOREYS, SPRINKLERED
  • COMBUSTIBLE CONSTRUCTION
Page 82–103

List of Drawings

Architectural:

  • A001: Project Data
  • A101: Site Plan
  • A201: Parkade Level 1 Floor Plan
  • A202: Parkade Level 2 Floor Plan
  • A203: Parkade Level 3 Floor Plan
  • A204: Level 1 Floor Plan
  • A205: Level 2 Floor Plan
  • A206: Level 3 Floor Plan
  • A207: Level 4 Floor Plan
  • A208: Level 5-8 Floor Plan
  • A209: Roof Plan
  • A301: Building 1 Elevations
  • A302: Building 1 Elevations
  • A303: Building 2 Elevations
  • A304: Building 3 Elevations
  • A305: Building 4 Elevations
  • A401: Site Sections
  • A501: Site Context
  • A502: Perspective
  • A503: Shadow Study
  • A504: Shadow Study
  • A505: Shadow Study

Civil:

  • 01: Site Plan

Landscape:

  • L1.01: Landscape Materials
  • L1.02: Landscape Sections
Page 82–103

Site Plan (A101)

Site Plan showing layout of Buildings 1 through 4, property lines, and setbacks
Site Plan showing layout of Buildings 1 through 4, property lines, and setbacks
Page 82–103

Parkade Floor Plans

Parkade Level 1 Floor Plan (A201)
Parkade Level 1 Floor Plan (A201)
Parkade Level 2 Floor Plan (A202)
Parkade Level 2 Floor Plan (A202)
Parkade Level 3 Floor Plan (A203)
Parkade Level 3 Floor Plan (A203)
Page 82–103

Residential Floor Plans

Level 1 Floor Plan (A204)
Level 1 Floor Plan (A204)
Level 2 Floor Plan (A205)
Level 2 Floor Plan (A205)
Level 3 Floor Plan (A206)
Level 3 Floor Plan (A206)
Level 4 Floor Plan (A207)
Level 4 Floor Plan (A207)
Level 5-8 Floor Plan (A208) for Building 1
Level 5-8 Floor Plan (A208) for Building 1

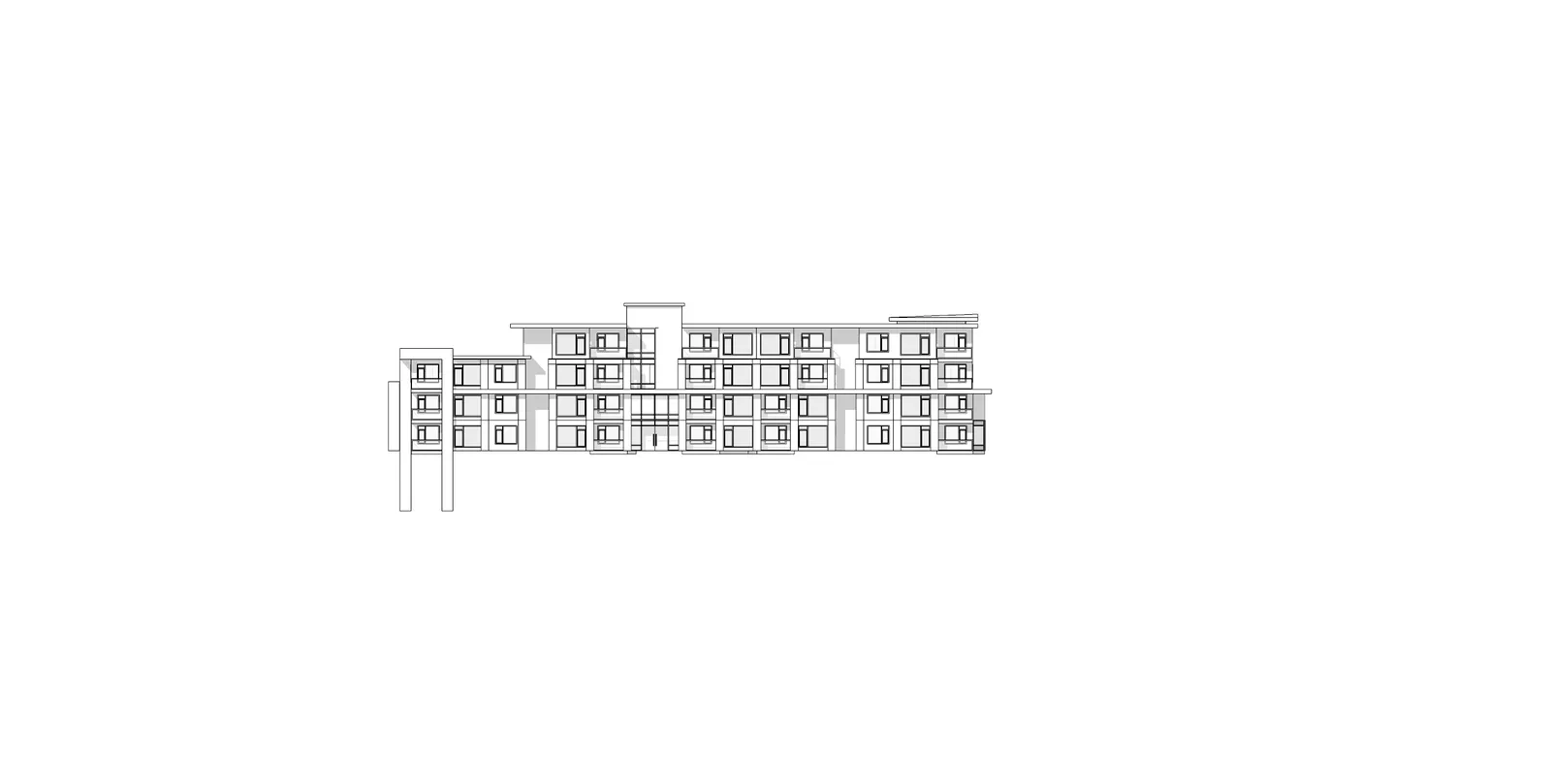

Roof Plan (A209)
Roof Plan (A209)
Page 82–103

Building Elevations

Building 1

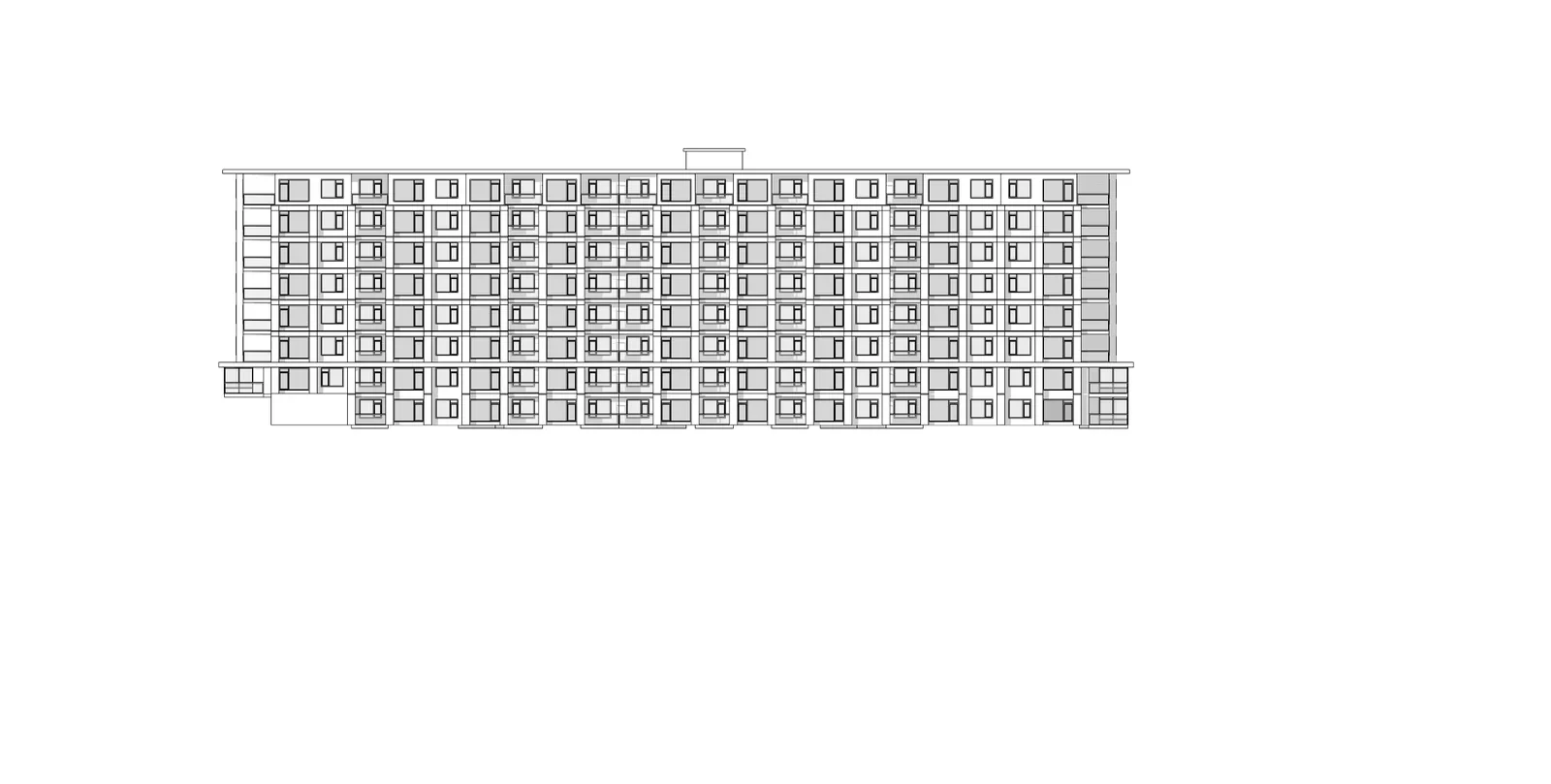

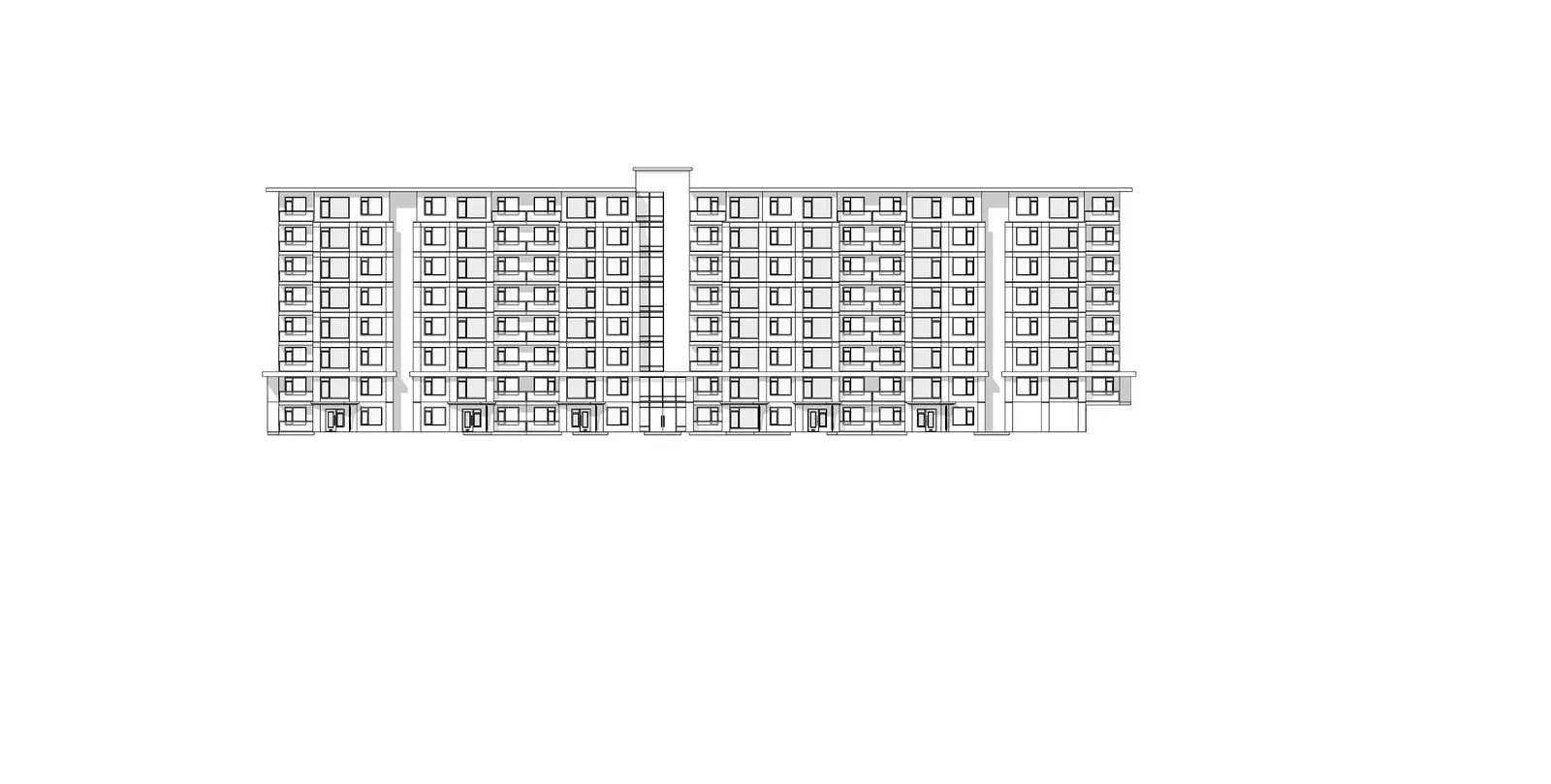

Building 1 South Elevation
Building 1 South Elevation

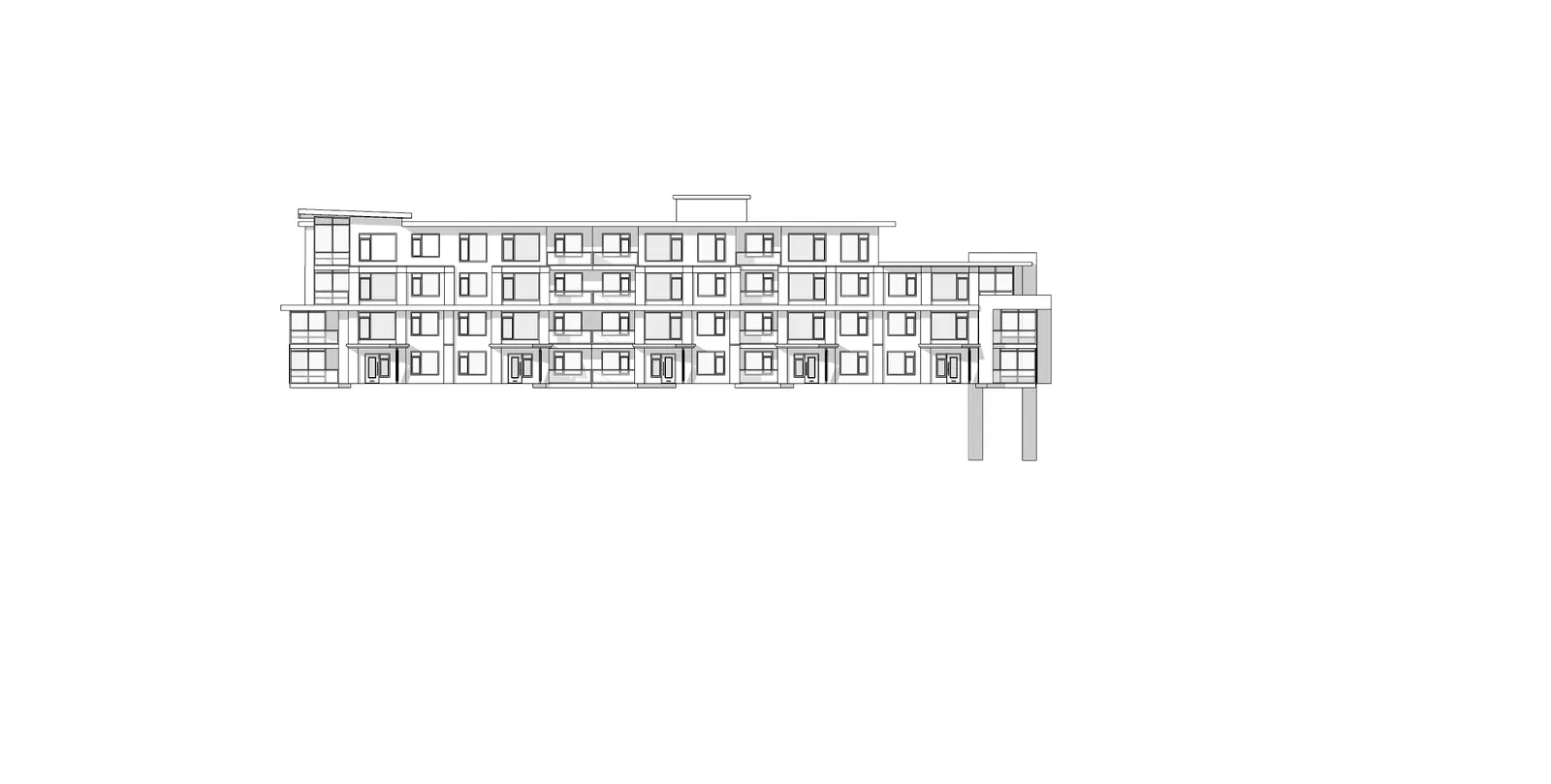

Building 1 West Elevation
Building 1 West Elevation

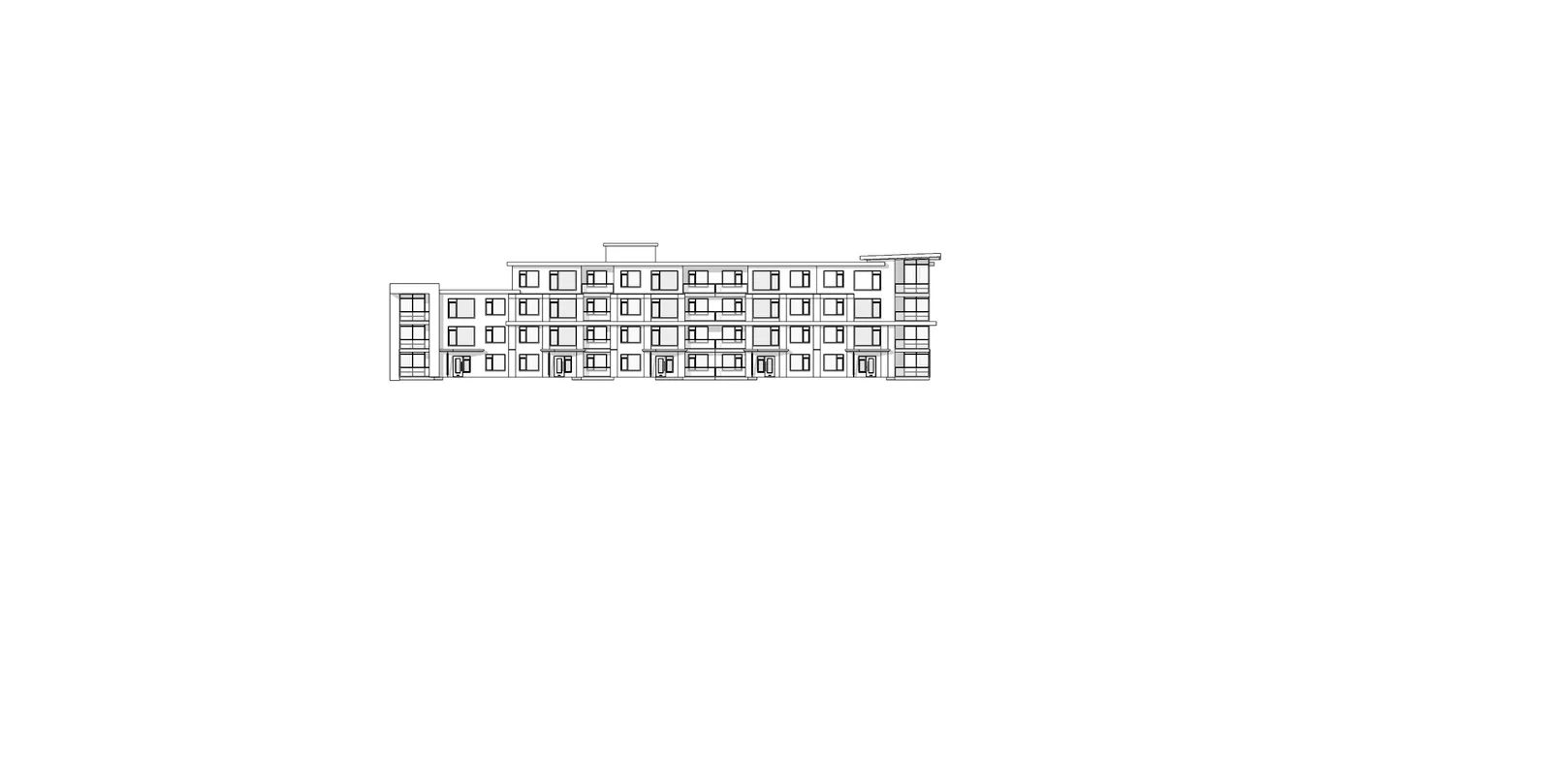

Building 1 North Elevation
Building 1 North Elevation
Building 1 East Elevation
Building 1 East Elevation

Building 2

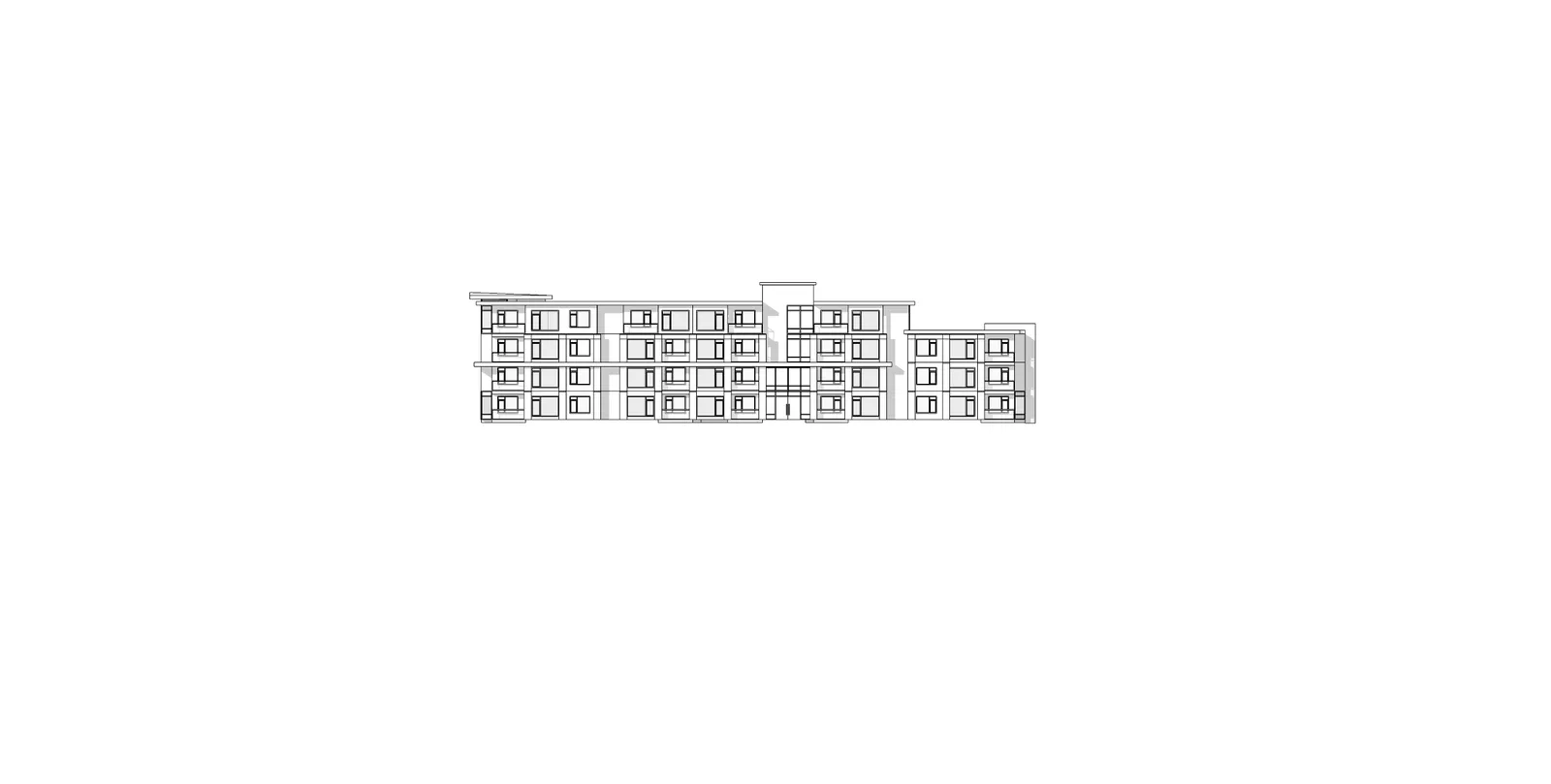

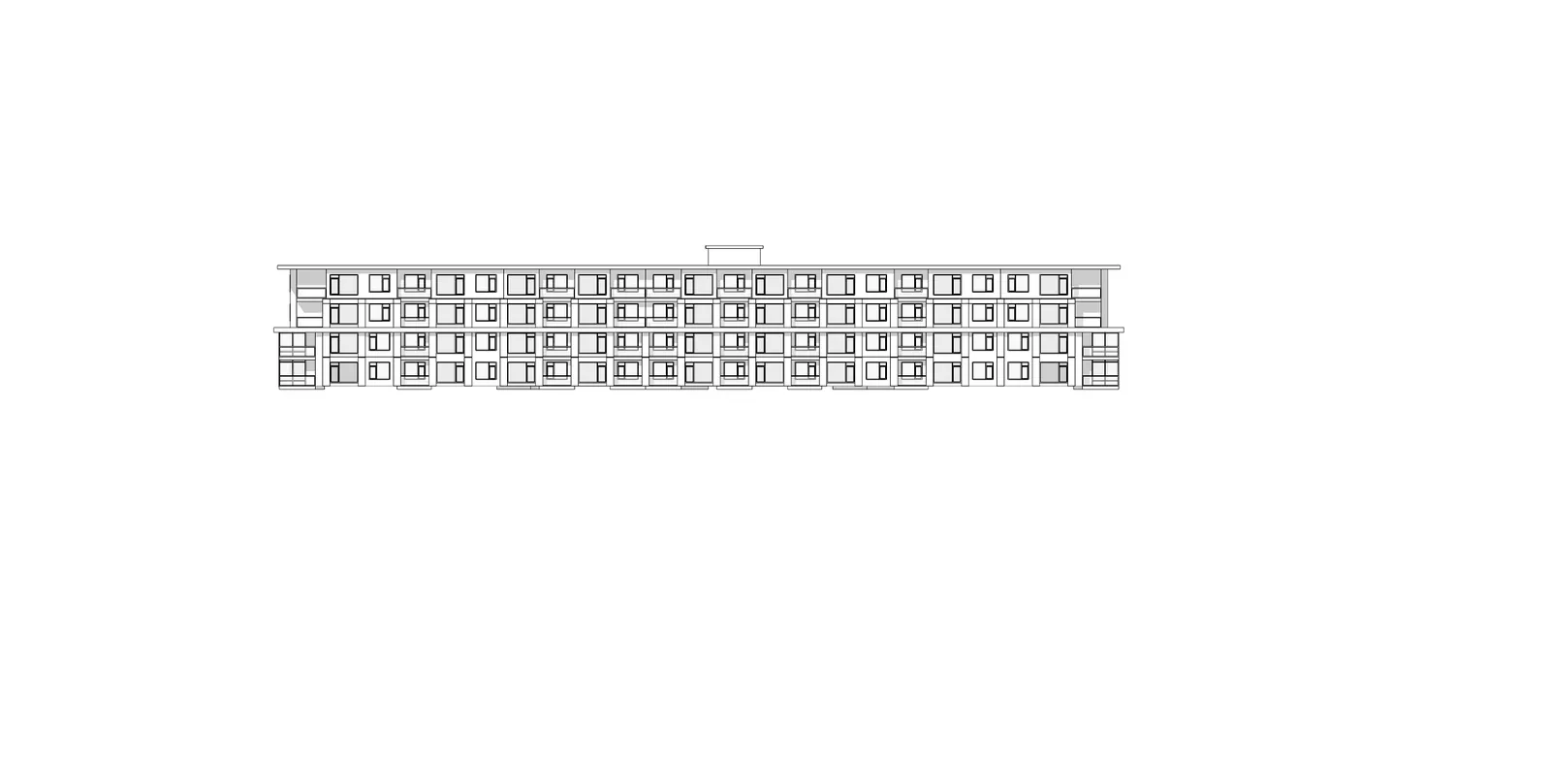

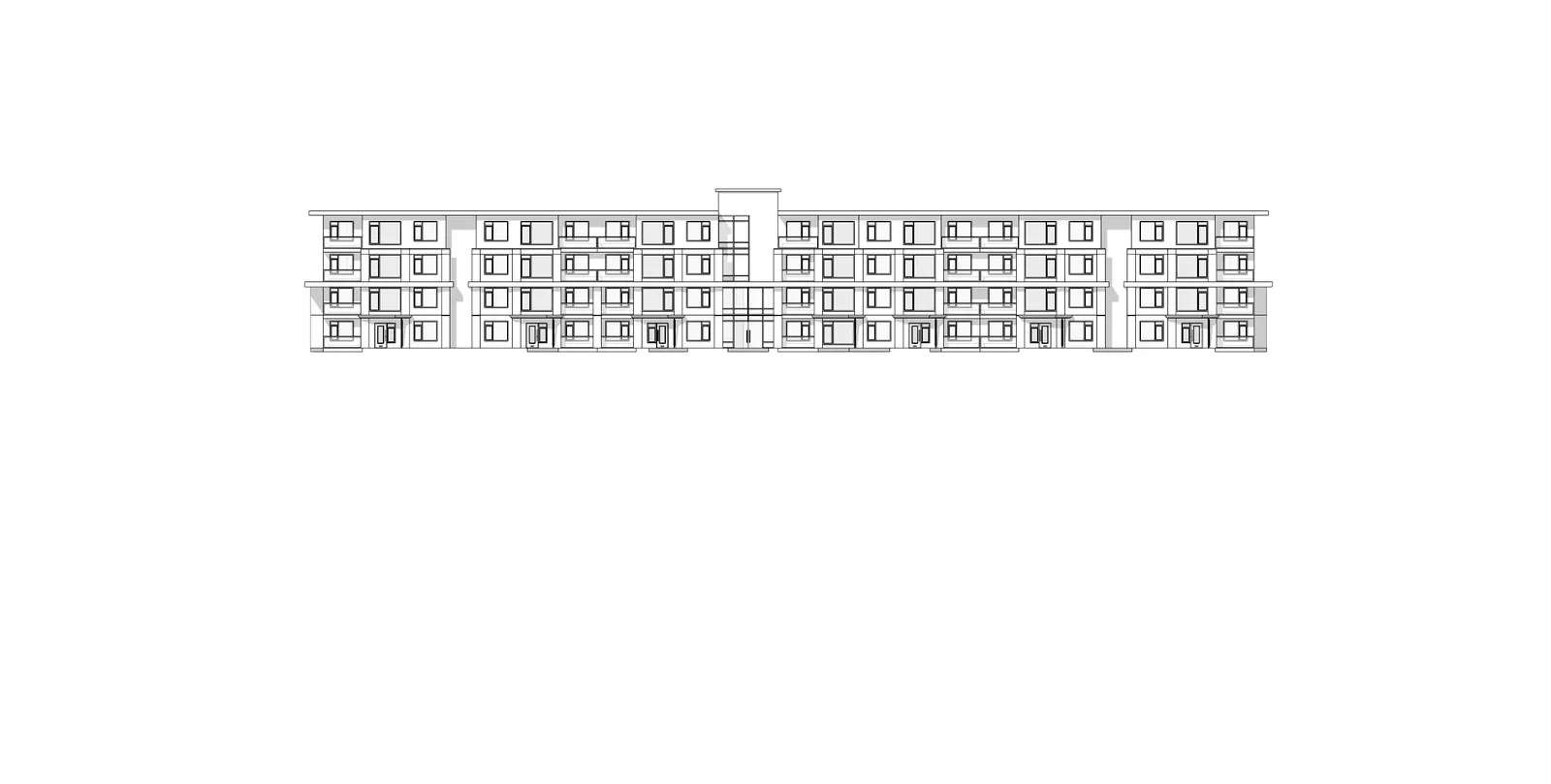

Building 2 West Elevation
Building 2 West Elevation
Building 2 East Elevation
Building 2 East Elevation
Building 2 South Elevation
Building 2 South Elevation

Building 3

Building 3 North Elevation
Building 3 North Elevation
Building 3 East Elevation
Building 3 East Elevation
Building 3 South Elevation
Building 3 South Elevation

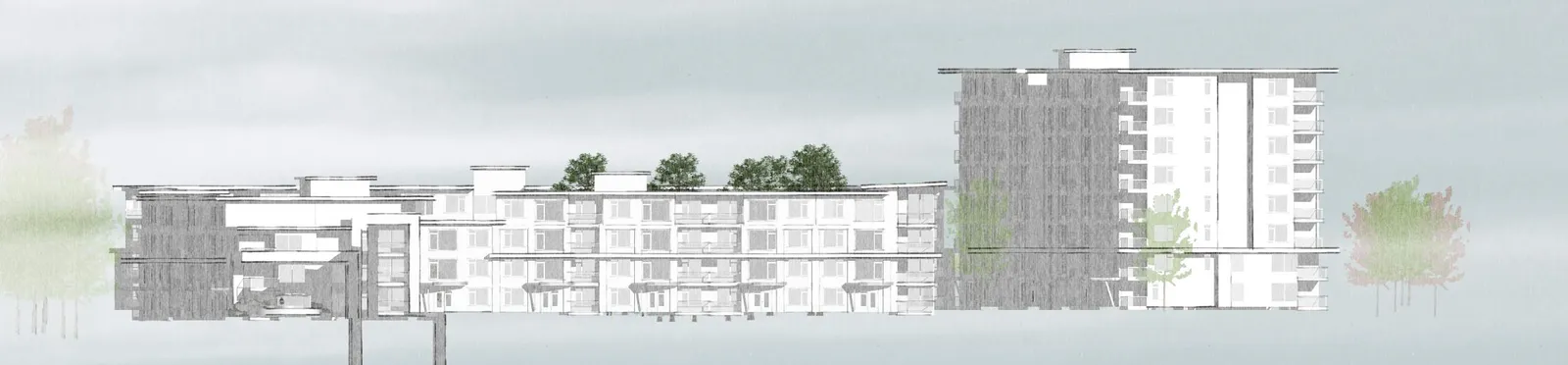

Building 3 West Elevation
Building 3 West Elevation

Building 4

Building 4 West Elevation
Building 4 West Elevation

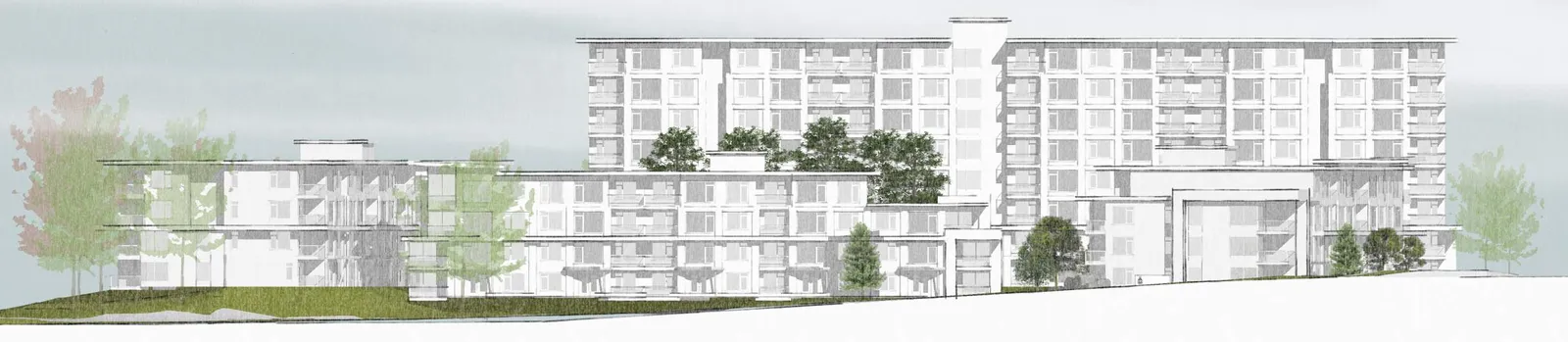

Building 4 South Elevation
Building 4 South Elevation
Building 4 East Elevation
Building 4 East Elevation
Page 82–103

Site Sections

Site Section W - E
Site Section W - E
Site Section N - S
Site Section N - S
Page 82–103

Site Context and Perspectives

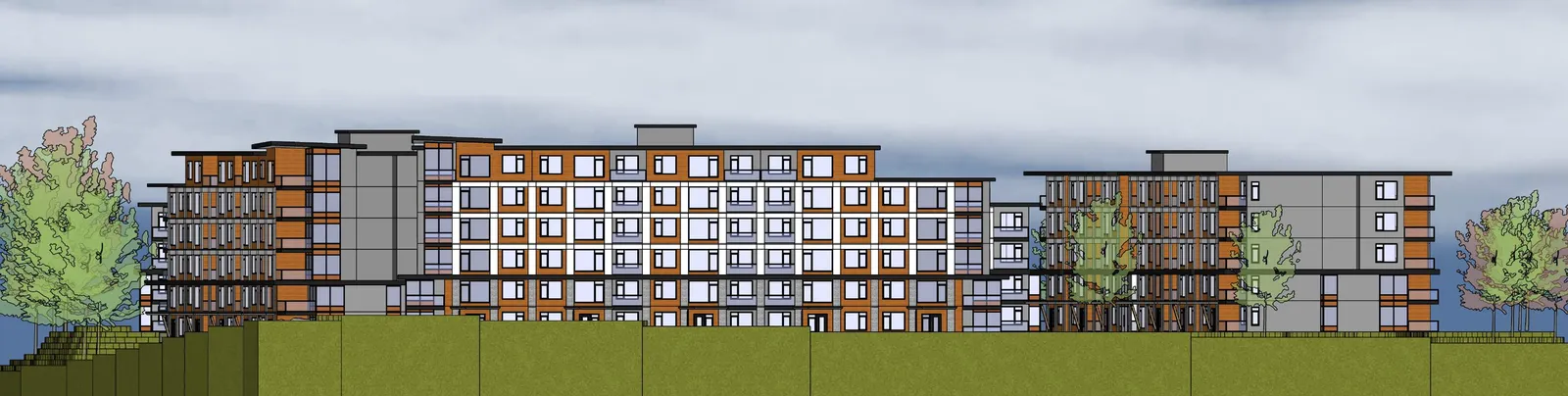

Context Elevations - Helmcken Road
Context Elevations - Helmcken Road
Context Elevations - Burnside Road
Context Elevations - Burnside Road

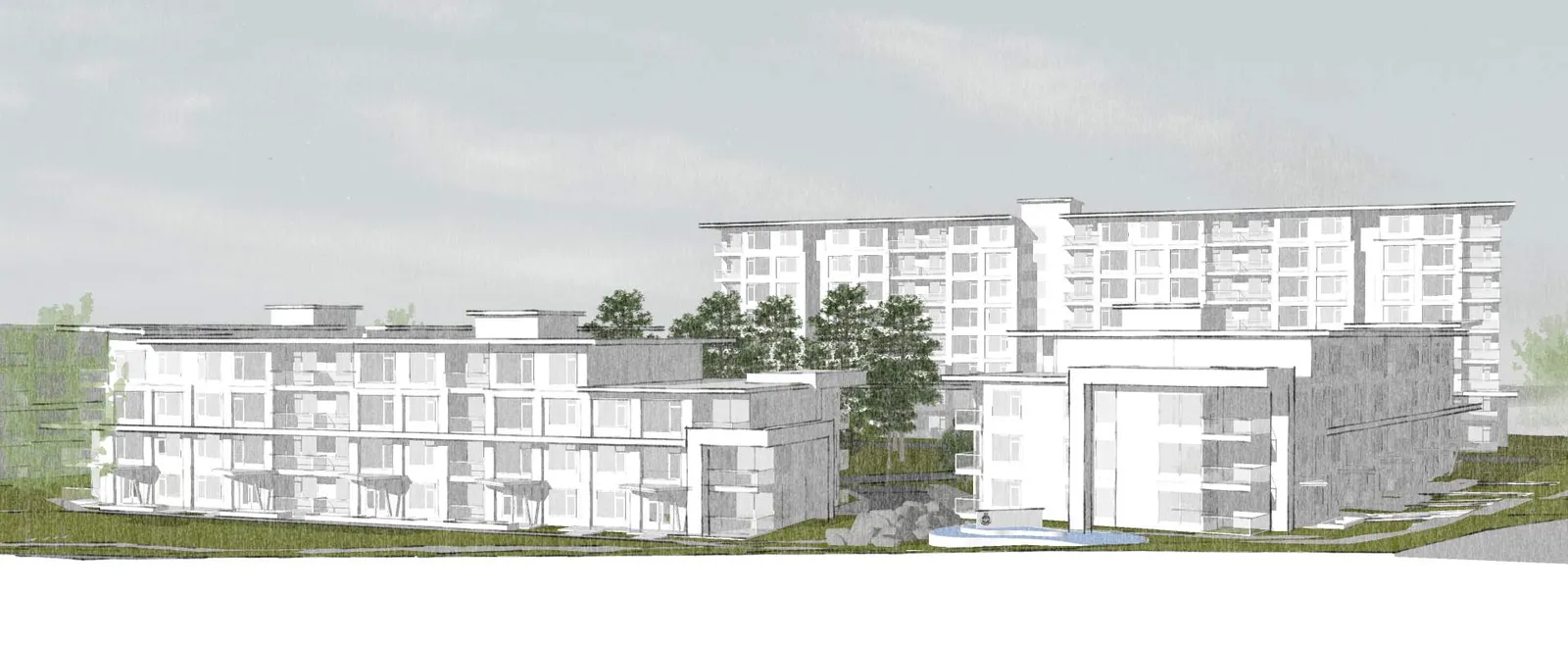

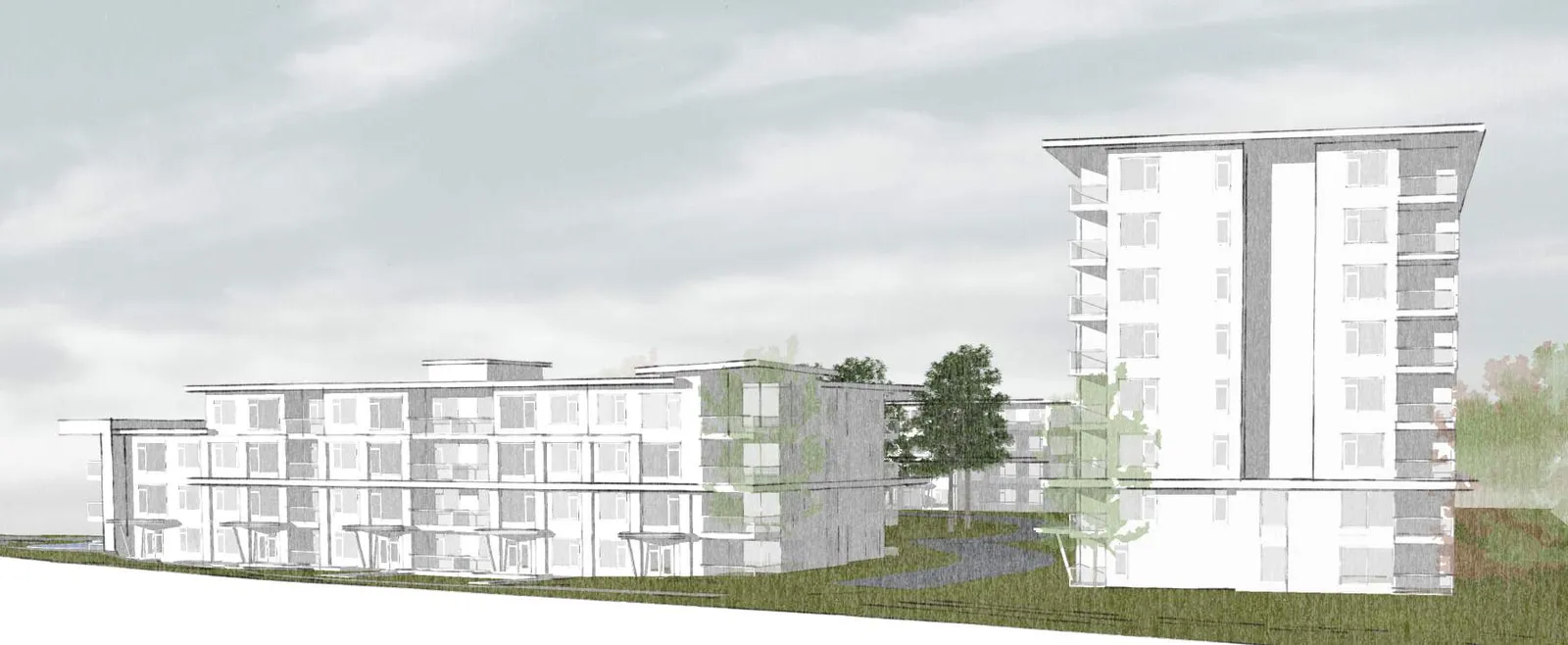

Perspective View 1
Perspective View 1

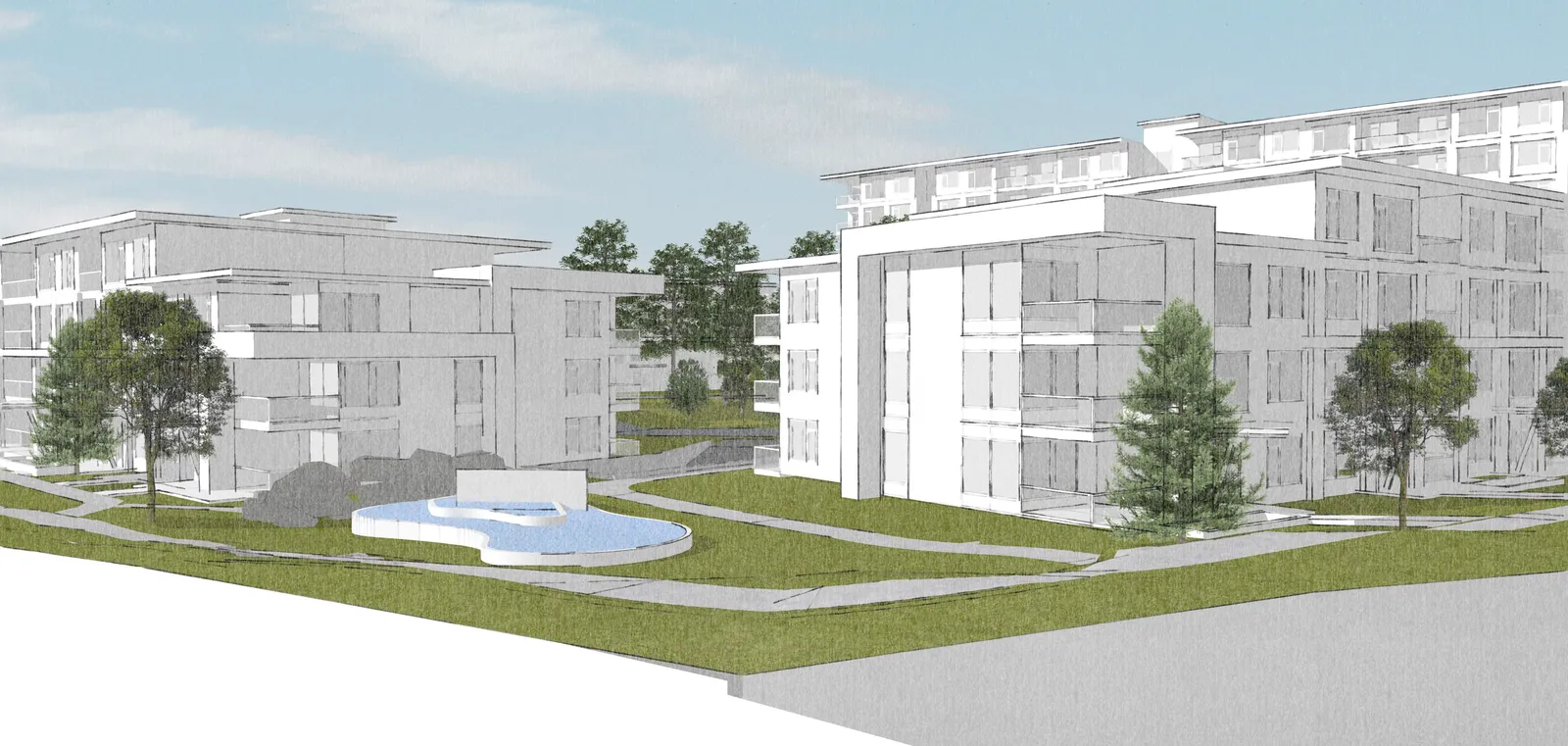

Perspective View 2
Perspective View 2
Large 3D rendering perspective of the proposed development
Large 3D rendering perspective of the proposed development
Page 82–103

Shadow Studies

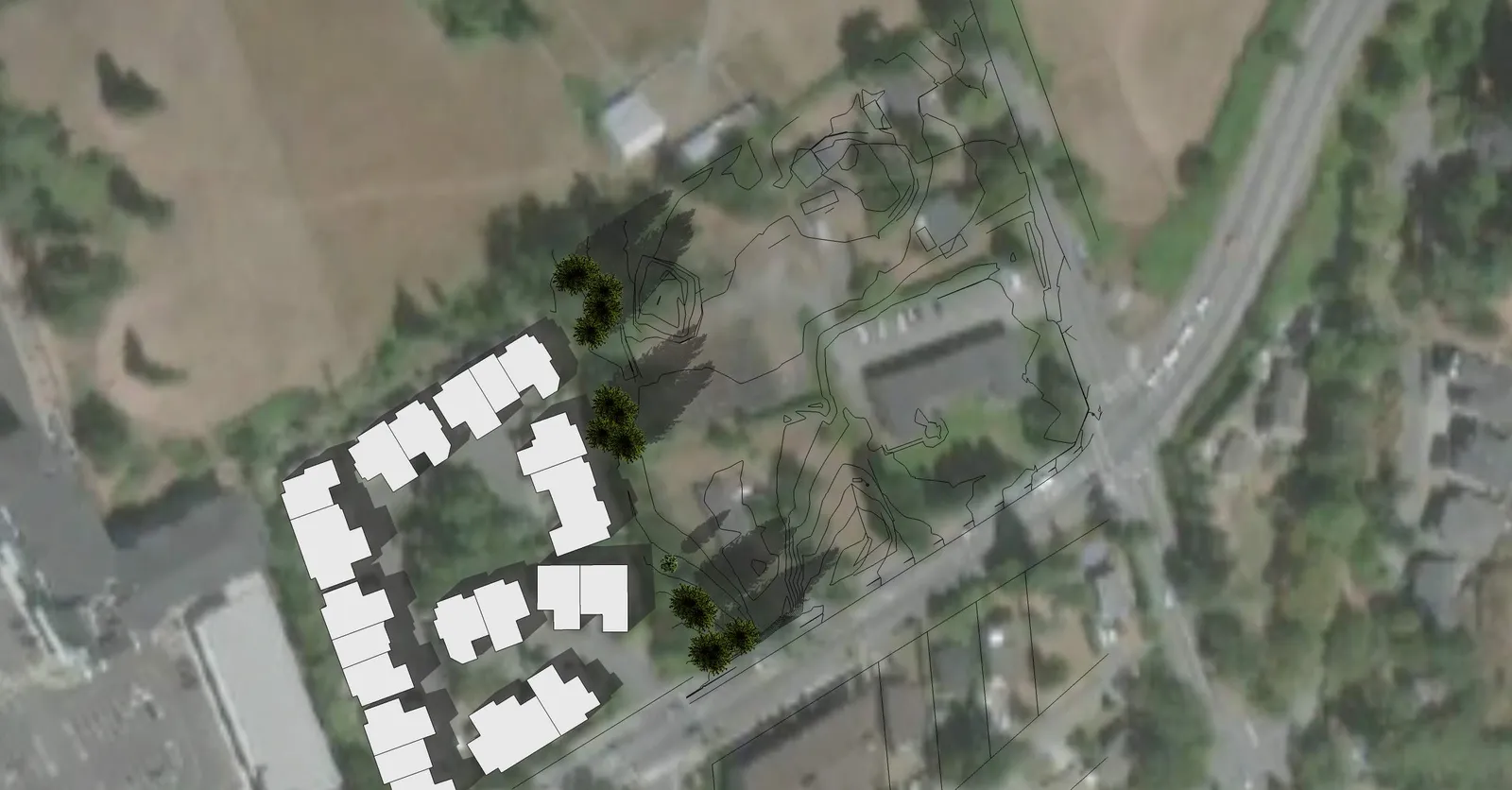

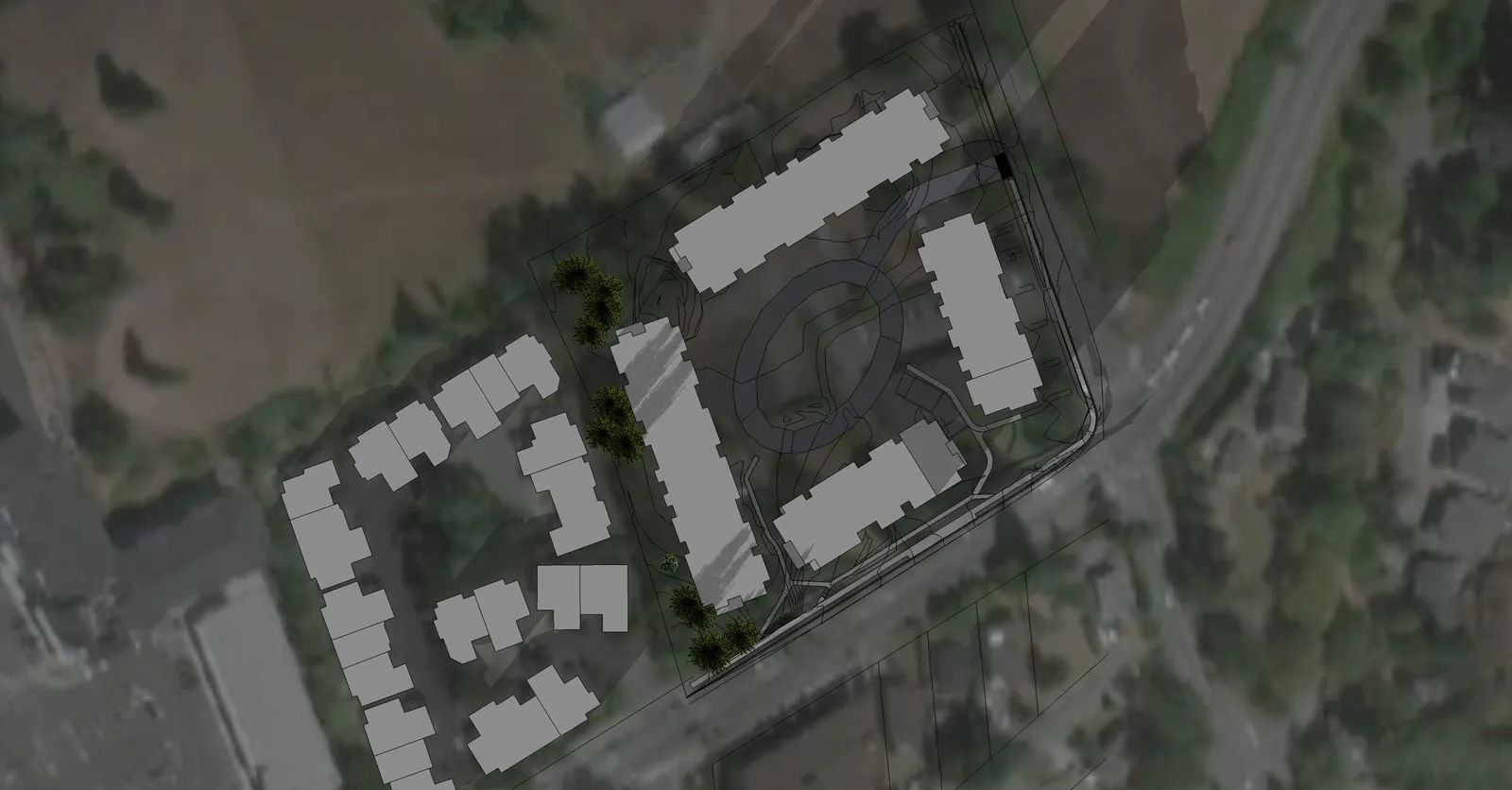

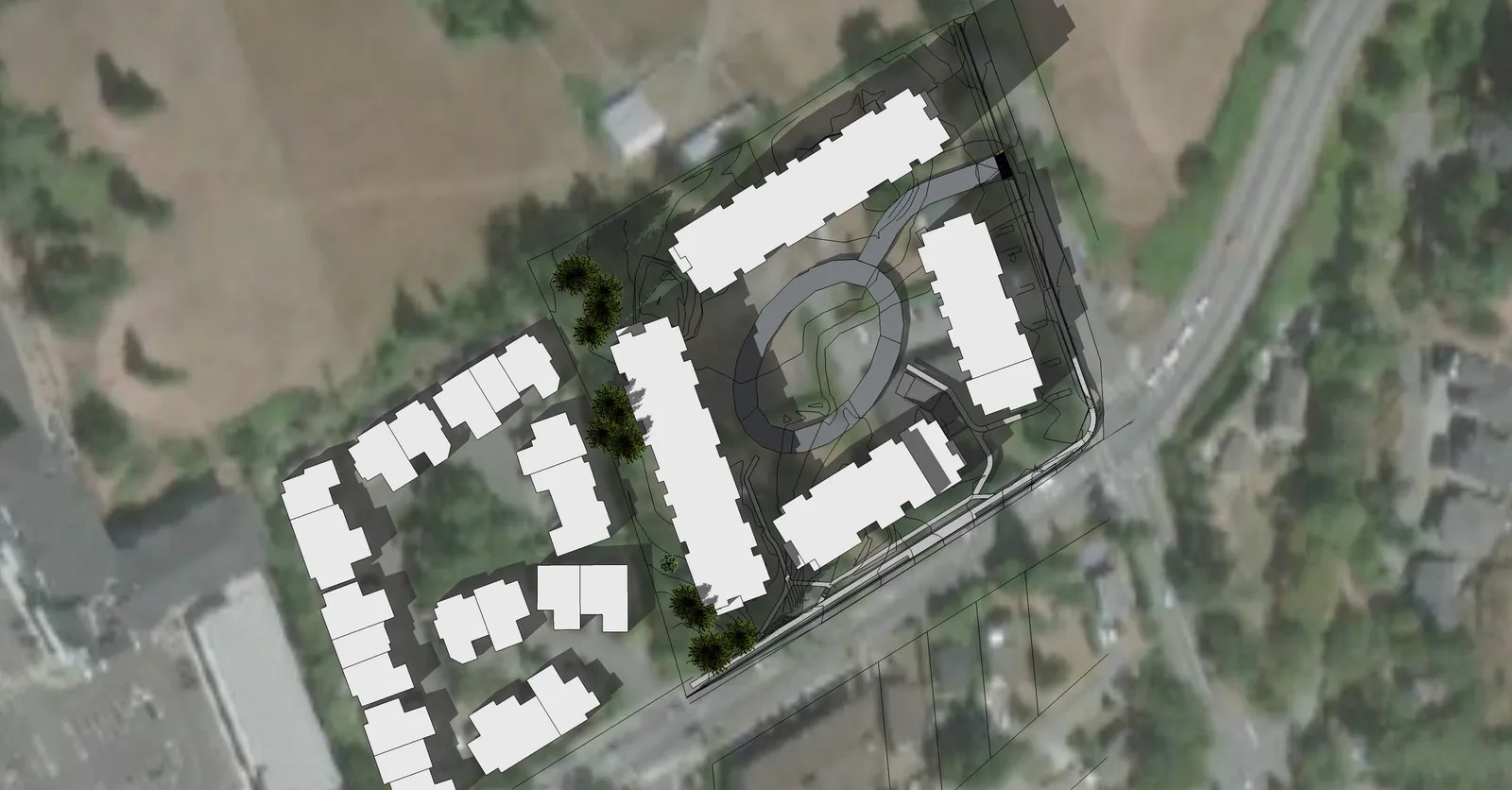

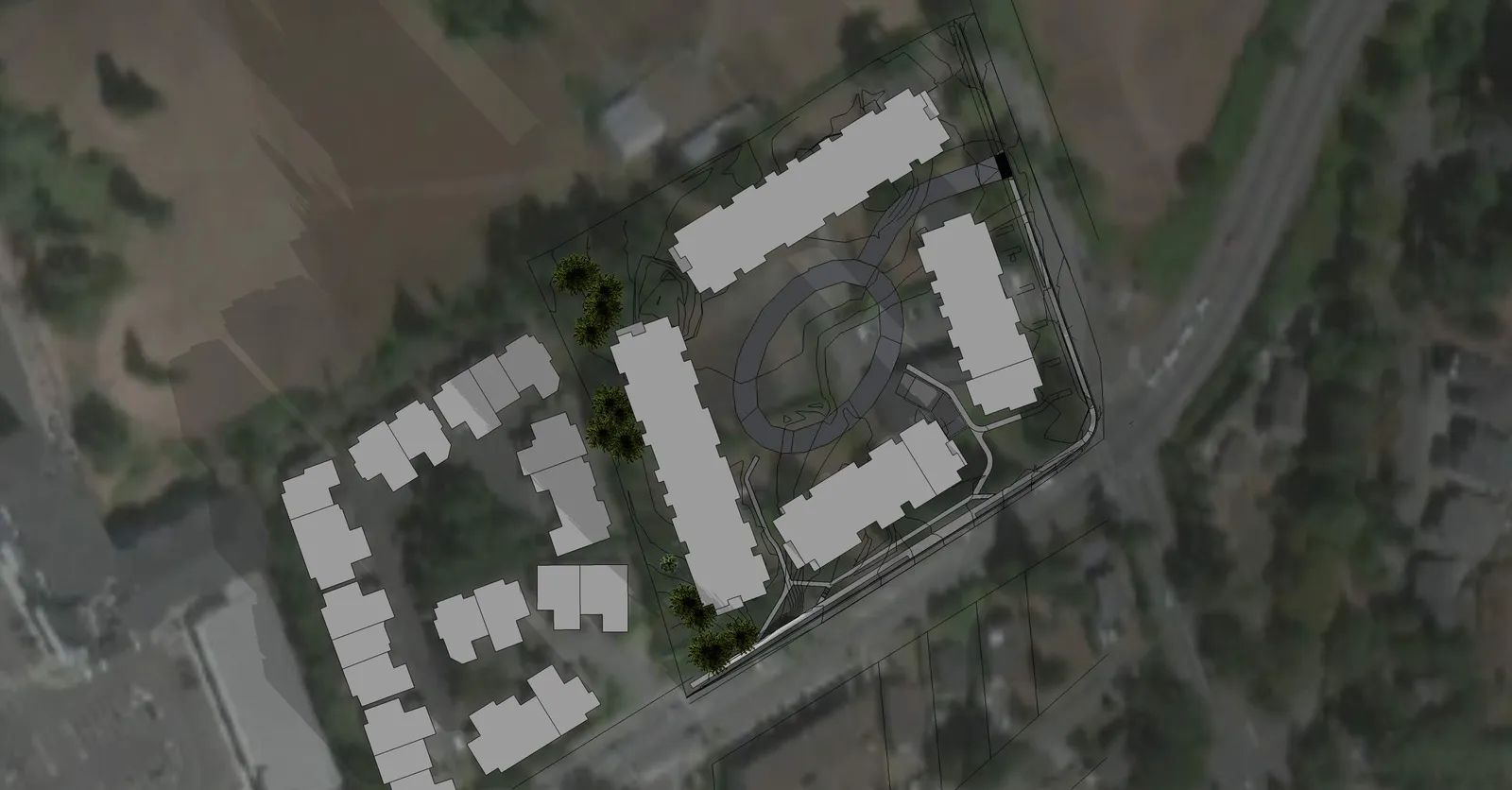

Shadow Study for March 21st (Equinox) at 9:00 a.m., 12:00 p.m., and 3:00 p.m.
Shadow Study for March 21st (Equinox) at 9:00 a.m., 12:00 p.m., and 3:00 p.m.

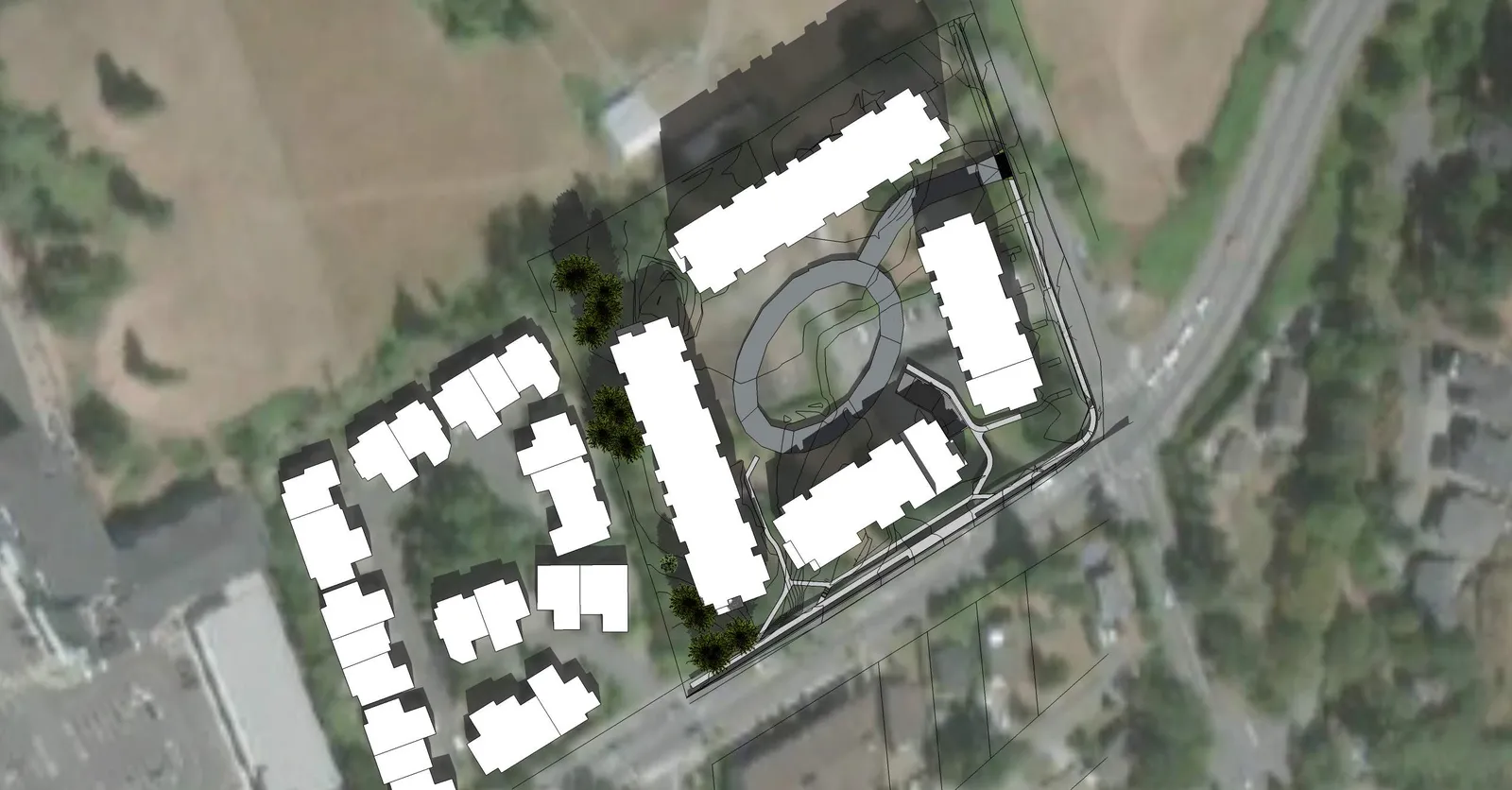

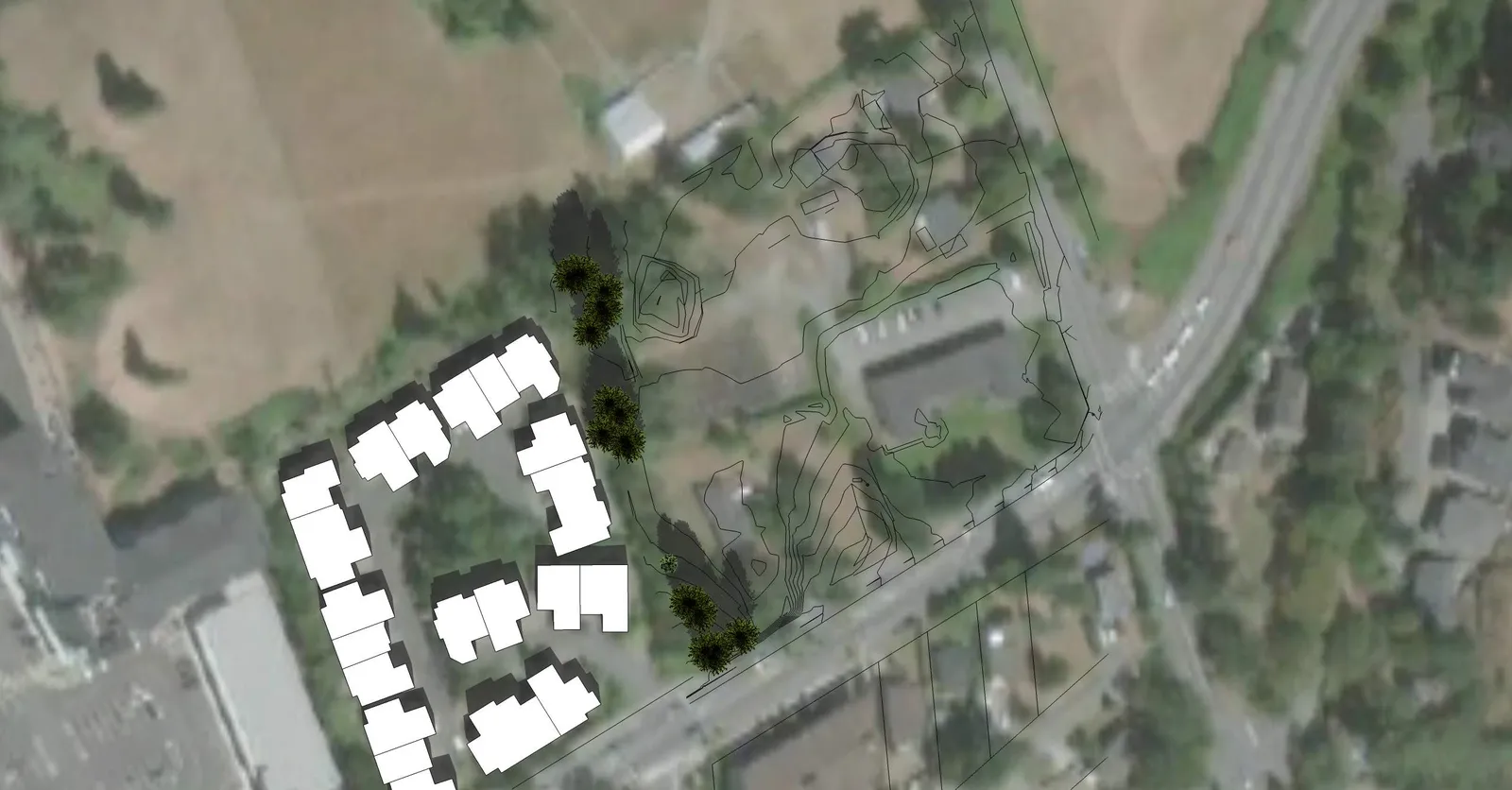

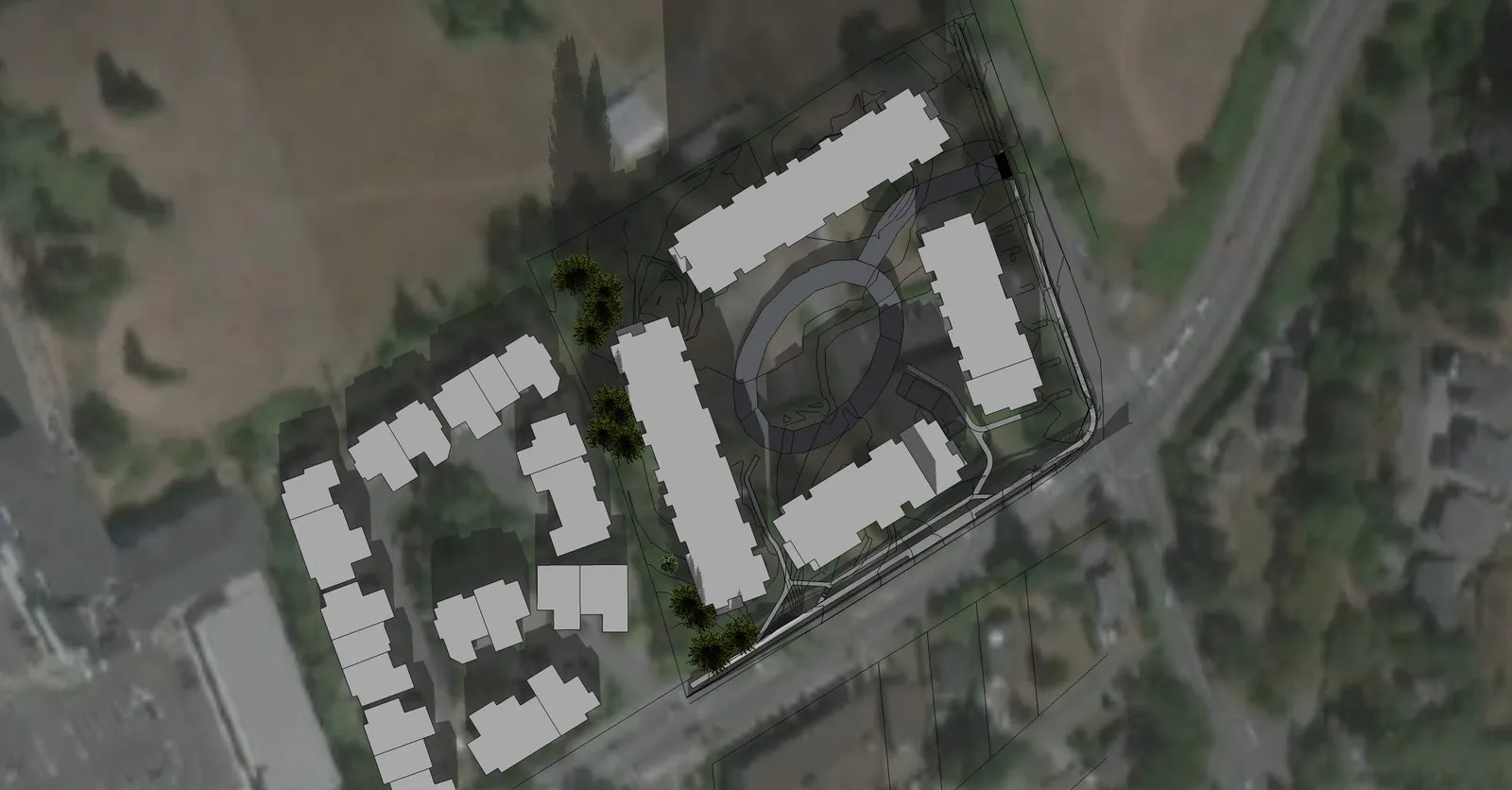

Shadow Study for December 21st at 9:00 a.m., 12:00 p.m., and 3:00 p.m.
Shadow Study for December 21st at 9:00 a.m., 12:00 p.m., and 3:00 p.m.

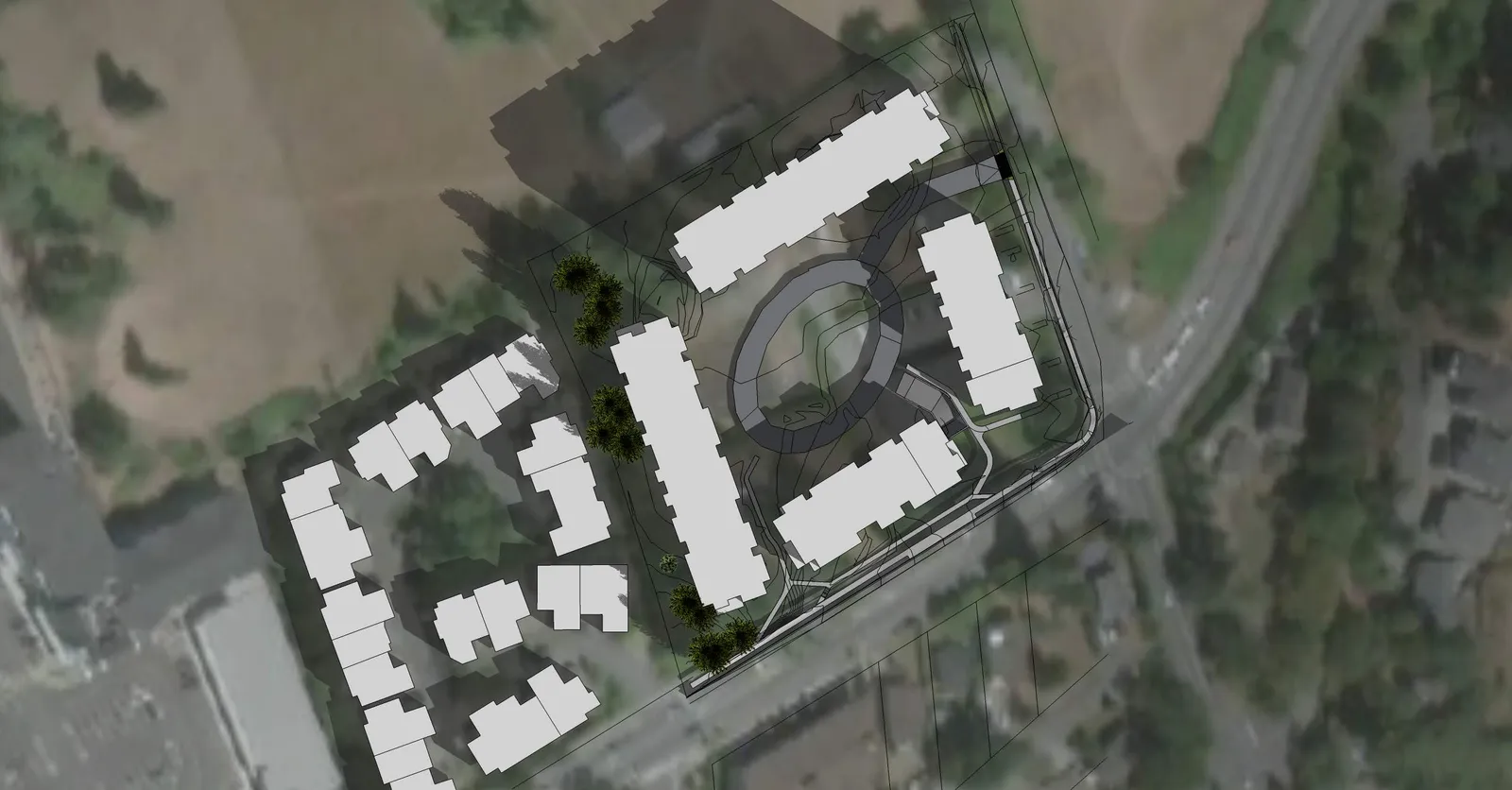

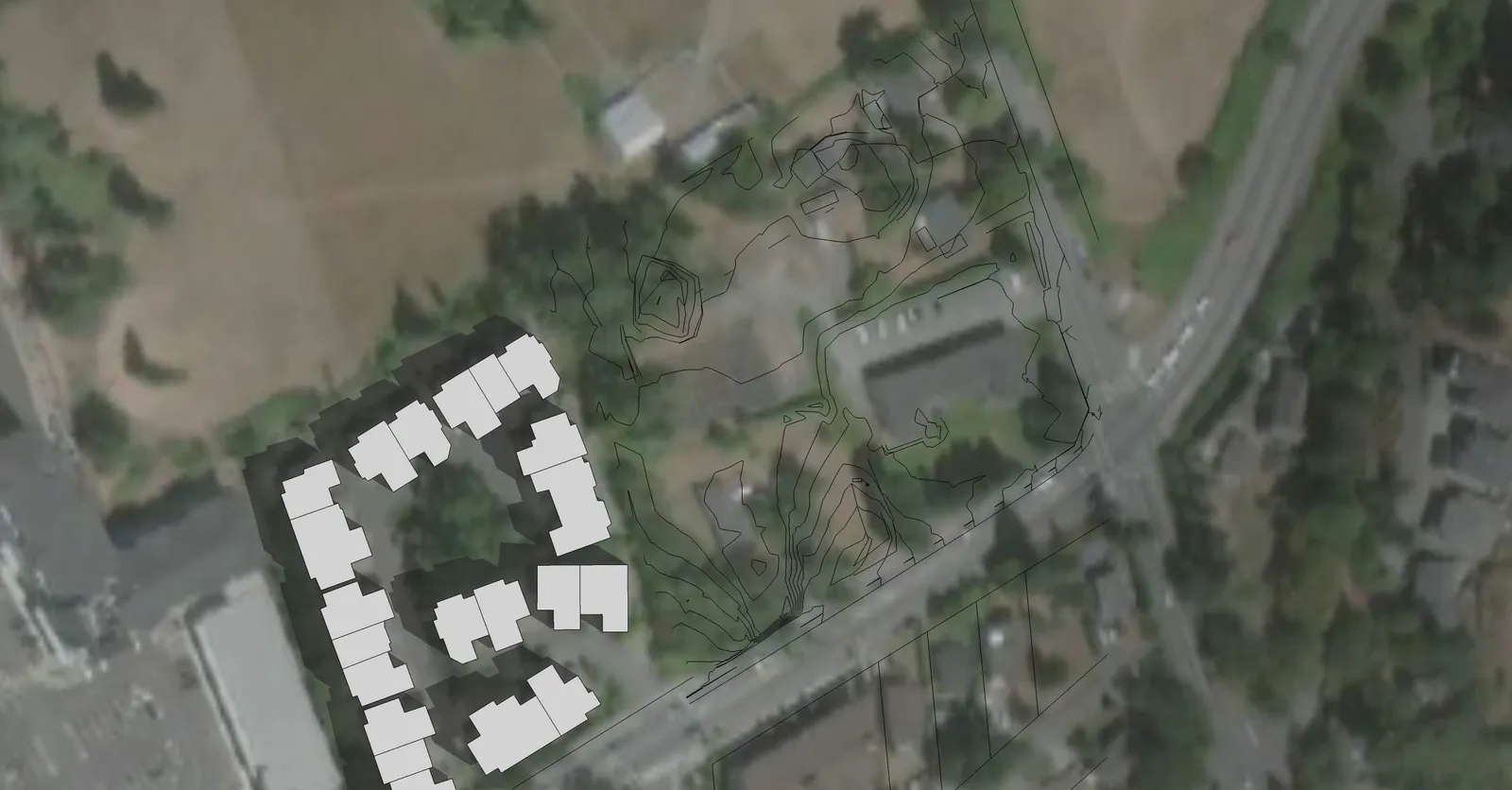

Shadow Study comparison for March 21st showing impact of new development
Shadow Study comparison for March 21st showing impact of new development
Page 82–103

Document Images

(2)
Document image
Building 3 North Elevation

Building 3 North Elevation
