APPENDIX C: DEDICATED RIGHT TURN LANE CONCEPT PLAN
September 10, 2019Pages 137–1383 sections

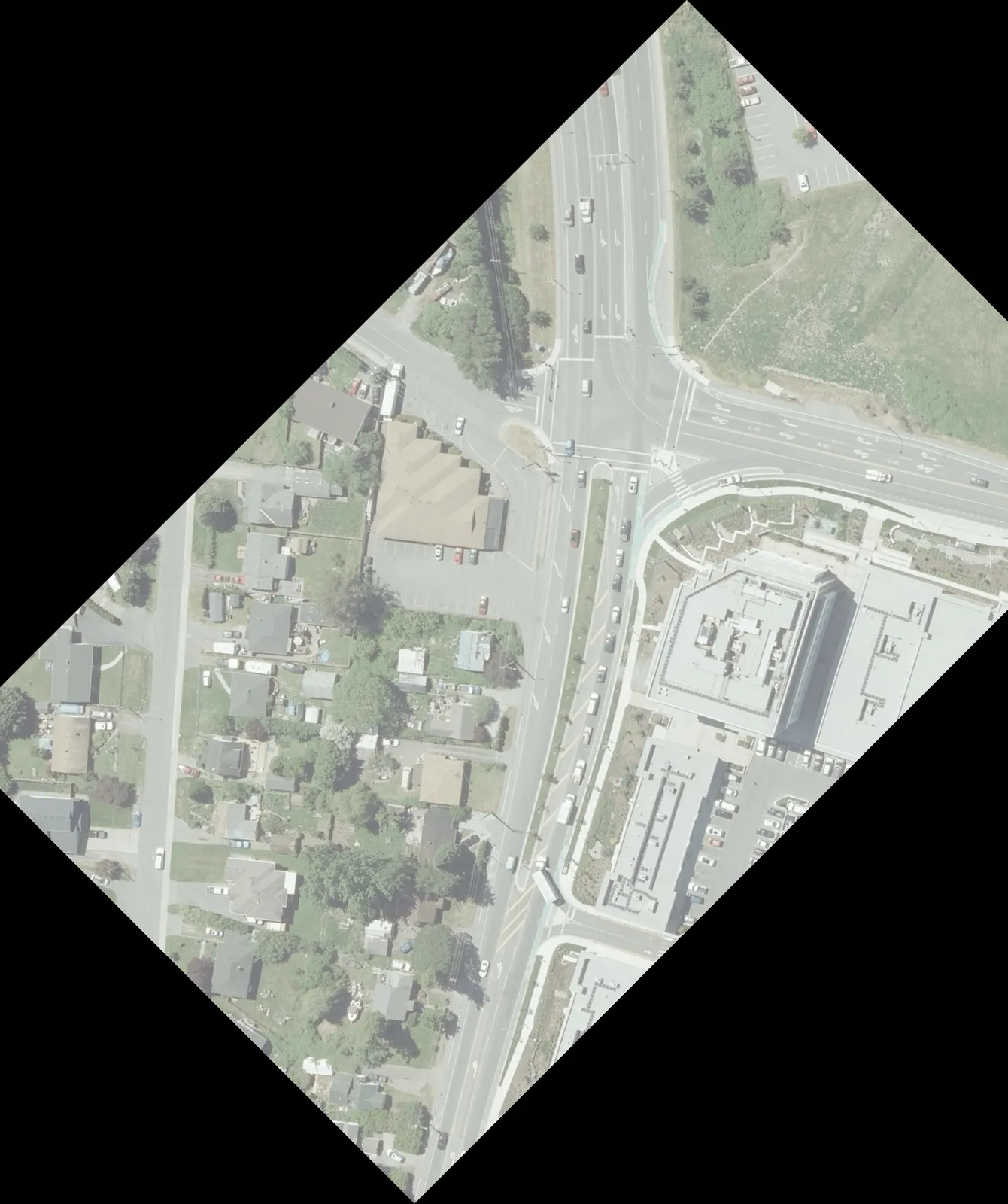

Concept plan for a second westbound through lane and dedicated right turn lane at Helmcken Rd and Watkiss Way.
Project No: 2497.B01Date: Dec 21-2018
Eagle Nest Helmcken Road Report
Page 137–138
APPENDIX C: DEDICATED RIGHT TURN LANE CONCEPT PLAN
Page 137–138
2ND WB THRU LANE & RIGHT LANE HELMCKEN RD / WATKISS WAY EAGLE NEST TIA
CONCEPT DESIGN ONLY - NOT FOR CONSTRUCTION
Roadway Labels:
- HELMCKEN ROAD
- WATKISS WAY
- CHANCELLOR AVE
These Design Documents are prepared solely for the use by the party with whom the Design Professional has entered into a contract, and there are no representations of any kind made by the Design Professional to any party with whom the Design Professional has not entered into contract.
| Field | Detail |
|---|---|
| Designed | MJO |
| Drawn | MJO |
| Checked | |
| Aprvd | |
| Design Vehicle | |
| Design Speed | |
| Project No. | 2497.B01 |
| Drawing No. | S-2 |
| Date | DEC 21-2018 |
| Revision | 0 |
| Scale | 1:1,000 (Scale bar: 0 to 50m) |
Revisions
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
#501, 740 - Hillside Ave Victoria, BC V8B TZ4 T. 250.388.9877 F. 250.388.9879 www.wattconsultinggroup.com
Page 137–138
