View Royal Lime Kiln Elevations and Sections

March 10, 2020Pages 140–1412 sections

Technical engineering drawings providing north, east, and west elevations and cross-sections of the historic lime kiln structure.

2. APPROVAL OF AGENDA
February 2, 2012GOAL Engineering Ltd.

GOAL ENGINEERING LTD.

966 Eagle Rock Terrace Victoria, British Columbia V8X 3H9 Tel: (250) 744 3992 Fax: (250) 744 3983 www.goalengineering.com

Client/Project: DONALD LUXTON & ASSOCIATES LTD. / VIEW ROYAL LIME KILN

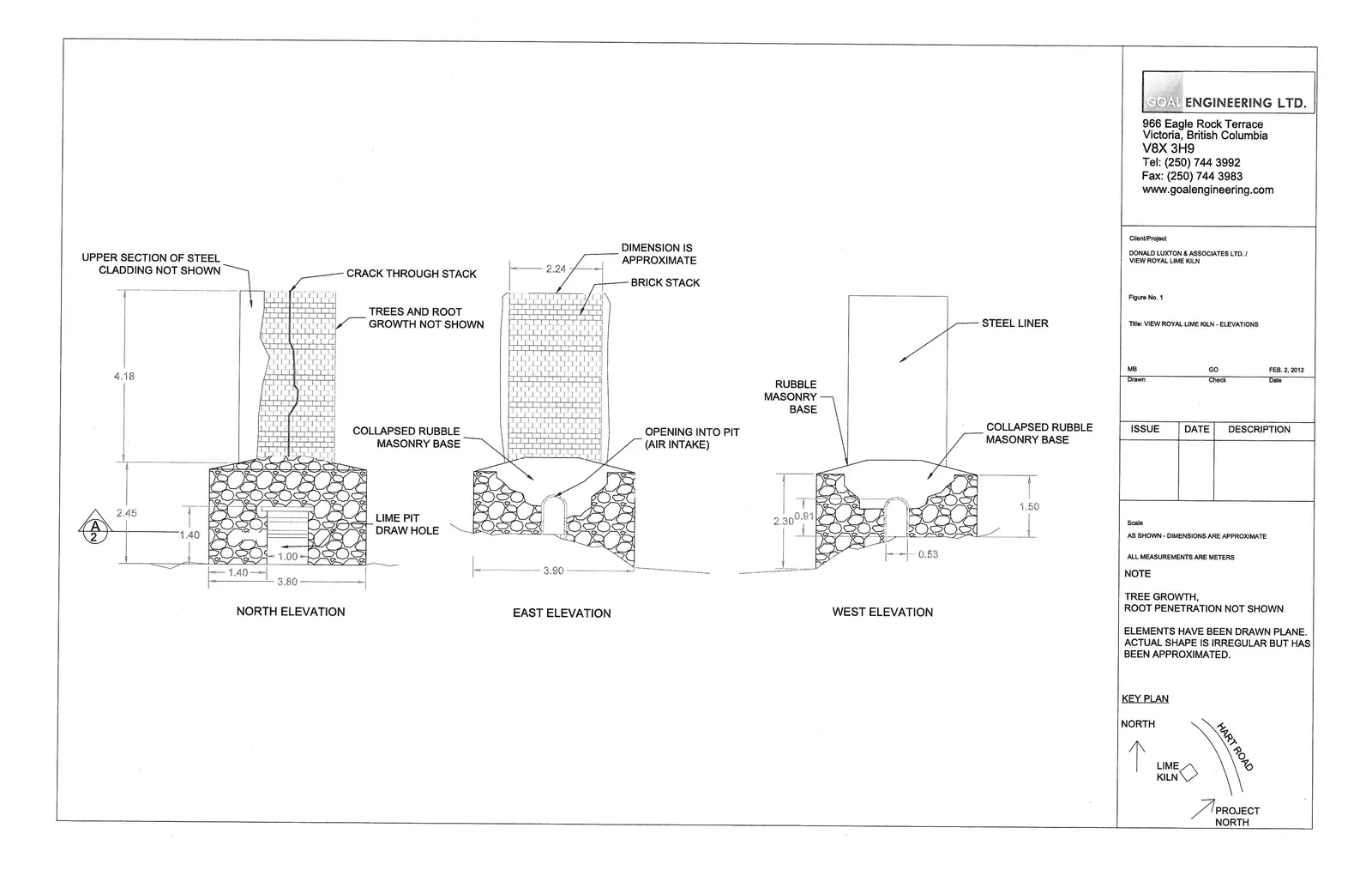

Figure No. 1: VIEW ROYAL LIME KILN - ELEVATIONS

Drawn: MB Check: GO Date: FEB. 2, 2012

Elevation drawings of the View Royal Lime Kiln from the North, East, and West perspectives. Annotations identify features such as the brick stack, steel liner, collapsed rubble masonry base, and lime pit draw hole. Dimensions for height, width, and openings are provided in meters.
Elevation drawings of the View Royal Lime Kiln from the North, East, and West perspectives. Annotations identify features such as the brick stack, steel liner, collapsed rubble masonry base, and lime pit draw hole. Dimensions for height, width, and openings are provided in meters.
ISSUE DATE DESCRIPTION

Scale: AS SHOWN - DIMENSIONS ARE APPROXIMATE ALL MEASUREMENTS ARE METERS

NOTE:

  • TREE GROWTH, ROOT PENETRATION NOT SHOWN
  • ELEMENTS HAVE BEEN DRAWN PLANE. ACTUAL SHAPE IS IRREGULAR BUT HAS BEEN APPROXIMATED.
Page 140–141

GOAL ENGINEERING LTD.

966 Eagle Rock Terrace Victoria, British Columbia V8X 3H9 Tel: (250) 744 3992 Fax: (250) 744 3983 www.goalengineering.com

Client/Project: DONALD LUXTON & ASSOCIATES LTD. / VIEW ROYAL LIME KILN

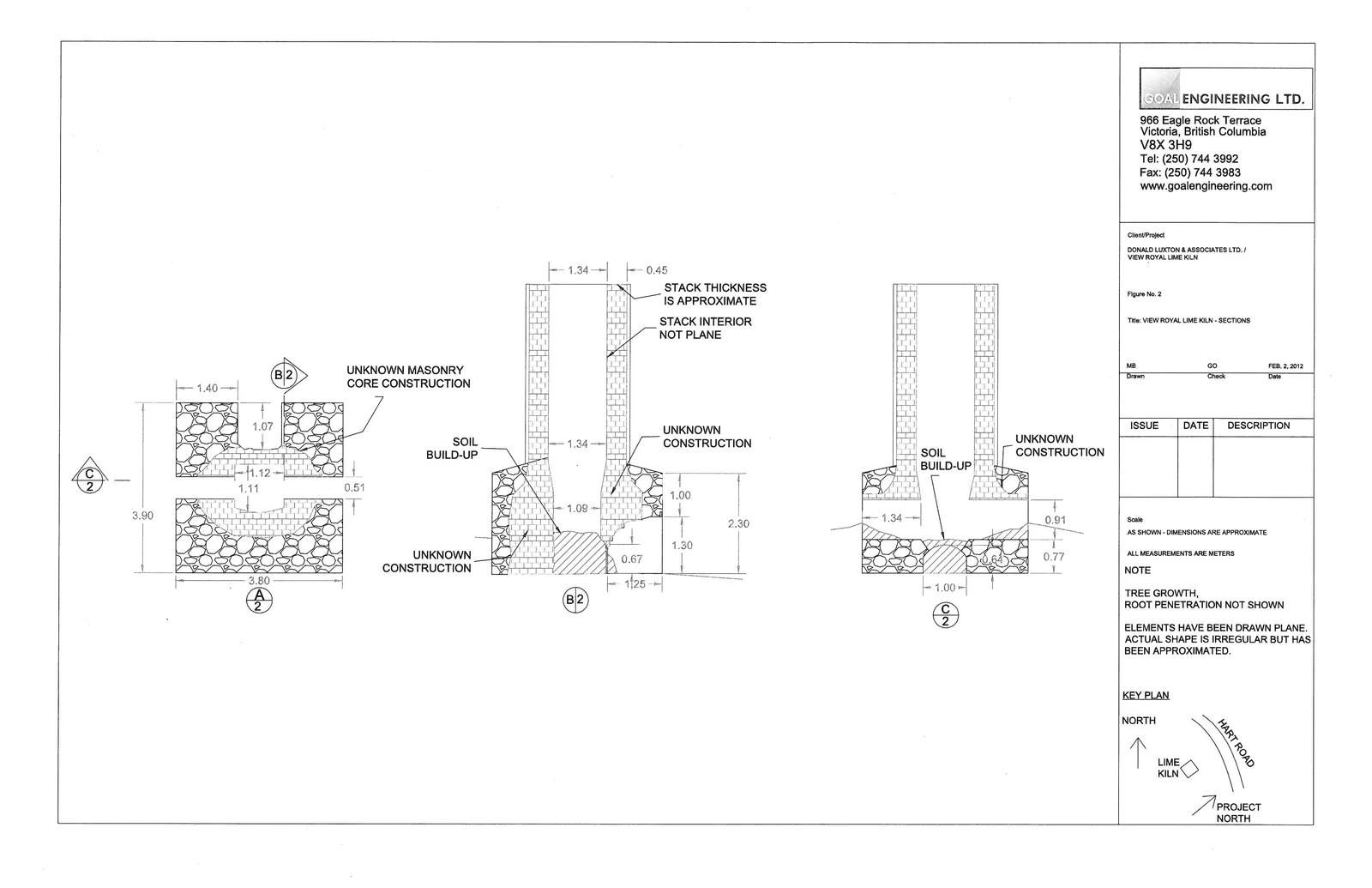

Figure No. 2: VIEW ROYAL LIME KILN - SECTIONS

Drawn: MB Check: GO Date: FEB. 2, 2012

Cross-section and plan view drawings of the View Royal Lime Kiln. The sections detail the "Unknown masonry core construction," "Soil build-up," and "Stack thickness" with specific internal and external dimensions in meters.
Cross-section and plan view drawings of the View Royal Lime Kiln. The sections detail the "Unknown masonry core construction," "Soil build-up," and "Stack thickness" with specific internal and external dimensions in meters.
ISSUE DATE DESCRIPTION

Scale: AS SHOWN - DIMENSIONS ARE APPROXIMATE ALL MEASUREMENTS ARE METERS

NOTE:

  • TREE GROWTH, ROOT PENETRATION NOT SHOWN
  • ELEMENTS HAVE BEEN DRAWN PLANE. ACTUAL SHAPE IS IRREGULAR BUT HAS BEEN APPROXIMATED.
Page 140–141
