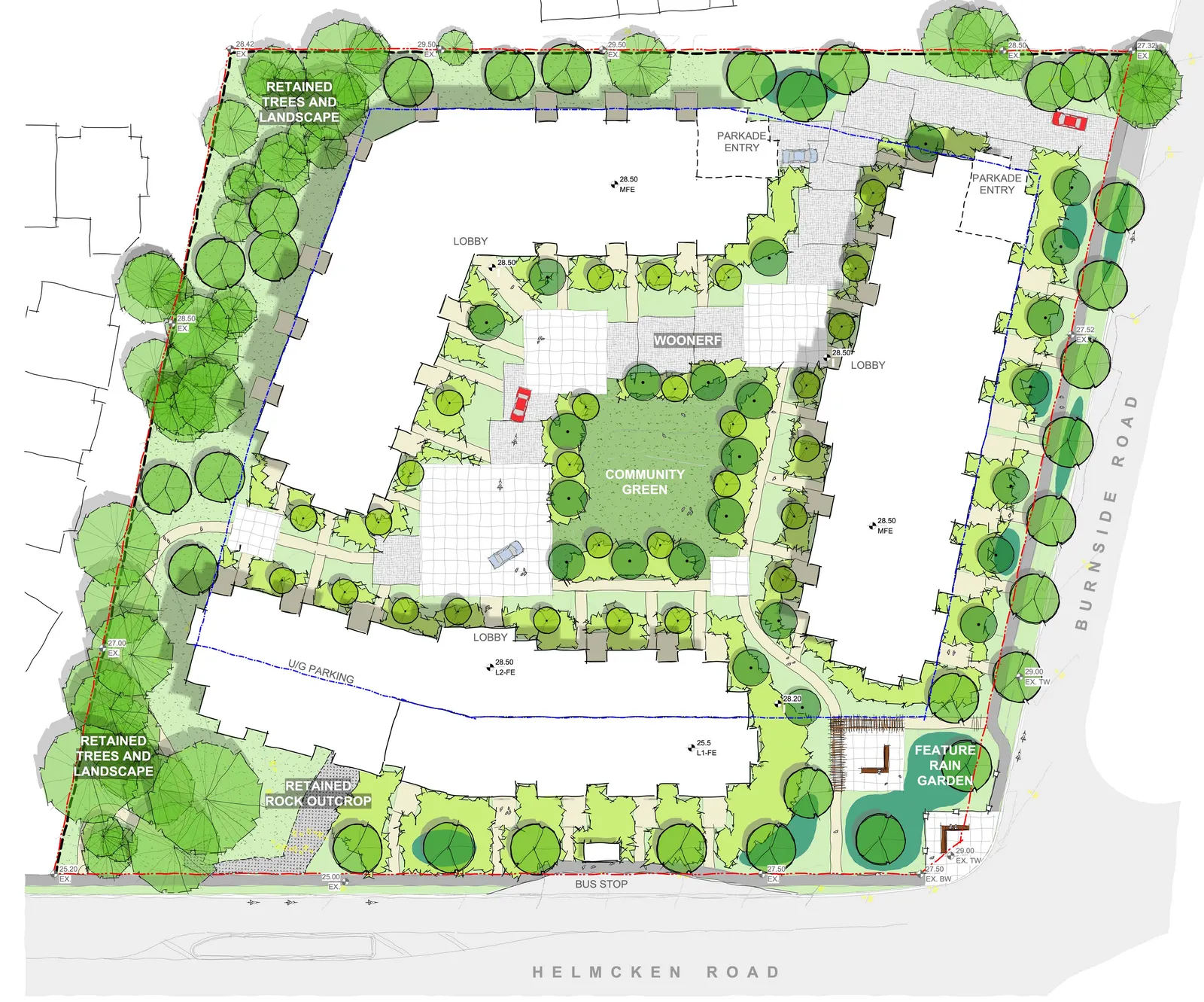

Architectural Site Plan

Project Information

Project Name: Eagle Nest Residences
Address: 3 Helmcken Road, Victoria, BC
Architect: dHKarchitects
Drawing Title: Architectural Site Plan
Drawing No.: A201
Revision No.: 2
Project Number: 1827
Date: 27 FEB 2020
Scale: 1:250
Drawn by: NLC
Checked by: RAW

Note: All dimensions are shown in millimeters.

Revision History

Rev	Date	Description
1	17 SEP 2018	ISSUED FOR REZONING
2	22 JAN 2020	ISSUED FOR REZONING
3	27 FEB 2020	ISSUED FOR REZONING

Building Specifications

Building 1: 6 storeys
- Roof Elevation: 44.0
- L1 Elevation: 28.5
Building 2: 4 storeys (+ 1/2 storey at P1)
- Roof Elevations: 41.9
- L1 Elevation: 28.5
- L0 Elevation: 25.0
Building 3: 5 storeys
- Roof Elevation: 40.9
- L1 Elevation: 28.5

Site Features and Landscaping

Community Green: Central green space.
Woonerf: Shared street space between Building 1 and Building 3.
Feature Rain Garden: Located at the southeast corner near Burnside Road.
Retained Trees and Landscape: Preservation areas along the northern and western property lines.
Retained Rock Outcrop: Located along the southern boundary near Helmcken Road.
Access:
- Two parkade entries.
- Fire truck access lane and turn around (R 9000).
- Bus stop located on Helmcken Road.
- Lobby access for all three buildings.
Parking: Underground (U/G) parking indicated beneath Building 2.

Setbacks and Site Boundaries

North Property Line: 8000 setback.
West Property Line: 7500, 11200, and 13770 setbacks.
South (Helmcken Road): 10500 setback.
East (Burnside Road): 4000 setback.
Additional Dimensions: Building 2 width is 30000; fire truck lane width is 4100; woonerf width is 4600.
